Saturn L100 Fuel Line Set 2001 2.2L FL253-B1A
Retrieving Estimates...
Product Overview

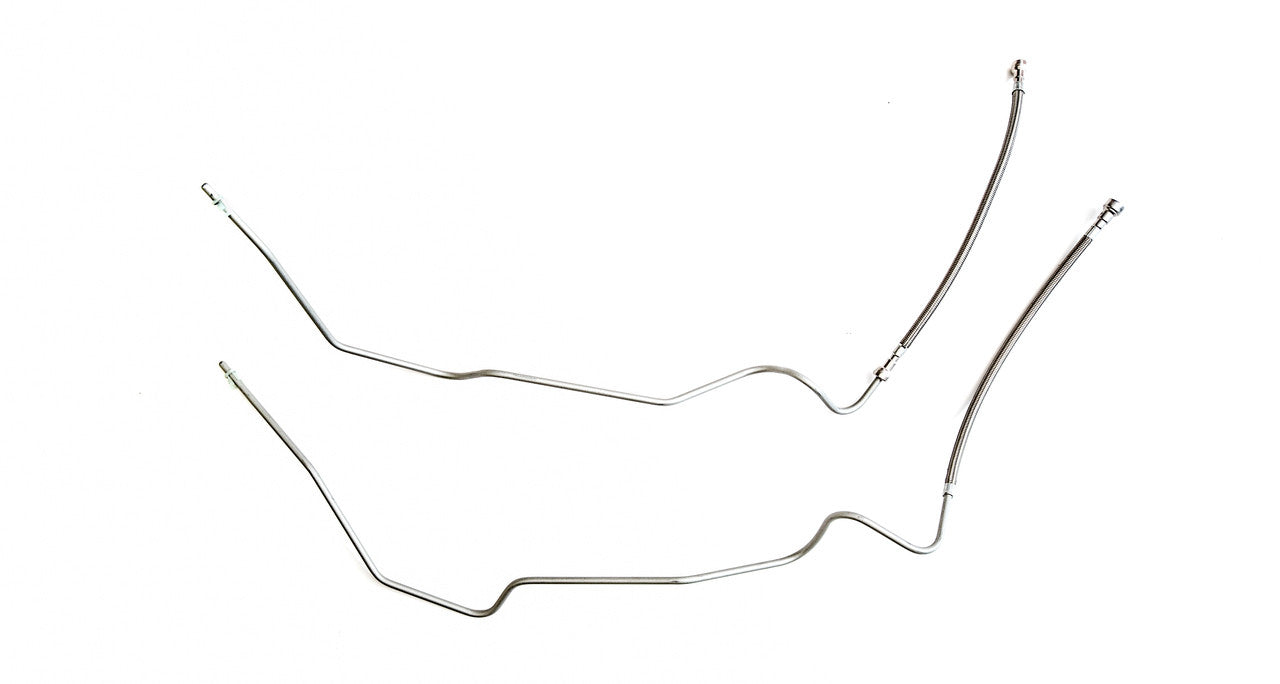

This fuel hose is meant to be used for 2001 models of Saturn L100. The FL253-B1A set is for models with a 2.2L engine and includes one supply line 5/16”, one return line 5/16”, and hoses for the engine connection.

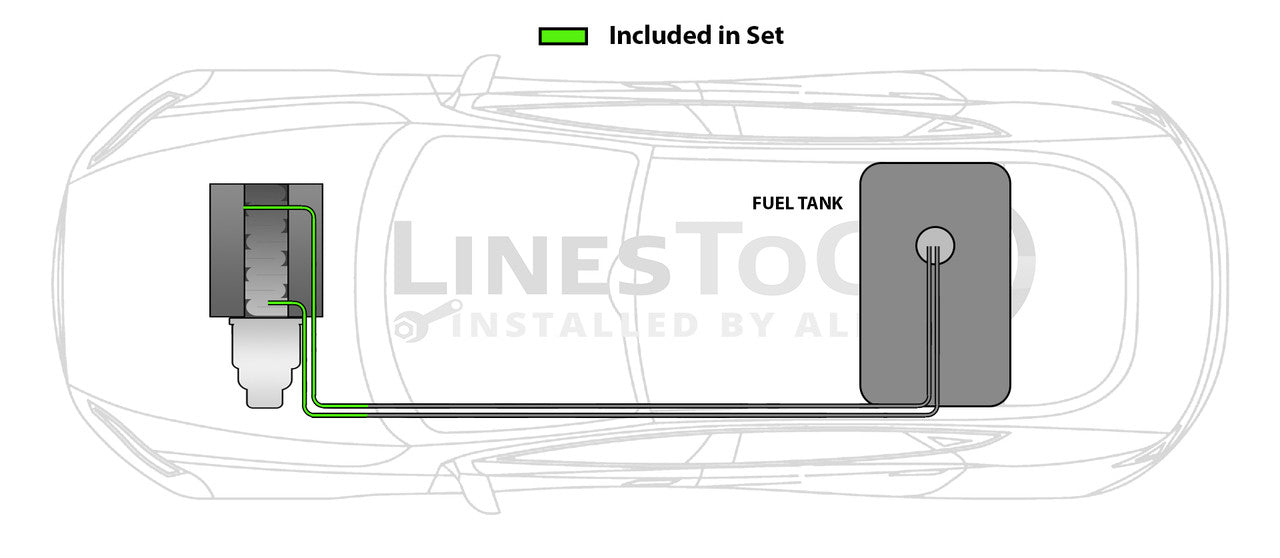

Location: Engine to Nylon Line Connection
On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.
Nylon Repair Kits
3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

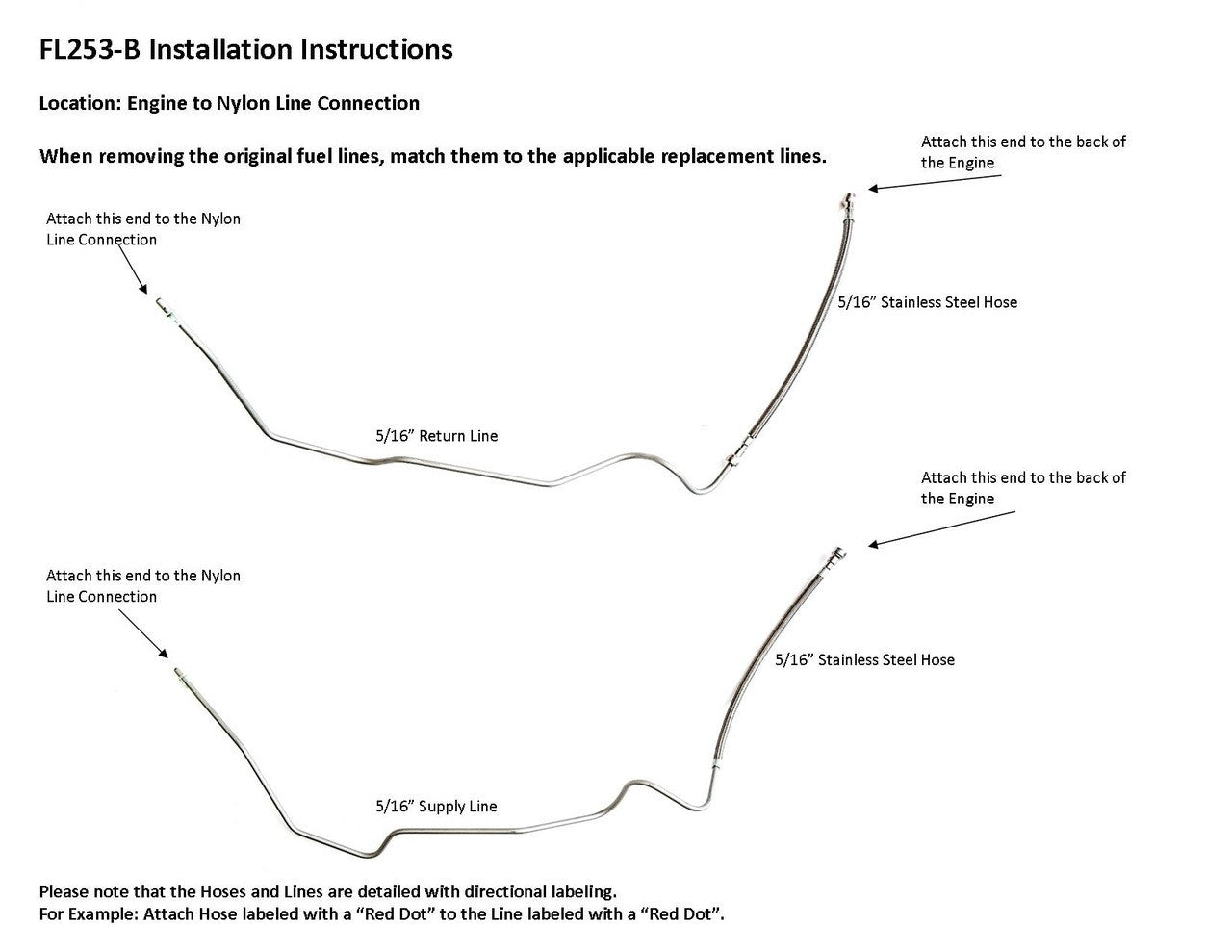

Nylon Installation Instructions:
Step 1
Cut the new nylon hose in the same position as the original nylon hose.
Step 2
Cut the original nylon hose in the same position as the new nylon hose.
Step 3
Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.
OEM Part Number: 09156403, 09156402
Included in Set: 1 supply line 5/16", 1 return line line 5/16", hoses to engine connection
Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Warranty: 1 Year
Box Dimensions: 38" X 12" X 7"
