Pontiac G5 Fuel Line Set 2010 2.2L FL255-A3D
Pontiac G5 Fuel Line Set 2010 2.2L FL255-A3D
Delivery Time & Rates
Shop LinesToGo for your 2010 Pontiac G5 fuel lines. The FL255-A3D set is crafted for Pontiac G5 models with 2.2L engines.

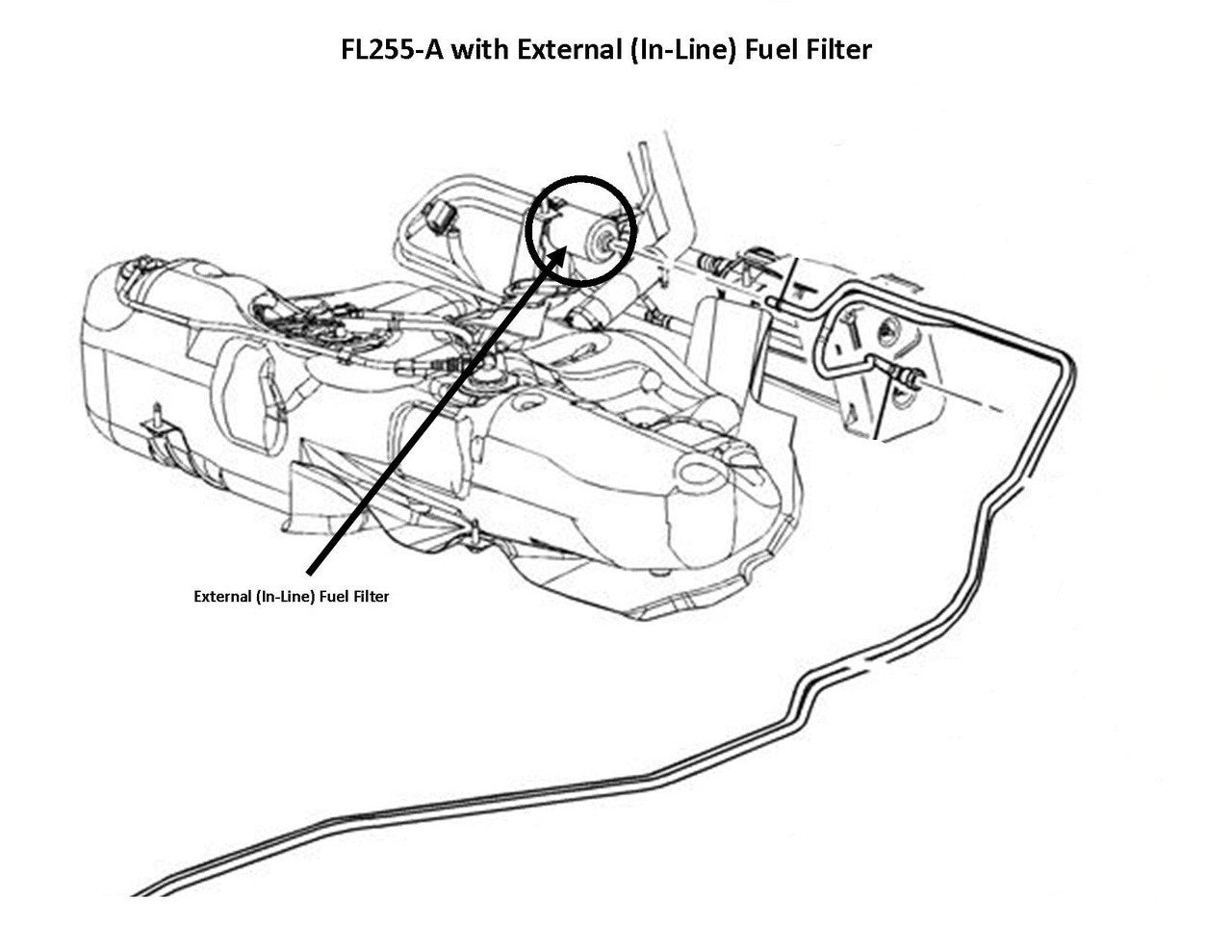

Please Note: Before installing your replacement fuel line make sure the fuel filter is tight on the supply line. If the fuel filter is loose, push the fuel filter firmly on to the Supply line until there is a “click".
Nylon Line Attached to Vapor Line
The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will easily splice on to the original nylon vapor line on the vehicle.

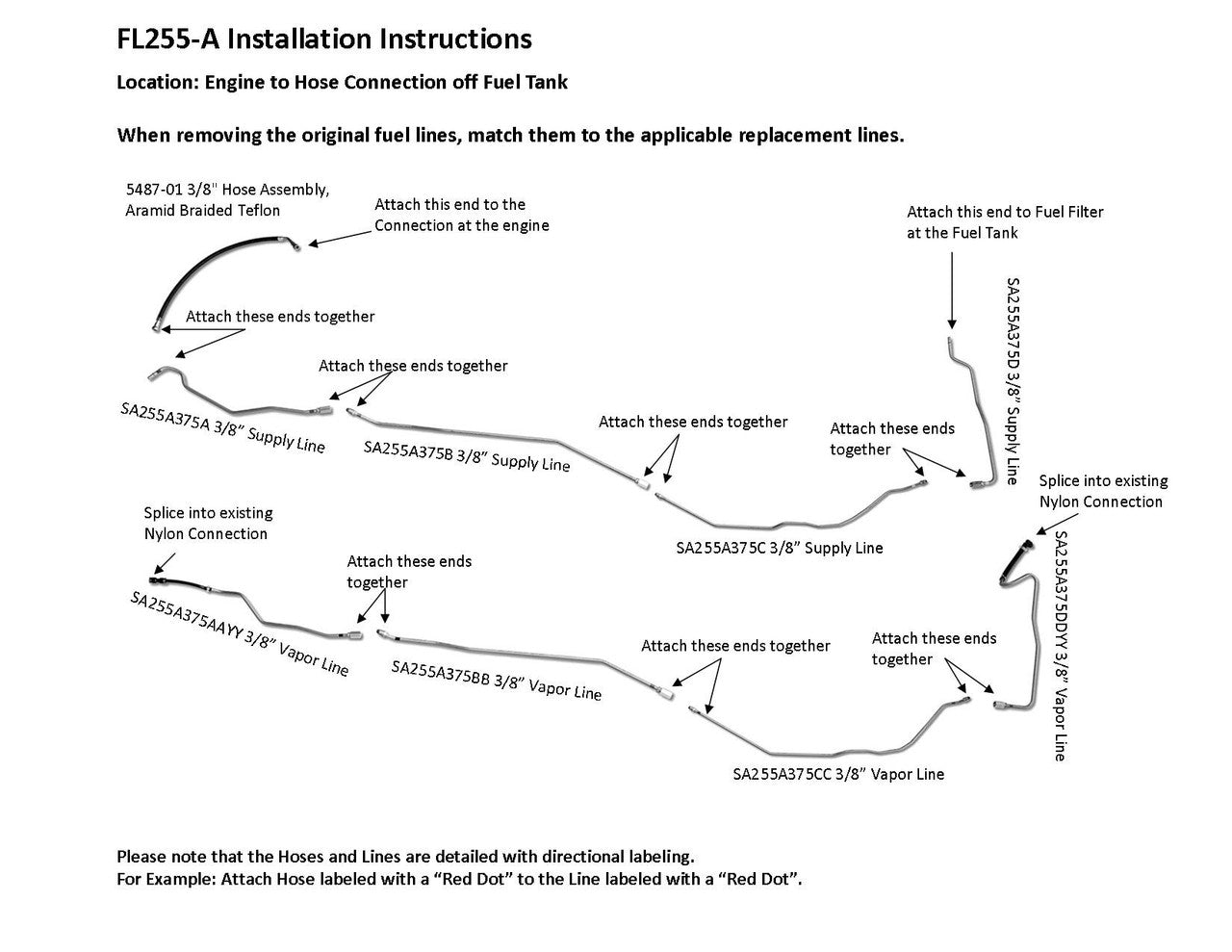

Engine to Hose Connection off Fuel Tank

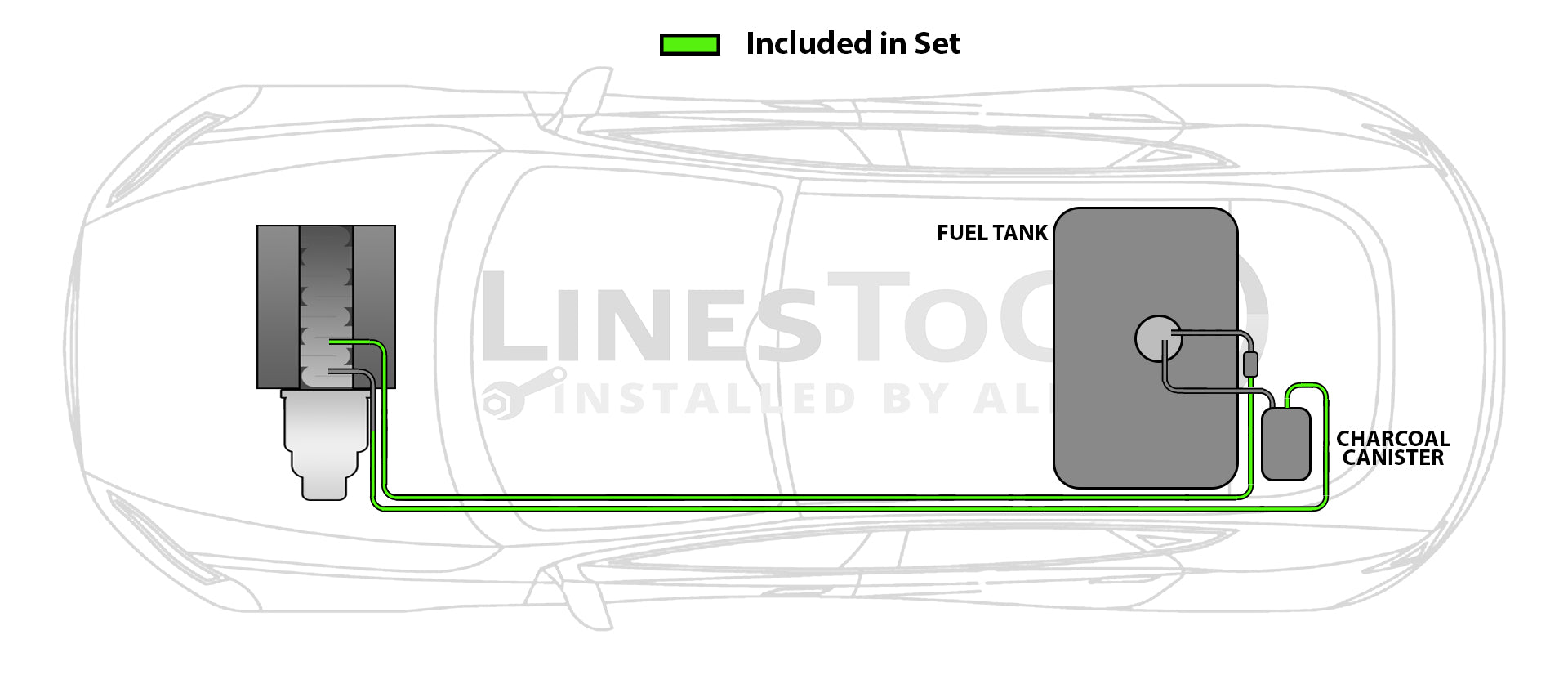

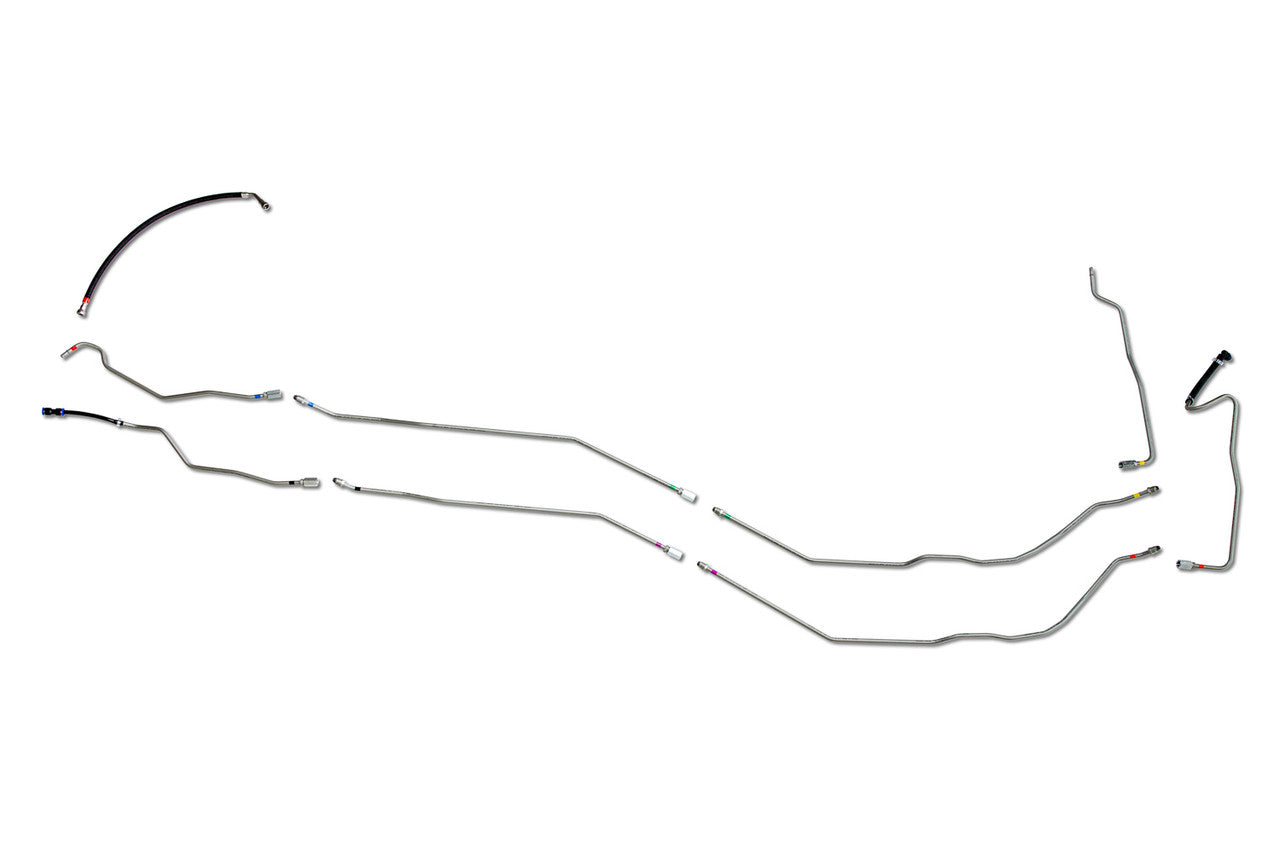

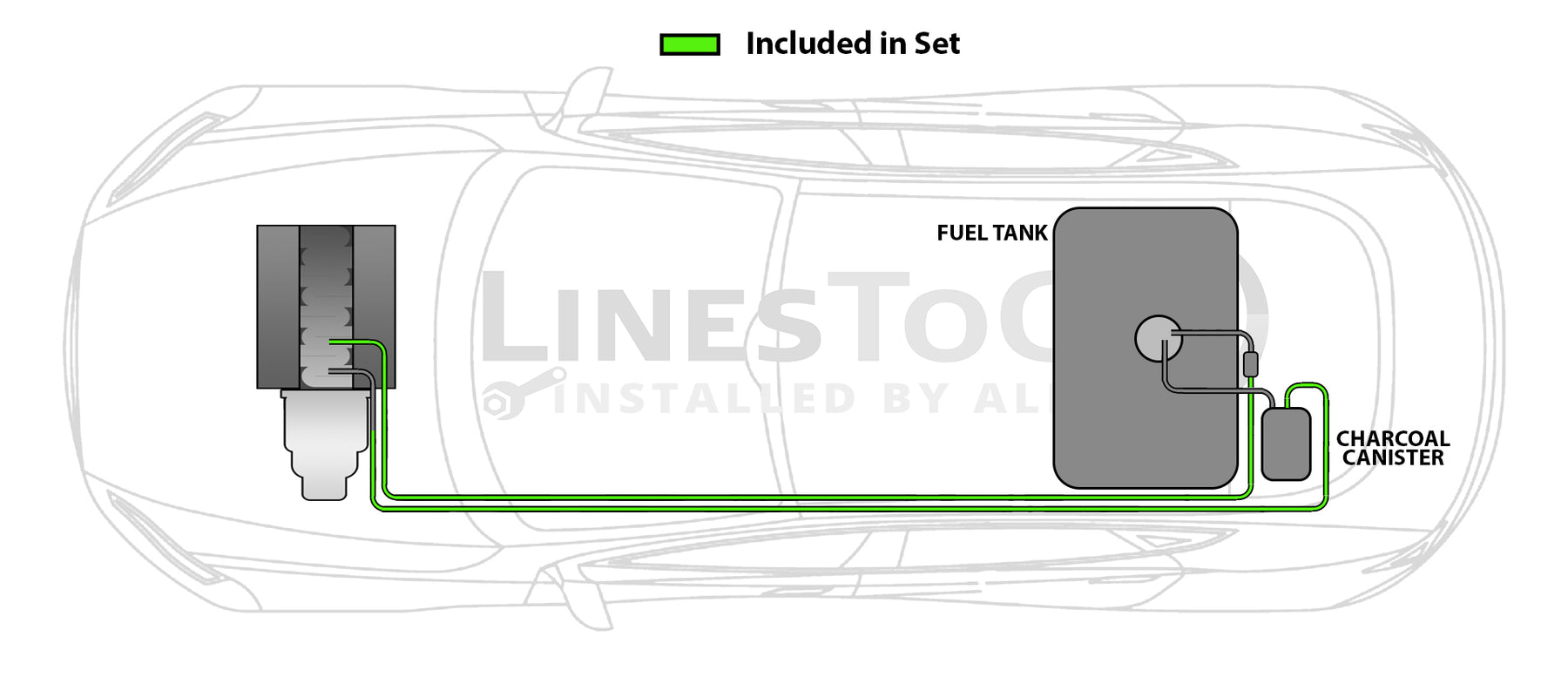

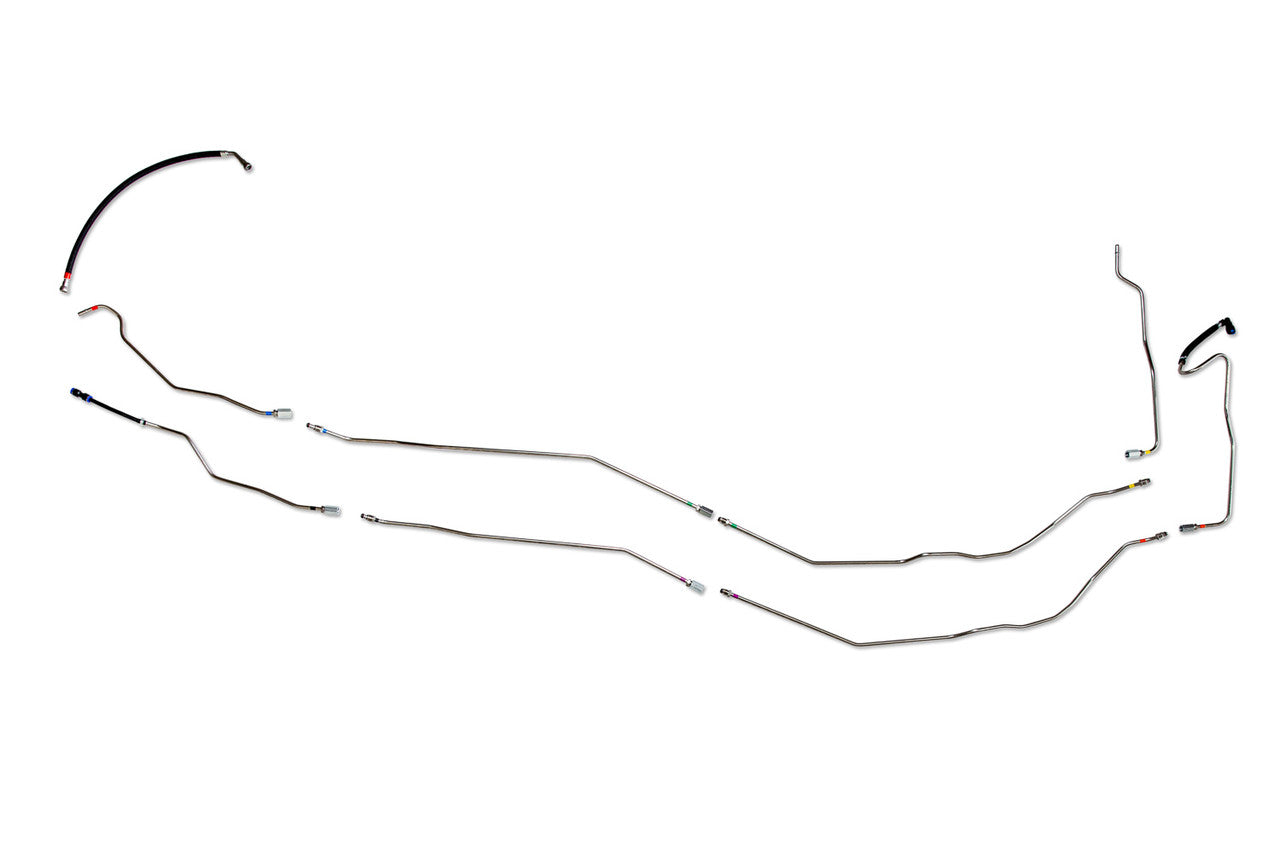

1 supply line 3/8" ( in 4 easy to install sections), 1 vapor line 3/8" ( in 4 easy to install sections), hose to engine connection, 1 fuel filter, nylon lines with unions, 6 unions
Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
