Oldsmobile Cutlass Brake Line Set 1977 6.6L BLC-228-SS9R Stainless Steel
w/Front Disc/Rear Drum Brakes
Oldsmobile Cutlass Brake Line Set 1977 6.6L BLC-228-SS9R Stainless Steel
w/Front Disc/Rear Drum Brakes
Delivery Time & Rates
Install this pre bent 1977 Oldsmobile Cutlass brake line set in no time!
Brake Line Set Stainless Steel 1977 Oldsmobile Cutlass w/Front Disc/Rear Drum and 6.6L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLC228-05A-SS, BLC228-05B-SS. See the video below on how to remove the shipping bend
- Weight: 4

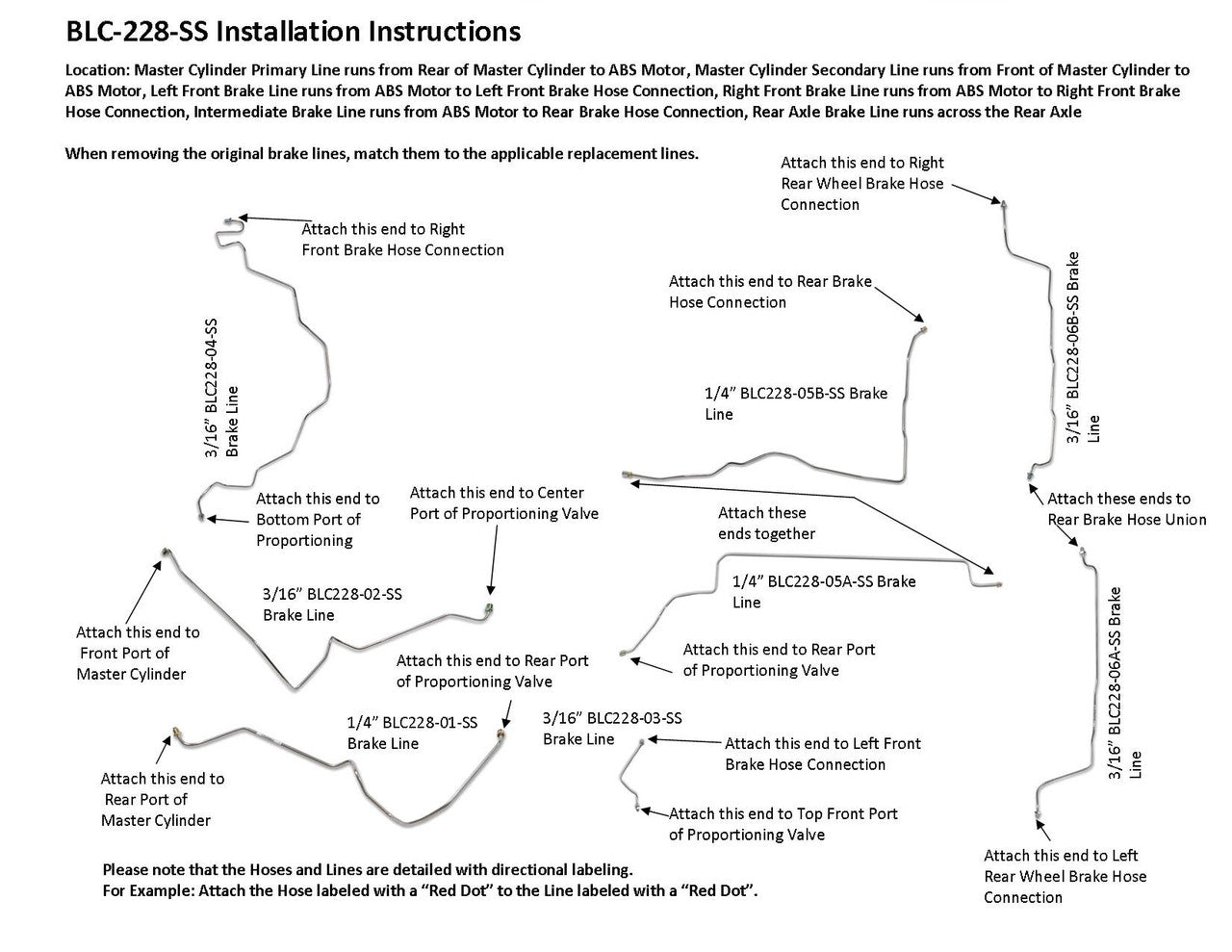

- Installation Instructions
Master Cylinder Primary Line runs from Rear of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle

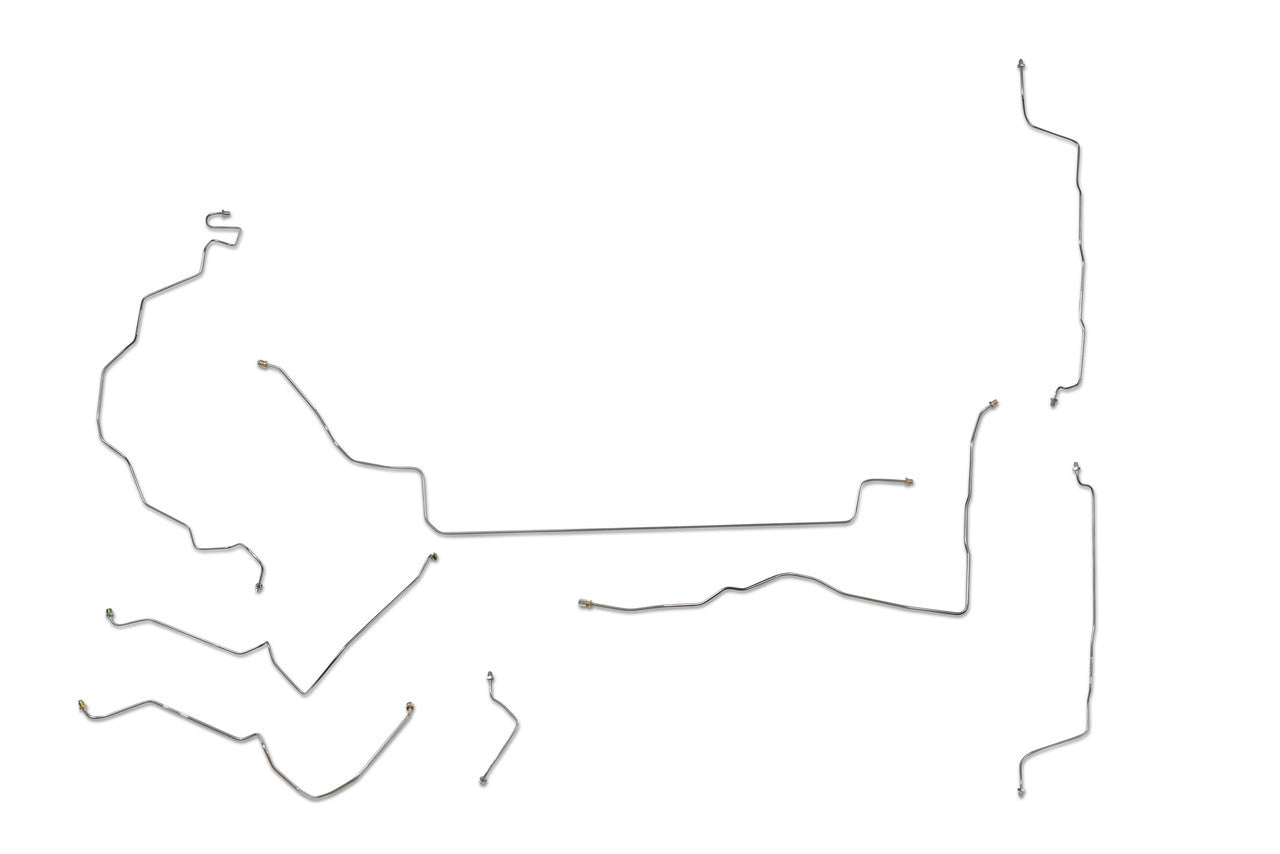

1 Master Cylinder Primary Line 1/4", 1 Master Cylinder Secondary Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Intermediate Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
