Shop LinesToGo for your 1996 Bravada fuel lines. The FL485-B3 set of fuel lines were crafted for models with 4 doors and a plastic fuel tank sending unit.

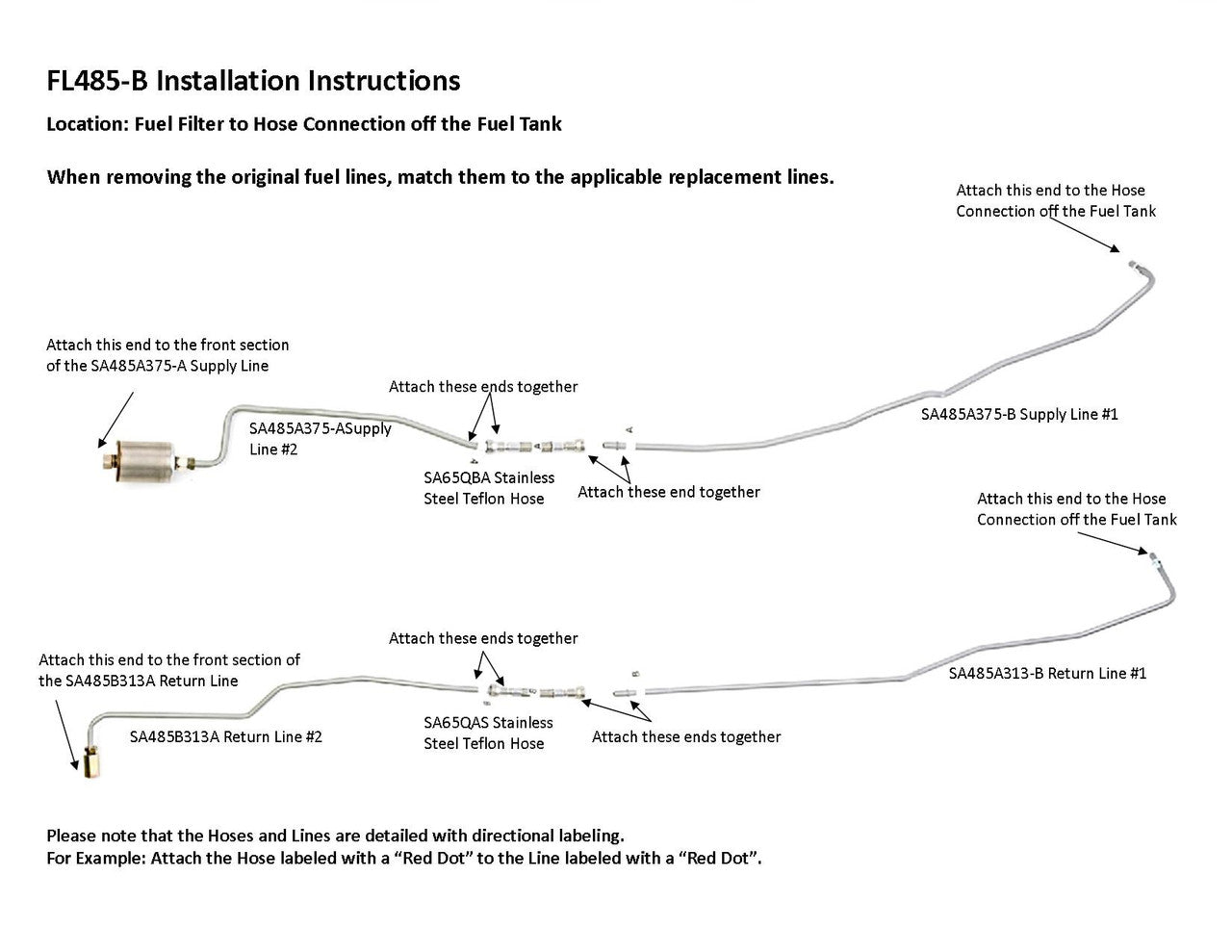

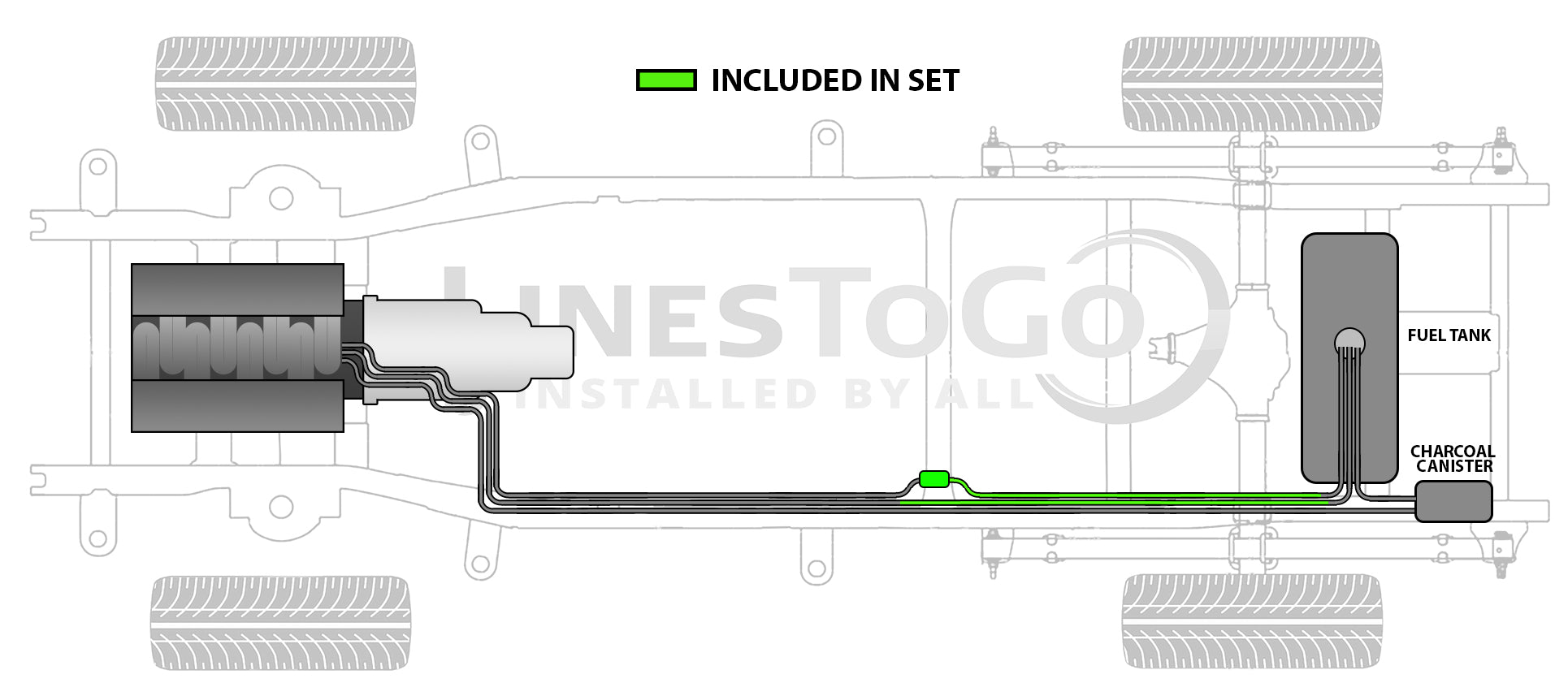

Location: Fuel Filter to Hose Connection off Fuel Tank

Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them.

Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines.

If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector.

OEM Part Number: 15704602, 15704608

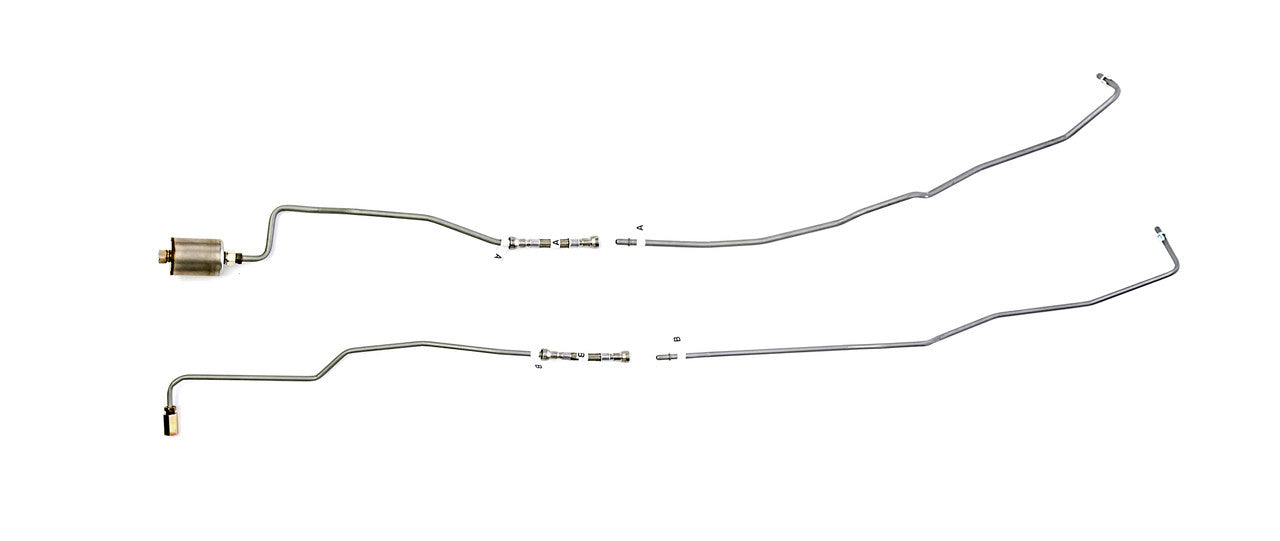

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), hoses to join rear sections, 1 fuel filter, 1 union

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 51" x 6" x 4"
