Install this prebent 2004 Jaguar X-Type brake line set in no time!
Stainless Steel Brake Line Set 2004 Jaguar X-Type for 3.0L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLJR100-05A-SS, BLJR100-05C-SS, BLJR100-06A-SS and BLJR100-06C-SS. See the video below on how to remove the shipping bend
- Weight: 5

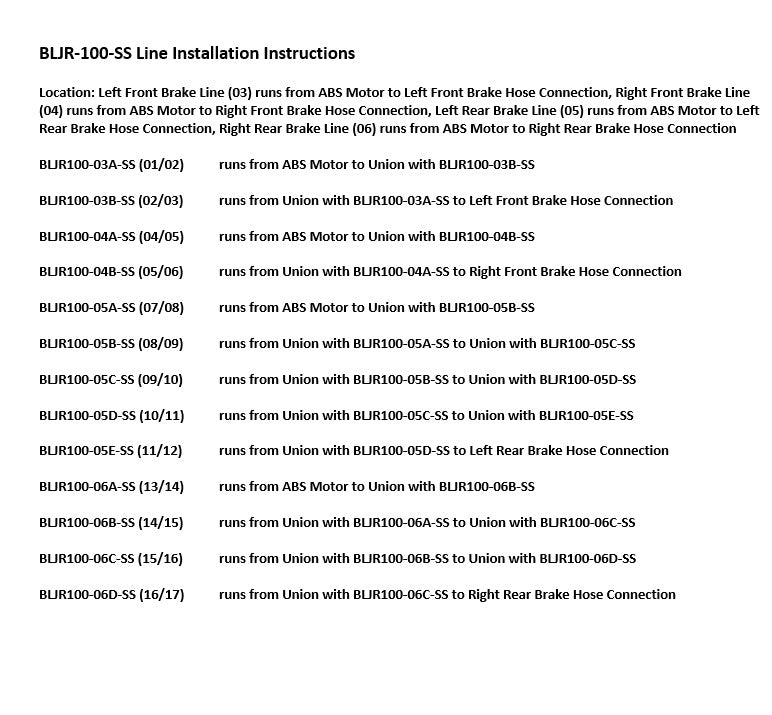

- Installation Instructions

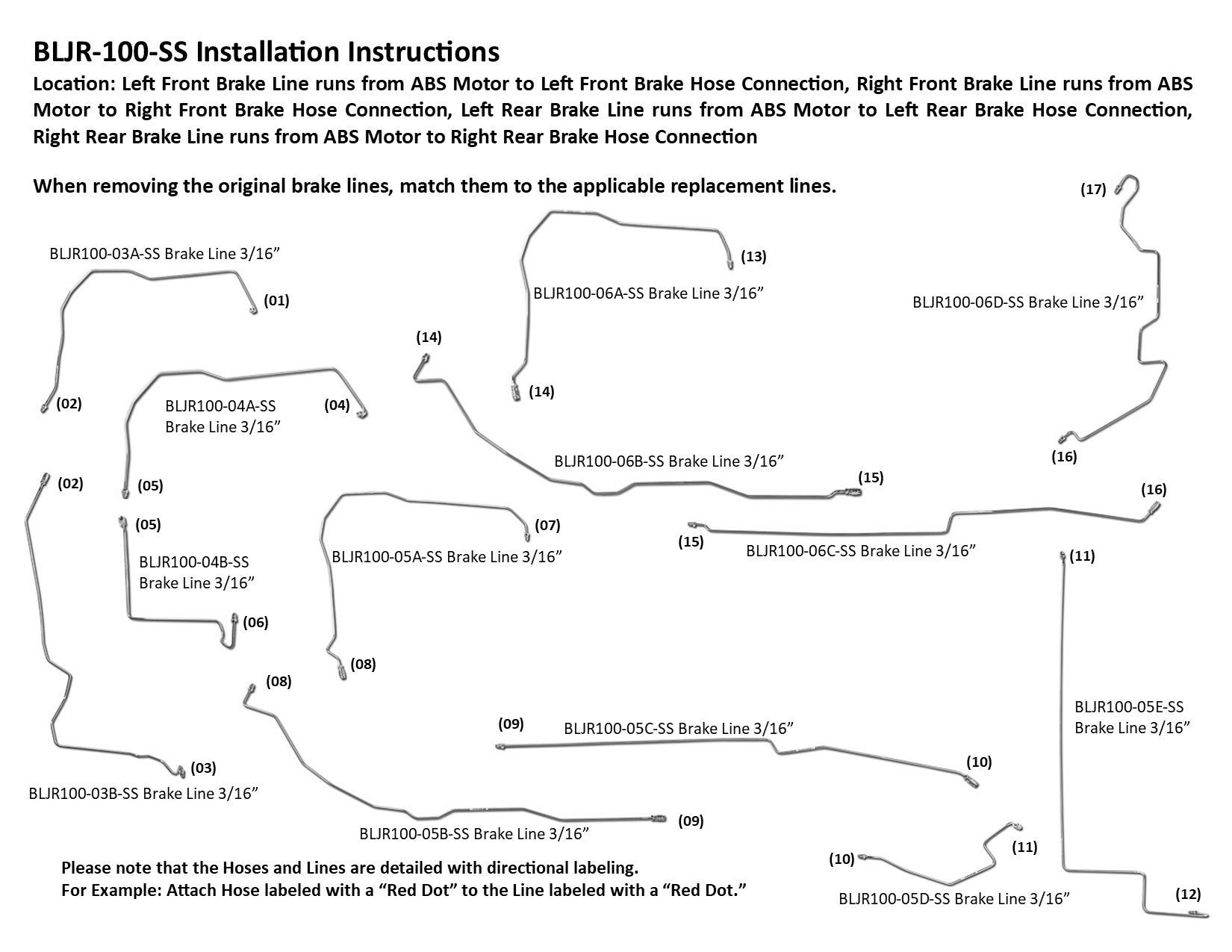

Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from ABS Motor to Right Rear Brake Hose Connection

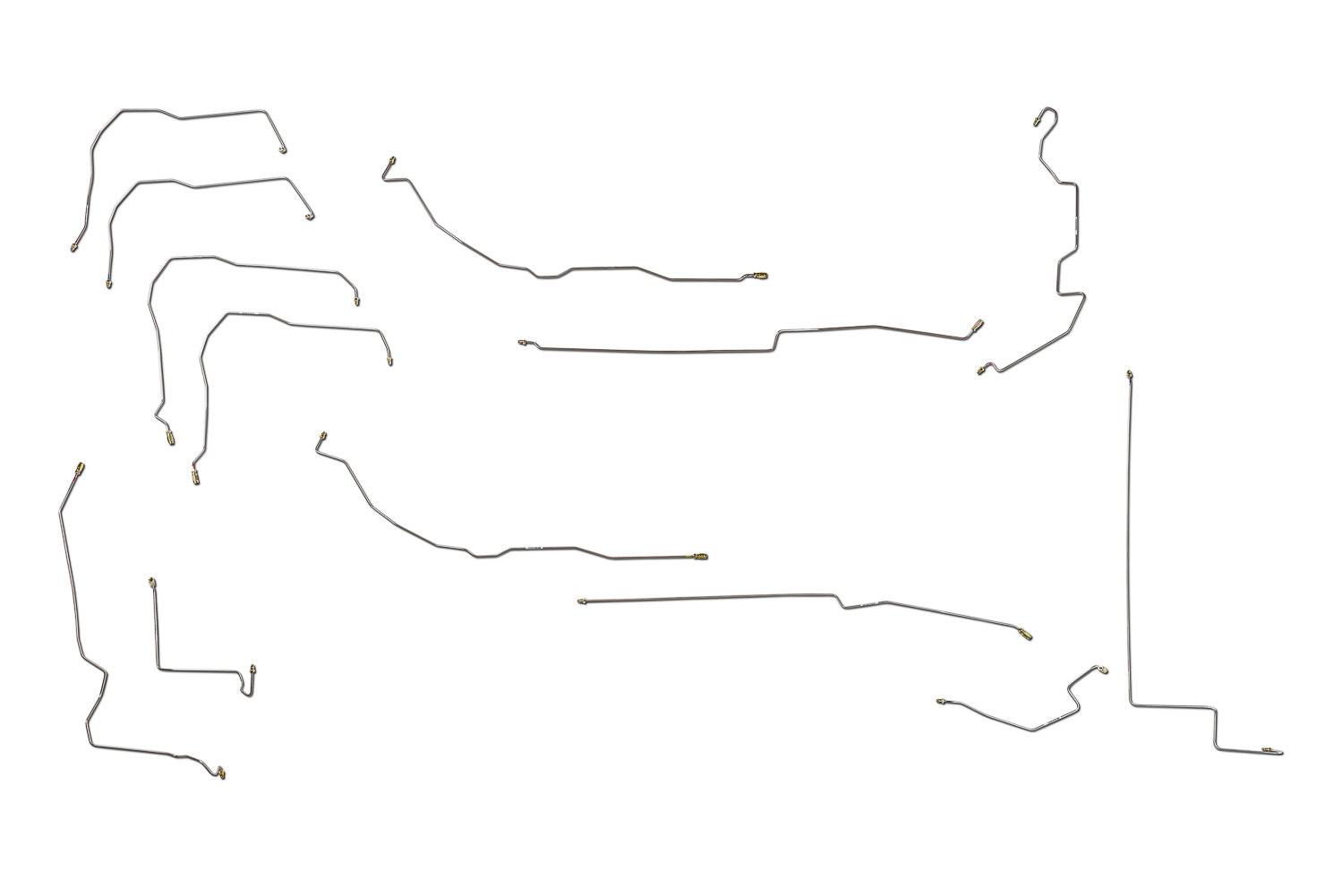

1 Left Front Brake Line 3/16" (in 2 easy to install sections), 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16" (in 5 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
