Shop LinesToGo for your 1989 GMC Suburban fuel lines. The FL507-G2J set of fuel lines are perfect for GMC Suburban V1500 4WD models for 5.7L Gas engines.

SKU: FL507-G2J
Box Dimensions 57" x 11" x 7"

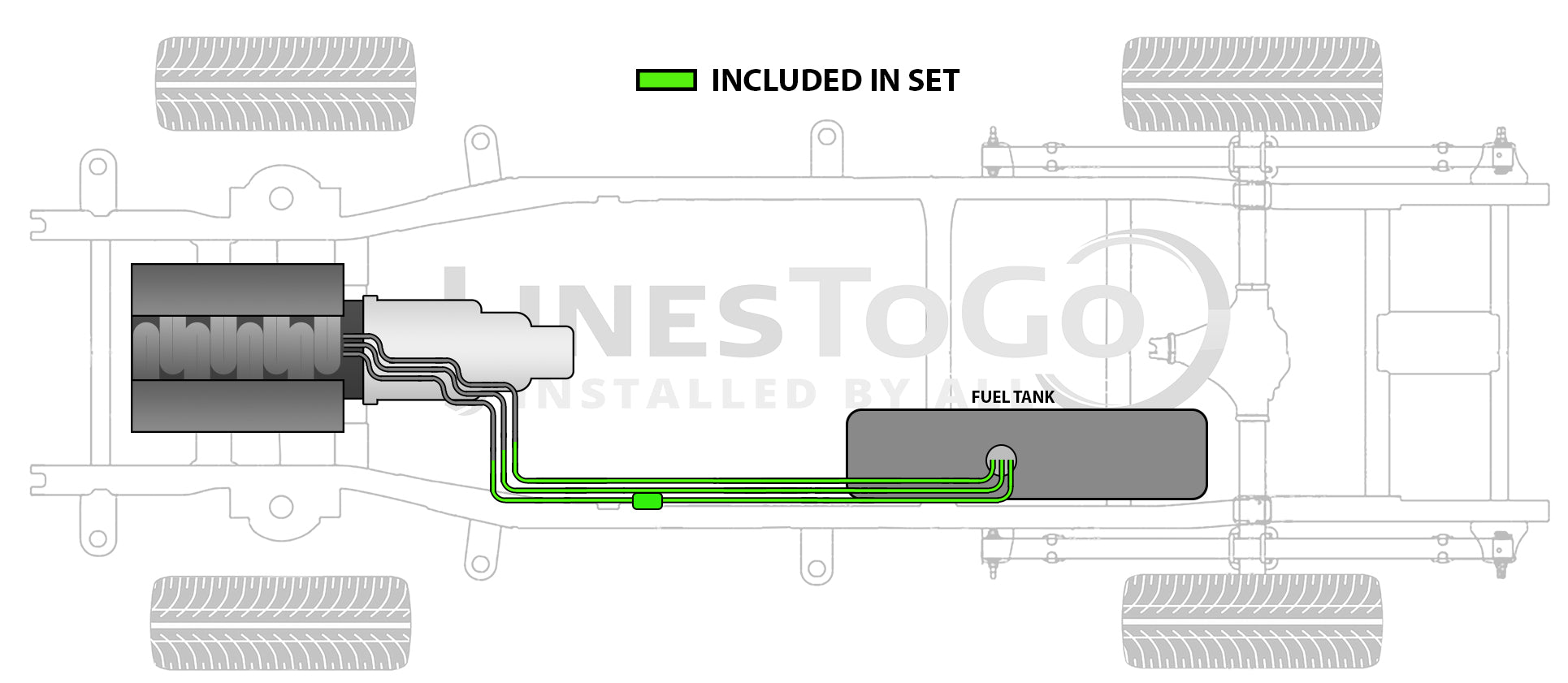

Hose Connection at the Frame Rail to Fuel Tank (Intermediate and Rear)

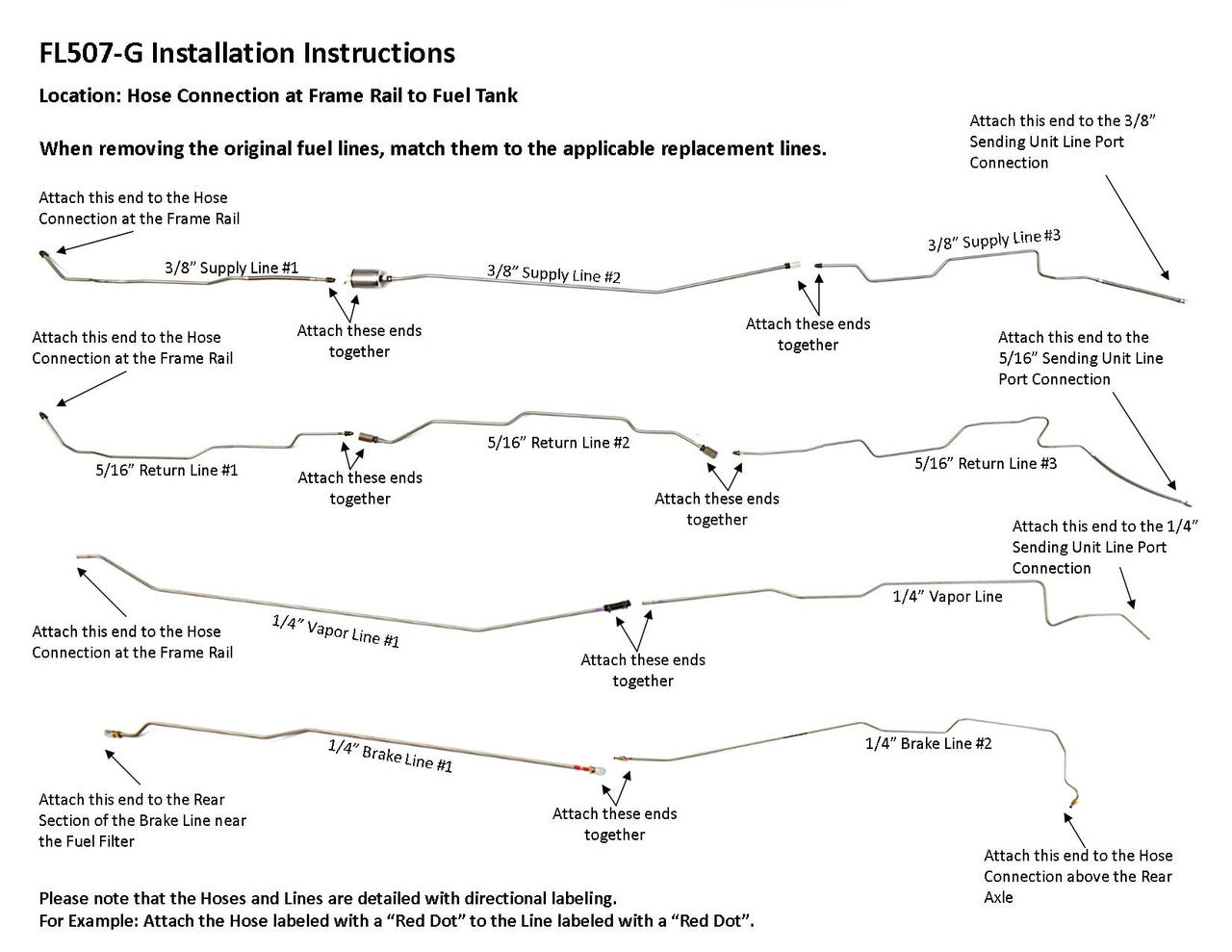

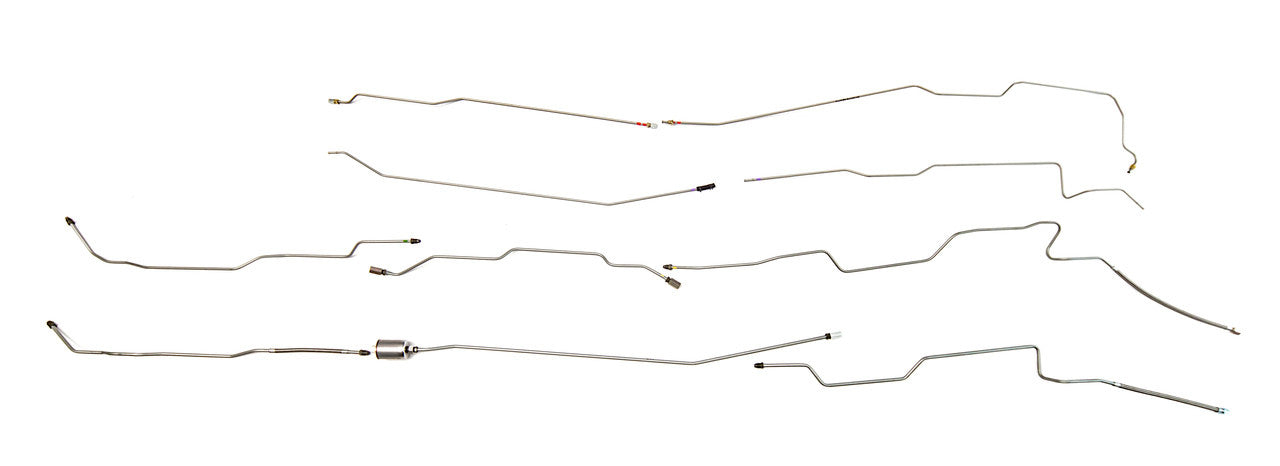

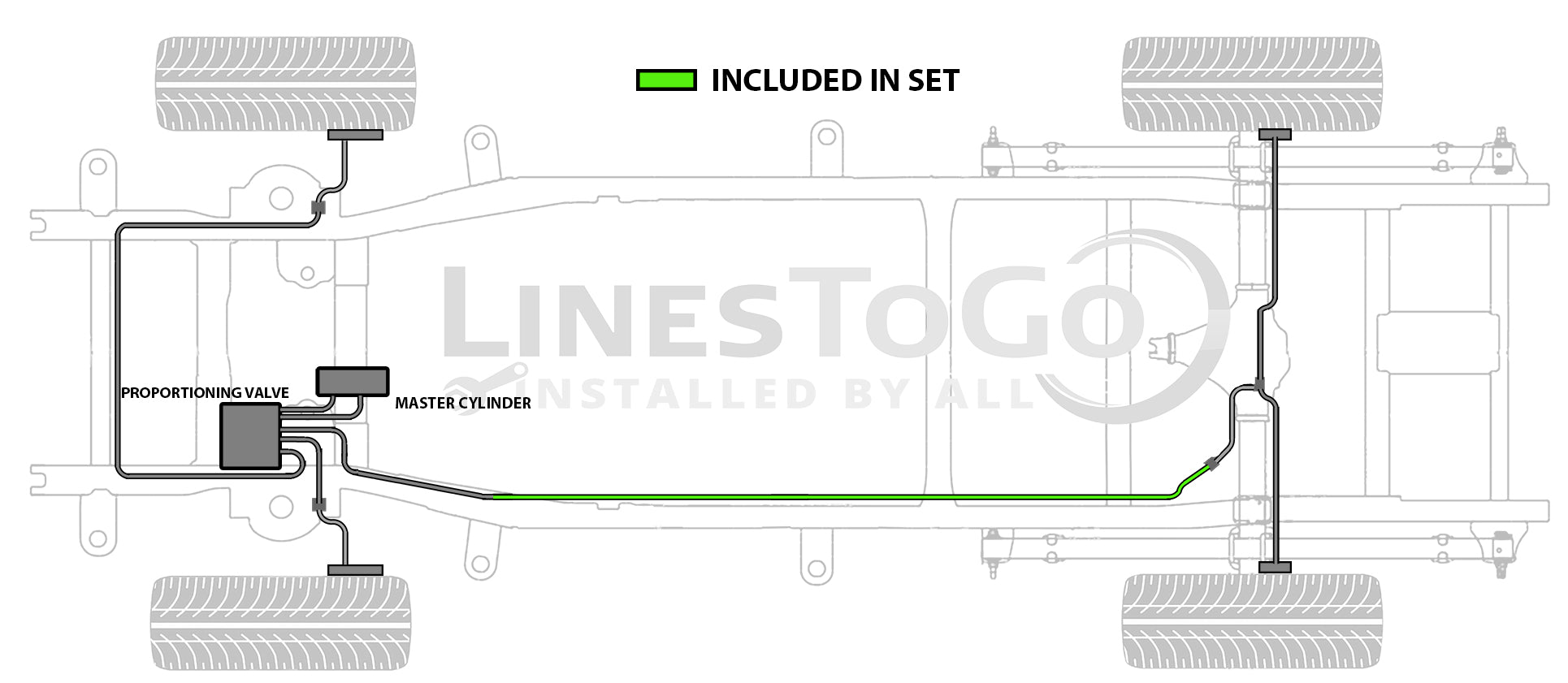

1 supply line 3/8" ( in 3 easy to install sections), 1 return line 5/16" ( in 3 easy to install sections), 1 vapor line 1/4" ( in 2 easy to install sections), 1 brake line 1/4" ( in 2 easy to install sections), hoses to sending unit connection, 1 fuel filter, 5 unions

Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: 3234-01, 3176-01

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-505250
