GMC Sonoma Truck Rear Fuel Line Set 1996 Ext Cab 6 ft Bed 4.3L FL1062-E2

45˚ bent Return Line @ Front Connection

GMC Sonoma Truck Rear Fuel Line Set 1996 Ext Cab 6 ft Bed 4.3L FL1062-E2
GMC Sonoma Truck Rear Fuel Line Set 1996 Ext Cab 6 ft Bed 4.3L FL1062-E2
GMC Sonoma Truck Rear Fuel Line Set 1996 Ext Cab 6 ft Bed 4.3L FL1062-E2
GMC Sonoma Truck Rear Fuel Line Set 1996 Ext Cab 6 ft Bed 4.3L FL1062-E2
GMC Sonoma Truck Rear Fuel Line Set 1996 Ext Cab 6 ft Bed 4.3L FL1062-E2
GMC Sonoma Truck Rear Fuel Line Set 1996 Ext Cab 6 ft Bed 4.3L FL1062-E2

GMC Sonoma Truck Rear Fuel Line Set 1996 Ext Cab 6 ft Bed 4.3L FL1062-E2

45˚ bent Return Line @ Front Connection

MSRP: from
SALE: from
Save $46.98
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL1062-E2
  • Weight: 3

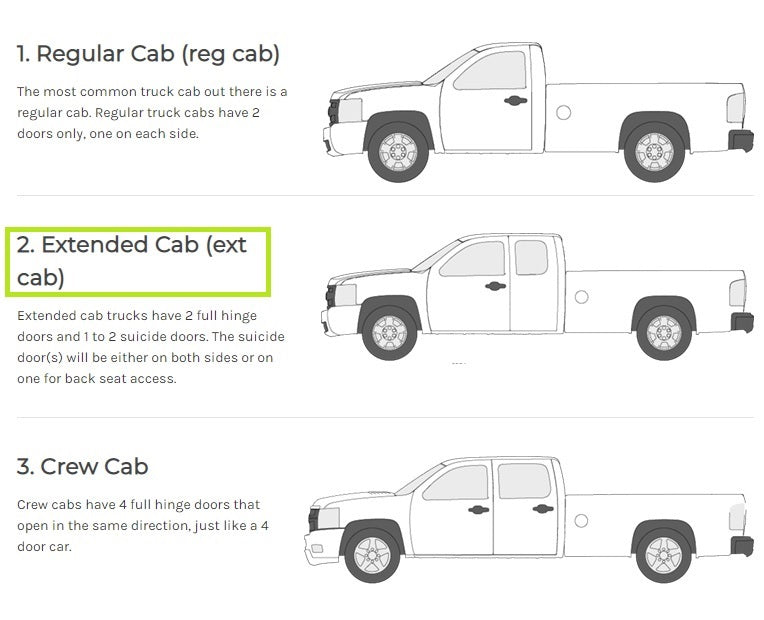

Shop LinesToGo for your 1996 Sonoma truck. The FL1062-E2 set of fuel lines are perfect for any truck with 45? bent Return Line @ Front Connection, an extended cab, 6 foot bed and 4.3L engine.

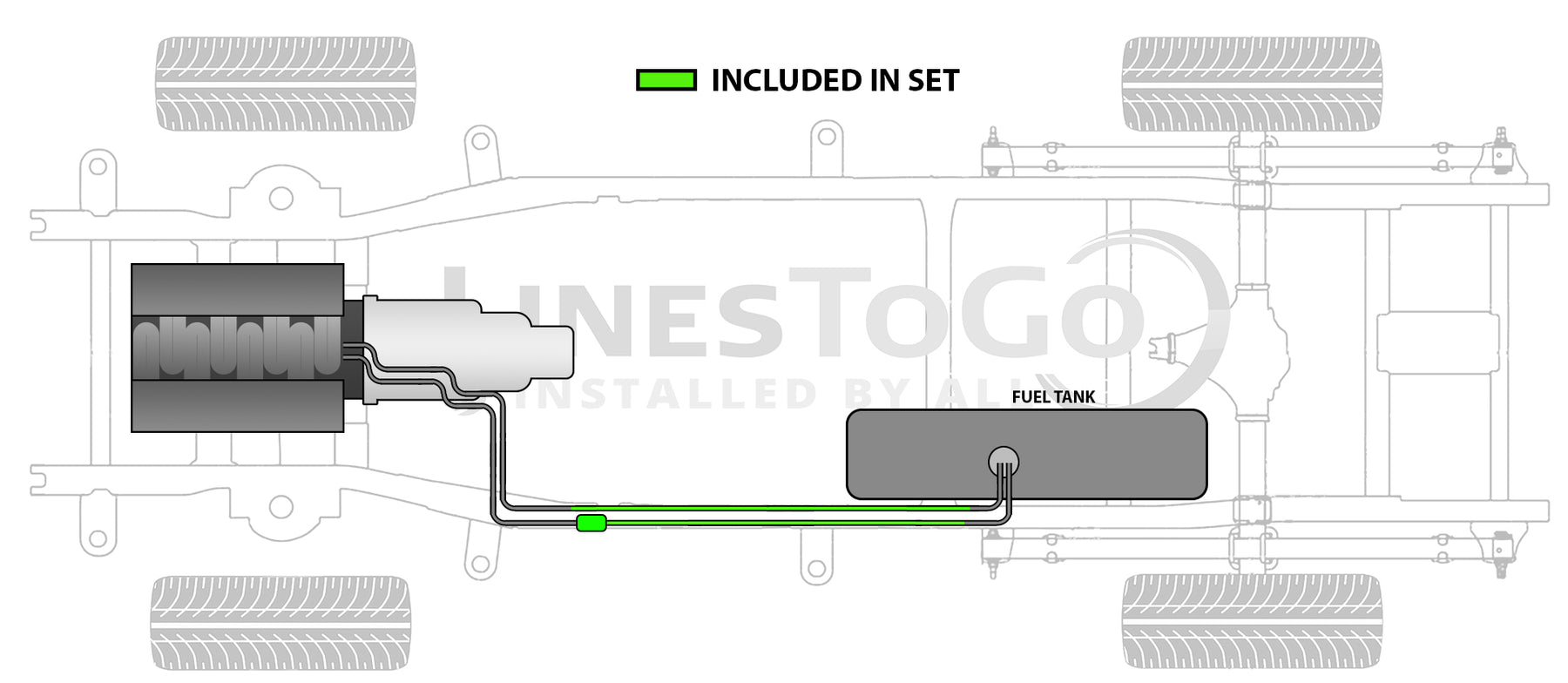

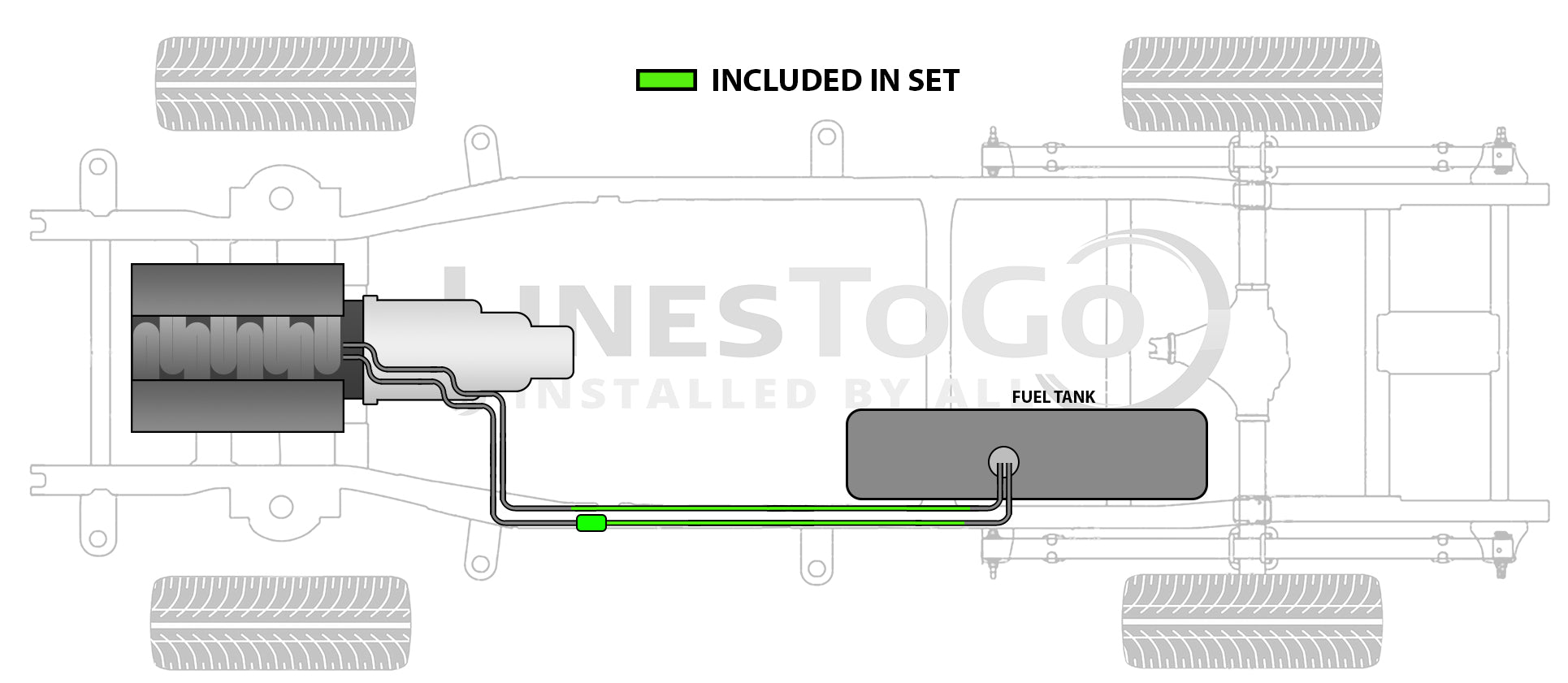

Location: Fuel Filter to Hose Connection off Fuel Tank

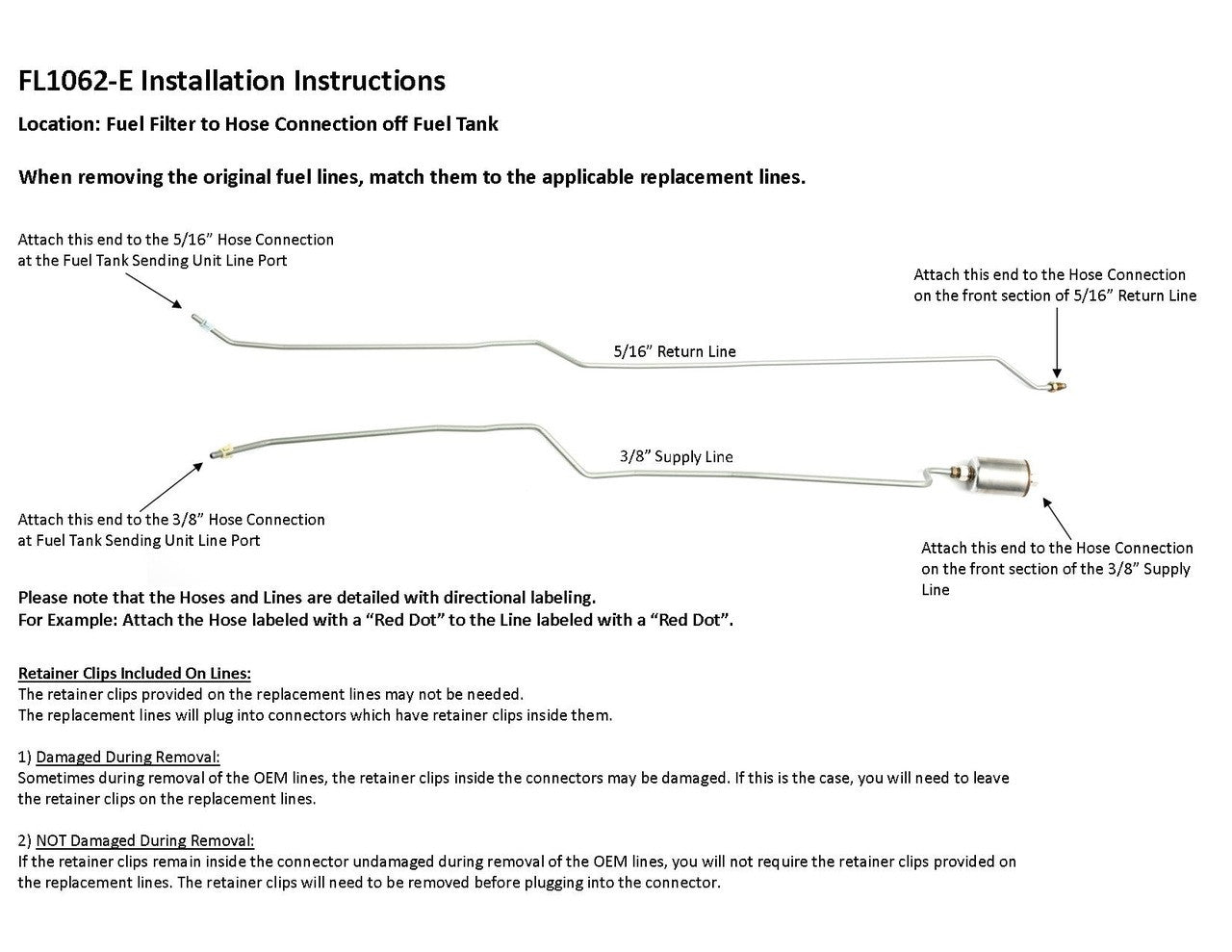

Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them.

Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines.

If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector.

OEM Part Number: 15730189. 15730195

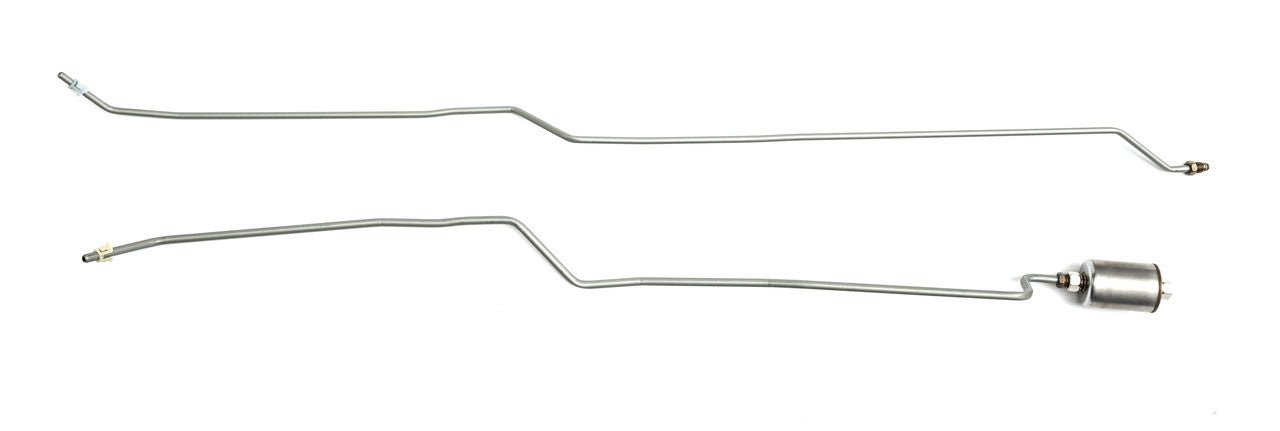

Included in Set: 1 supply line 3/8", 1 return line 5/16", 1 fuel filter

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 56" x 6" x 4"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
