GMC Sierra Brake Line Set 2015 2500HD 4WD Crew Cab 6.5ft Bed 6.0L BLC-250-SS4A Stainless Steel
GMC Sierra Brake Line Set 2015 2500HD 4WD Crew Cab 6.5ft Bed 6.0L BLC-250-SS4A Stainless Steel
Delivery Time & Rates
Install this pre bent 2015 GMC Sierra brake line set in no time!
Stainless Steel Brake Line Set 2015 GMC Sierra 2500HD 4WD Crew Cab 6.5ft Bed for 6.0L engines.
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC250-01-SS, BLC250-02-SS, BLC250-04C-SS, BLC250-05A-SS and BLC250-06A-SS. See the video below on how to remove the shipping bend
- Weight: 7

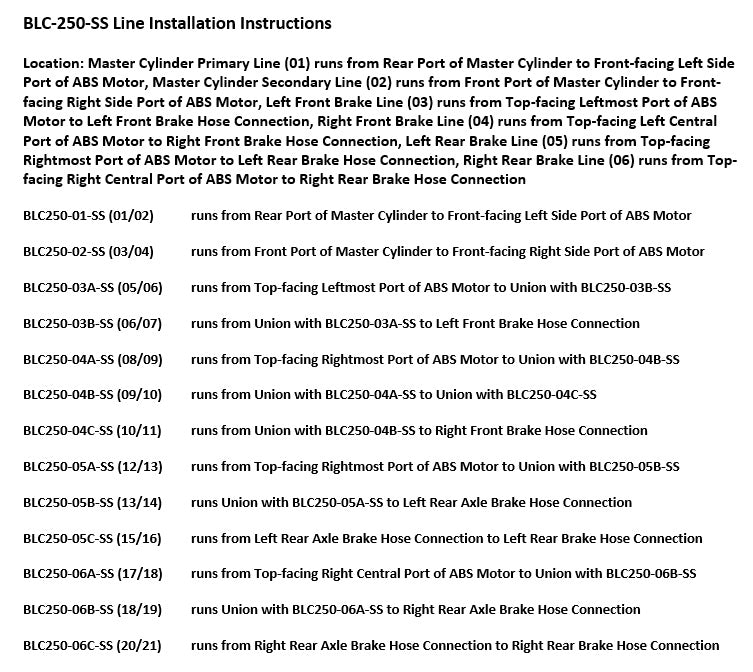

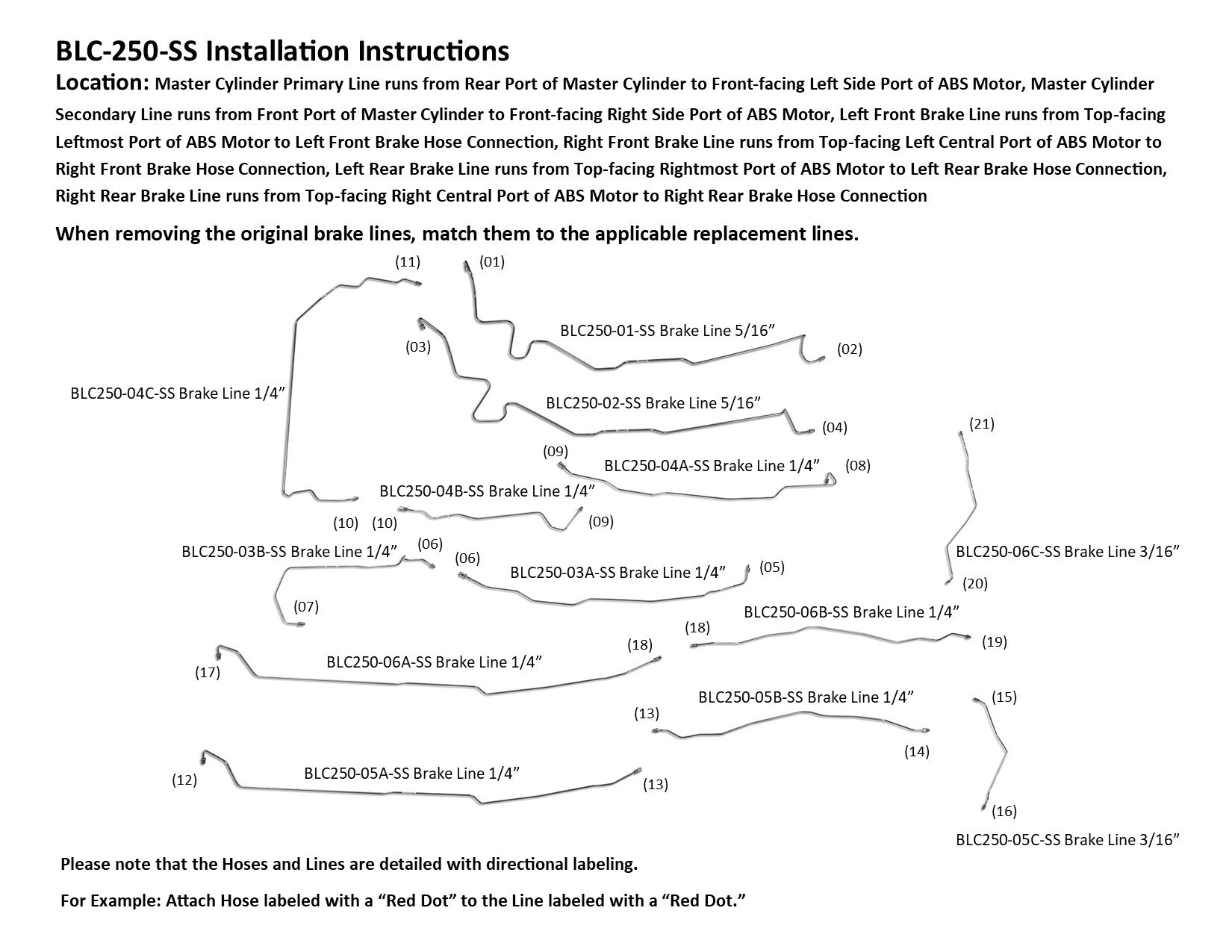

- Installation Instructions

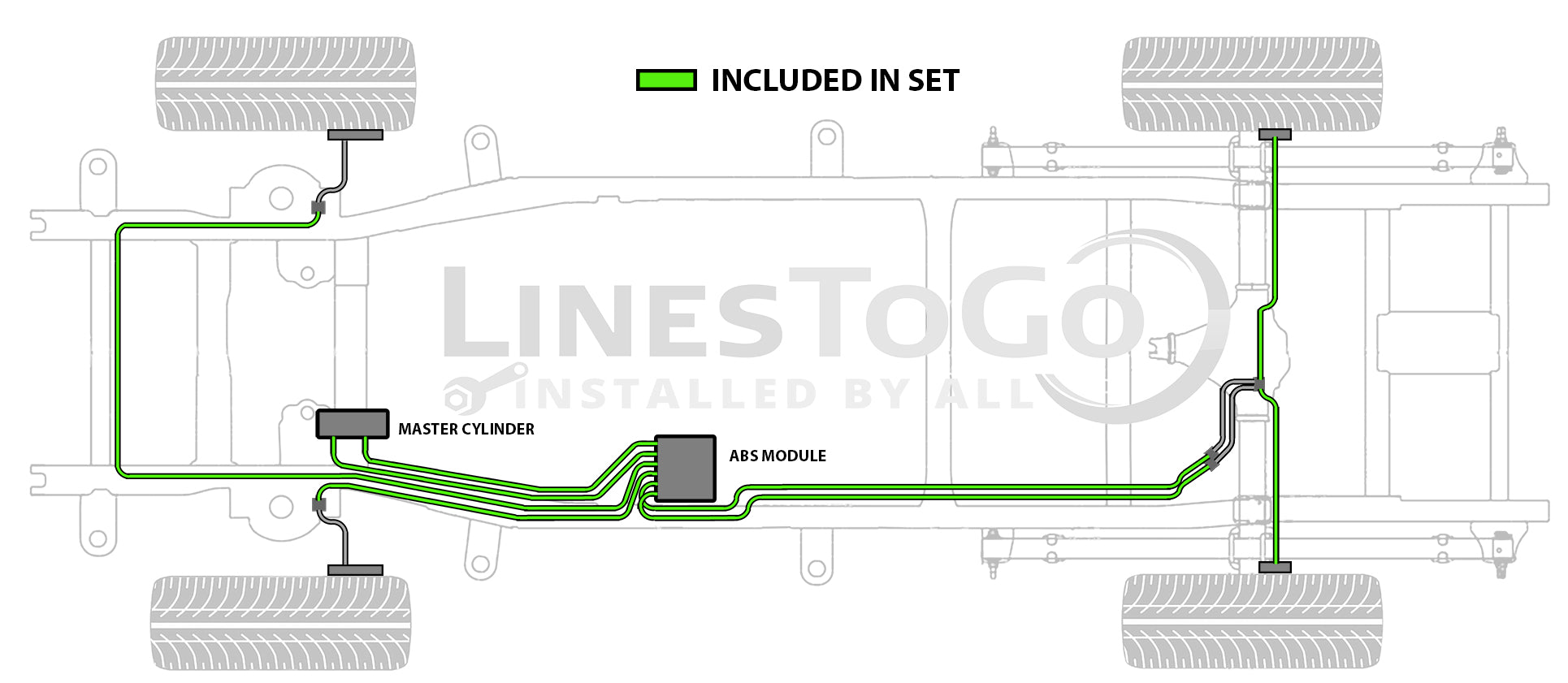

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Front-facing Left Side Port of ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Front-facing Right Side Port of ABS Motor, Left Front Brake Line runs from Top-facing Leftmost Port of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Top-facing Left Central Port of ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from Top-facing Rightmost Port of ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from Top-facing Right Central Port of ABS Motor to Right Rear Brake Hose Connection

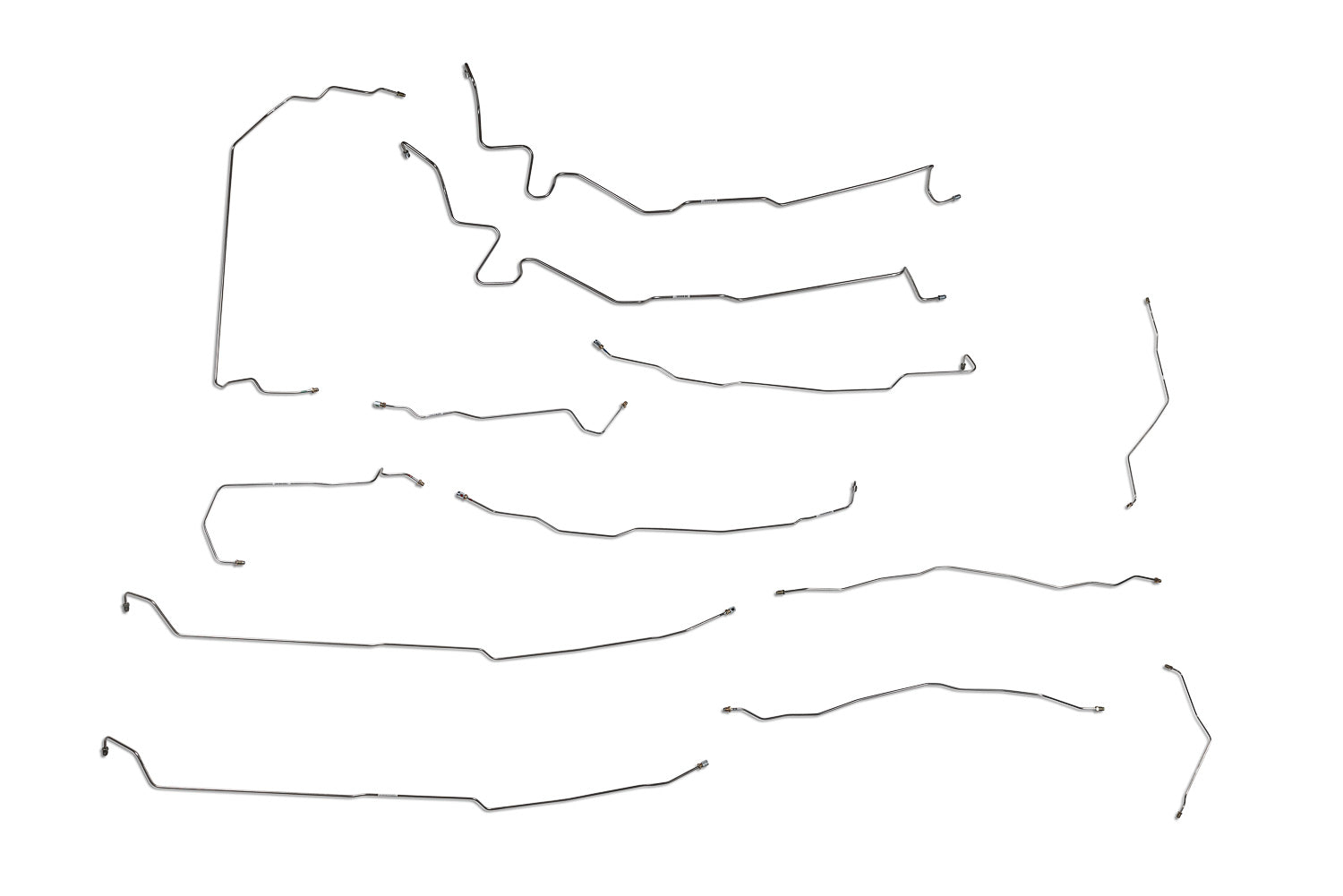

1 Master Cylinder Primary Brake Line 5/16", 1 Master Cylinder Secondary Brake Line 5/16", 1 Left Front Brake Line 1/4" (in 2 easy to install sections), 1 Right Front Brake Line 1/4" (in 3 easy to install sections), 1 Left Rear Brake Line 1/4" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16", 1 Right Rear Brake Line 1/4", (in 2 easy to install sections), 1 Right Rear Brake Line 3/16", Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
