GMC Sierra Brake Line Set 2001 2500 HD Reg Cab 8ft Bed 6.6L BLC-205-SS2C Stainless Steel
w/4 Wheel Disc Brakes
GMC Sierra Brake Line Set 2001 2500 HD Reg Cab 8ft Bed 6.6L BLC-205-SS2C Stainless Steel
w/4 Wheel Disc Brakes
Delivery Time & Rates
Install this pre bent 2001 Sierra brake line set in no time!
Brake Line Set Stainless Steel Sierra 2500HD 2001 Reg Cab 8ft Bed 6.6L w/4 Wheel Disc Brakes, Complete Set including Rear Axle
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC149-01-SS, BLC149-02-SS, BLC125-03-SS and BLC149-04A-SS. See the video below on how to remove the shipping bend
- Weight: 6

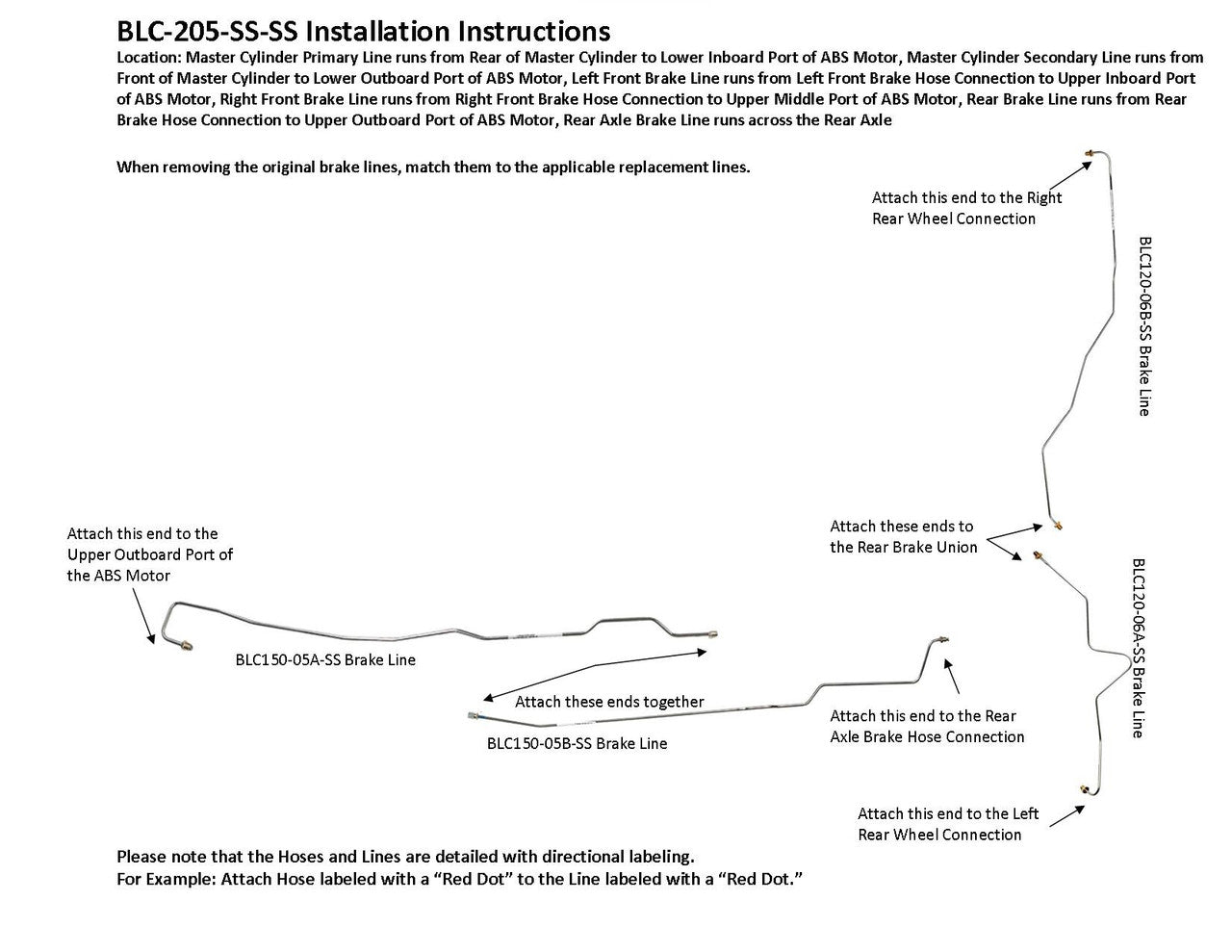

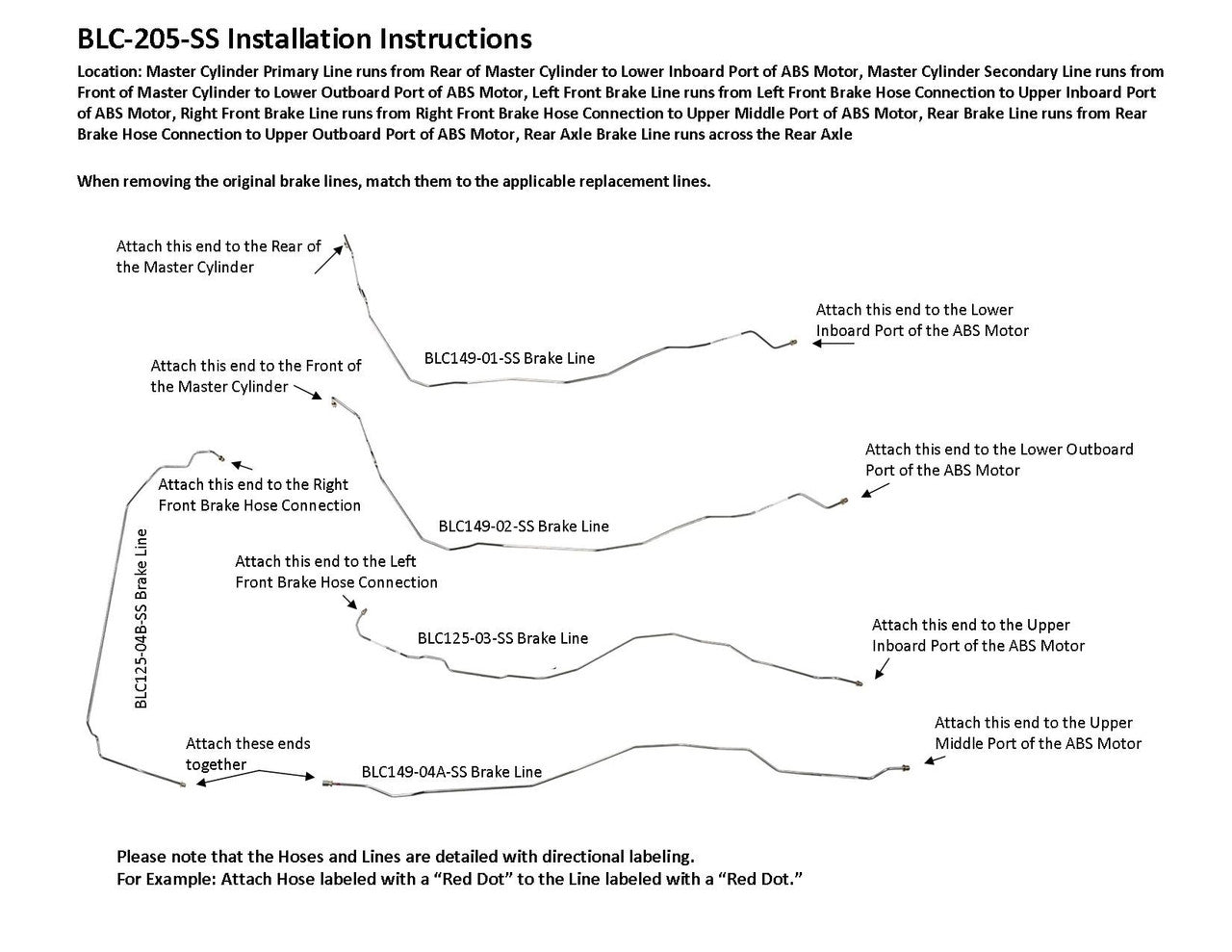

- Installation Instructions

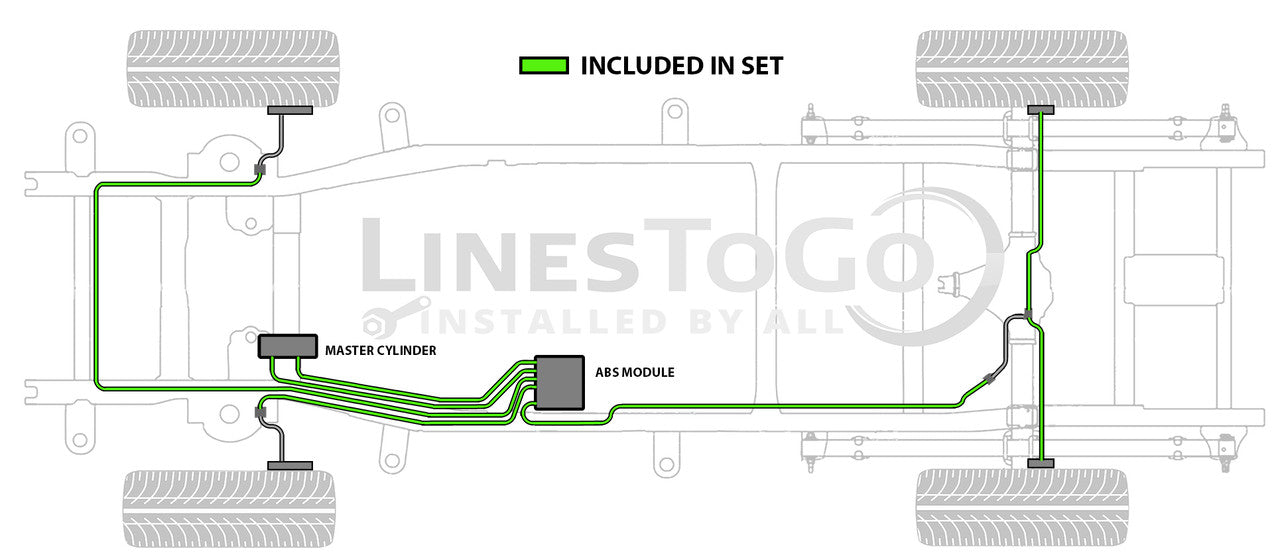

Master Cylinder Primary Line runs from Rear of Master Cylinder to Lower Inboard Port of ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to Lower Outboard Port of ABS Motor, Left Front Brake Line runs from Left Front Brake Hose Connection to Upper Inboard Port of ABS Motor, Right Front Brake Line runs from Right Front Brake Hose Connection to Upper Middle Port of ABS Motor, Rear Brake Line runs from Rear Brake Hose Connection to Upper Outboard Port of ABS Motor, Rear Axle Brake Line runs across the Rear Axle

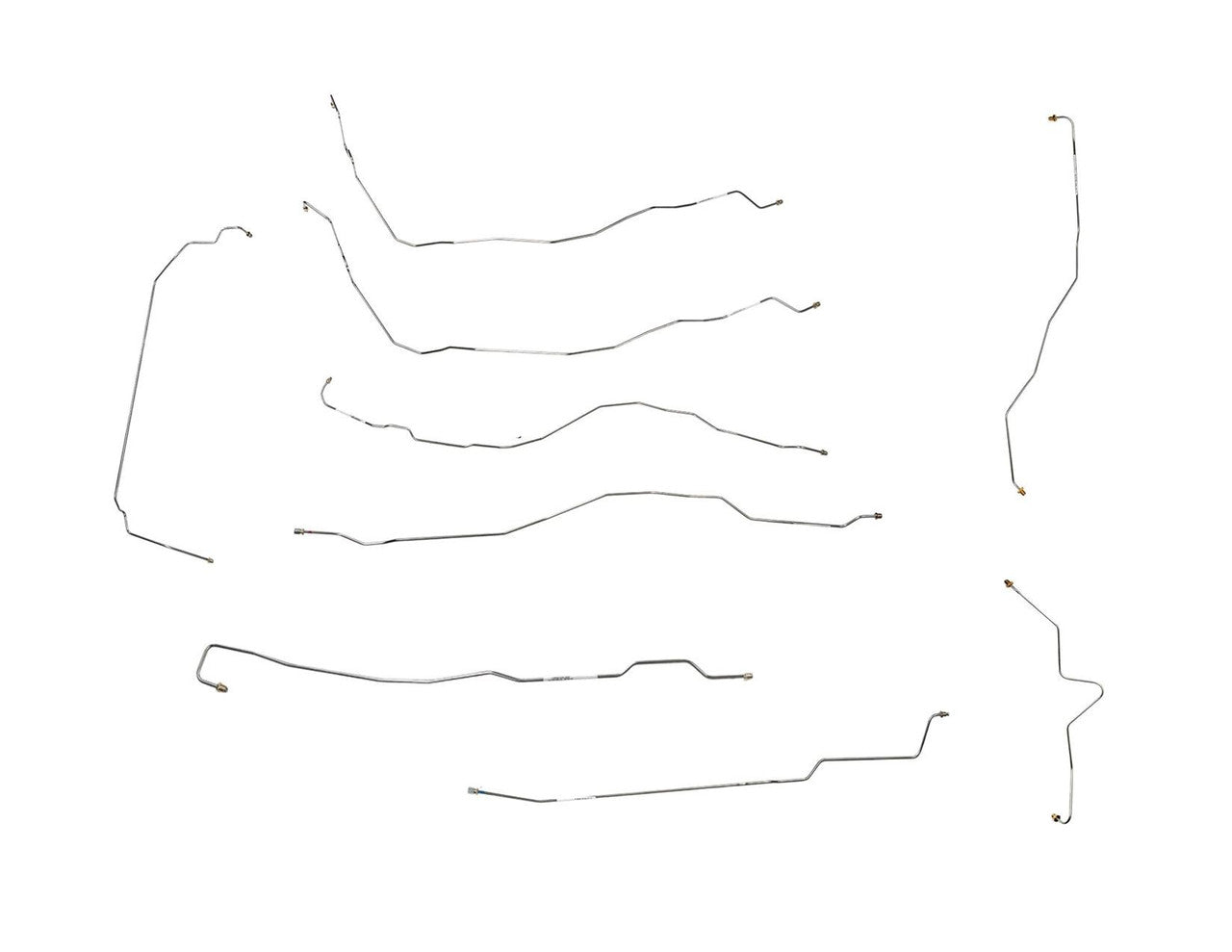

1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 1/4", 1 Right Front Brake Line 1/4" (in 2 easy to install sections), 1 Rear Brake Line 1/4" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), Does NOT include Hoses

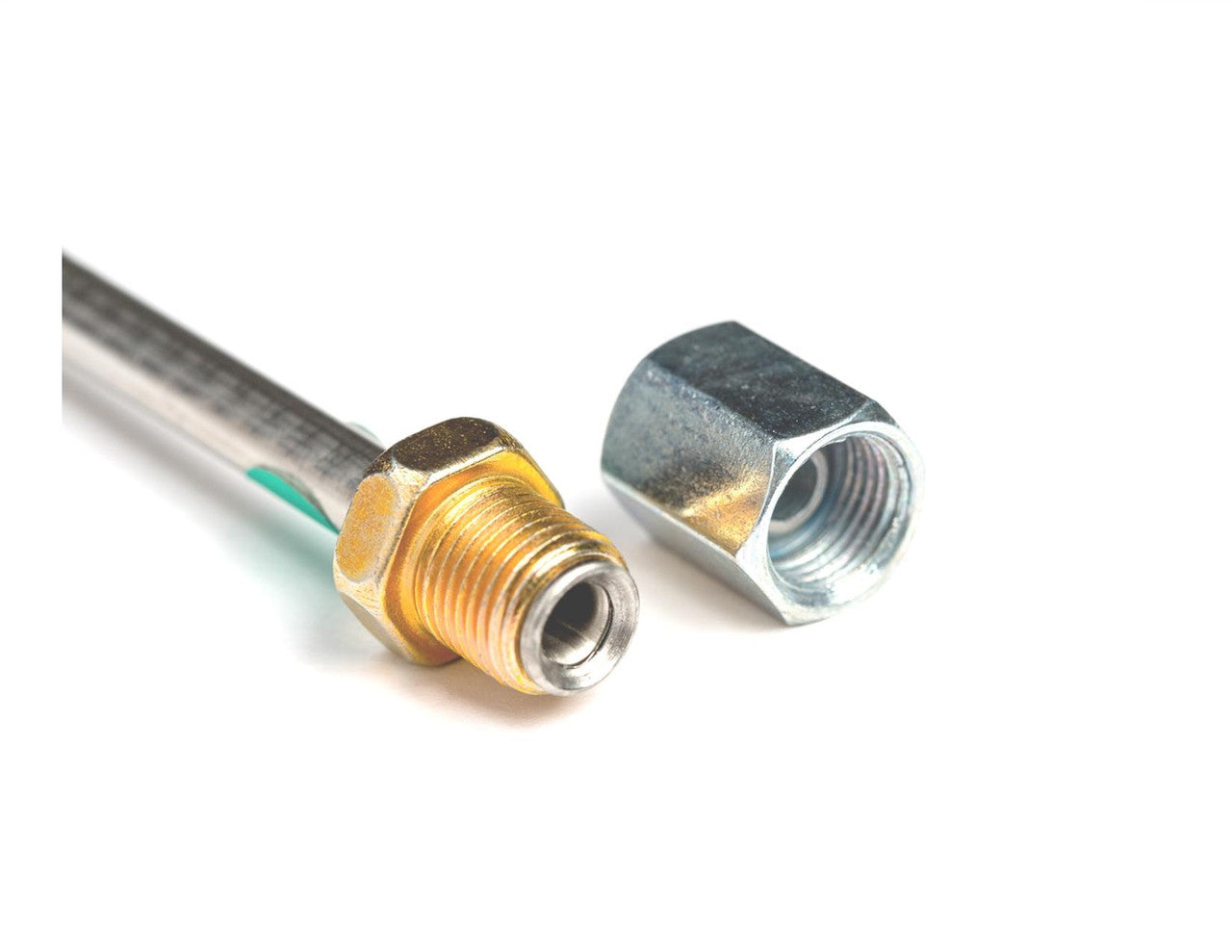

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
