GMC Jimmy Rear Fuel Line Set 1998 S Series 2 Door 2WD & 4WD FL443-B2B

GMC Jimmy Rear Fuel Line Set 1998 S Series 2 Door 2WD & 4WD FL443-B2B
GMC Jimmy Rear Fuel Line Set 1998 S Series 2 Door 2WD & 4WD FL443-B2B
GMC Jimmy Rear Fuel Line Set 1998 S Series 2 Door 2WD & 4WD FL443-B2B
GMC Jimmy Rear Fuel Line Set 1998 S Series 2 Door 2WD & 4WD FL443-B2B
GMC Jimmy Rear Fuel Line Set 1998 S Series 2 Door 2WD & 4WD FL443-B2B

GMC Jimmy Rear Fuel Line Set 1998 S Series 2 Door 2WD & 4WD FL443-B2B

MSRP: from
SALE: from
Save $53.74
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL443-B2B
  • Weight: 5

Fuel Line Set 1998 S Series Jimmy 2Dr 2WD & 4WD

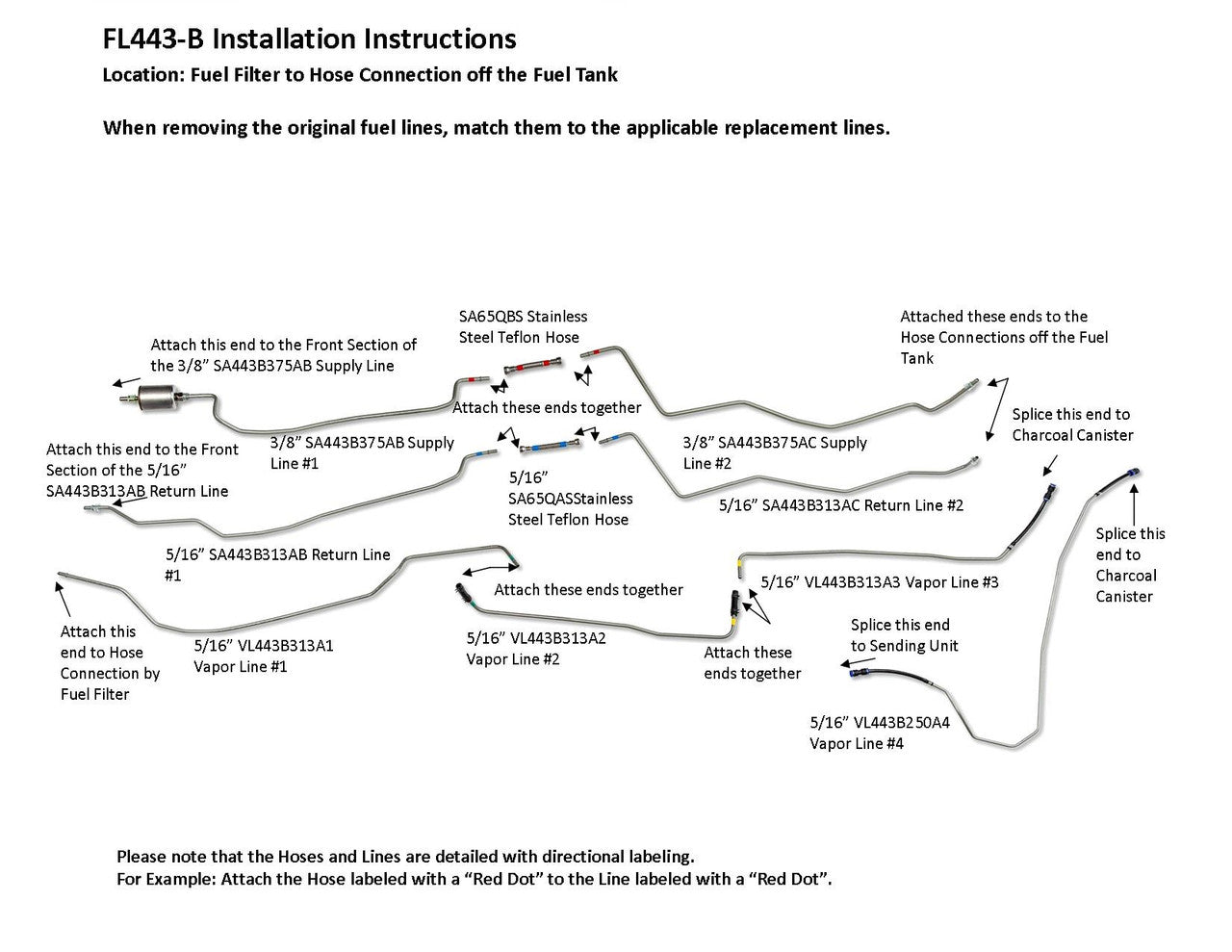

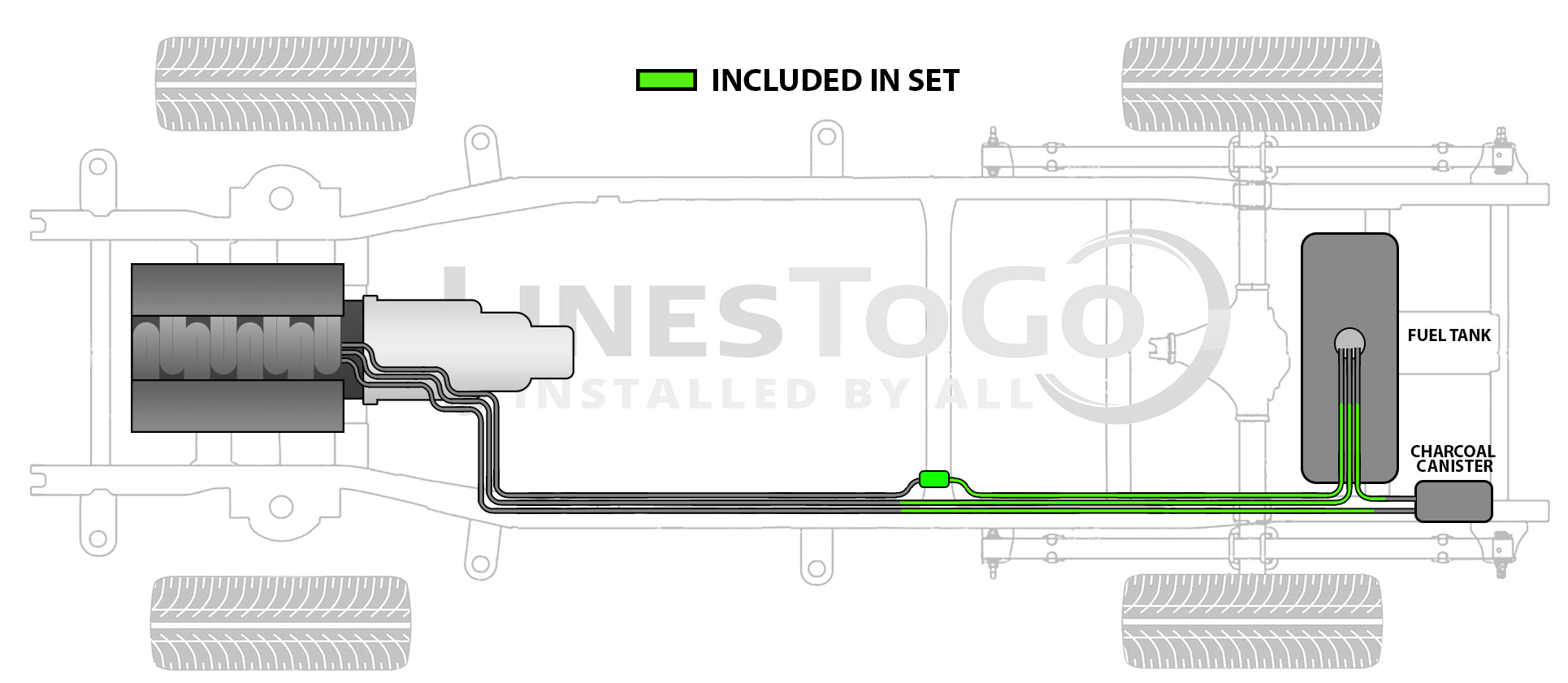

Location: Fuel Filter to Fuel Tank

Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them.

Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines.

If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector.

OEM Part Number: 15734525, 15004585, 15734527, 15004587, 15734523, 15734529

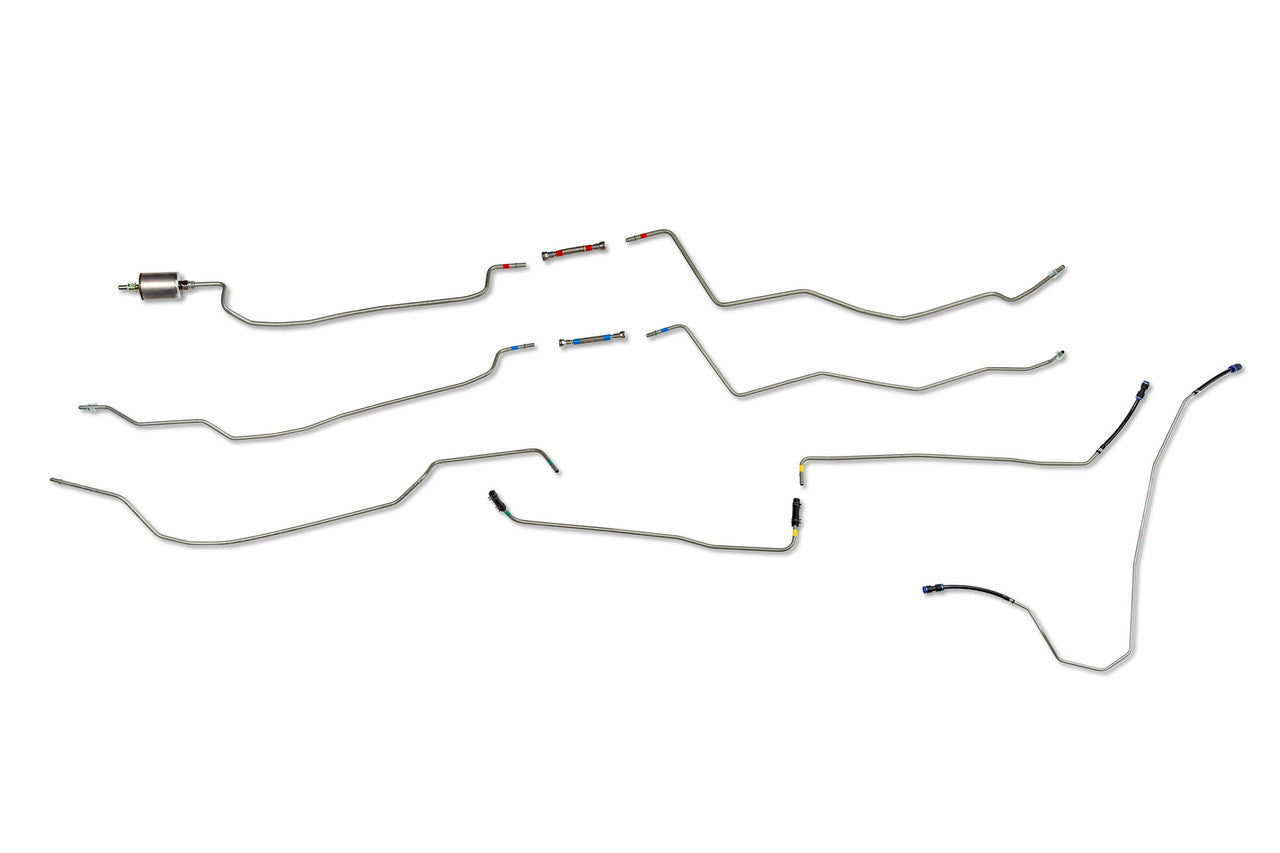

Included in Set: 1 supply line 3/8" ( in 2 easy to install sections), 1 return line 5/16" ( in 2 easy to install sections), 1 vapor line 5/16" (in 3 easy to install sections), 1 vapor line 1/4", hoses to join rear sections, 1 fuel filter

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 46" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
