Install this pre bent 1986 Dodge Ram D150 brake line set in no time!
Stainless Steel Brake Line Set 1986 Dodge Ram D150 2WD Reg Cab 6.5ft Bed for 3.7L engines

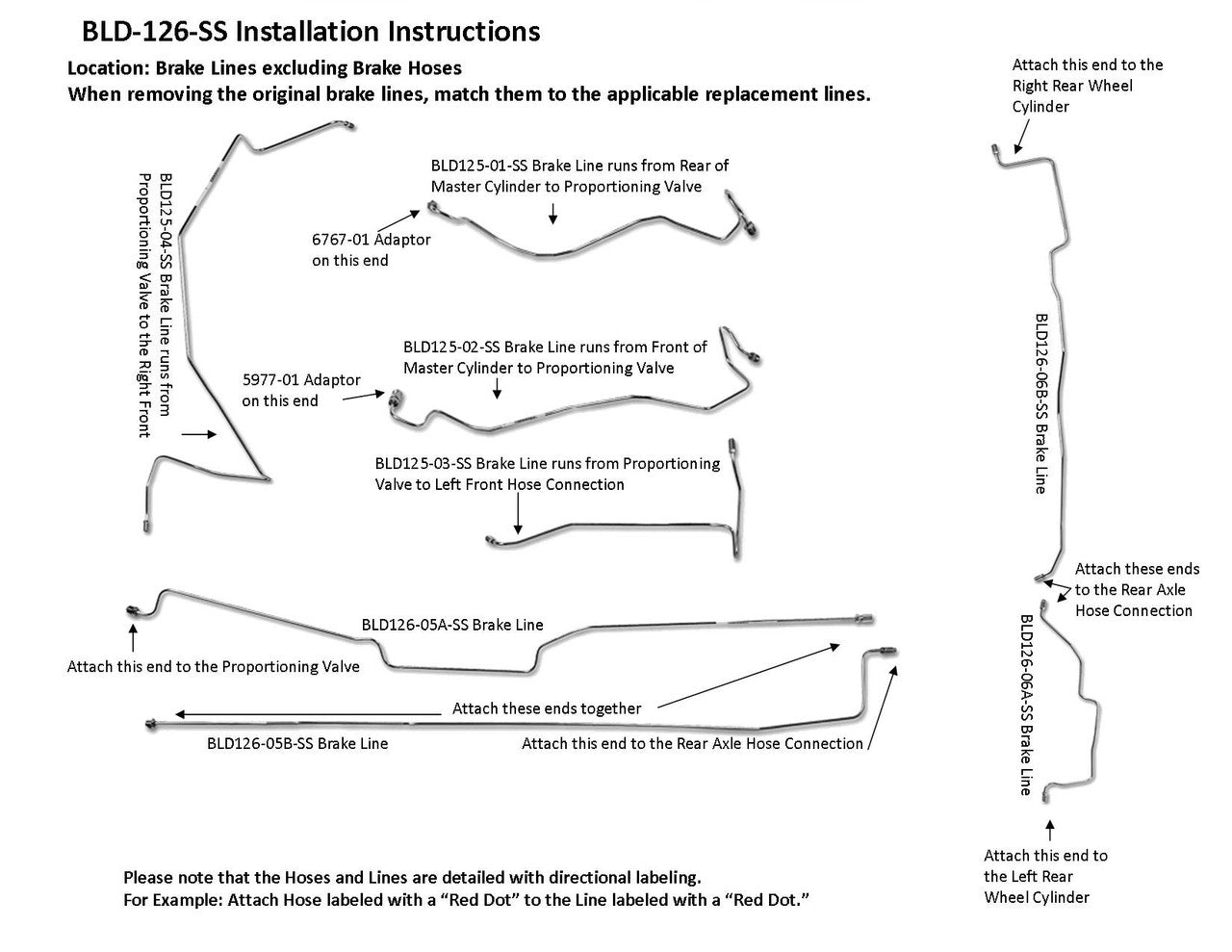

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLD126-05A-SS and BLD126-056B-SS. See the video below on how to remove the shipping bend

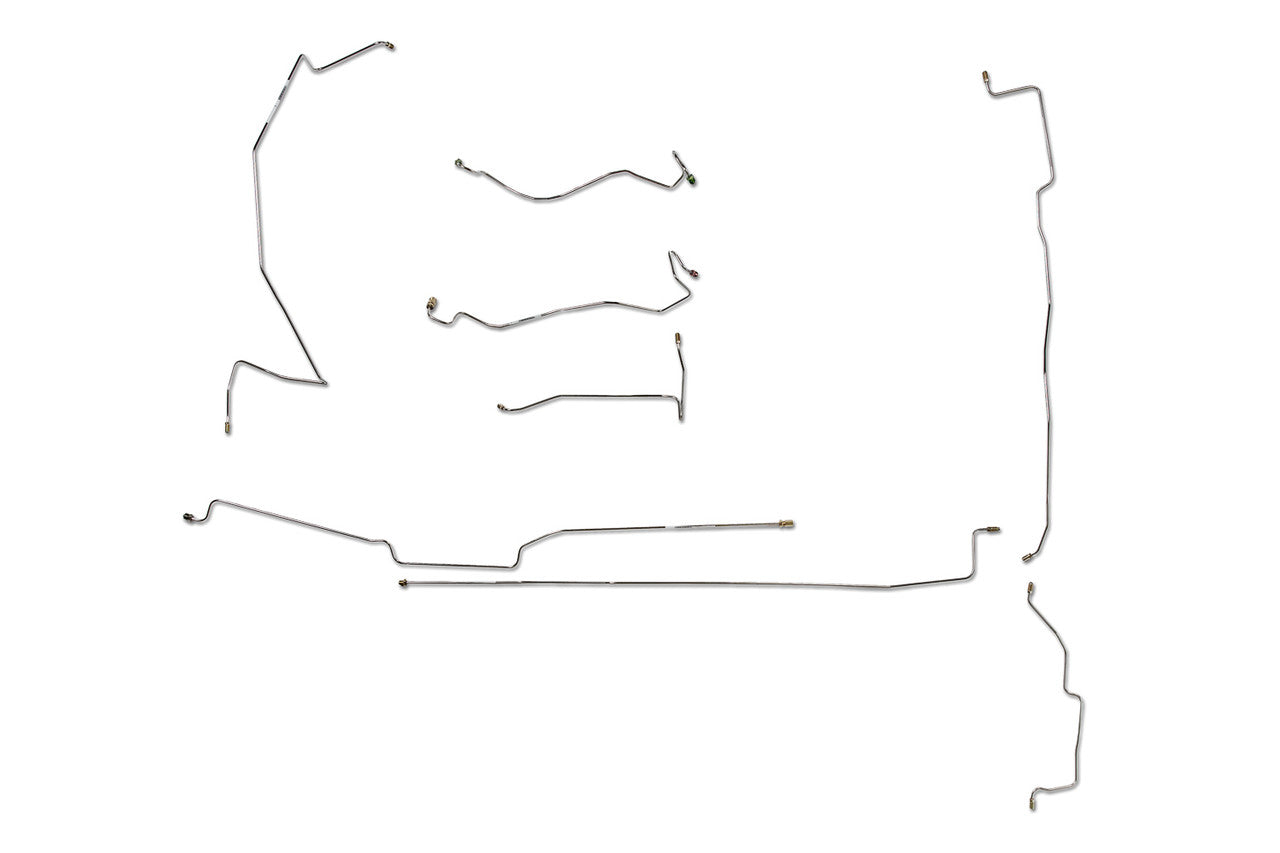

1 Master Cylinder Primary Line from Rear of Master Cylinder to Proportioning Valve, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Proportioning Valve, 1 Left Front Line from Proportioning Valve to Left Front Hose Connection, 1 Right Front Line from Proportioning Valve to the Right Front Wheel,1 Rear Intermediate Line from Proportioning Valve to the Rear Axle Hose Connection (2 easy to install sections), 1 Rear Axle Crossover Line across Top of the Rear Axle (2 sections), 2 Adaptors
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
