Install this pre bent 2000 Chevy C3500 brake line set in no time!
Brake Line Set Stainless Steel 2000 Chevy C3500 2WD Crew Cab 8ft Bed 5.7L engines exc. GVW 15,000 LBS exc. Hoses.
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC194-05B-SS and BLC194-05B-SS. See the video below on how to remove the shipping bend

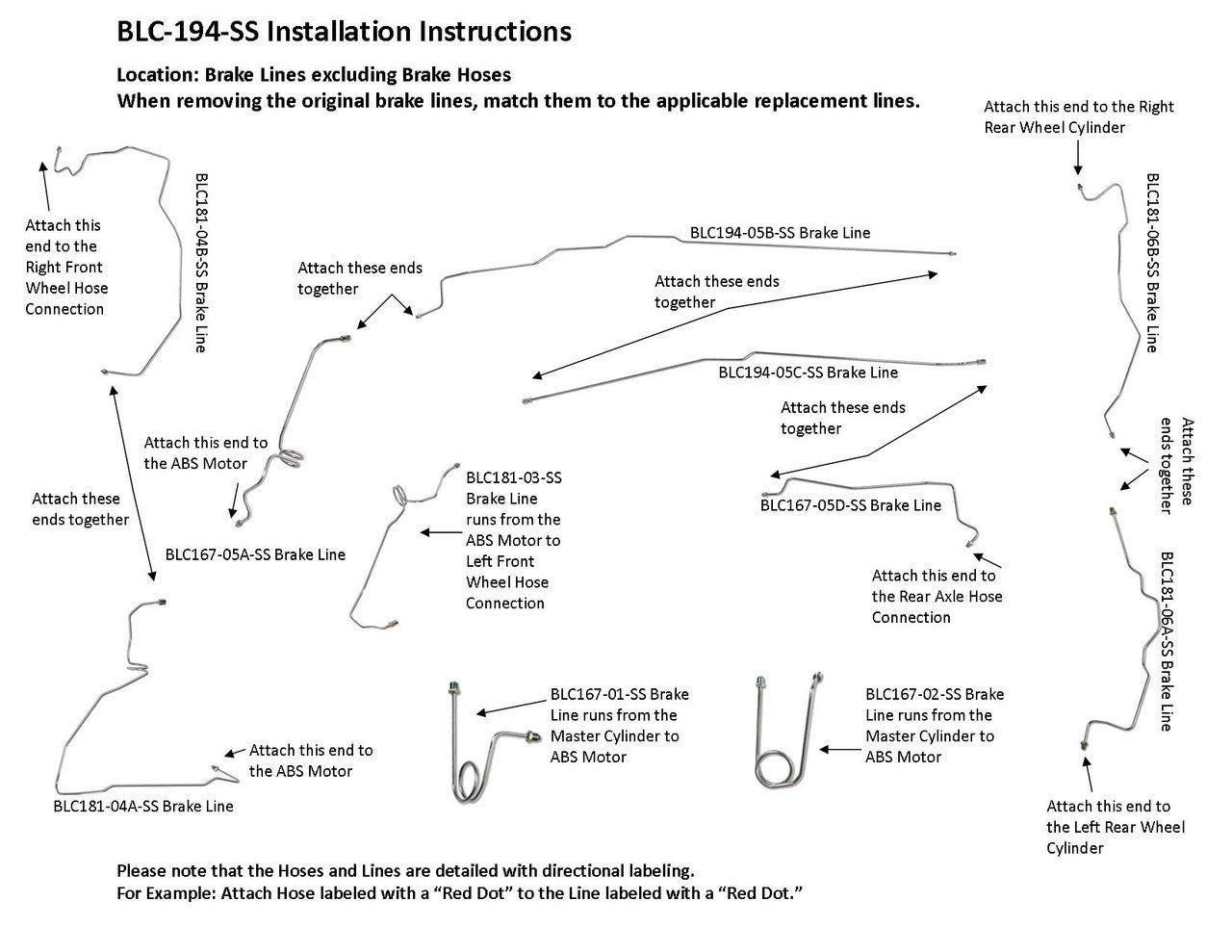

Master Cylinder Primary Line runs from Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Wheel Hose Connection, Right Front Brake Line runs from ABS Motor to the Right Front Wheel Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Axle Hose Connection, Rear Axle Crossover Line

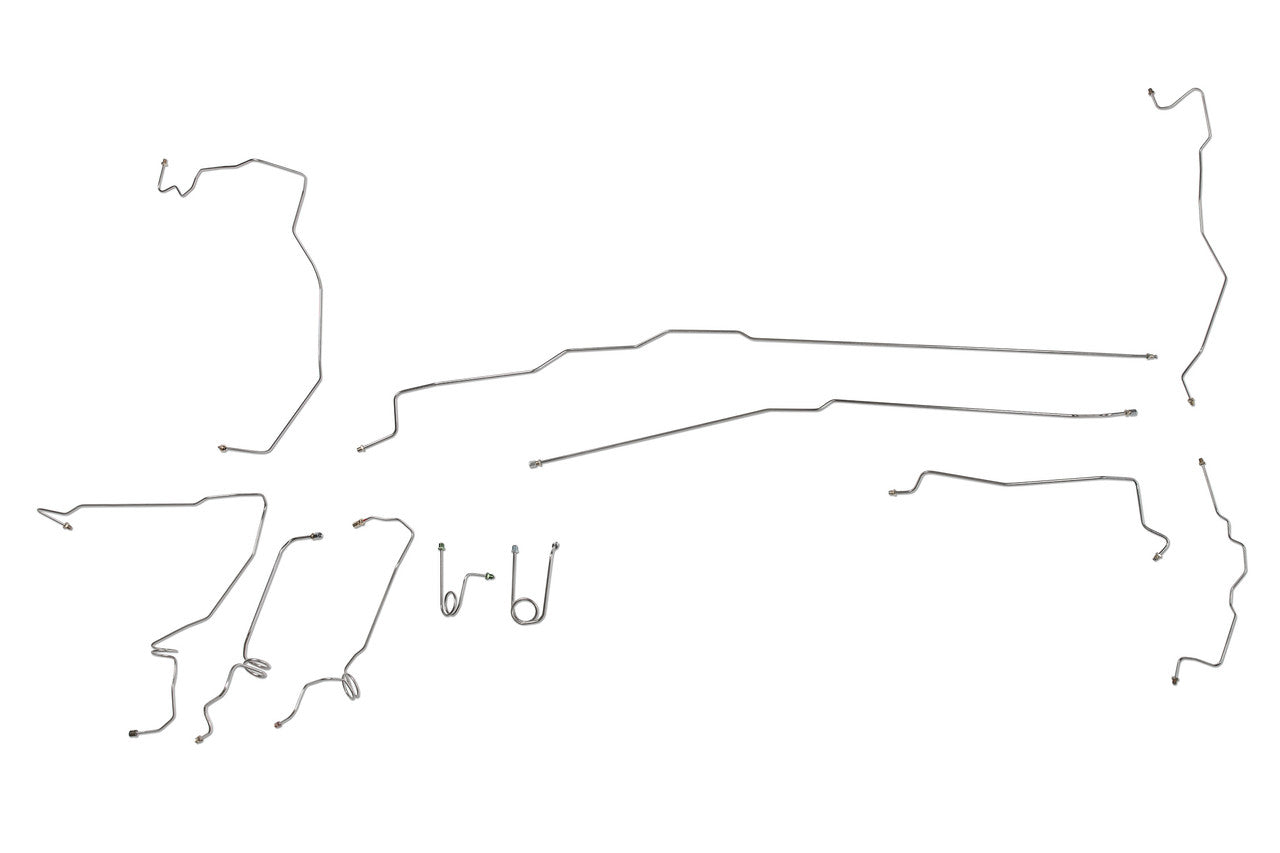

1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 4 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), Does NOT Include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
Need Assistance? Call us toll free 1-855-781-5992
We'll make sure you're ordering the correct part and we can take your order for you too.
