Name: Chevy Suburban Transmission Line Set 1999 C/K1500/2500 6.5L TCL-159-SS5D Stainless Steel
Brand: Lines - To - Go
SKU: TCL-159-SS5D
Price: 134.95 USD
Availability: InStock

Year Make & Model

Chevy Suburban Transmission Line Set 1999 C/K1500/2500 6.5L TCL-159-SS5D Stainless Steel

Price

SALE:

Save $33.74

Delivery Time & Rates

Install this pre bent 1999 transmission cooler line set in no time!

Stainless Steel Transmission Line Set for 1999 Chevy Suburban C/K 1500/2500 w/HD Cooling w/4L80-E Transmission w/o GVW 15,000 LBS with 6.5L Diesel Engine.

SKU: TCL-159-SS5D

Weight: 4
Installation Instructions

Box Dimensions 57" x 11" x 7"

How to use a Quick Disconnect Tool

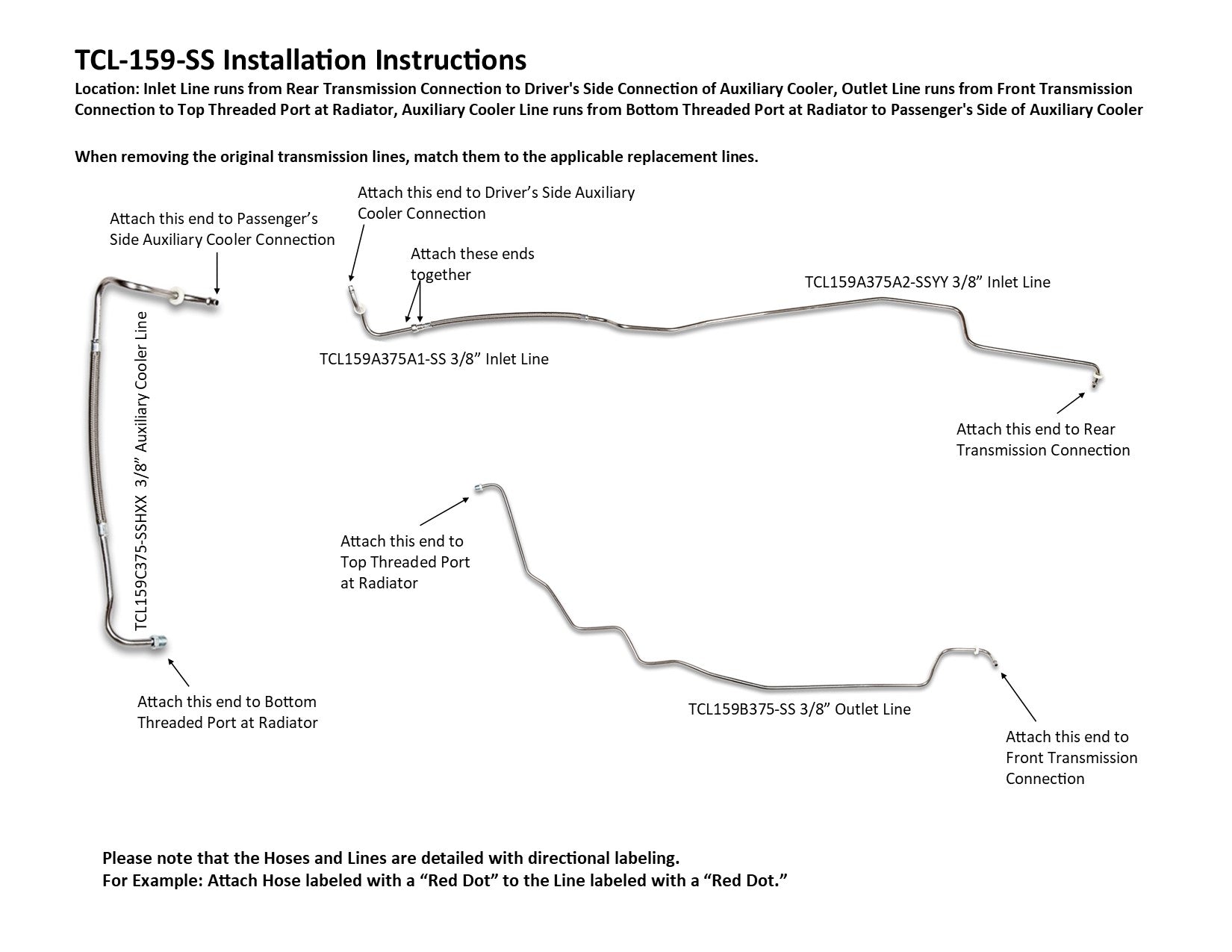

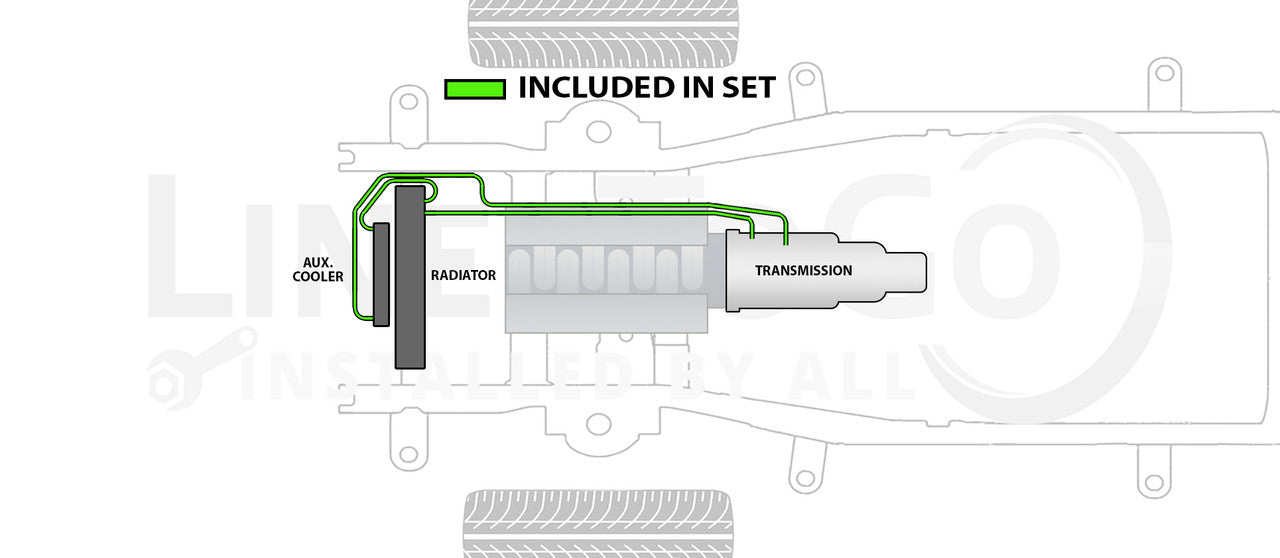

Inlet Line runs from Rear Transmission Connection to Driver's Side Connection of Auxiliary Cooler, Outlet Line runs from Front Transmission Connection to Top Threaded Port in Radiator, Auxiliary Cooler Line runs from Bottom Threaded Port in Radiator to Passenger's Side of Auxiliary Cooler

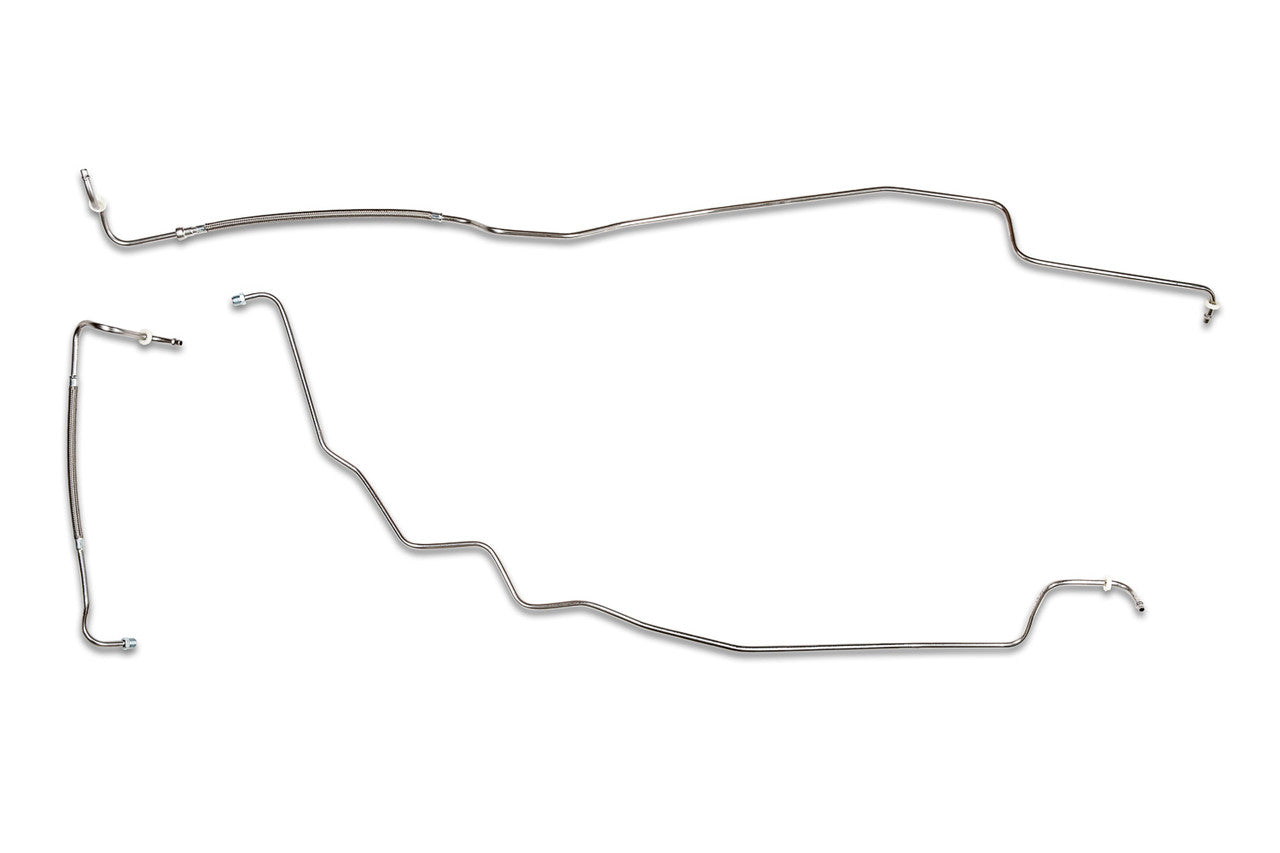

1 Inlet Line 3/8" (in 2 easy to install sections), 1 Outlet Line 3/8", 1 Auxiliary Cooler Line 3/8"

15745473, 15051894

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.
