Shop LinesToGo for 2002 Suburban fuel lines - C/K 2500

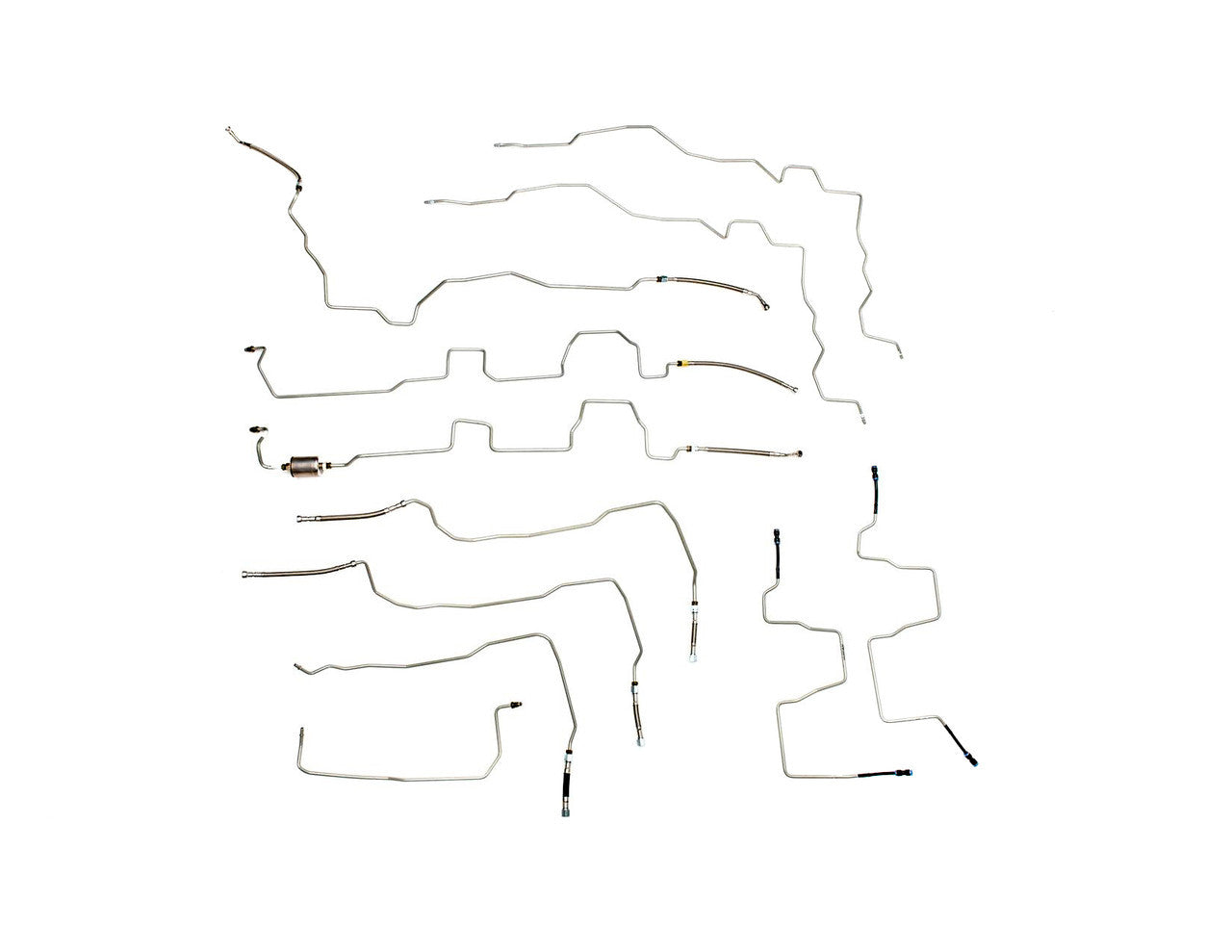

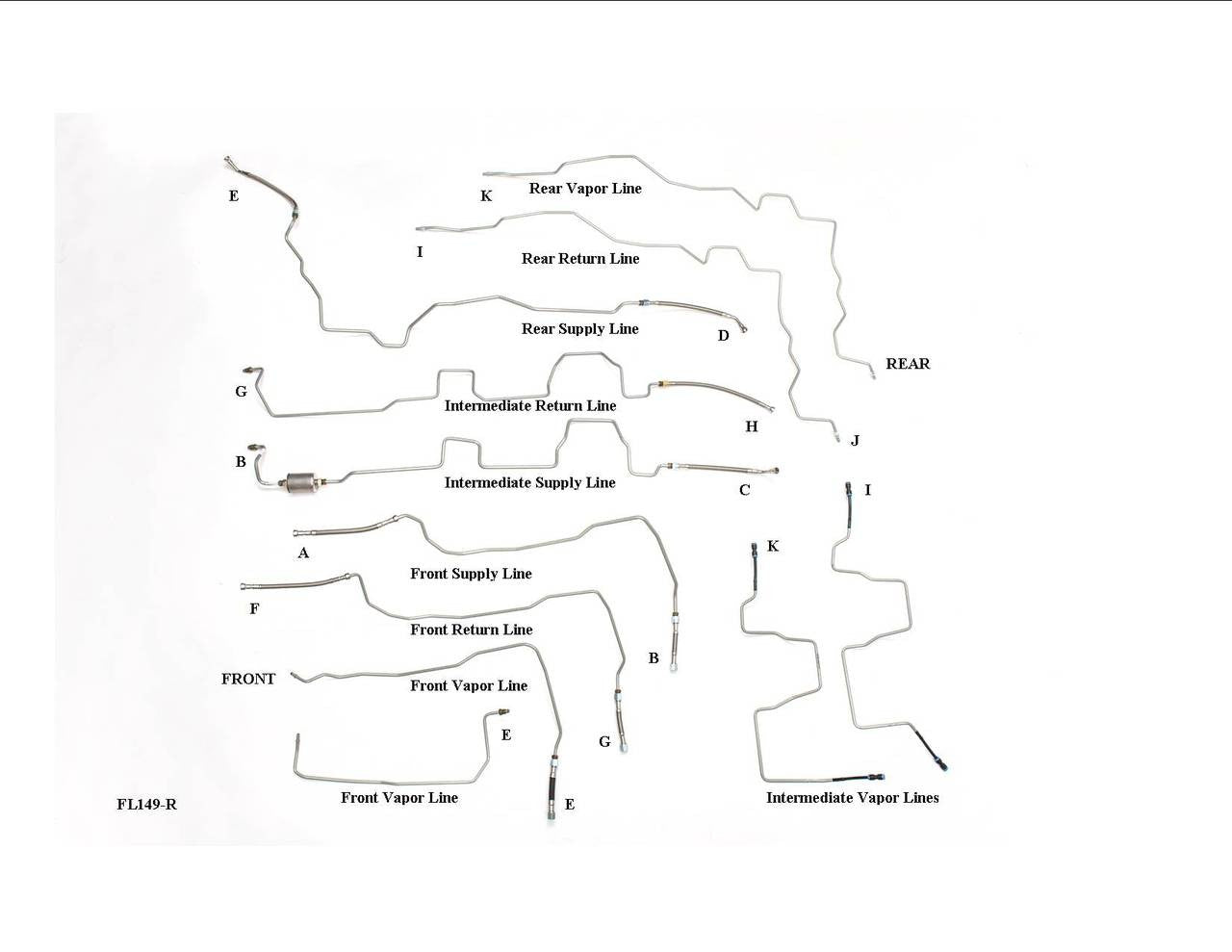

Fuel Line Set 2002 Chevrolet Suburban C/K 2500 6.0L RPO Code LQ4

Please Note: To install the fuel lines around the crossmember easier, you will support the crossmember and remove the bracket that connects it to the frame (2 bolts). Install the fuel lines into place, replace the bracket (2 bolts), then remove the support.

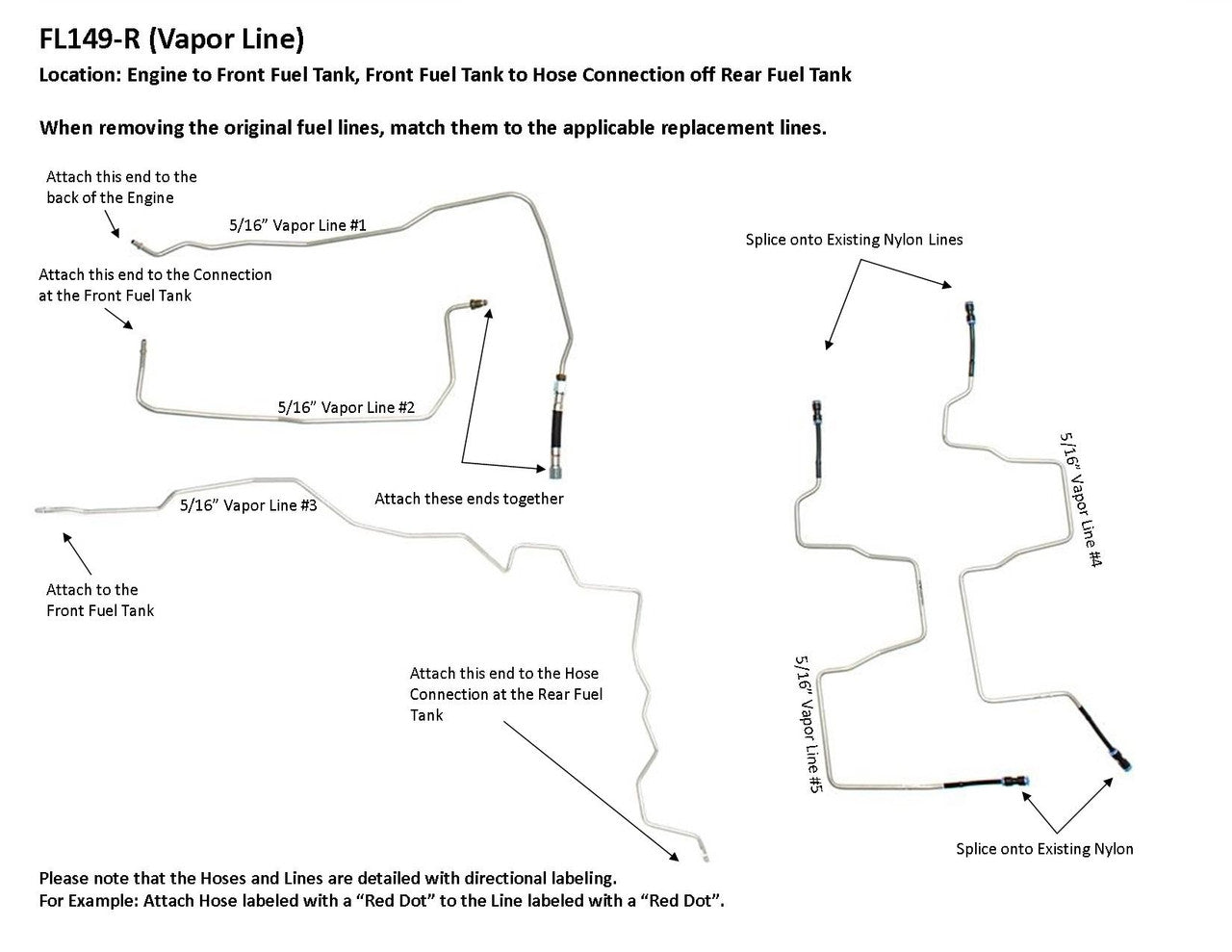

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Connection at Fuel Line Repair Kit: This is usually required as the original fuel lines are being disconnected from the nylon during install.

3068-01 includes 2 Nylon Lines 5/16", 2 Unions 5/16", 2 Quick Connectors 5/16" 180 degree

3069-01 includes 2 nylon lines 3/8" & 5/16", 2 unions, 2 quick connectors 3/8" & 5/16"

Connection at Sending Unit Repair Kit: This may only be required if you are replacing the sending unit.

3071-01 includes 2 Nylon Lines: 1 - 3/8" & 1 - 5/16", 2 Unions, 2 Quick Connectors 1- 3/8 & 1- 5/16" 90 Degree

6093-01 includes1 nylon line 3/8", 1 union, 1 quick connector 3/8"  90 degree
