Chevy Suburban 2500 Transmission Line Set 2002 8.1L TCL-133-3D
w/4 Spd Automatic Transmission
Chevy Suburban 2500 Transmission Line Set 2002 8.1L TCL-133-3D
w/4 Spd Automatic Transmission
Delivery Time & Rates
Install this pre bent 2002 transmission cooler line set in no time!
Transmission Line Set 2002 Chevrolet Suburban 2500 w/4 Speed Automatic for 8.1L engines.
- Weight: 5

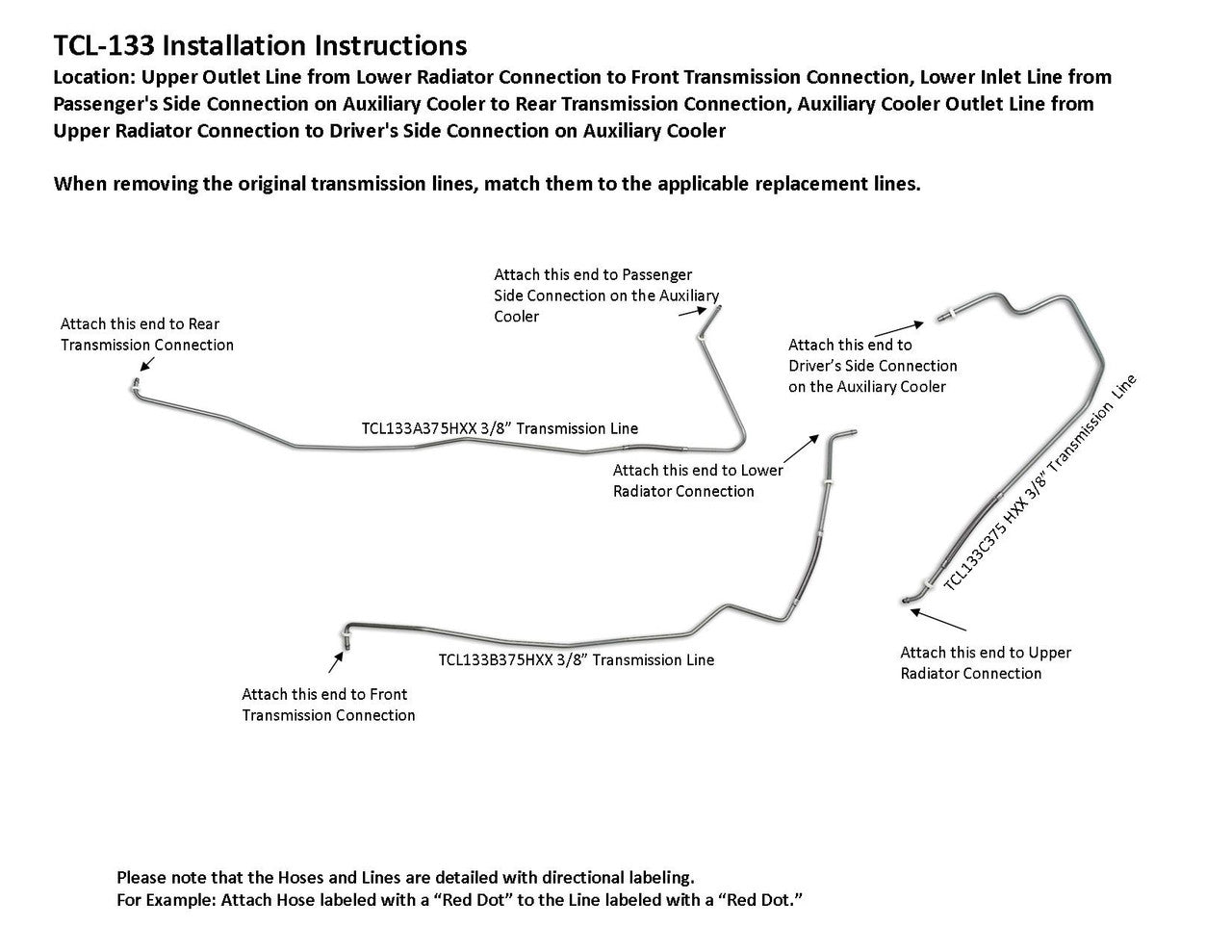

- Installation Instructions

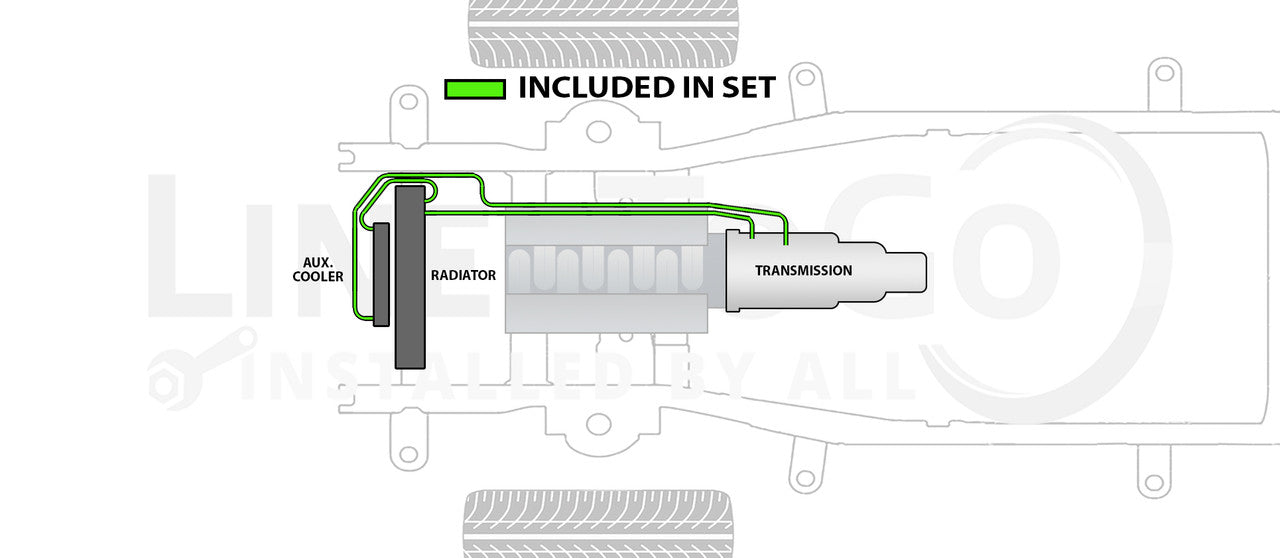

Upper Outlet Line from Lower Radiator Connection to Front Transmission Connection, Lower Inlet Line from Passenger's Side Connection on Auxiliary Cooler to Rear Transmission Connection, Auxiliary Cooler Outlet Line from Upper Radiator Connection to Driver's Side Connection on Auxiliary Cooler

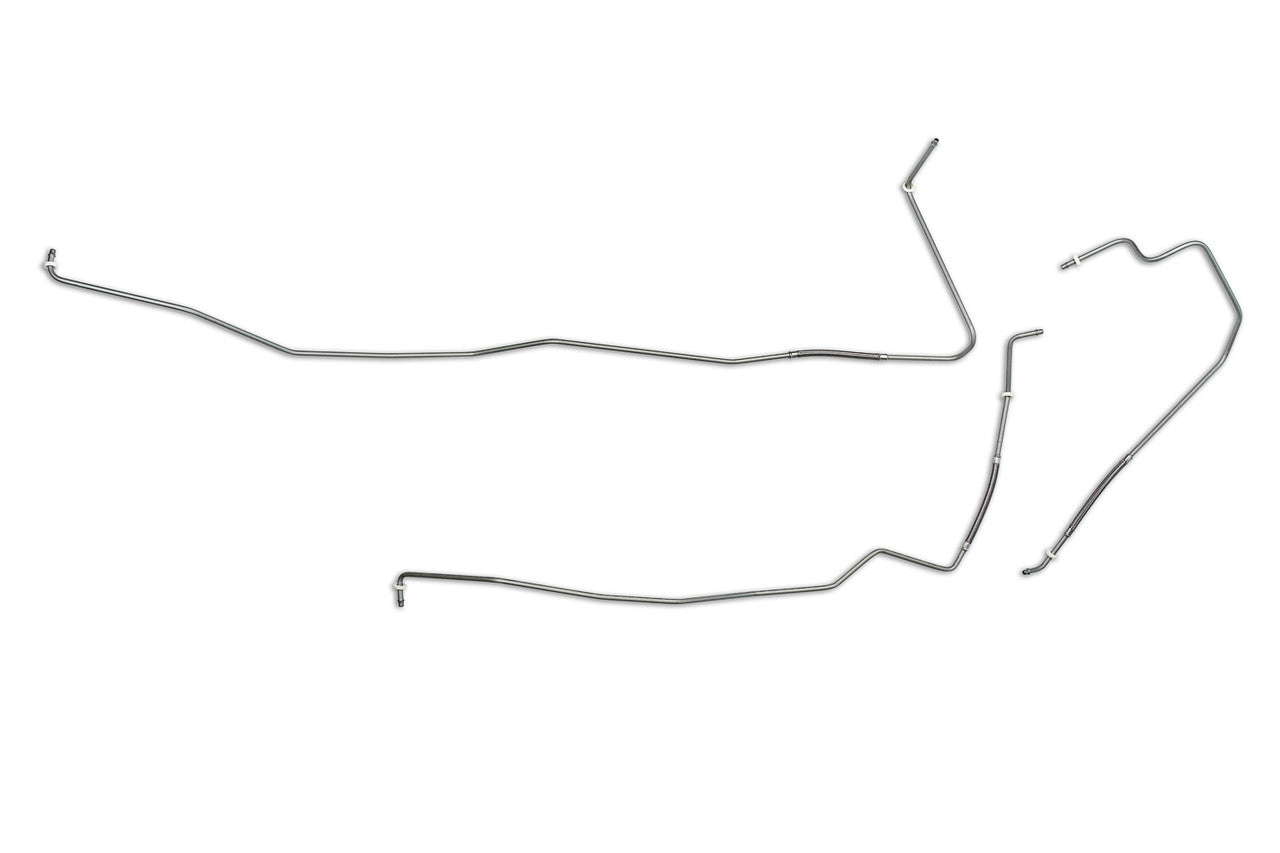

1 Upper Outlet Line 3/8", 1 Lower Inlet Line 3/8", 1 Auxiliary Cooler Outlet Line 3/8"
Lines are constructed from Galfan® coated tubing for rust protection with original equipment end forms and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
