Product Overview

Fuel Line Set 2007 Silverado C/K Series 2500HD/3500 Classic and Non-Classic Models Ext Cab 6.5 ft & 8 ft box 2WD & 4WD 6.6L w/engine code LBZ, LMM Duramax Diesel Stainless Steel

Fuel Cooler Line included

Not Included in Set: Hoses between fuel line and fuel tank 5069-01 and Cooler Connector Lines FL591-A1 or SS591-A1. These parts are available for purchase separately.

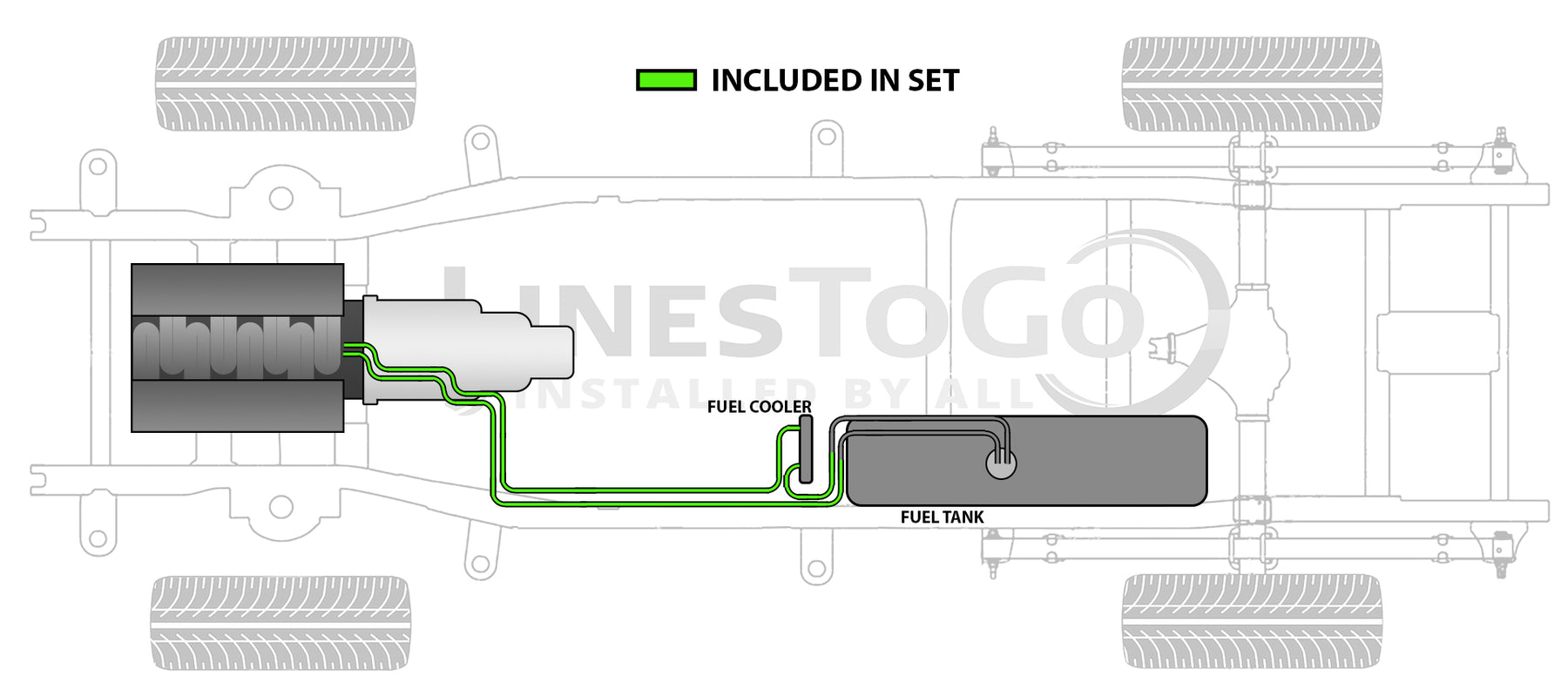

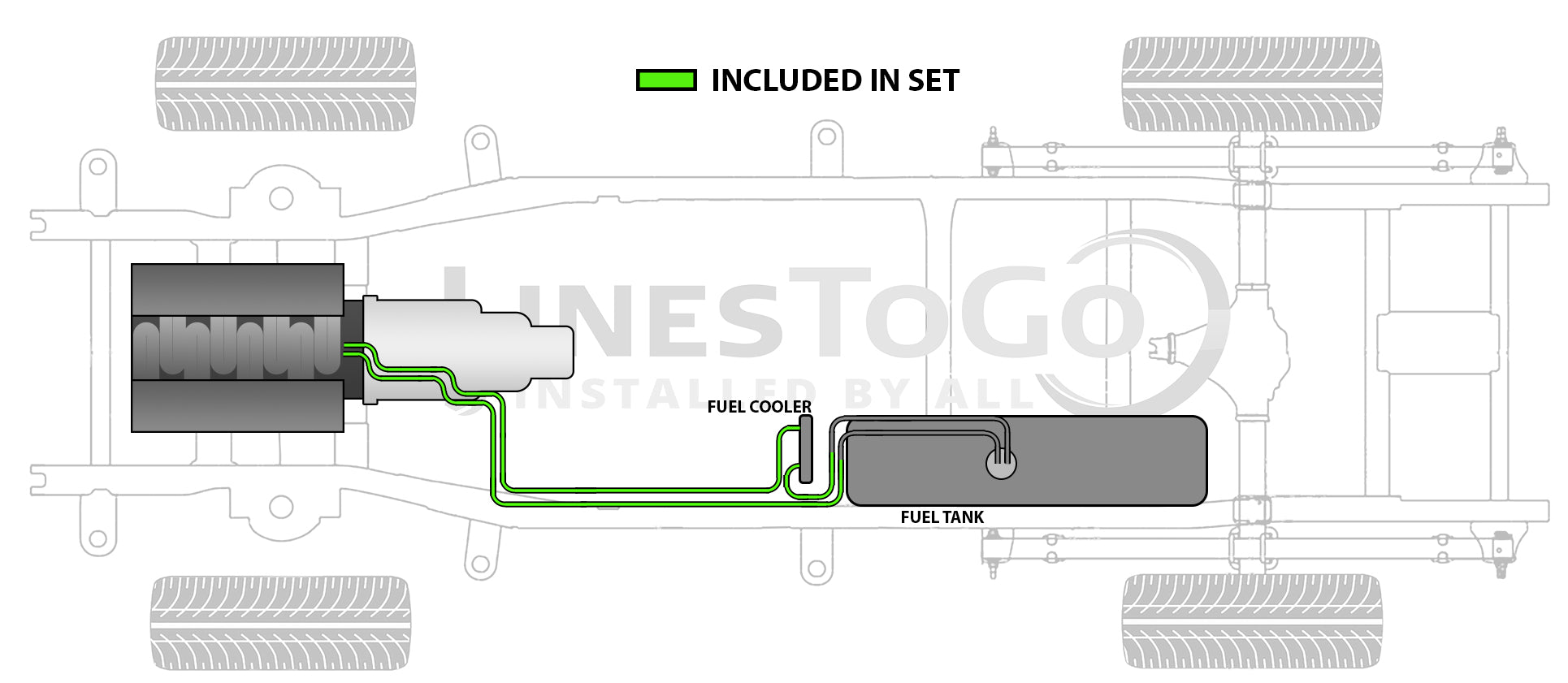

Location: Engine to Hose Connection at Fuel Tank



Please Note: If you have purchased an aftermarket replacement fuel cooler, the fuel cooler connector lines attached to the fuel cooler may be different than the OEM fuel cooler connector lines. As shown in Illustration A, the aftermarket fuel cooler connector lines are made with a straight sharp edge. When these are plugged into the fuel cooler line, they will cut the o-ring inside the connector causing a leak. If you wish to replace the fuel cooler connector lines before installation of the fuel cooler line, they are available to purchase under part number FL591-A as shown in Illustration B.

We are unable to warranty any of our products that are damaged by aftermarket fuel cooler connector lines.

Illustration A                                                                             Illustration B

Aftermarket fuel cooler connector line:                           LinesToGo FL591-A fuel cooler connector line

 test8.jpg                                                         test6.jpg

Straight Sharp Edge                                                                  Rounded Beveled Edge

OEM Part Number: 20832563

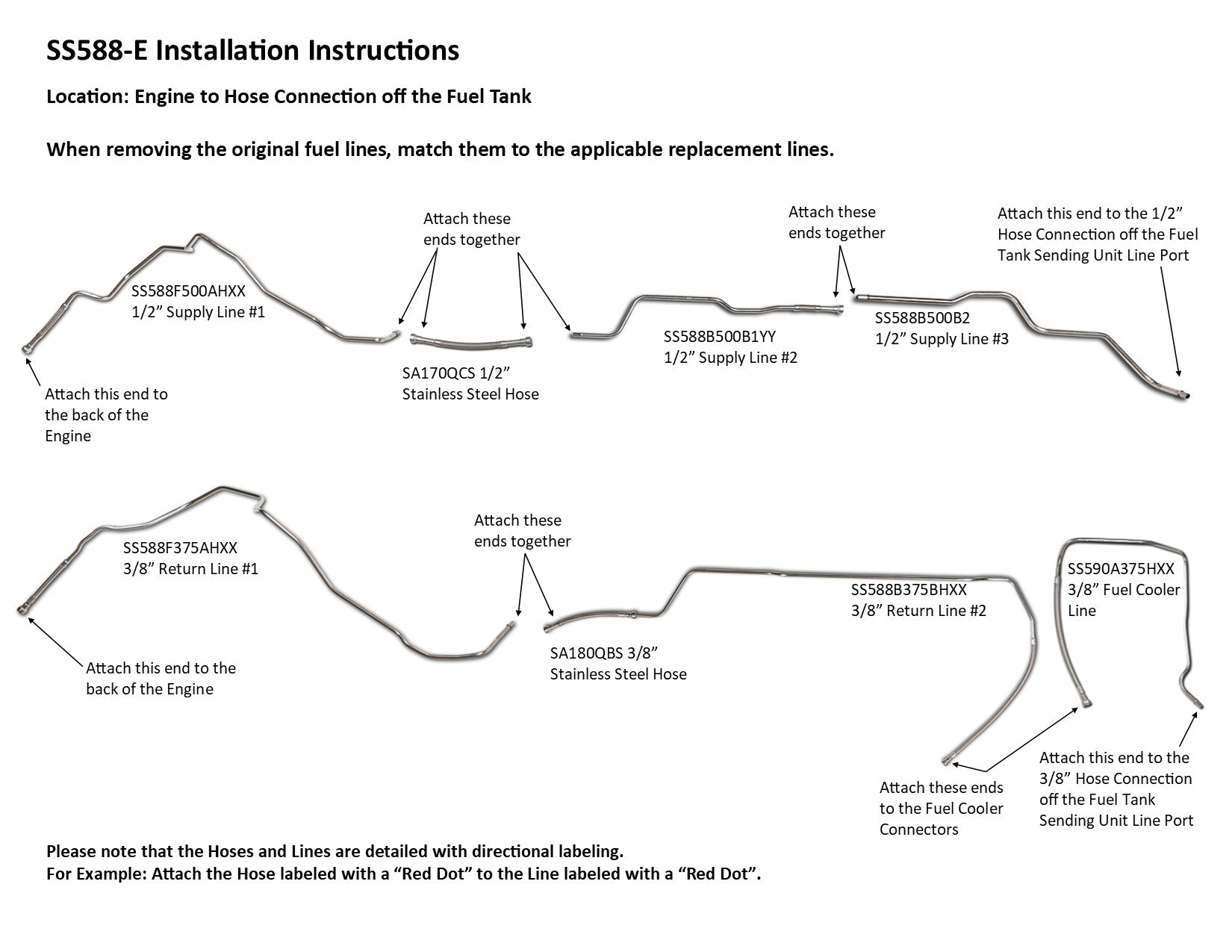

Included in Set: 1 supply line 1/2" ( in 2 easy to install sections), 1 return line 3/8" ( in 2 easy to install sections), 1 fuel cooler line 3/8",  hoses to engine connection, hoses to join rear and front sections, hoses to fuel cooler connection

Tube Construction: Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 47" x 12" x 12"
