Install this pre bent 2002 Silverado 1500 brake line set in no time!

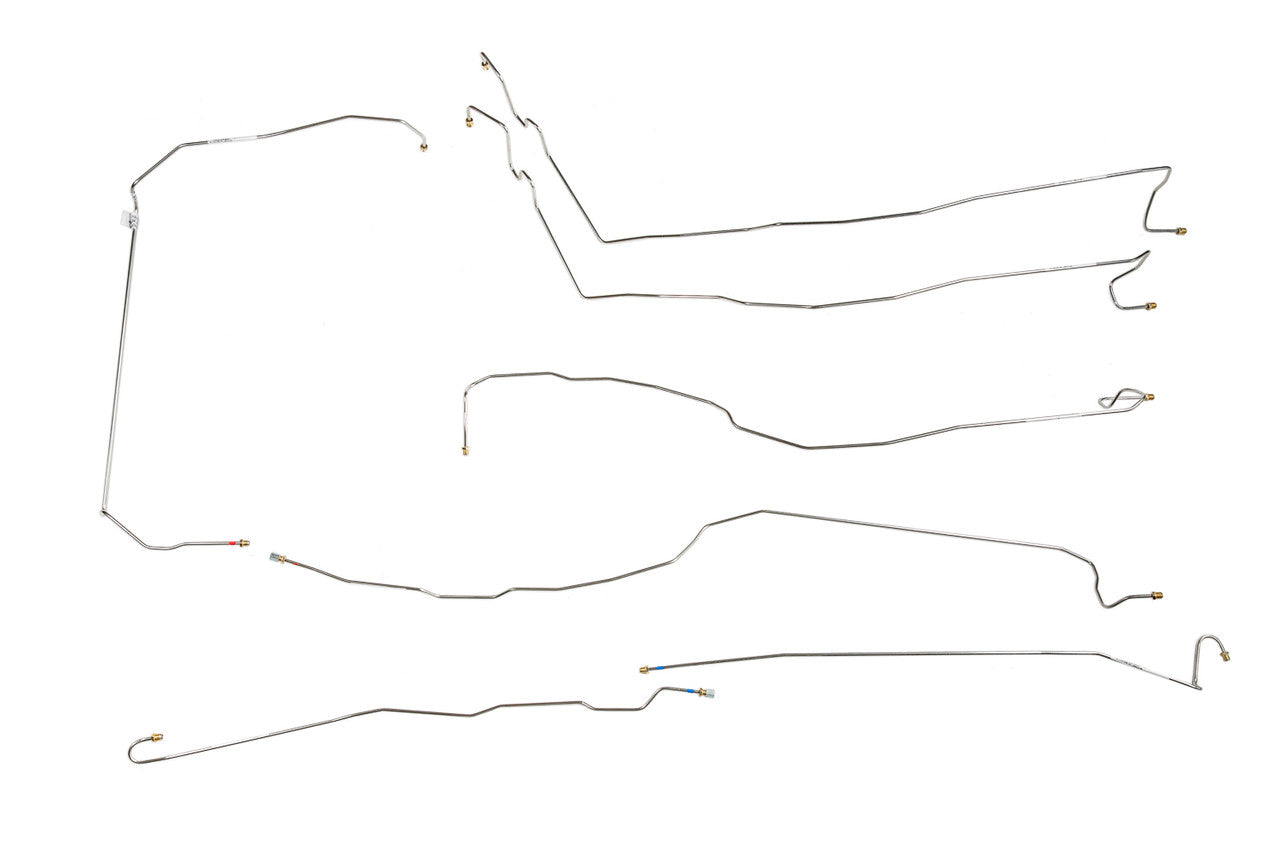

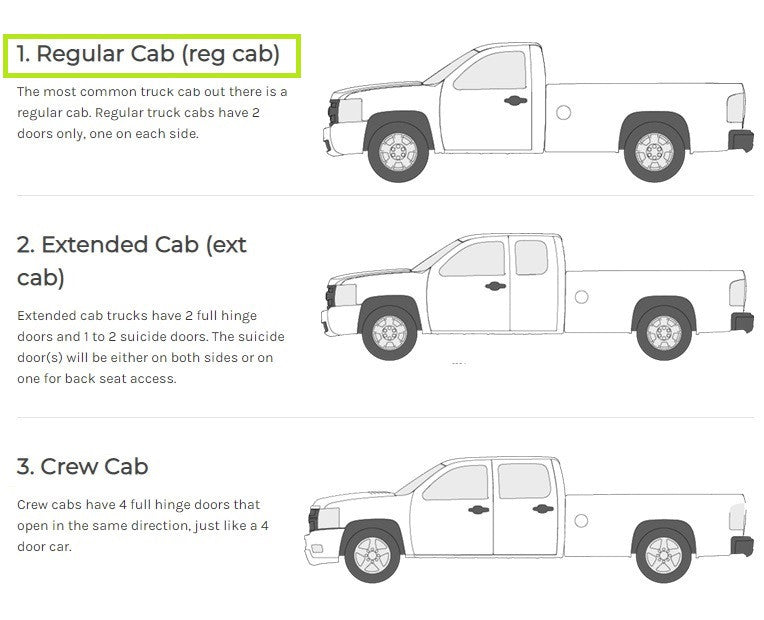

Stainless Steel Brake Line Set 2002 Chevy Silverado 1500 4WD Reg Cab 6.5ft Bed for 4.3L engines

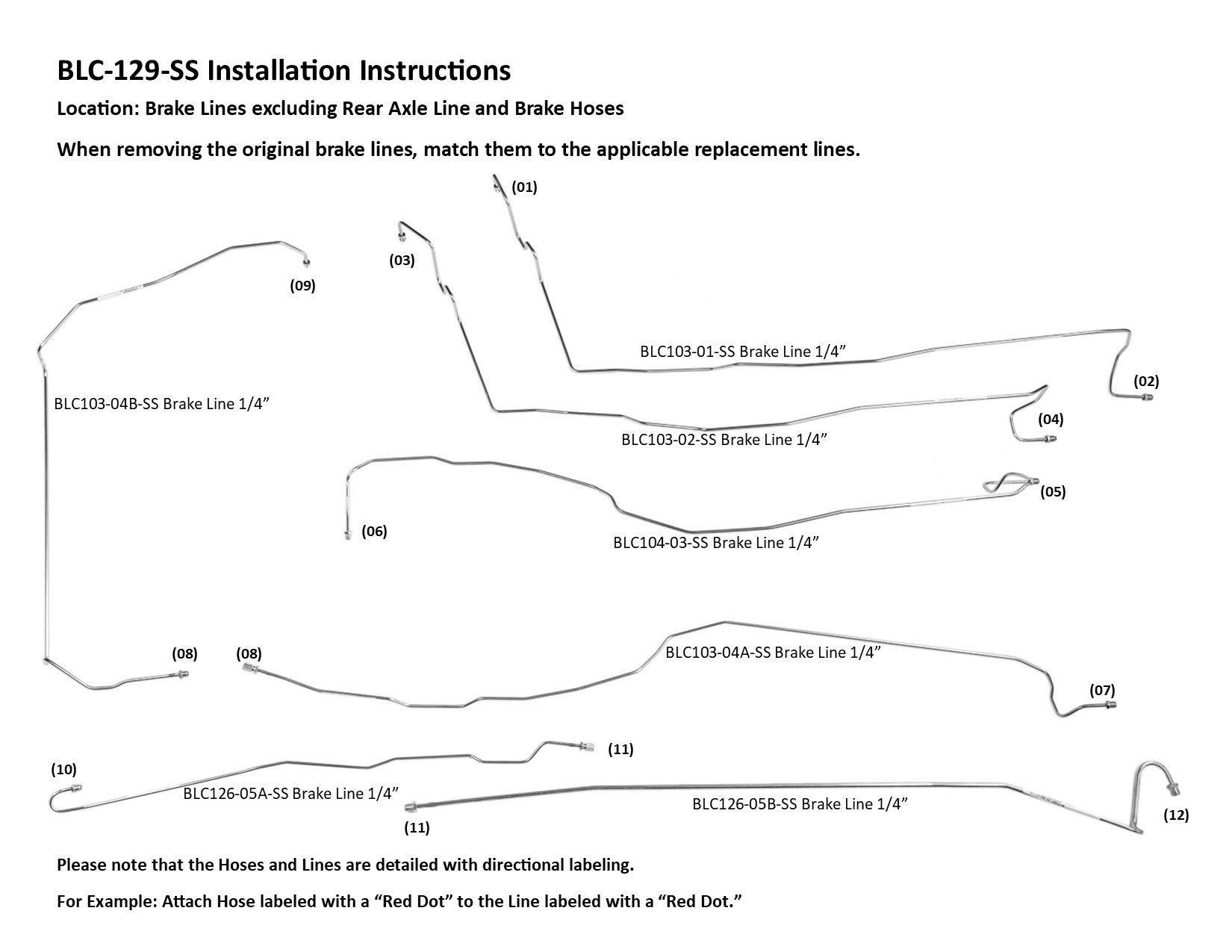

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLC103-01-SS, BLC103-02-SS and BLC103-04A-SS. See the video below on how to remove the shipping bend
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLC103-04B-SS. See the video below on how to remove the shipping twist
Please Note: The Installation Video is not an exact match for the specific model, but it is close enough to provide useful guidance
Complete Set Excluding Hoses and Rear Axle Crossover Line

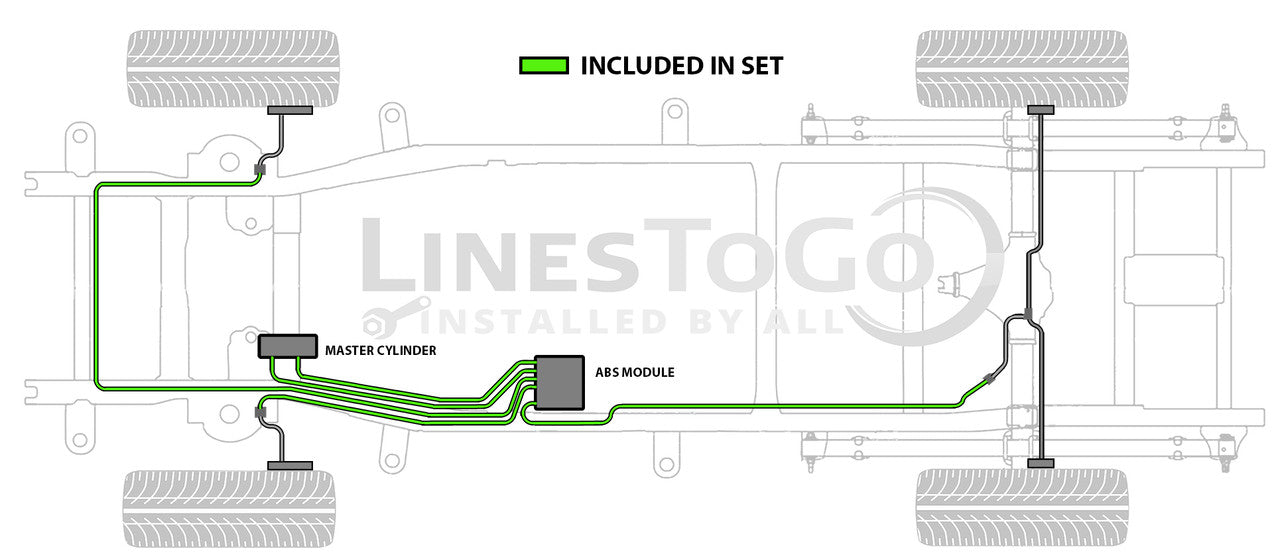

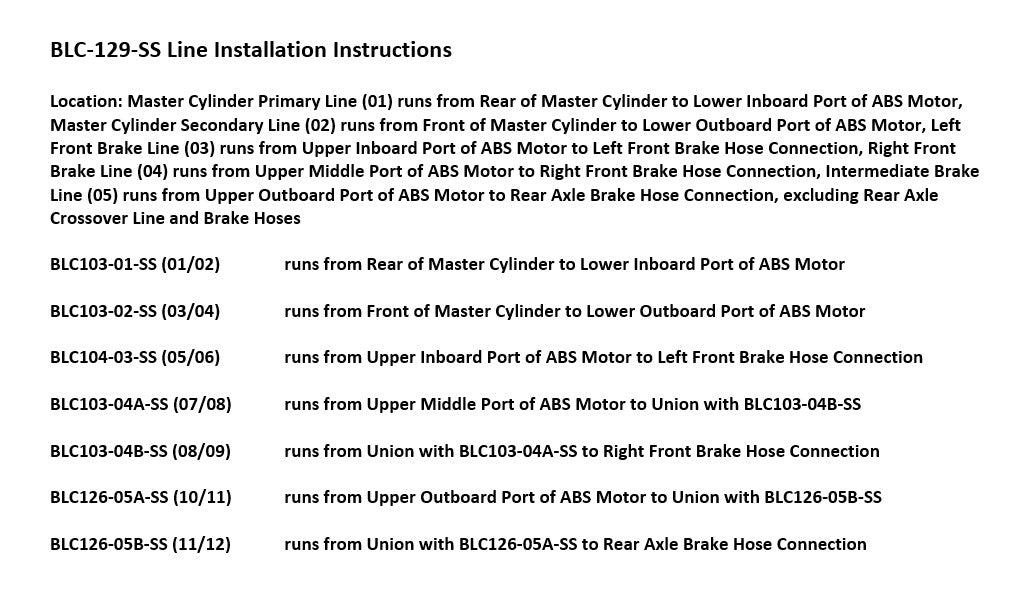

1 Master Cylinder Primary Line from Rear of Master Cylinder to Lower Inboard Port of ABS Module, 1 Master Cylinder Secondary Line from Front of Master Cylinder to Lower Outboard Port of ABS Module, 1 Left Front Line from Left Front Hose Connection to Upper Inboard Port of ABS Module, 1 Right Front Line from Right Front Hose Connection to Upper Middle Port of ABS Module (2 easy to install sections), 1 Rear Line from Rear Hose Connection to Upper Outboard Port of ABS Module (2 easy to install sections)
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
