Chevy Camaro Brake Line Set 1994 3.4L BLC-249-SS1C Stainless Steel
w/o Traction Control
Chevy Camaro Brake Line Set 1994 3.4L BLC-249-SS1C Stainless Steel
w/o Traction Control
Delivery Time & Rates
Install this pre bent 1994 Chevrolet Camaro brake line set in no time!
Stainless Steel Brake Line Set 1994 Chevrolet Camaro w/o Traction Control for 3.4L engines.
Please Note: Before installing your brake line, shipping bend will need to be removed from the line labeled BLC249-05C-SS. See the video below on how to remove the shipping bend
- Weight: 4

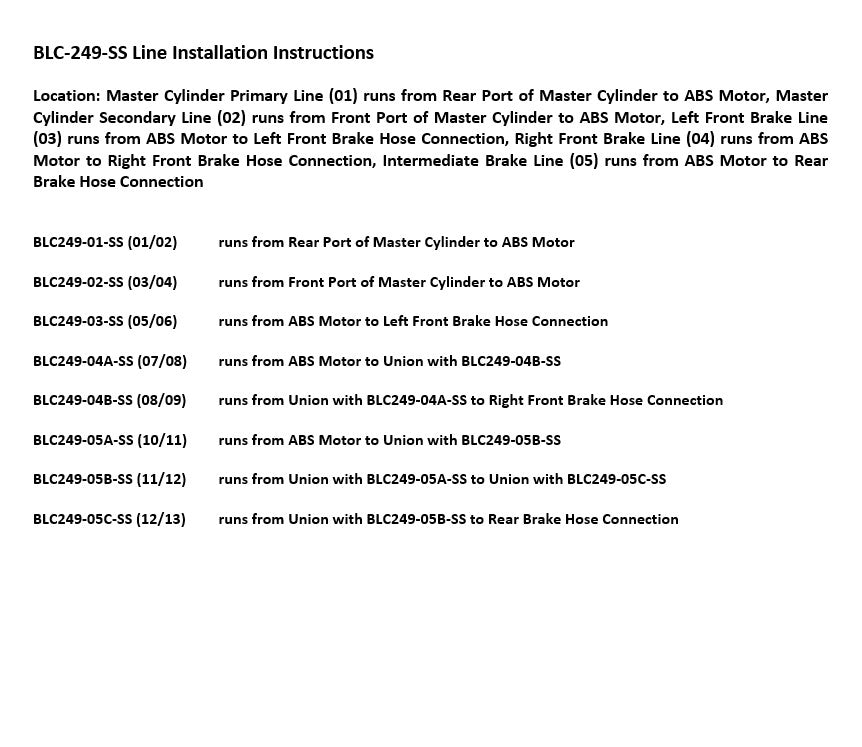

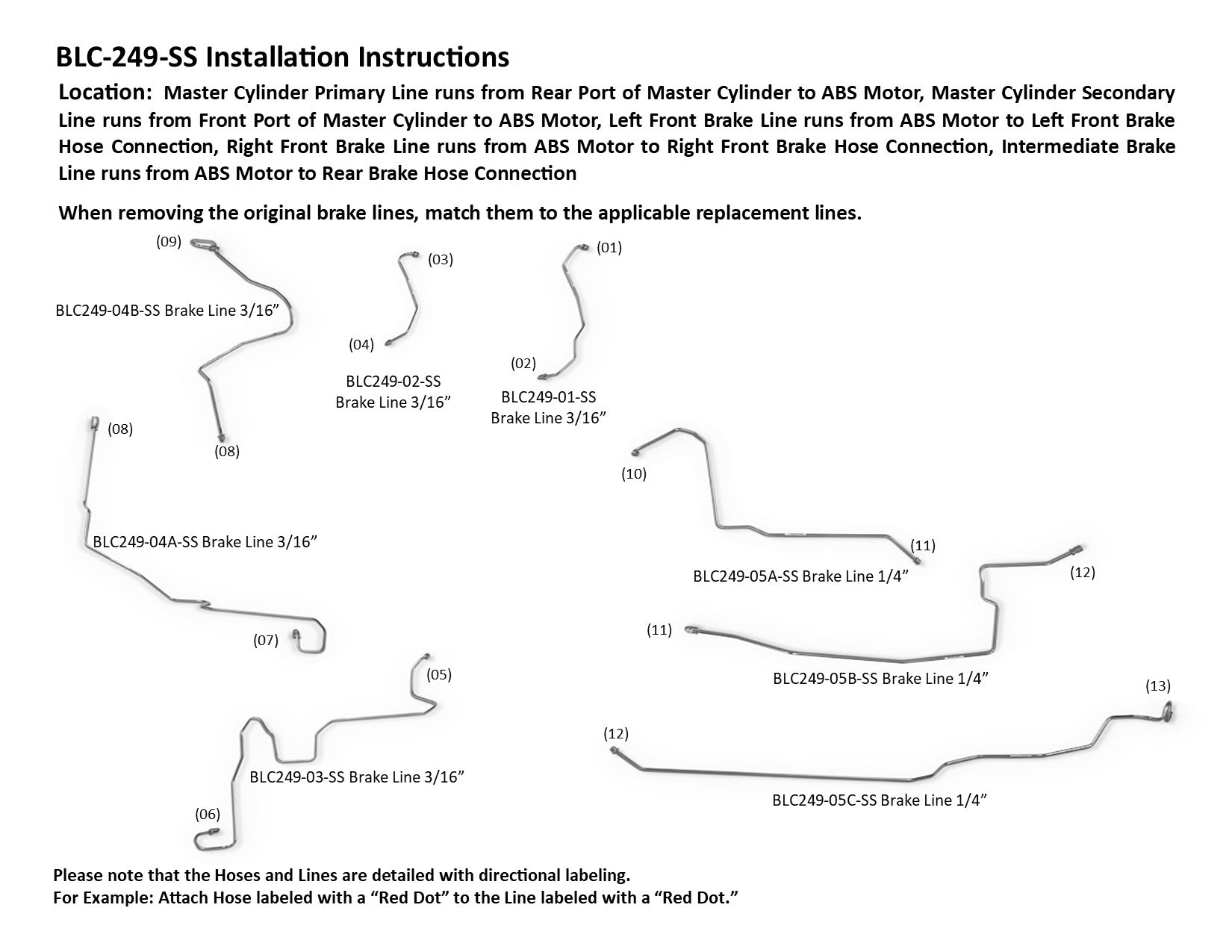

- Installation Instructions

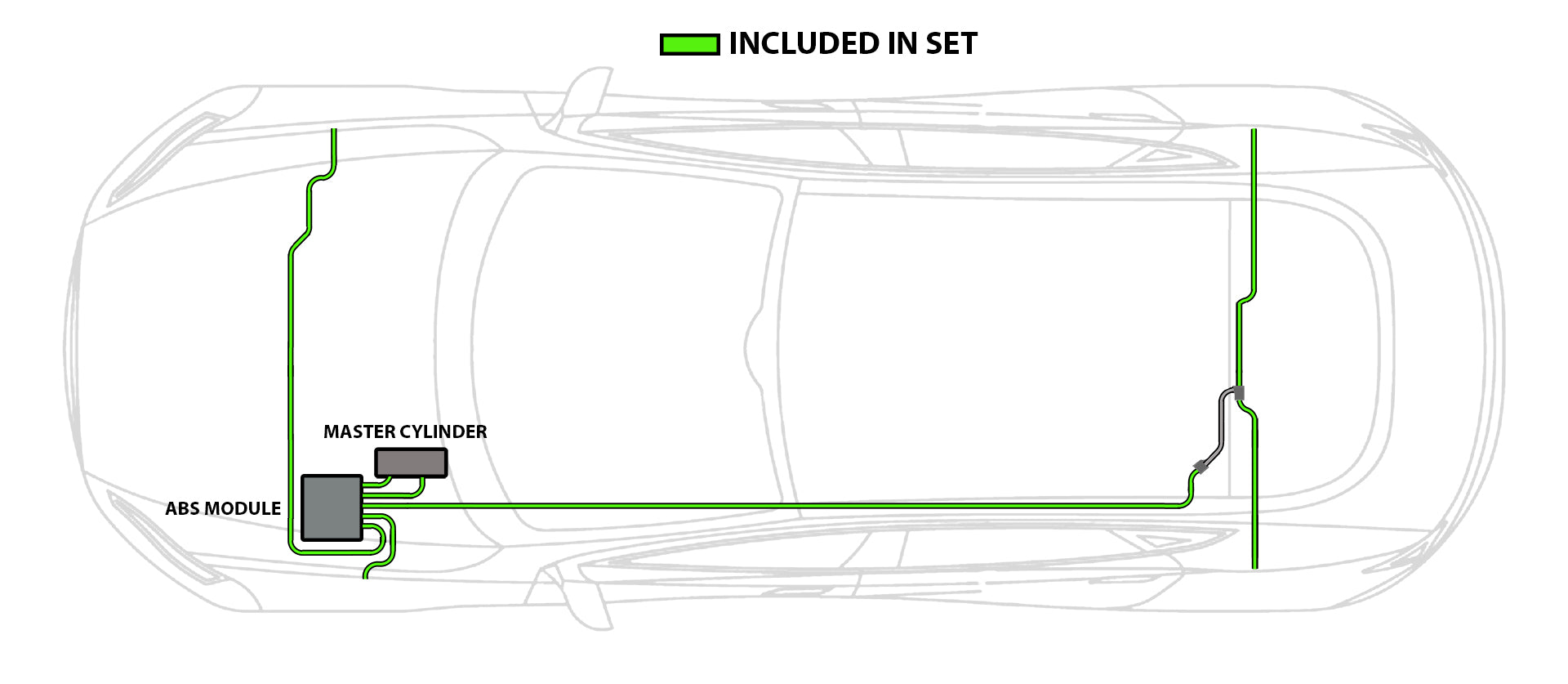

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Brake Hose Connection

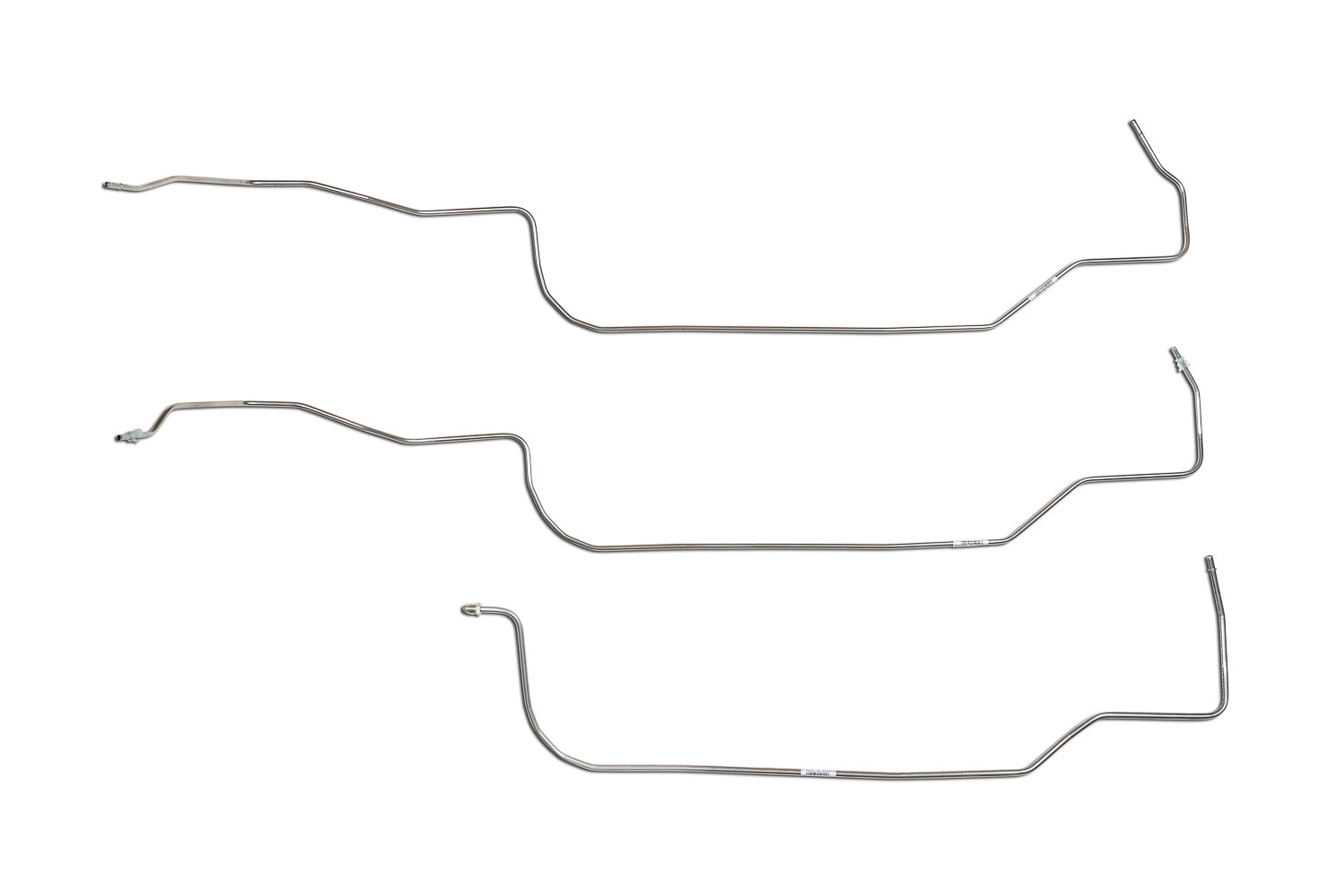

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 1/4" (in 3 easy to install sections), Does NOT include Brake Hoses or Rear Axle Crossover Line

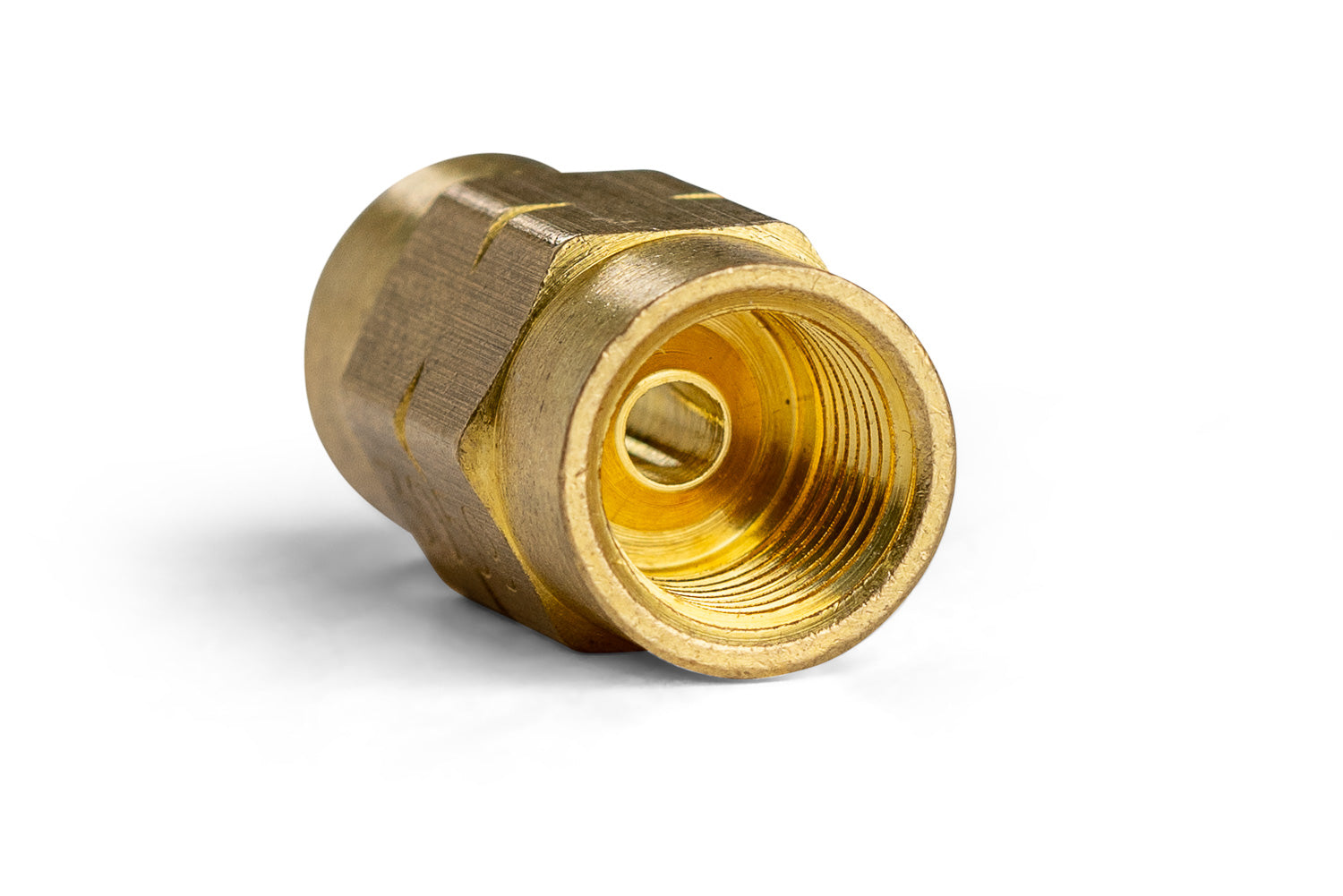

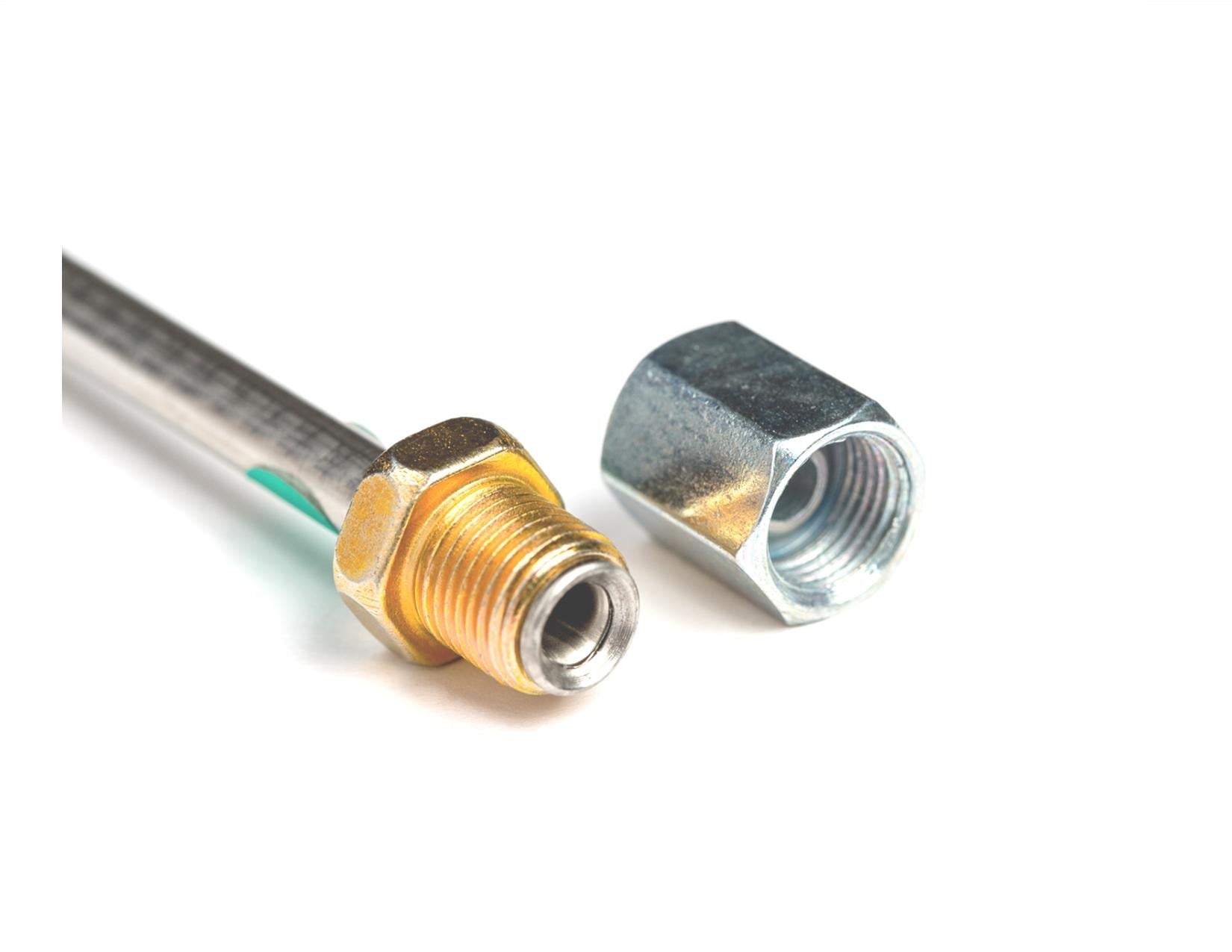

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
