Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B

w/Onboard Vapor Recovery

Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B
Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B
Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B
Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B
Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B
Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B
Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B
Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B

Cadillac Seville Fuel Line Set 1999 4.6L 4 Door w/Onboard Vapor Recovery FL259-B2B

w/Onboard Vapor Recovery

MSRP: from
SALE: from
Save $25.36
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL259-B2B
  • Weight: 4

Shop LinesToGo for 1999 Cadillac Seville fuel lines.

Fuel Line Set 99 Cadillac Seville 4.6L 4 Door w/ Onboard Vapor Recovery

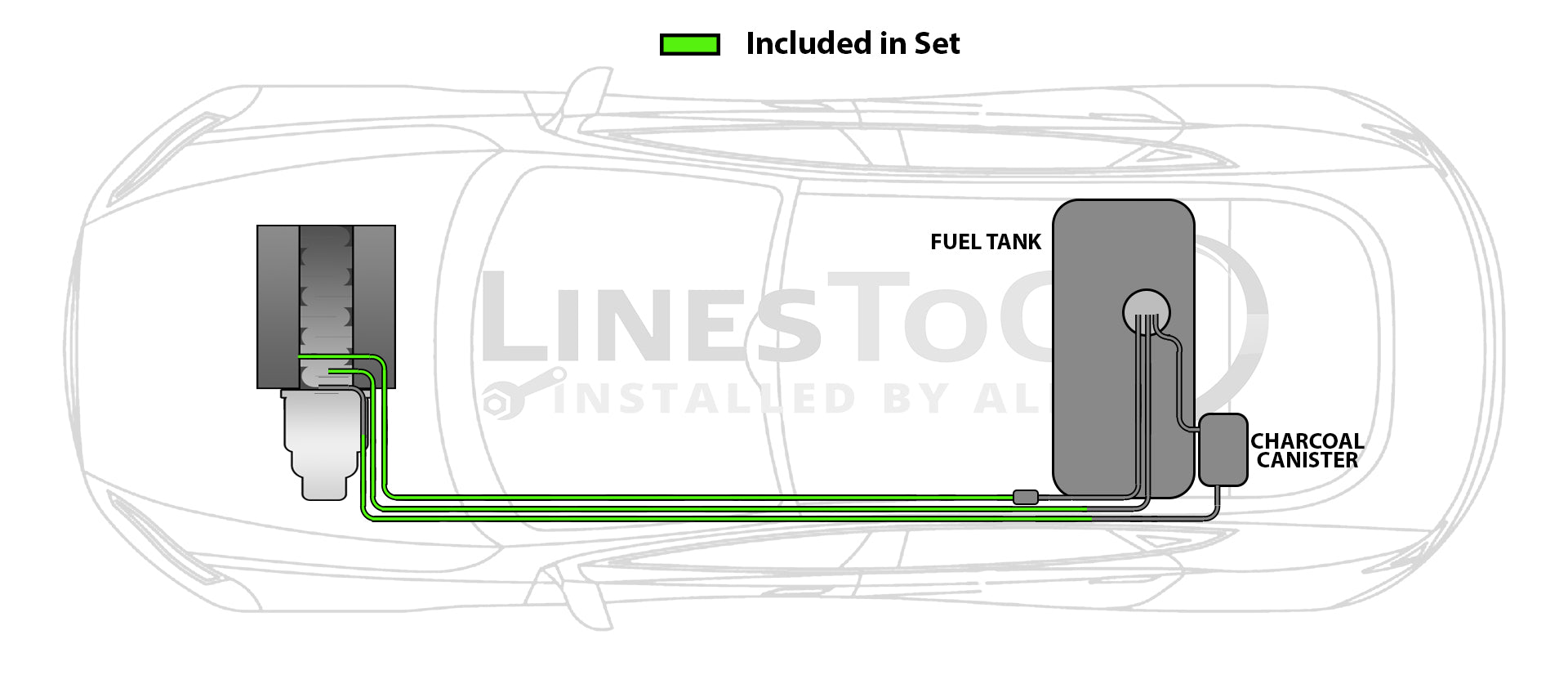

Location: Engine to Hose Connection off Fuel Tank

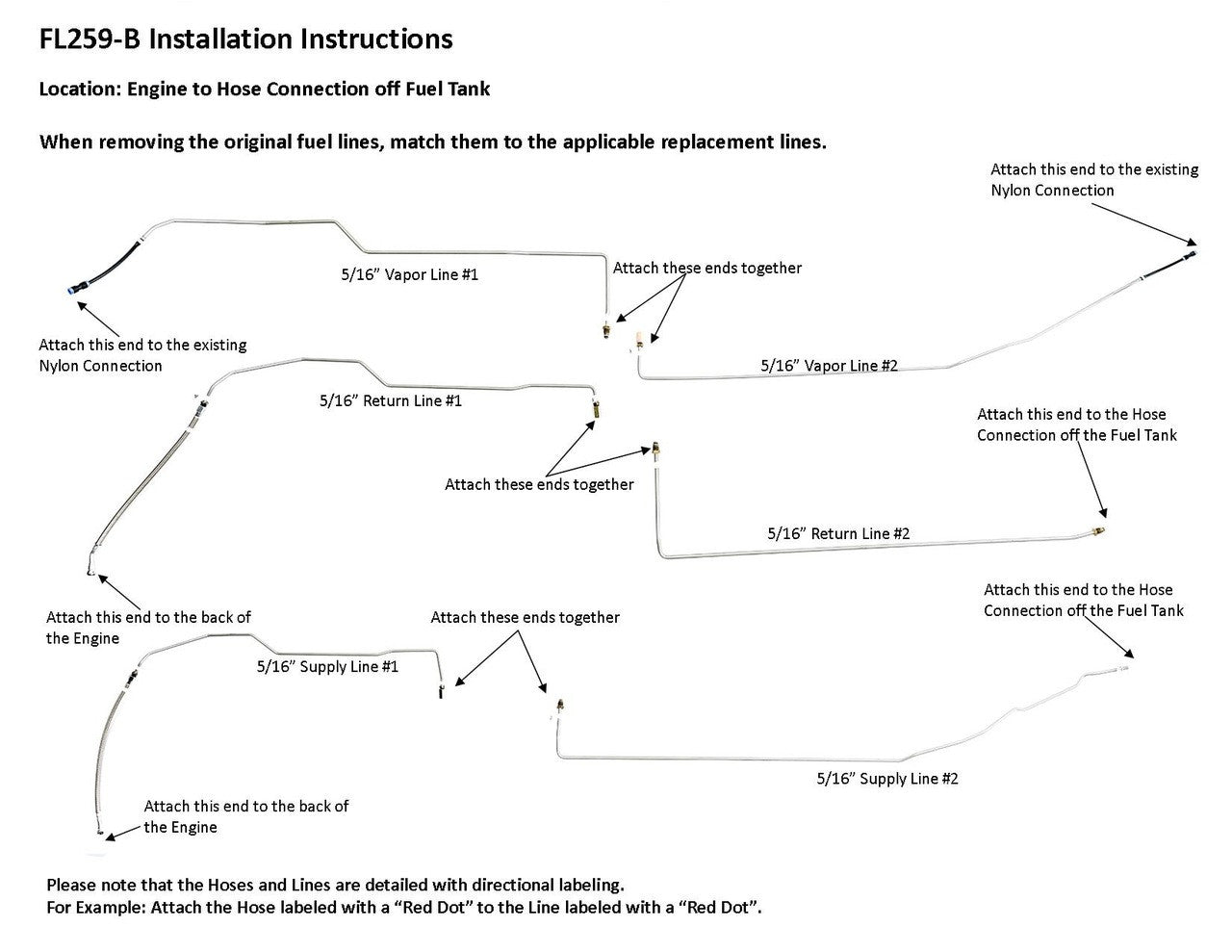

Please Note: Before installing your fuel line, shipping bends will need to be removed from the lines labeled SA259B313CB and SA259B313BB. See the video below on how to remove the shipping bend.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

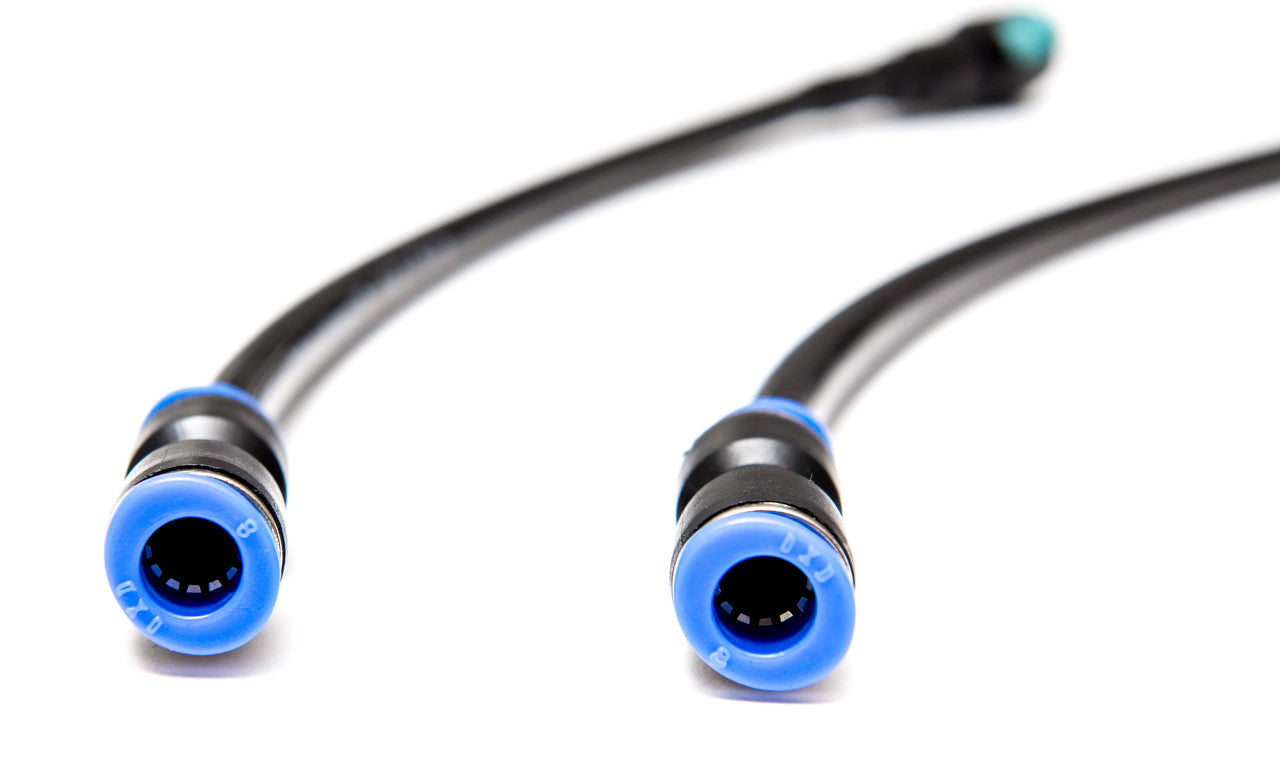

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

Nylon Installation Instructions:

Step 1


Cut the new nylon hose in the same position as the original nylon hose.

Step 2


Cut the original nylon hose in the same position as the new nylon hose.

Step 3


Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

OEM Part Number25660245, 25662835, 25660094

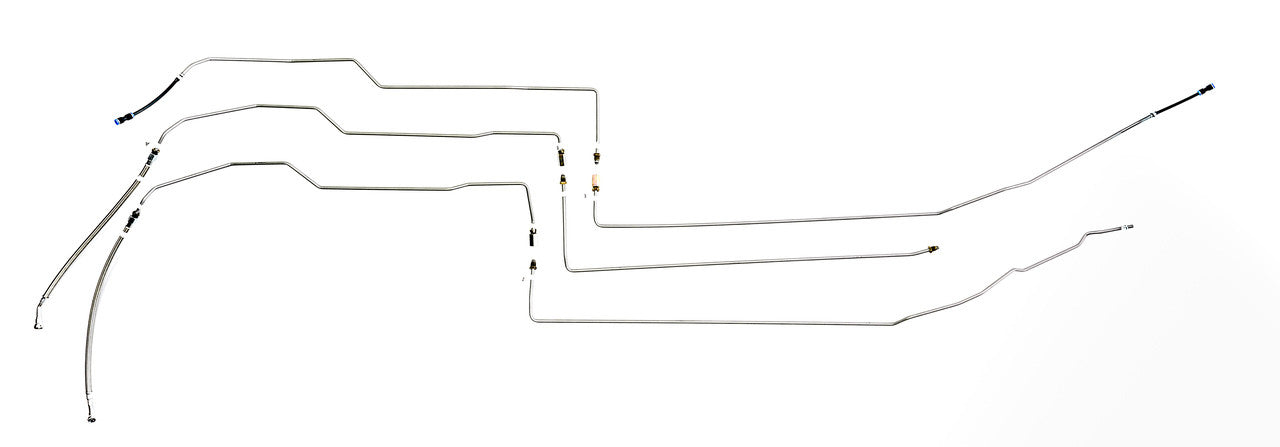

Included in Set: 1 supply line 5/16" (in two easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line 5/16"(in 2 easy to install sections), hoses to sending unit connection, 1 nylon line with union

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 59" X 12" X 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
