Toyota Sequoia Brake Line Set 2001 4.7L BLT-106-SS1B Stainless Steel
Toyota Sequoia Brake Line Set 2001 4.7L BLT-106-SS1B Stainless Steel
Delivery Time & Rates
Choose from 2001 Sequoia brake lines to fit your Toyota without a problem...
Brake Line Set Stainless Steel Toyota Sequoia 2001 for 4.7L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLT106-03A-SS. See the video below on how to remove the shipping bend
Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Frame Mounted Junction Block then to Left Front Brake Hose Connection then to Left Front Brake Caliper, Right Front Brake Line runs from ABS Motor to Frame Mounted Junction Block then to Right Front Brake Hose Connection then to Right Front Brake Caliper, Left Rear Brake Line runs from ABS Motor to Upper Left Side Frame Mounted Junction Block then to Rear Hose Assembly over the Rear Axle then across Left Side of Axle to Left Rear Brake Hose Connection, Right Rear Brake Line runs from ABS Motor to Lower Left Side Frame Mounted Junction Block then to Rear Brake Hose Assembly over the Rear Axle then across the Right Side of Axle to Right Rear Brake Hose Connection

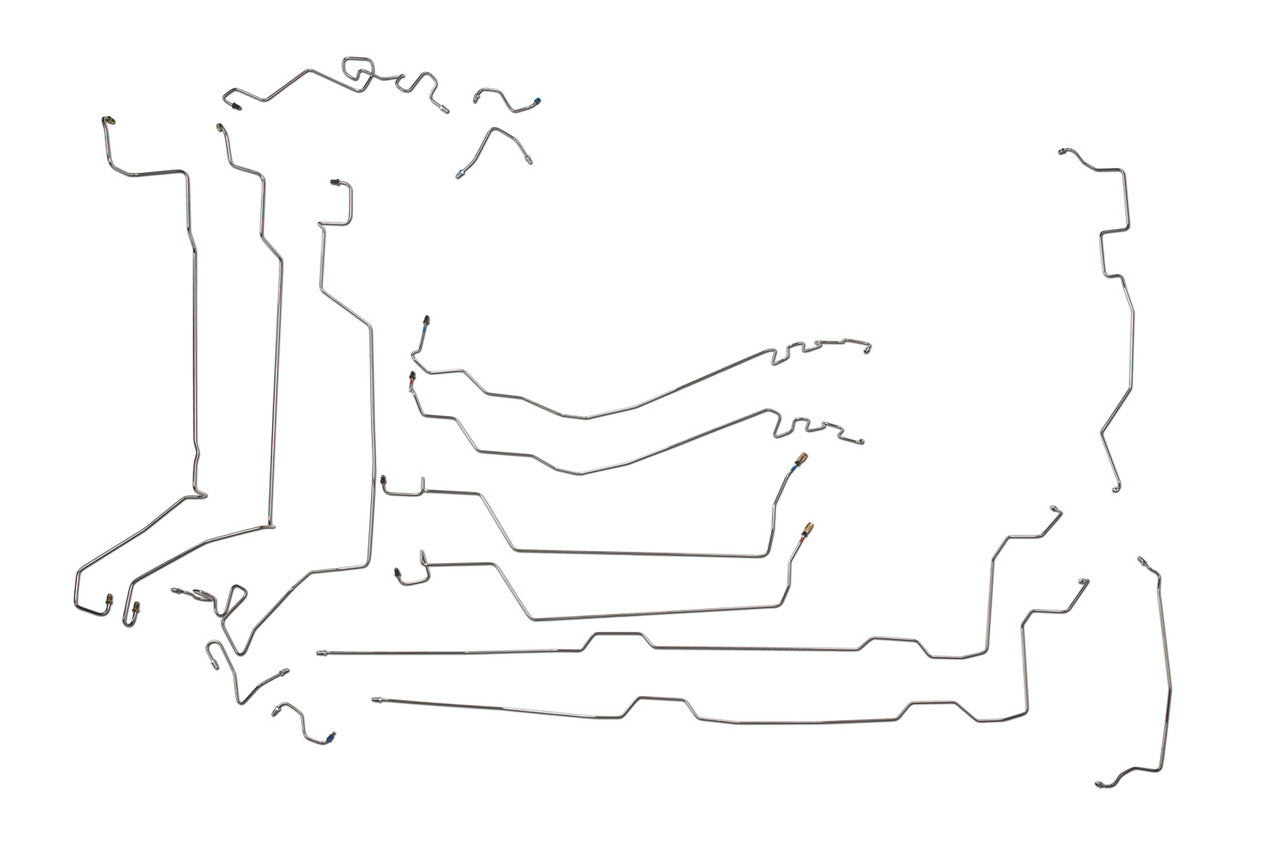

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16" (in 3 easy to install sections), 1 Right Front Brake Line 3/16" (in 3 easy to install sections), 1 Left Rear Brake Line 3/16"(in 4 easy to install sections), 1 Right Rear Brake Line 3/16"(in 4 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
