Toyota Rav4 Brake Line Set 2006 2.4L BLT-110-SS1C Stainless Steel
Toyota Rav4 Brake Line Set 2006 2.4L BLT-110-SS1C Stainless Steel
- In stock, ready to ship
- Inventory on the way
Delivery Time & Rates
Choose from 2006 Rav4 brake lines stainless steel to fit your Toyota without a problem...

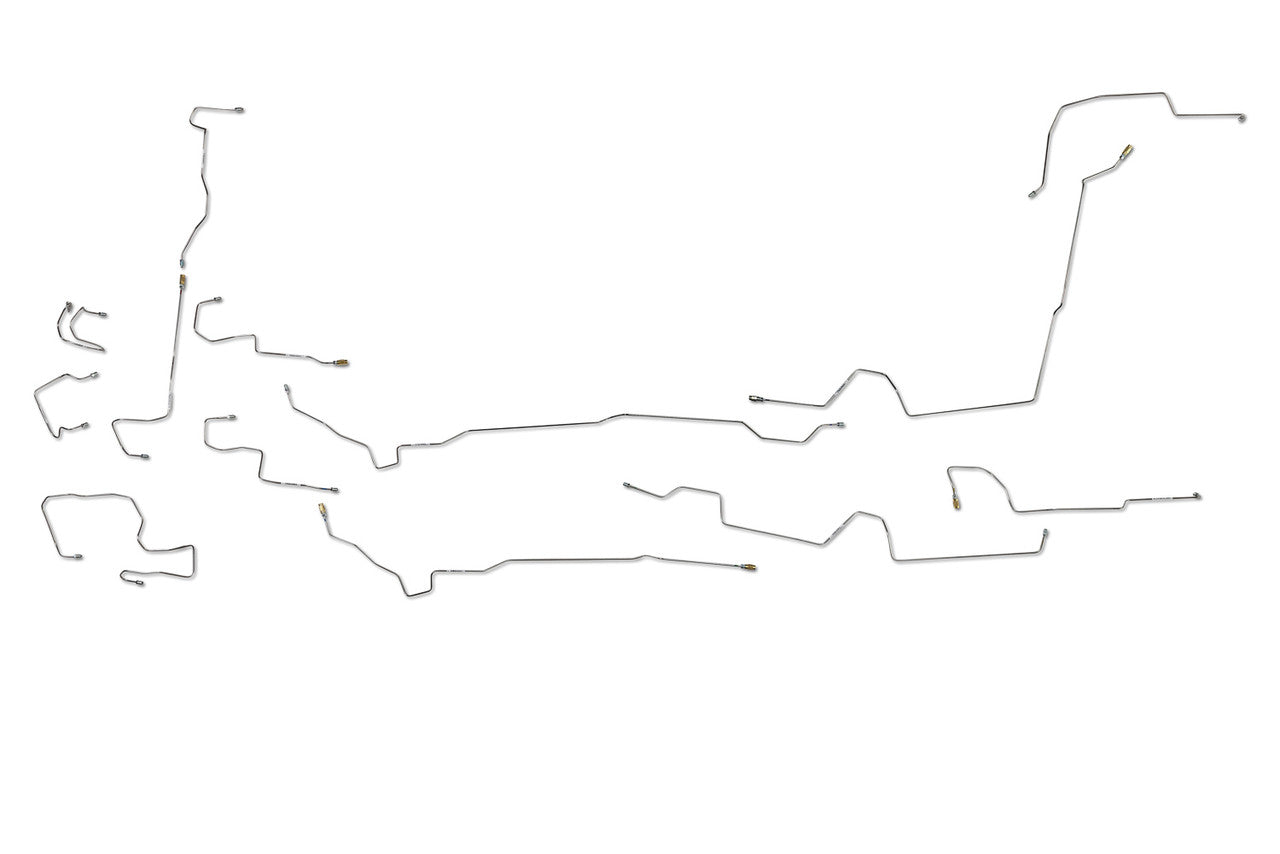

Brake Line Set Stainless Steel 2006 Toyota Rav4 for 2.4L engines
Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLT110-06B-SS and BLT110-06C-SS. See the video below on how to remove the shipping bend
- Weight: 5
- Installation Instructions

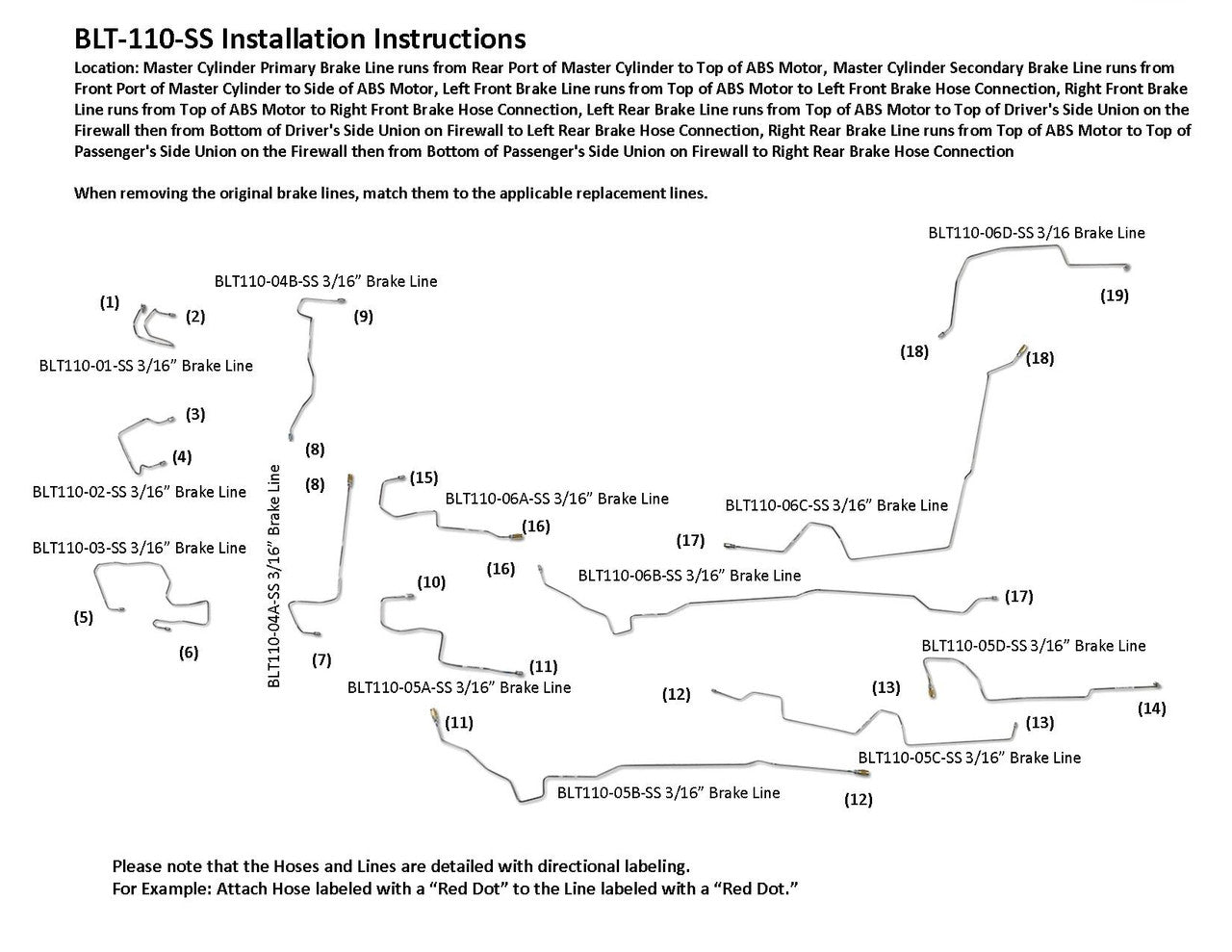

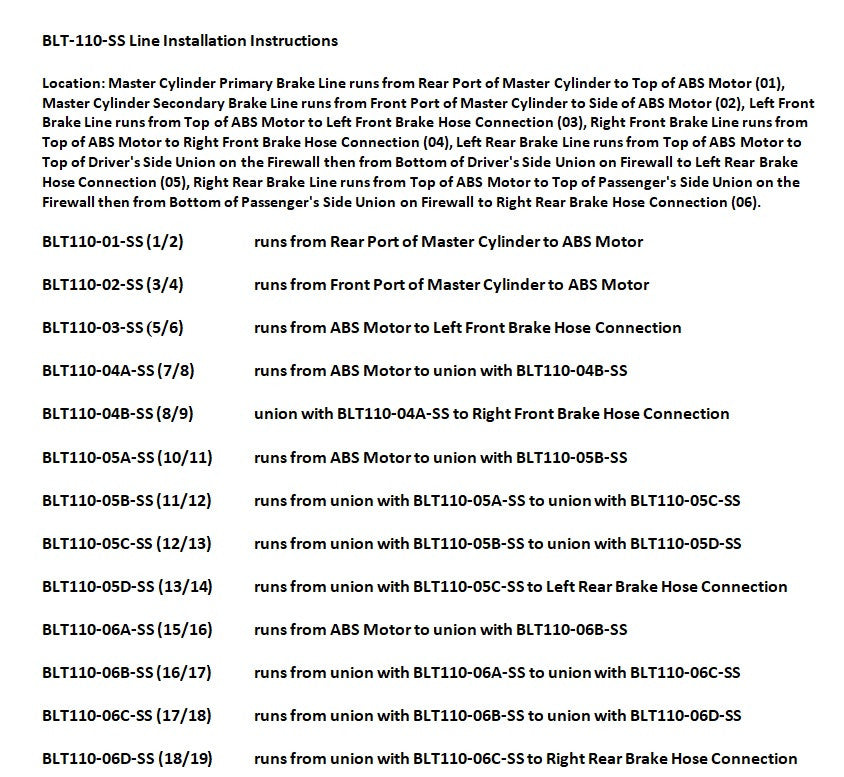

Master Cylinder Primary Brake Line runs from Rear Port of Master Cylinder to Top of ABS Motor, Master Cylinder Secondary Brake Line runs from Front Port of Master Cylinder to Side of ABS Motor, Left Front Brake Line runs from Top of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from Top of ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from Top of ABS Motor to Top of Driver's Side Union on the Firewall then from Bottom of Driver's Side Union on Firewall to Left Rear Brake Hose Connection, Right Rear Brake Line runs from Top of ABS Motor to Top of Passenger's Side Union on the Firewall then from Bottom of Passenger's Side Union on Firewall to Right Rear Brake Hose Connection
1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16" (in 4 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
