Toyota 4Runner Brake Line Set 1997 3.4L BLT-107-SS1D Stainless Steel

w/ABS w/15" Wheels

Toyota 4Runner Brake Line Set 1997 3.4L BLT-107-SS1D Stainless Steel
Toyota 4Runner Brake Line Set 1997 3.4L BLT-107-SS1D Stainless Steel
Toyota 4Runner Brake Line Set 1997 3.4L BLT-107-SS1D Stainless Steel

Toyota 4Runner Brake Line Set 1997 3.4L BLT-107-SS1D Stainless Steel

w/ABS w/15" Wheels

MSRP: from
SALE: from
Save $68.75
from /
Stainless steel

Delivery Time & Rates

Zip/Postal Code:
SKU: BLT-107-SS1D
  • Weight: 5

Choose from 1997 4Runner brake lines to fit your Toyota without a problem...

Brake Line Set Stainless Steel Toyota 4Runner w/ABS w/15" Wheels exc. Hoses for 3.4L engines.

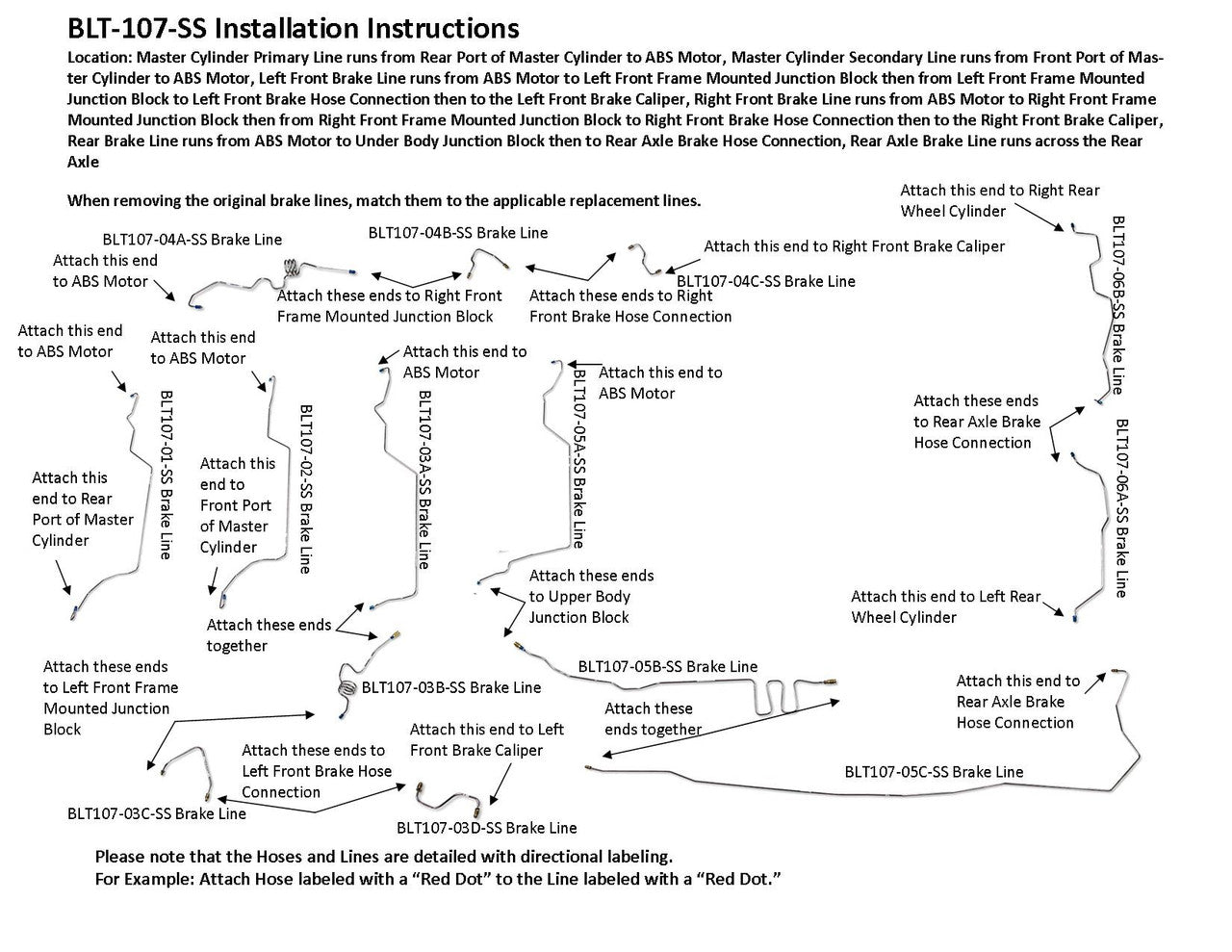

Location: Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Frame Mounted Junction Block then from Left Front Frame Mounted Junction Block to Left Front Brake Hose Connection then to the Left Front Brake Caliper, Right Front Brake Line runs from ABS Motor to Right Front Frame Mounted Junction Block then from Right Front Frame Mounted Junction Block to Right Front Brake Hose Connection then to the Right Front Brake Caliper, Rear Brake Line runs from ABS Motor to Under Body Junction Block then to Rear Axle Brake Hose Connection, Rear Axle Brake Line runs across the Rear Axle

Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLT107-05C-SS. See the video below on how to remove the shipping bend.

OEM Part Numbers: 4731135510, 4732135740, 4731535310, 4731535320, 4731635250, 473133D040, 473133D050, 4732235730, 4732335170, 4732635050, 4732535270, 4731435330

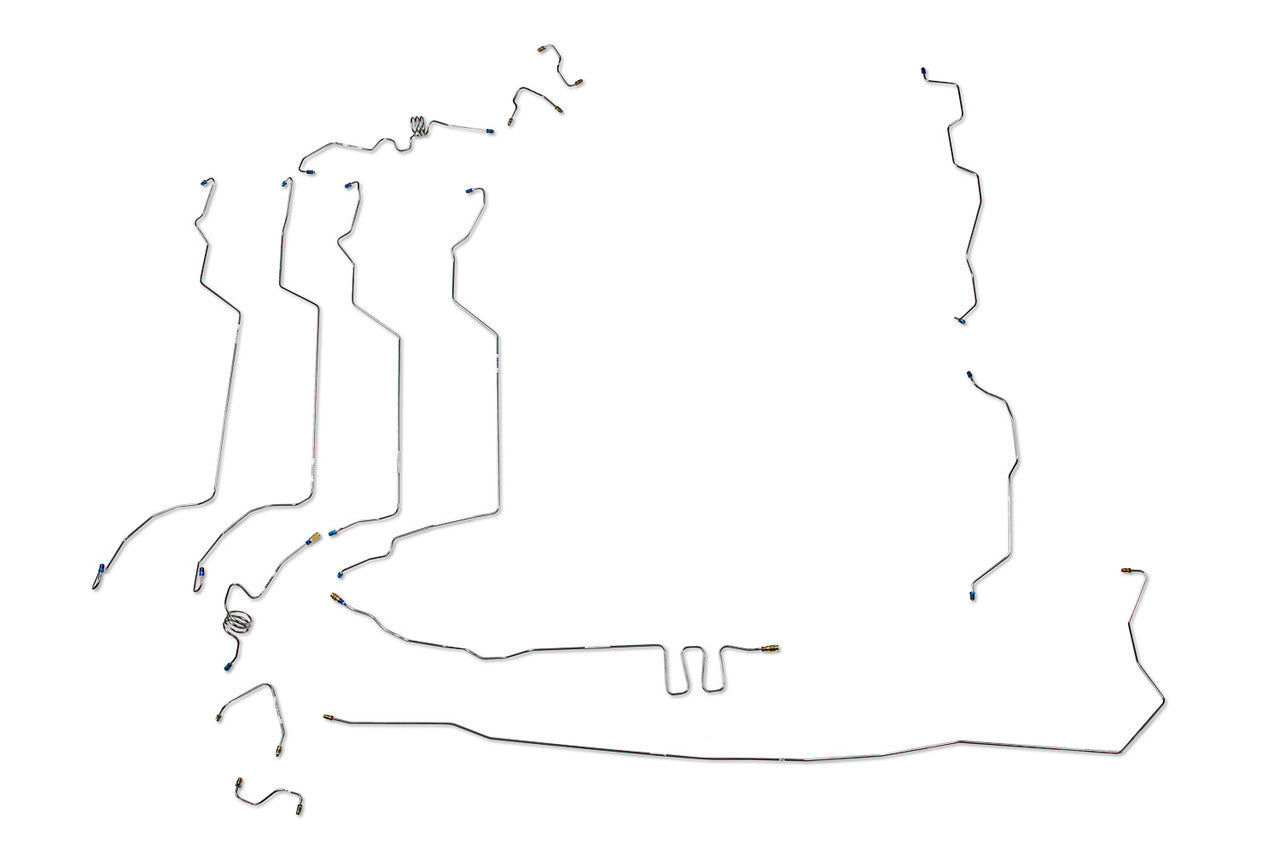

Included in Set: 1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16" (in 4 easy to install sections), 1 Right Front Brake Line 3/16" (in 3 easy to install sections), 1 Rear Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Brake Line 3/16" (2 sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 47" x 12" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
