Suzuki Grand Vitara Front Brake Line Set 2001 2.7L BLS-101-SS1A Stainless Steel

w/ABS

Suzuki Grand Vitara Front Brake Line Set 2001 2.7L BLS-101-SS1A Stainless Steel
Suzuki Grand Vitara Front Brake Line Set 2001 2.7L BLS-101-SS1A Stainless Steel

Suzuki Grand Vitara Front Brake Line Set 2001 2.7L BLS-101-SS1A Stainless Steel

w/ABS

MSRP: from
SALE: from
Save $43.74
from /
Stainless steel

Delivery Time & Rates

Zip/Postal Code:
SKU: BLS-101-SS1A
  • Weight: 4

Choose from 2001 Grand Vitara brake lines to fit your Suzuki without a problem...

Brake Line Set Stainless Steel Suzuki Grand Vitara 2001 w/ABS for 2.7L engines.

Location: Front Set Only - Master Cylinder Primary Line runs from Rear Port of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Axle Brake Hose Connection

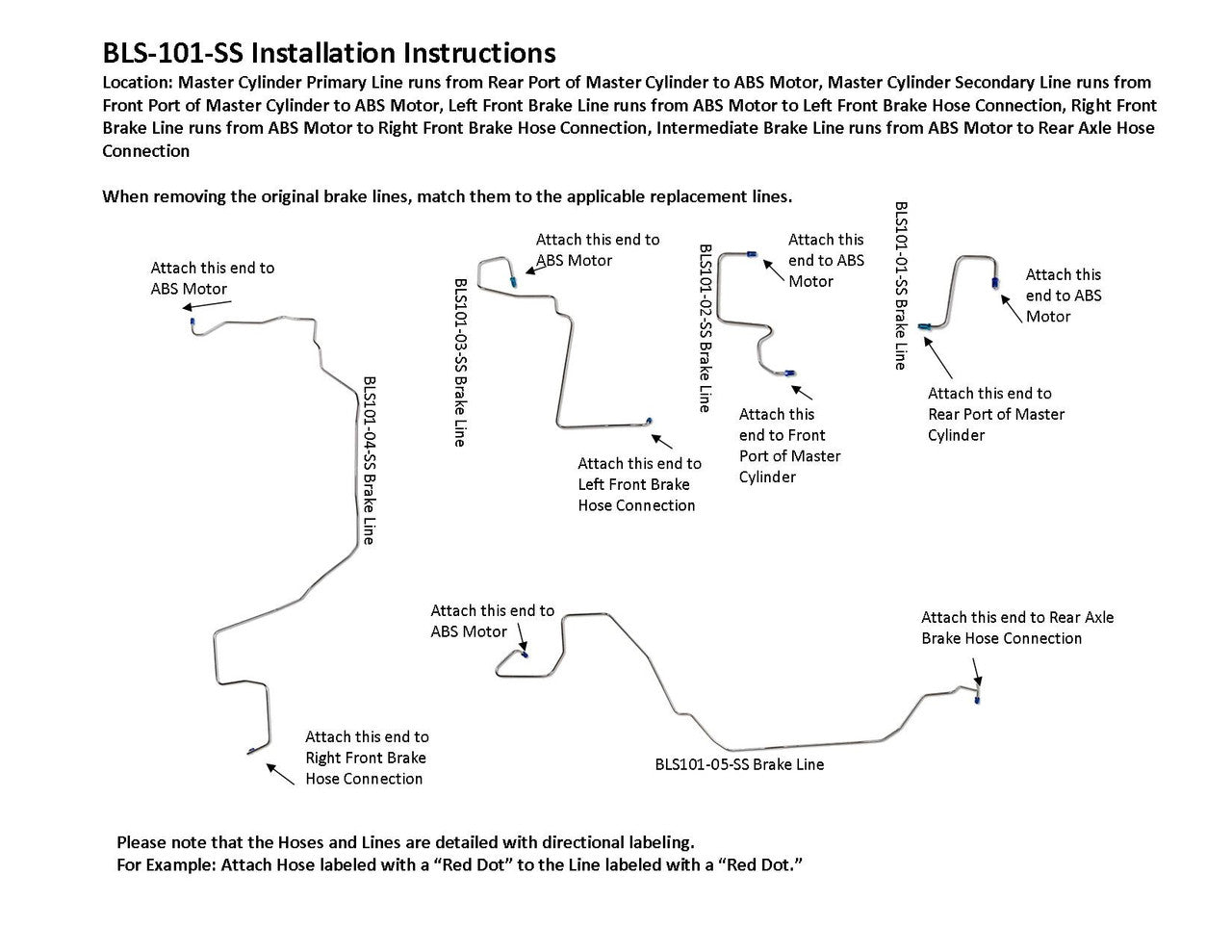

Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BLS101-04-SS. See the video below on how to remove the shipping bend.

OEM Part Number: 51340-52D30, 51330-52D30, 51430-52D30

Included in Set: 1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16", 1 Intermediate Brake Line 3/16", Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel Tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 47"x 12" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
