Saturn Vue Fuel Line Set 2007 2.2L FL253-E1B
Saturn Vue Fuel Line Set 2007 2.2L FL253-E1B
Delivery Time & Rates

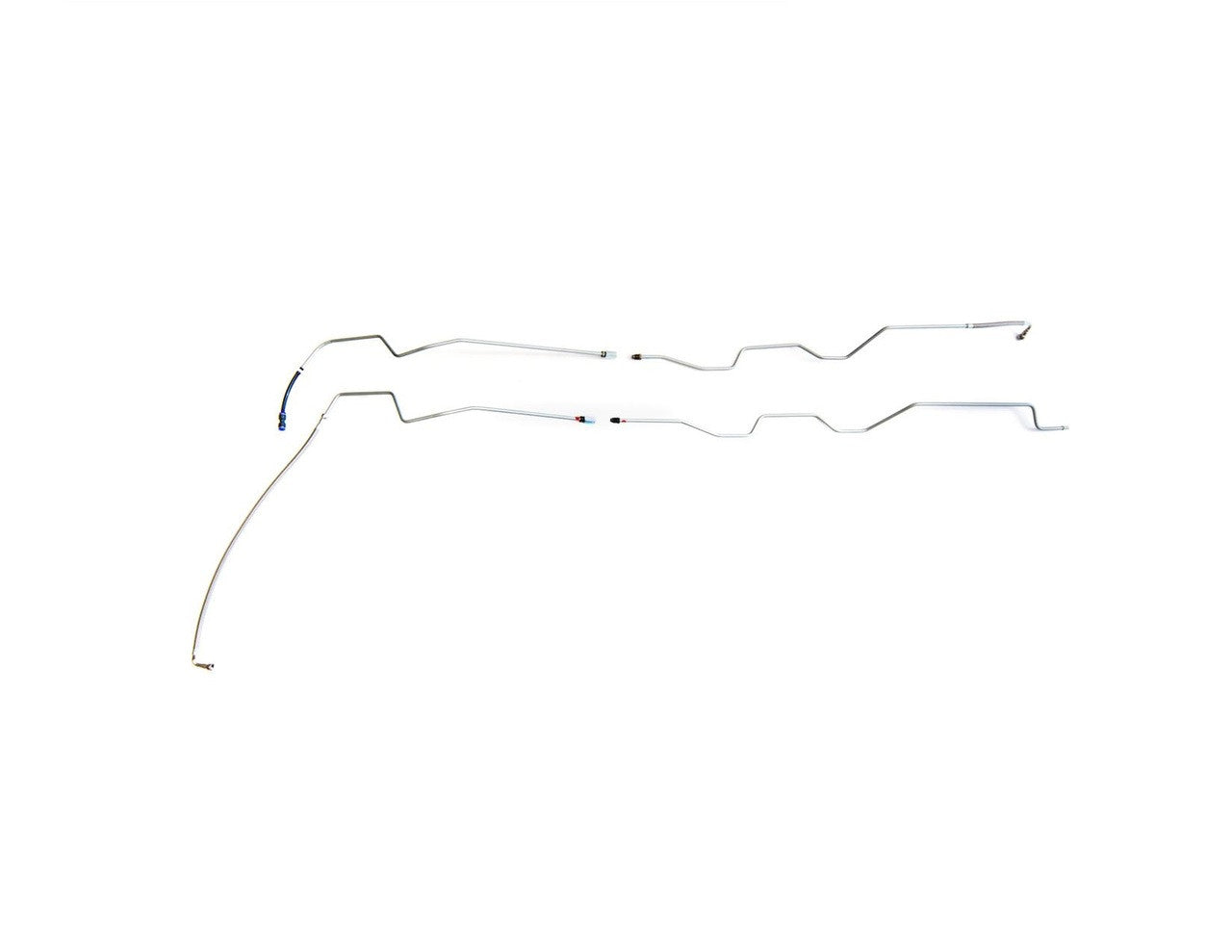

Fuel Line Set 07 Saturn Vue 2.2L
Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.
Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.
Connection at Fuel Line Repair Kit: This is usually required as the original fuel lines are being disconnected from the nylon during install.
3070-01 includes 2 Nylon Lines 3/8", 2 Unions 3/8", 2 Quick Connectors 3/8"
Connection at Sending Unit Repair Kit: This may only be required if you are replacing the sending unit.
6093-01 includes 1 nylon line 3/8", 1 union, 1 quick connector 3/8" 90 degree

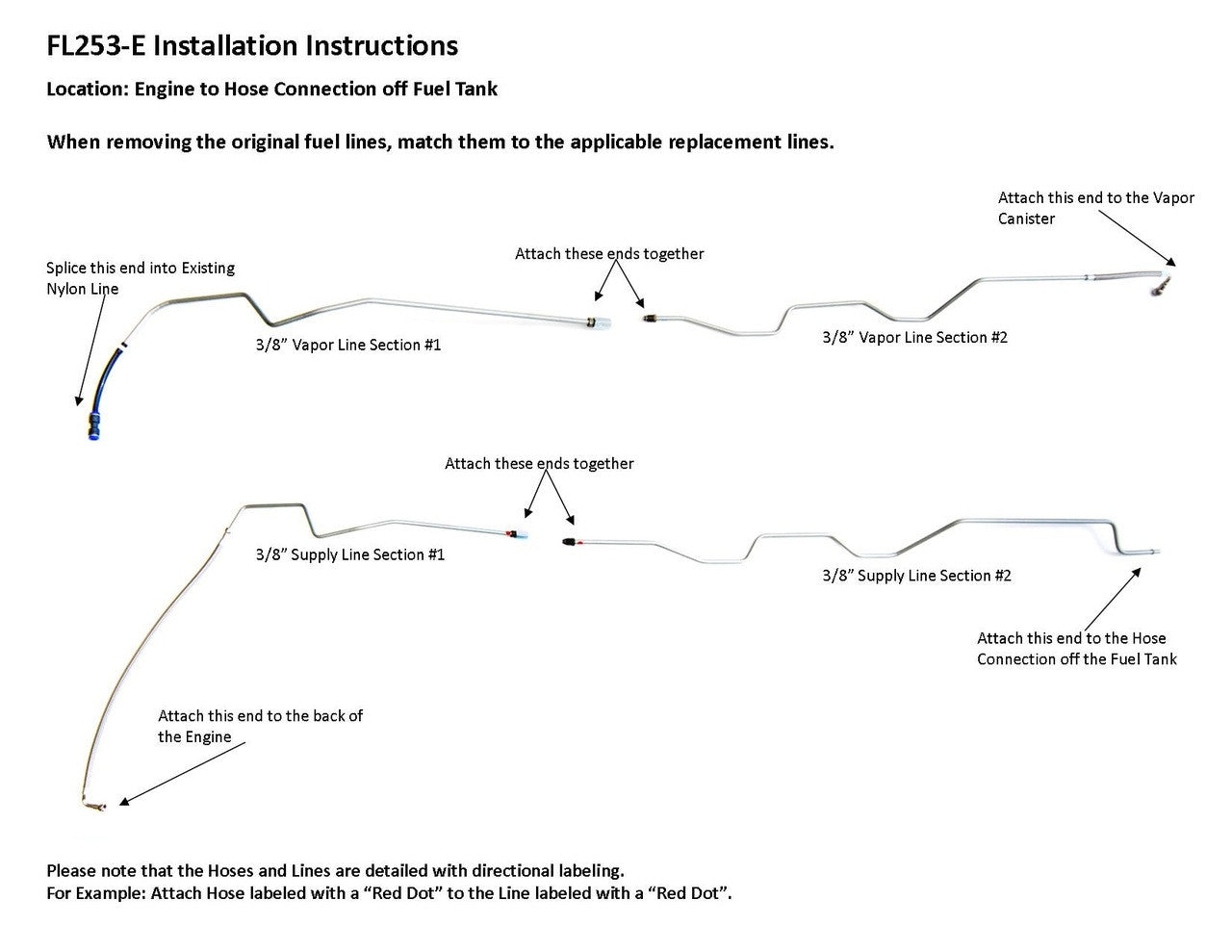

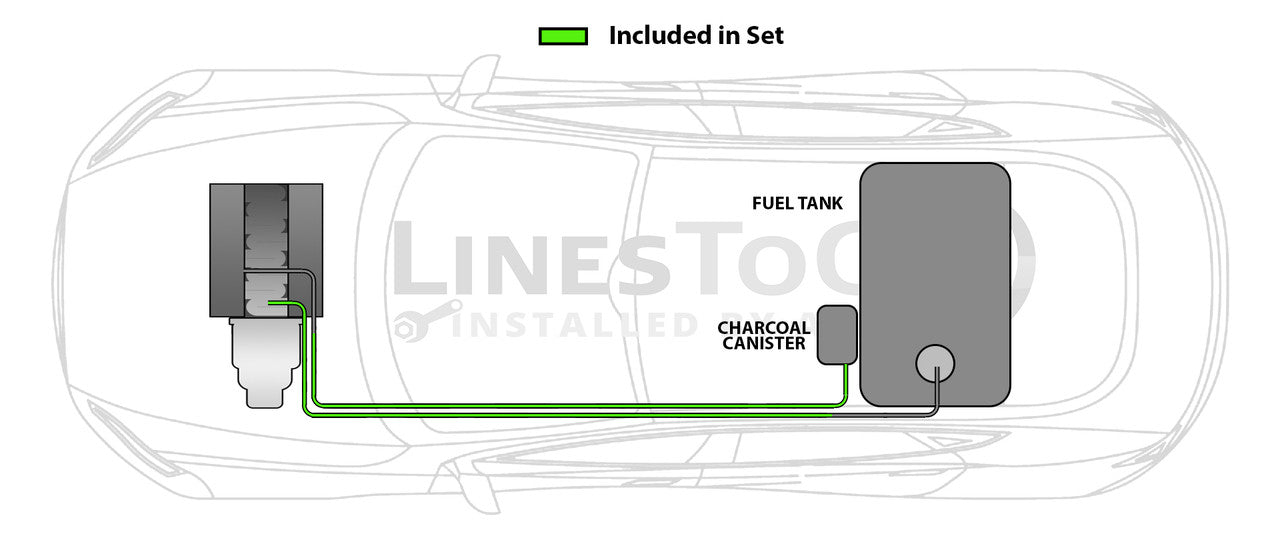

Engine to Hose Connection off Fuel Tank
1 supply line 3/8", 1 vapor line 3/8", hose to engine connection, 1 nylon lines with union
Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
All hoses are made from Stainless Steel Braided Teflon with OE style fittings
