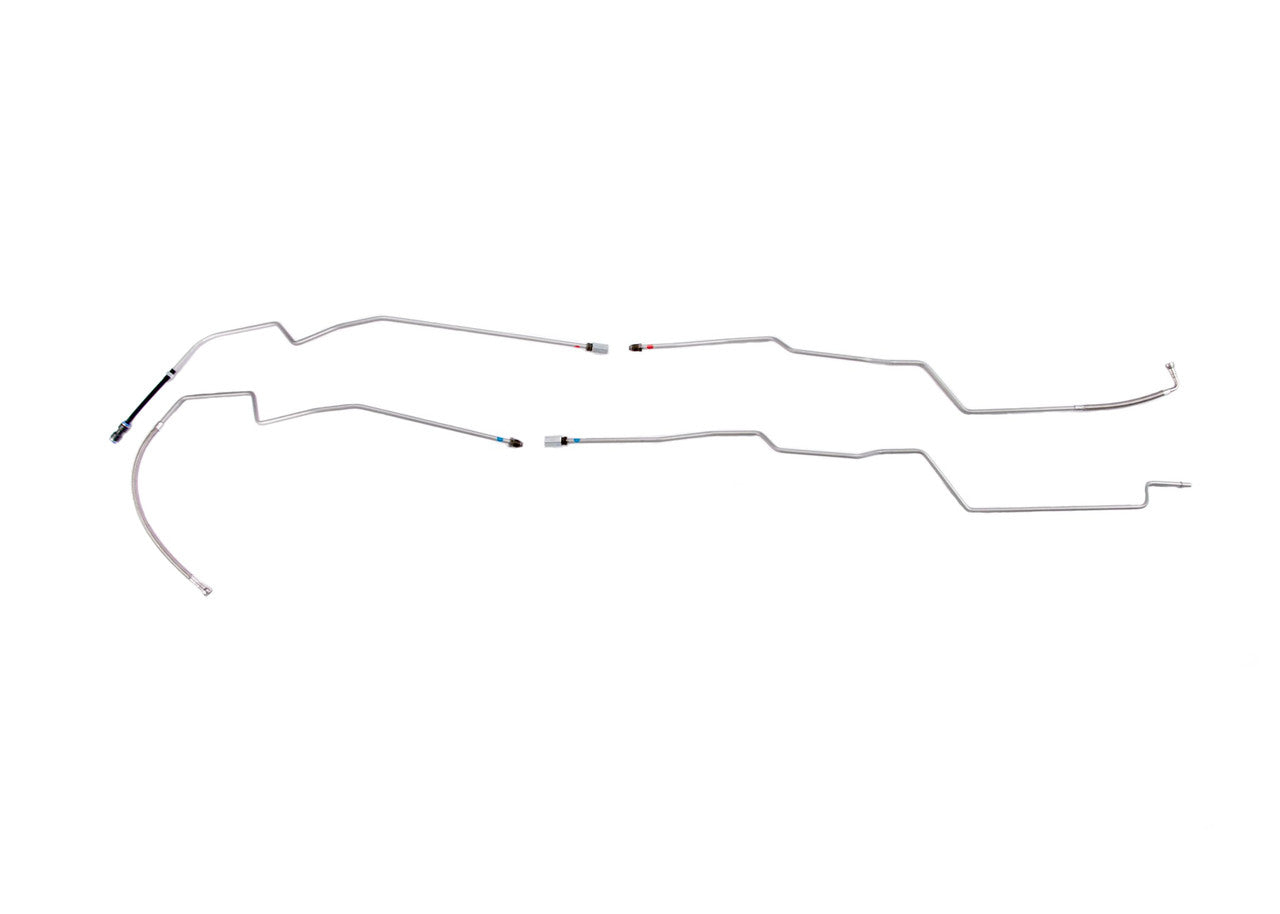

Fuel Line Set 2004 Saturn Vue 2.2L

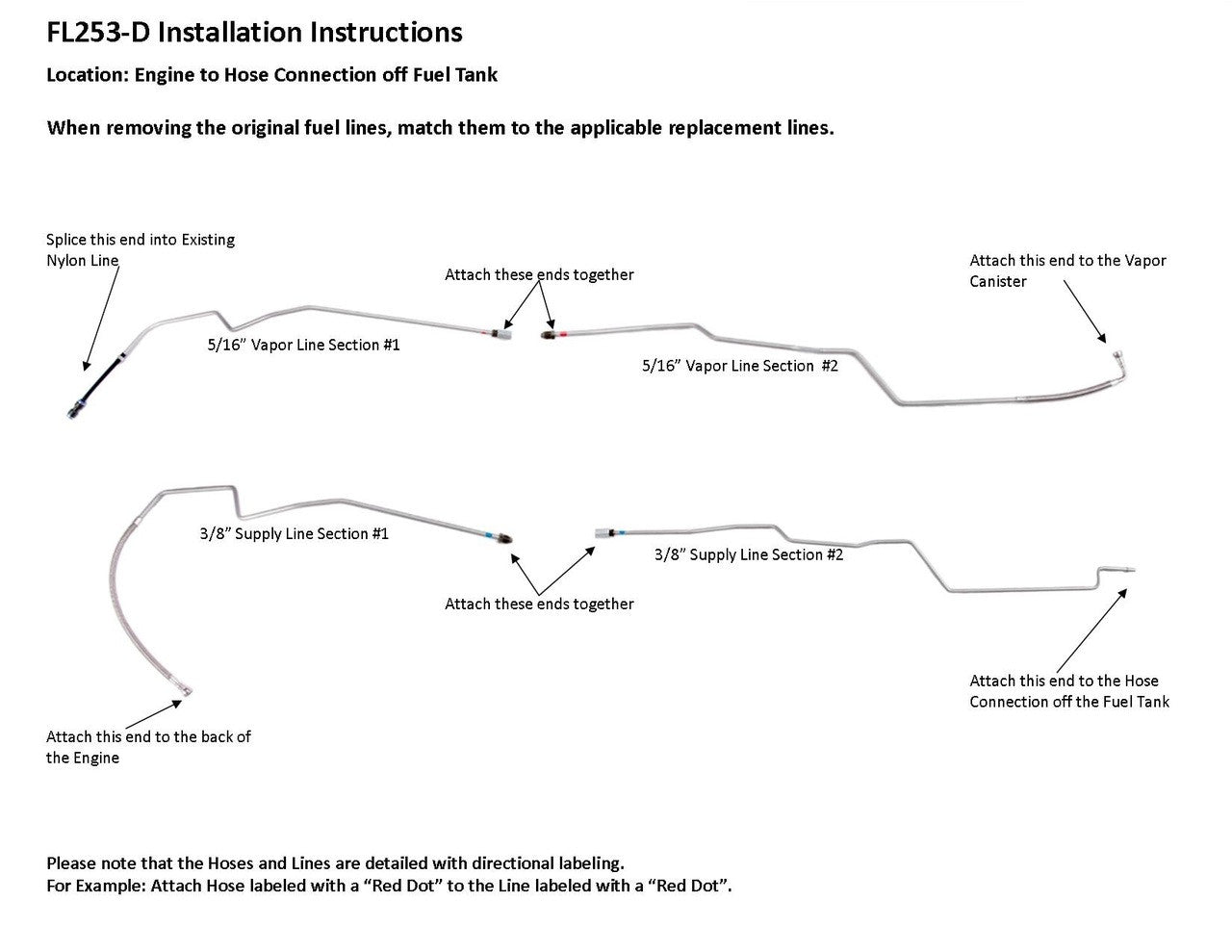

Nylon Line Attached to Vapor Line: There is a small section of nylon line included which is attached to the vapor line. It is only a section of nylon that will splice to the original nylon line on the vehicle.

Nylon Lines: We do not produce pre-formed nylon lines and they are not included with your fuel lines. However, repair kits are available which will attach to your existing nylon lines providing new connectors for the fuel supply and return lines. The original connections are often seized and damaged during install.

Repair Kit (Connection at Fuel Lines): This is usually required as the original fuel lines are being disconnected from the nylon during install.

3069-01 includes 2 nylon lines 3/8" & 5/16", 2 unions, 2 quick connectors 3/8" & 5/16"

3071-01 includes 2 Nylon Lines: 1 - 3/8" & 1 - 5/16", 2 Unions, 2 Quick Connectors 1- 3/8 & 1- 5/16" 90 Degree

6093-01 includes 1 nylon line 3/8", 1 union, 1 quick connector 3/8"  90 degree

Connection at Sending Unit Repair Kit: This may only be required if you are replacing the sending unit.

3069-01 includes 2 nylon lines 3/8" & 5/16", 2 unions, 2 quick connectors 3/8" & 5/16"
