Saturn L200 Fuel Line Set 2003 Sedan & Wagon 2.2L FL253-B2C

Saturn L200 Fuel Line Set 2003 Sedan & Wagon 2.2L FL253-B2C
Saturn L200 Fuel Line Set 2003 Sedan & Wagon 2.2L FL253-B2C
Saturn L200 Fuel Line Set 2003 Sedan & Wagon 2.2L FL253-B2C
Saturn L200 Fuel Line Set 2003 Sedan & Wagon 2.2L FL253-B2C
Saturn L200 Fuel Line Set 2003 Sedan & Wagon 2.2L FL253-B2C

Saturn L200 Fuel Line Set 2003 Sedan & Wagon 2.2L FL253-B2C

MSRP: from
SALE: from
Save $35.74
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL253-B2C
  • Weight: 3

Fuel lines for the Saturn L200 Sedan and Wagon models made for the year 2003.The FL253-B2C is made for models with a 2.2L engines, made from durable materials, and designed for easy installation.

Location: Engine to Nylon Line Connection

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

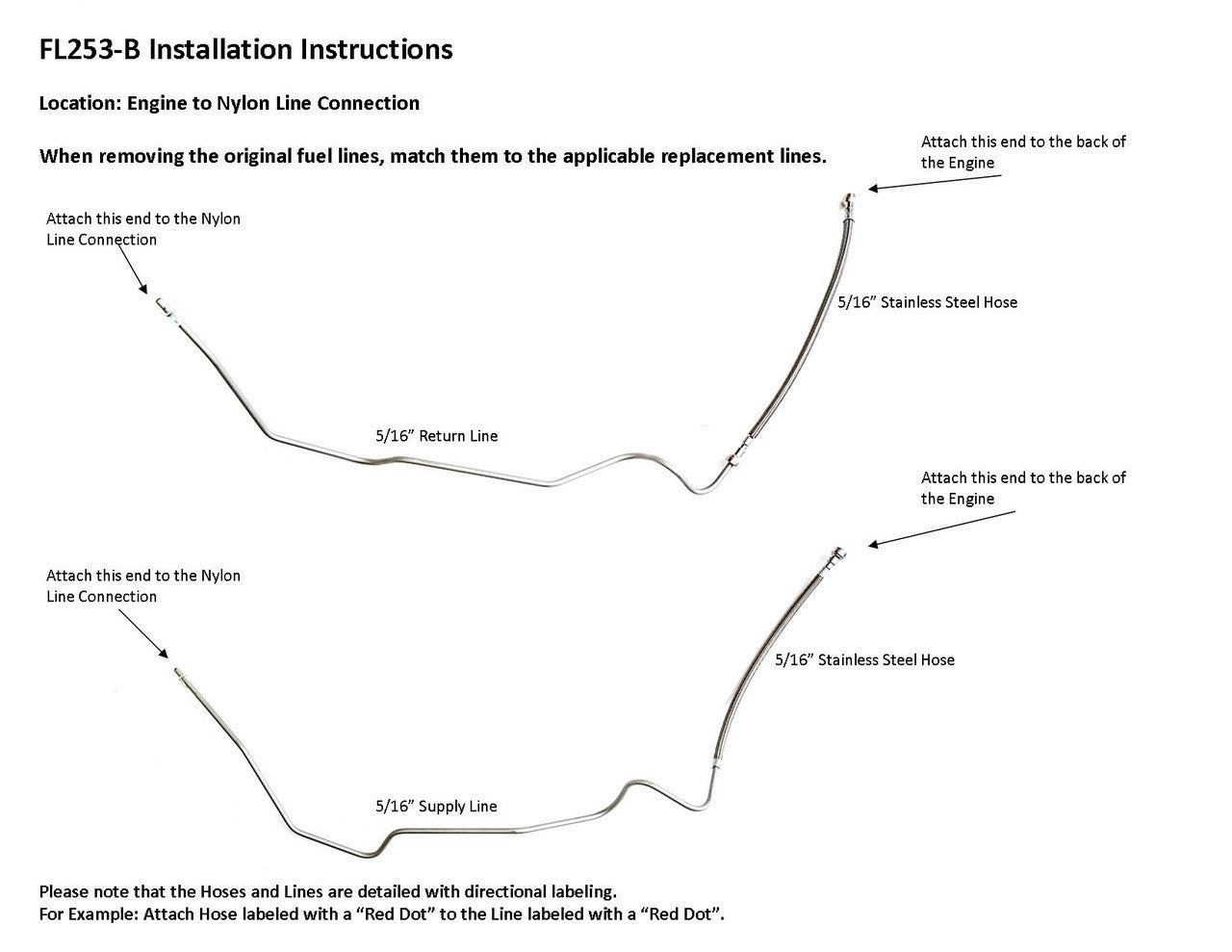

Nylon Installation Instructions:

Step 1


Cut the new nylon hose in the same position as the original nylon hose.

Step 2


Cut the original nylon hose in the same position as the new nylon hose.

Step 3


Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

OEM Part Number: 09156403, 09156402

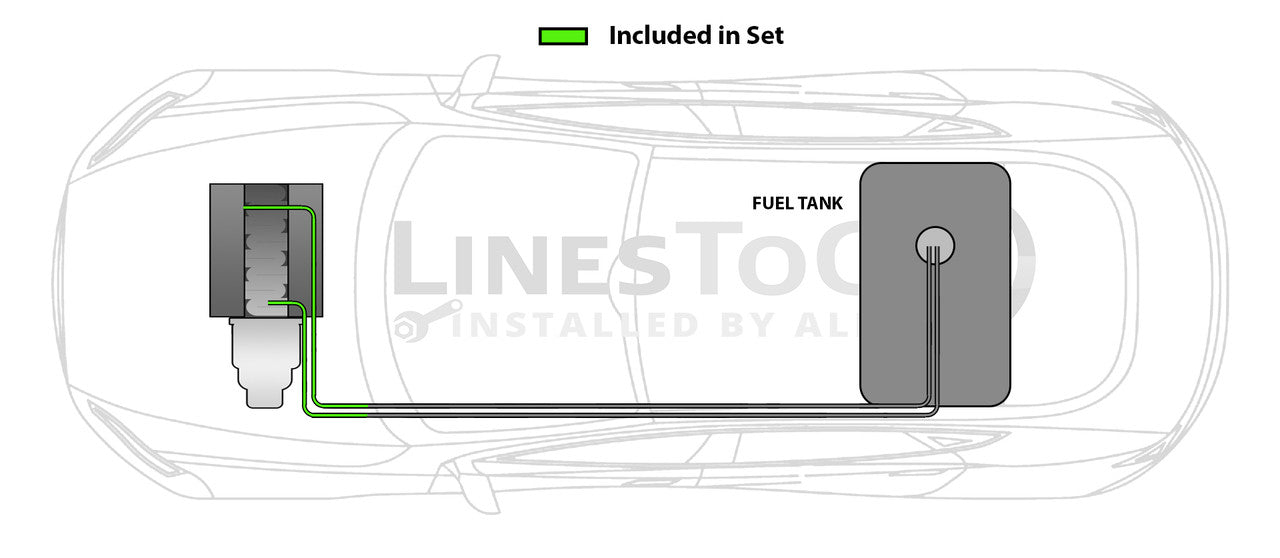

Included in Set: 1 supply line 5/16", 1 return line line 5/16", hoses to engine connection

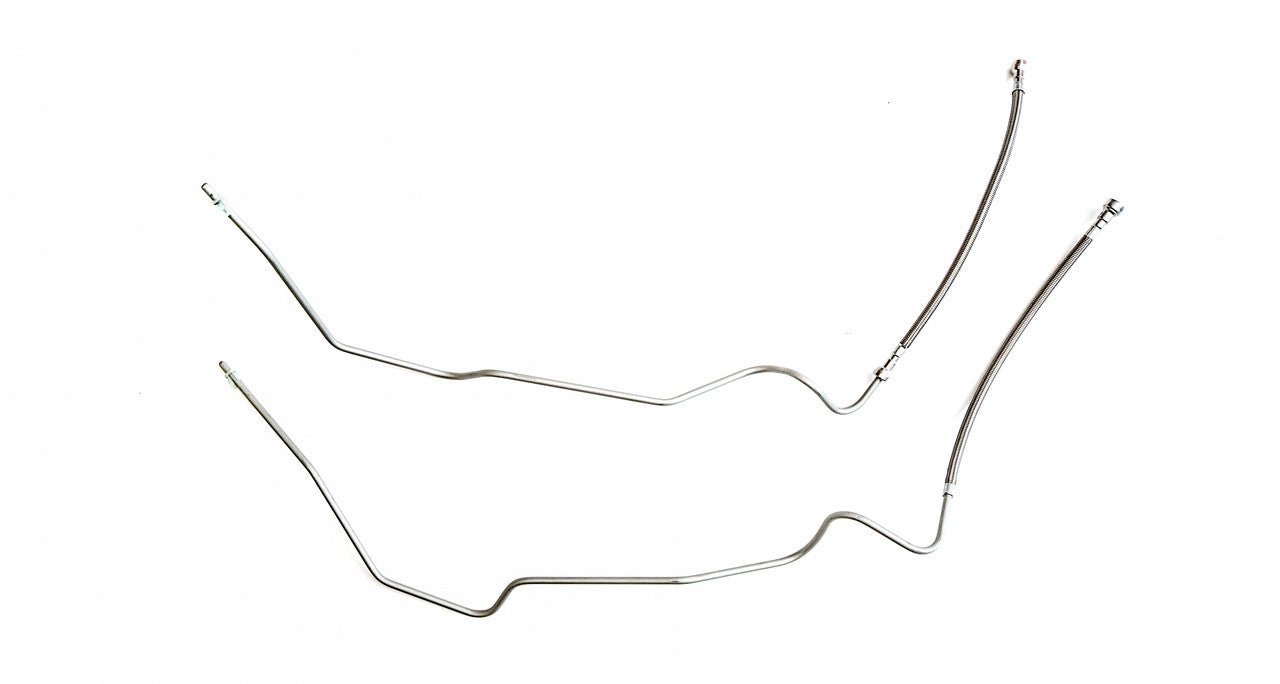

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 38" X 12" X 7"
