Saturn L200 Fuel Line Set 2002 Sedan & Wagon 2.2L FL253-B2B
Saturn L200 Fuel Line Set 2002 Sedan & Wagon 2.2L FL253-B2B
Delivery Time & Rates
Fuel lines for the Saturn L200 Sedan and Wagon models made for the year 2002.The FL253-B2B is made for models with a 2.2L engines, made from durable materials, and designed for easy installation
Nylon Line Attached to Vapor Line
The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.
On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.
Nylon Repair Kits
3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors
3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors
3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors
3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors
Nylon Installation Instructions:
Step 1
Cut the new nylon hose in the same position as the original nylon hose.
Step 2
Cut the original nylon hose in the same position as the new nylon hose.
Step 3
Use the original nylon hose with connector and attach it with supplied union to the new nylon hose

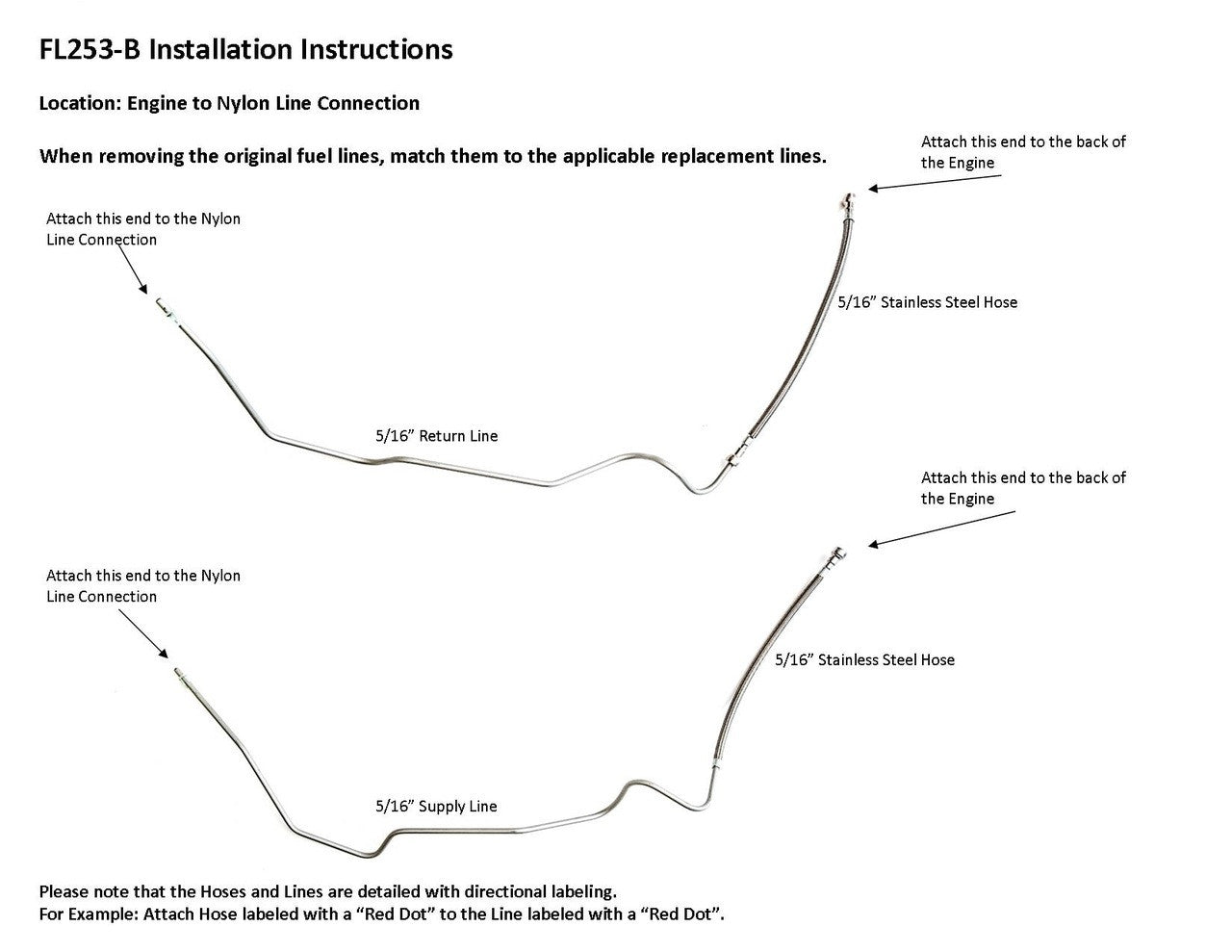

Engine to Nylon Line Connection
1 supply line 5/16", 1 return line line 5/16", hoses to engine connection

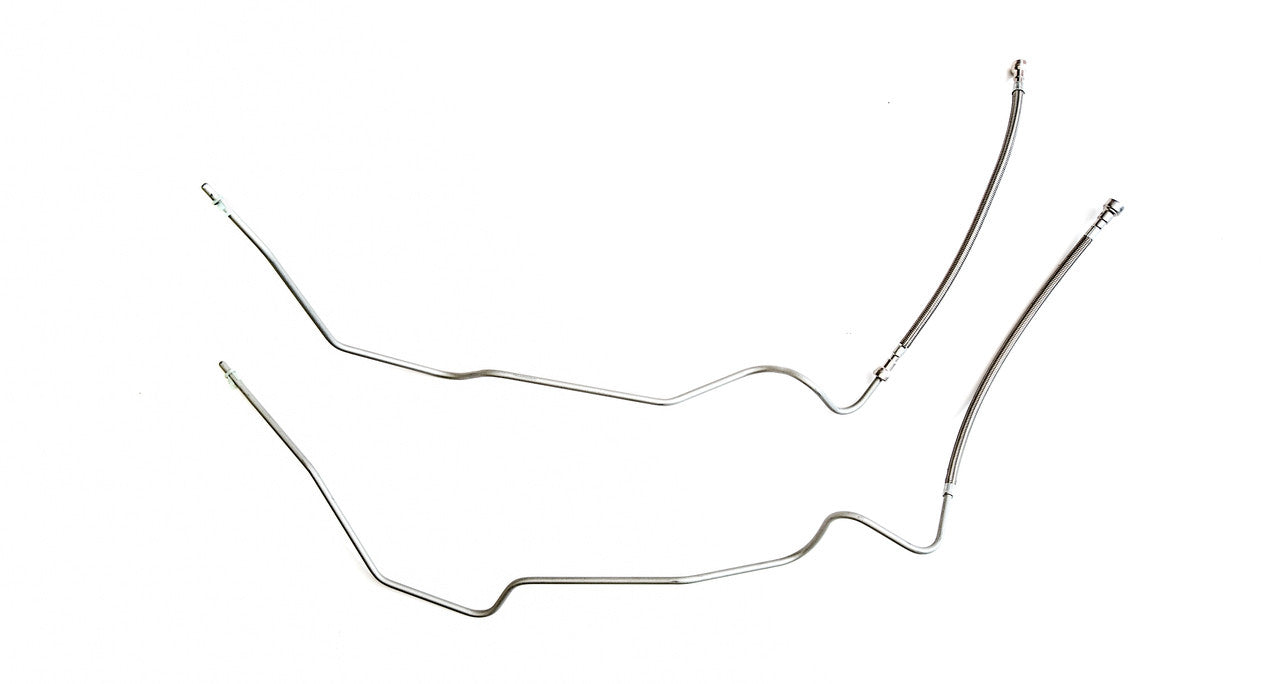

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
