SALE:
Save $53.24
/

Delivery Time & Rates

SKU: FL255-A4B

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Pairs Well With

Sale
Quick Disconnect Tools, Plastic 3/8" & 5/16" 3133-01
Save $1.75
Sale
Quick Disconnect Tool, Steel 3/8" & 5/16" 5230-01
Save $2.50

Product Overview

This fuel line set is designed for 2006 Saturn Ion models. The FL255-A4B fuel line set for Saturn Ion models with 2.0L engines.

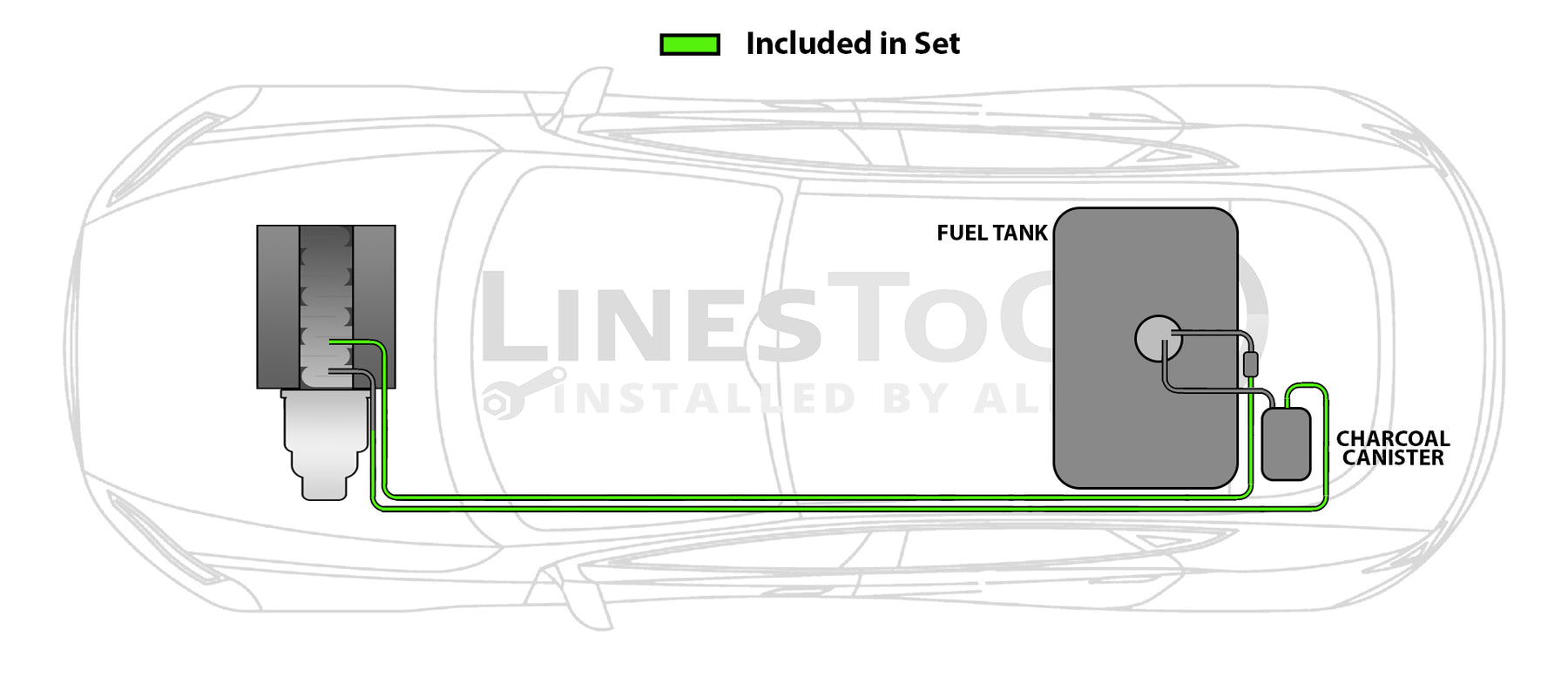

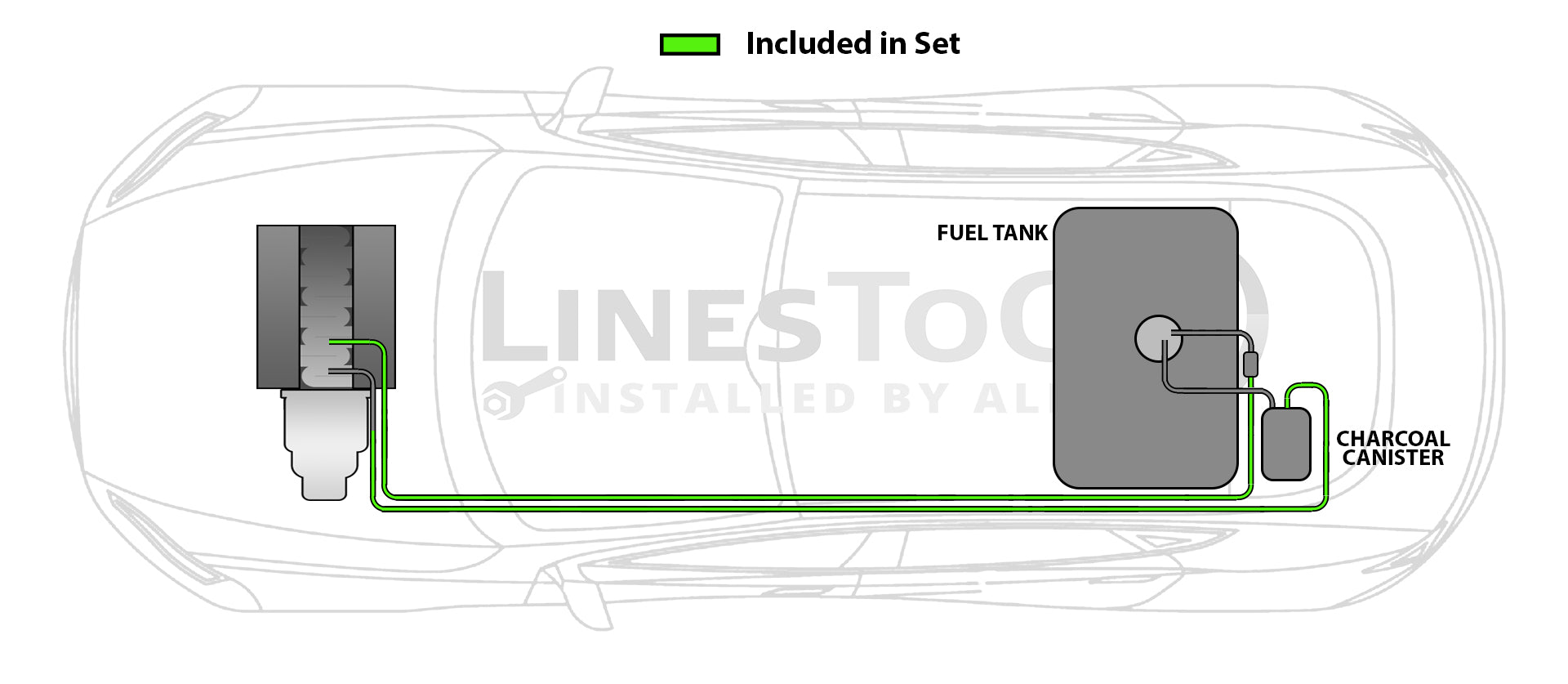

Location: Engine to Hose Connection off Fuel Tank

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will easily splice on to the original nylon vapor line on the vehicle. See below:

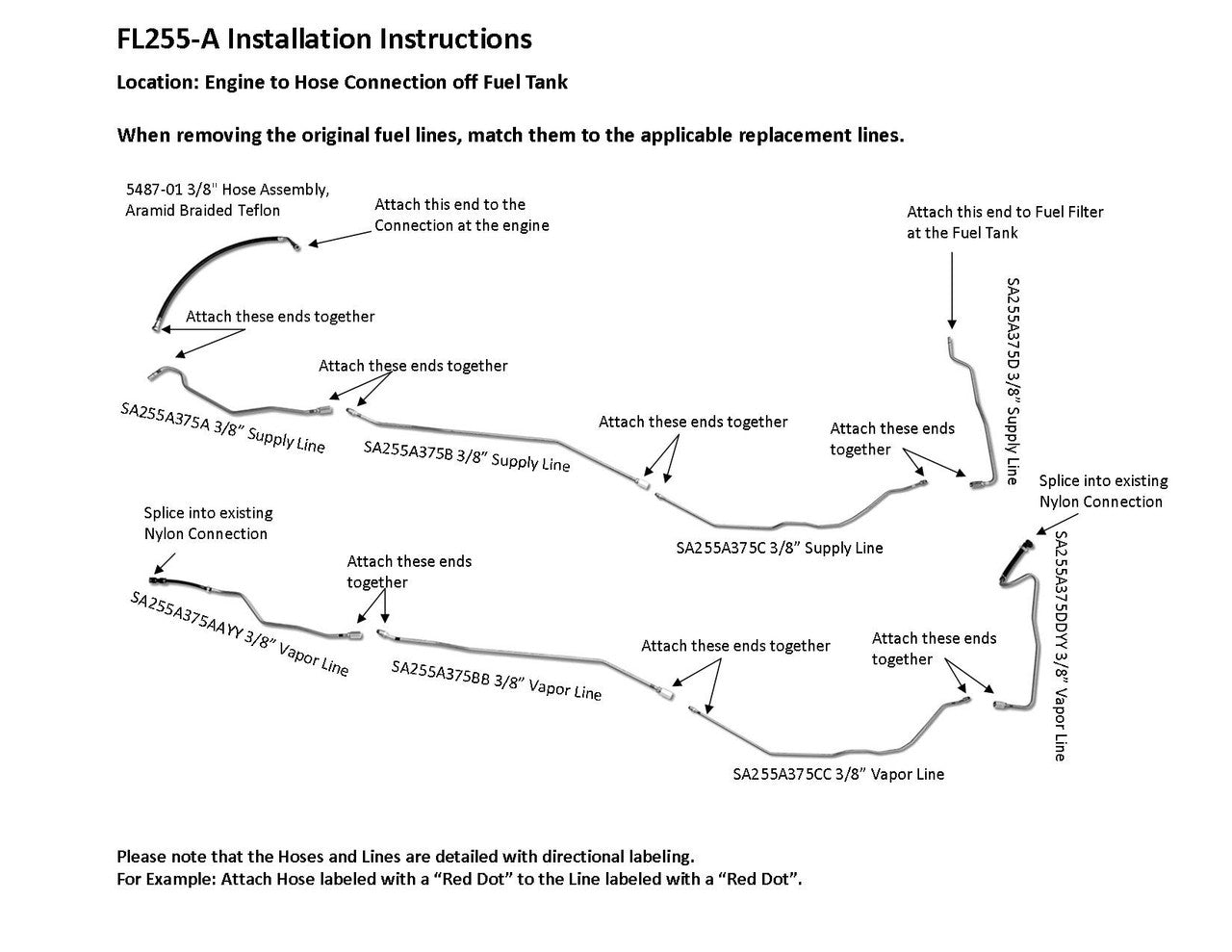

Nylon Splicing Installation Instructions:

Step 1


Cut the new nylon hose in the same position as the original nylon hose.

Step 2


Cut the original nylon hose in the same position as the new nylon hose.

Step 3


Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

OEM Part Number: 15283792, 15934416

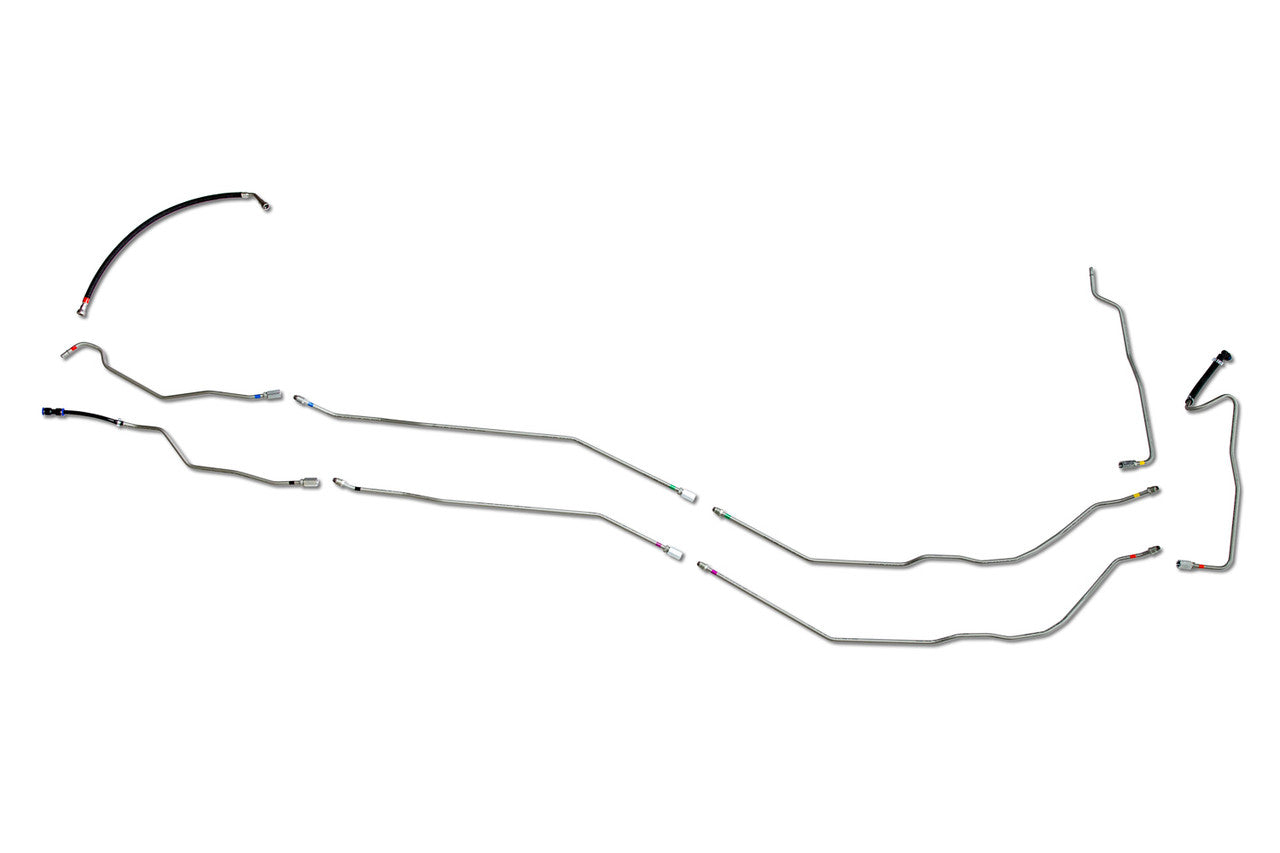

Included in Set: 1 supply line 3/8" ( in 4 easy to install sections), 1 vapor line 3/8" ( in 4 easy to install sections), hose to engine connection, nylon lines with unions, 6 unions

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 46" x 11" x 7"
