Name: Ram Transmission Line Set 2020 1500 5.7L TCL-249-SS1I Stainless Steel
Brand: Lines - To - Go
SKU: TCL-249-SS1I
Price: 293.95 USD
Availability: InStock

Year Make & Model

Ram Transmission Line Set 2020 1500 5.7L TCL-249-SS1I Stainless Steel

Price

SALE:

Save $73.49

In stock, ready to ship
Inventory on the way

Delivery Time & Rates

Install this pre-bent 2020 Ram 1500 transmission cooler line set in no time!

Stainless Steel Transmission Line Set 2020 Ram 1500 w/6 SPD Automatic 65RFE Transmission (w/RPO Code DG1), w/Engine Block Heater (w/RPO Code NHK) for 5.7L engines.

SKU: TCL-249-SS1I

Weight: 4

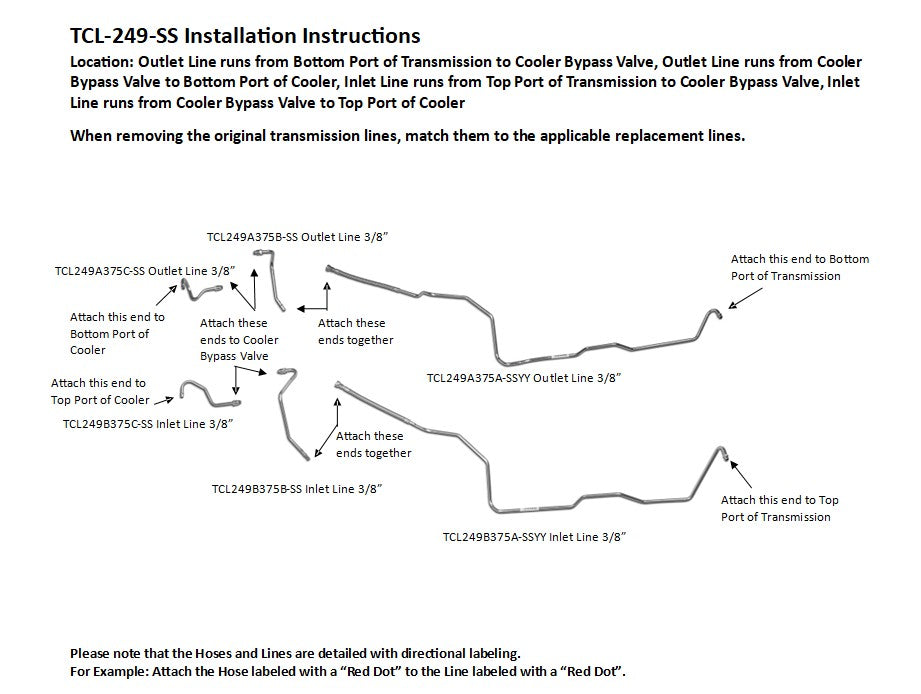

Installation Instructions

Box Dimensions 46" x 12" x 7"

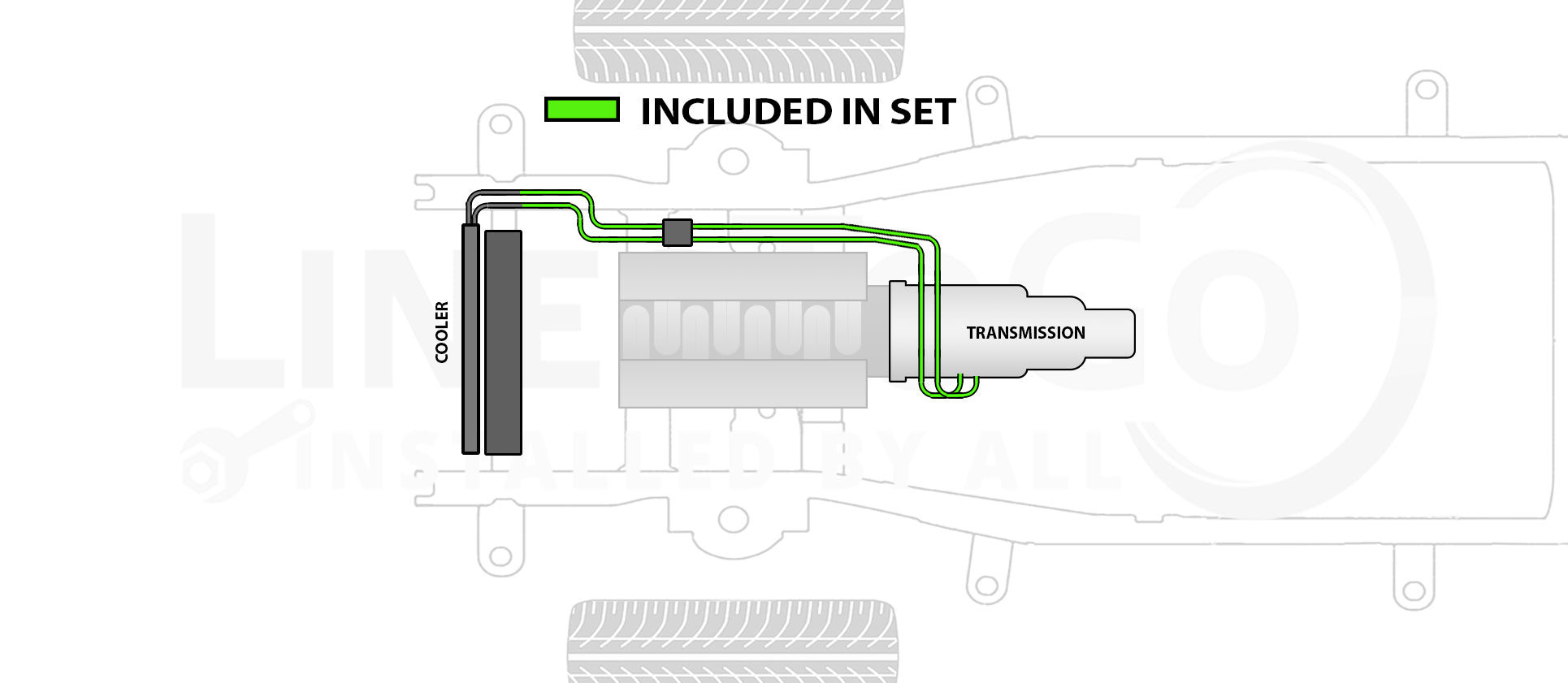

Outlet Line runs from Bottom Port of Transmission to Cooler Bypass Valve, Outlet Line runs from Cooler Bypass Valve to Bottom Port of Cooler, Inlet Line runs from Top Port of Transmission to Cooler Bypass Valve, Inlet Line runs from Cooler Bypass Valve to Top Port of Cooler

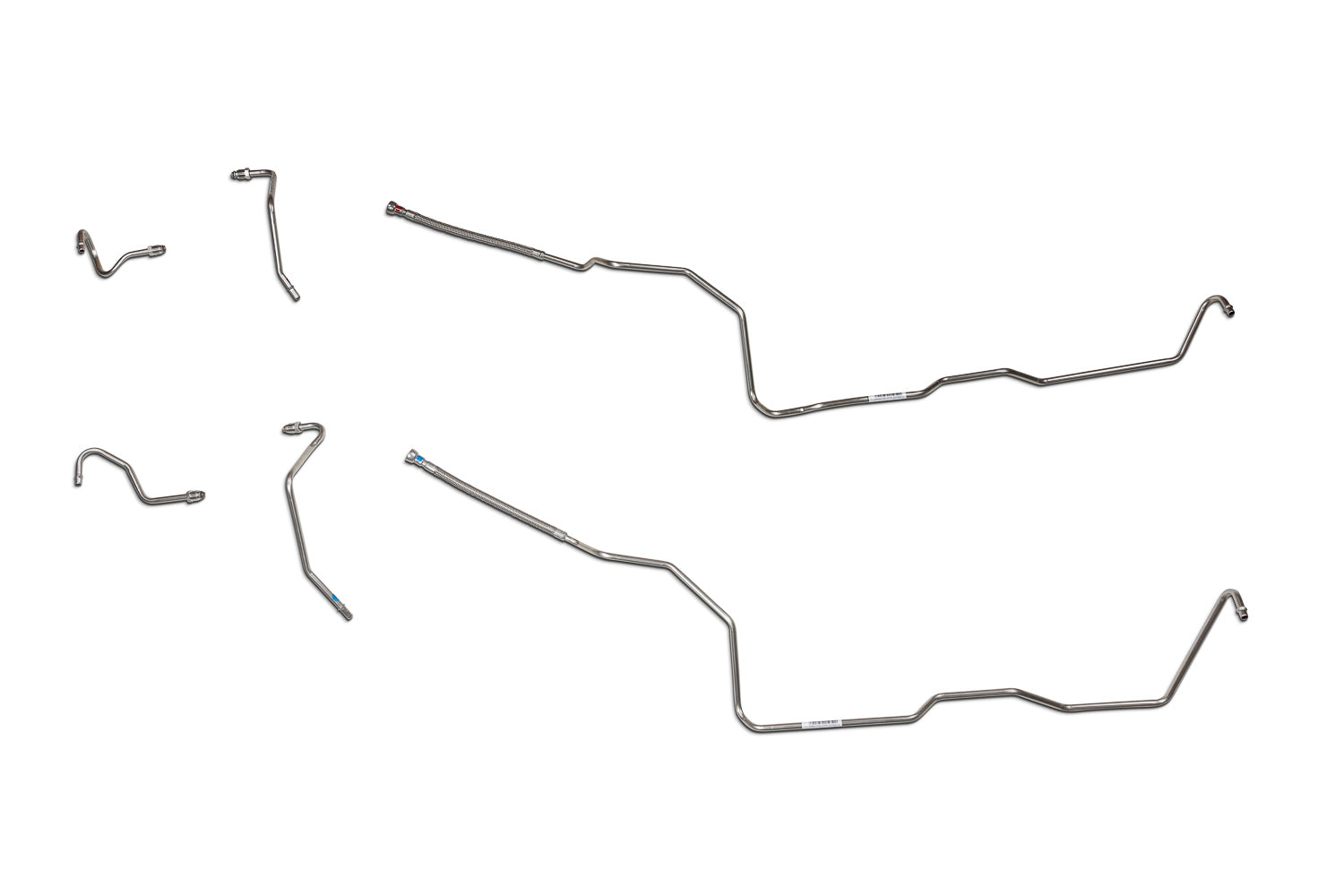

1 Outlet Line 3/8", 1 Outlet Line 3/8" (in 2 easy to install sections), 1 Inlet Line 3/8", 1 Inlet Line 3/8" (in 2 easy to install sections)

52014830AA, 55056859AE

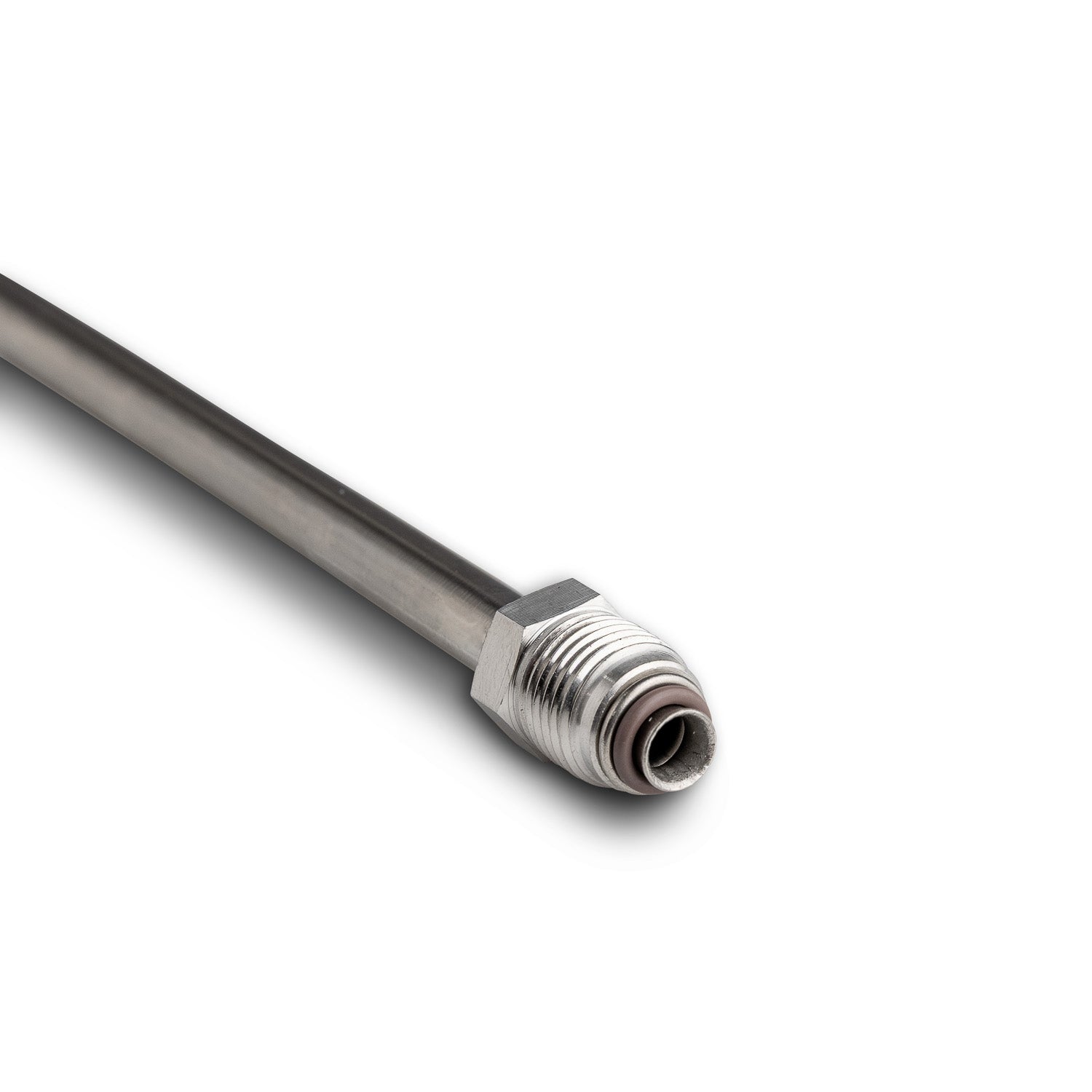

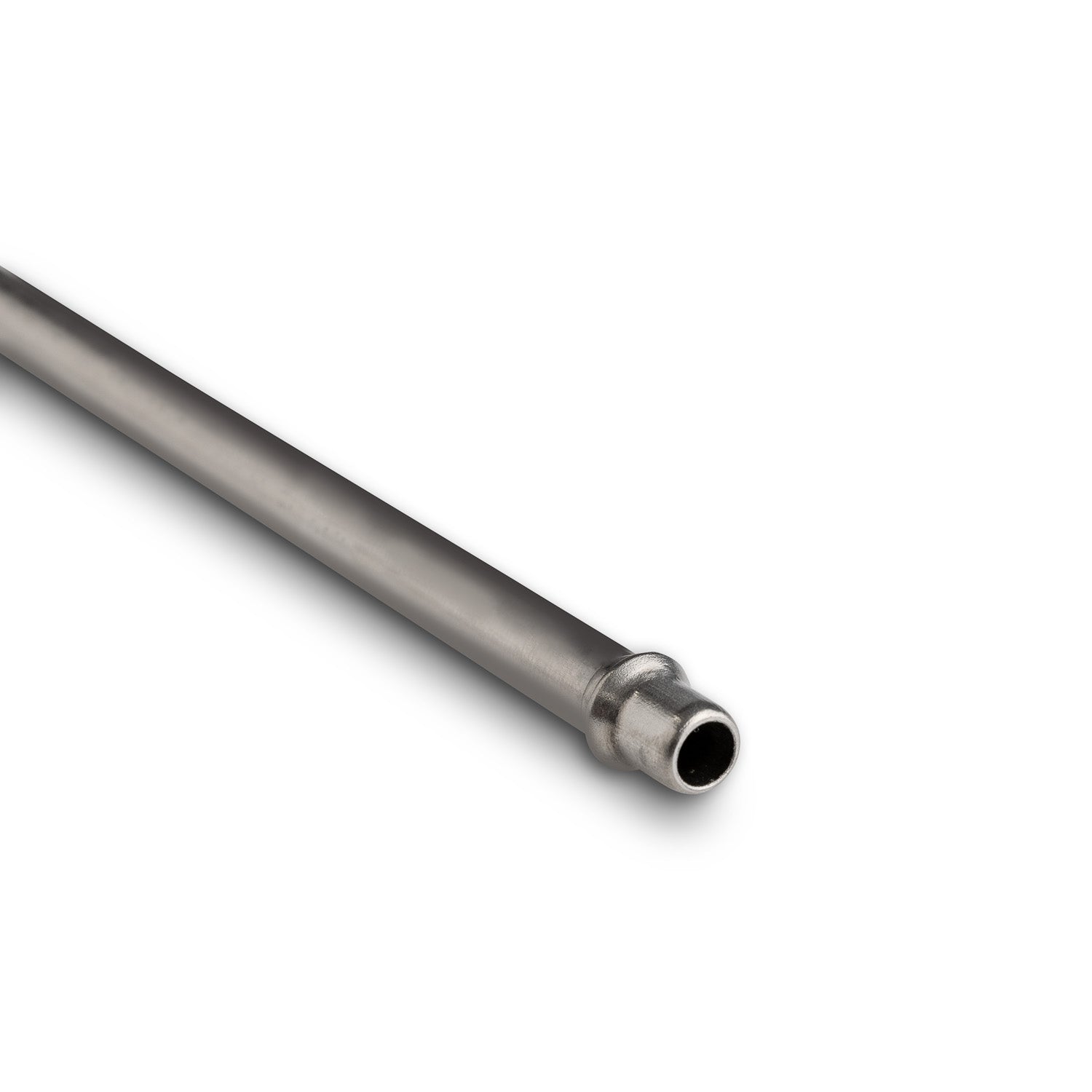

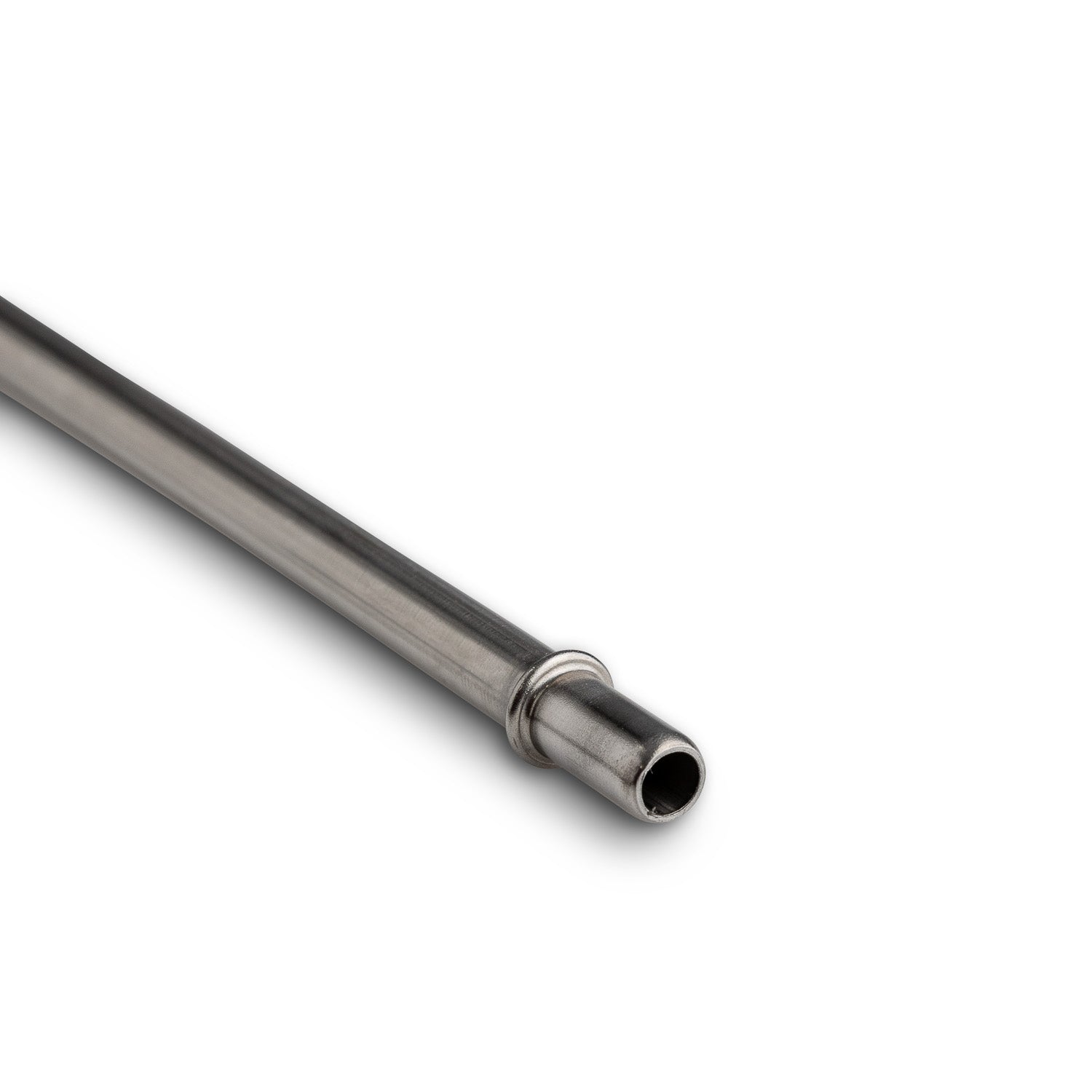

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
