Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D

w/engine code LG8

Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D
Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D
Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D
Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D
Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D
Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D
Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D
Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D

Pontiac Grand Prix SE Fuel Line Set 2001 3.1L FL254-A9D

w/engine code LG8

MSRP: from
SALE: from
Save $48.24
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL254-A9D
  • Weight: 6

This fuel line set if made for Pontiac Grand Prix SE four door models made between 2001. The FL254-A9D is made to work with models with 3.1L engine w/Engine Code LG8. They are made of high quality material for durability.

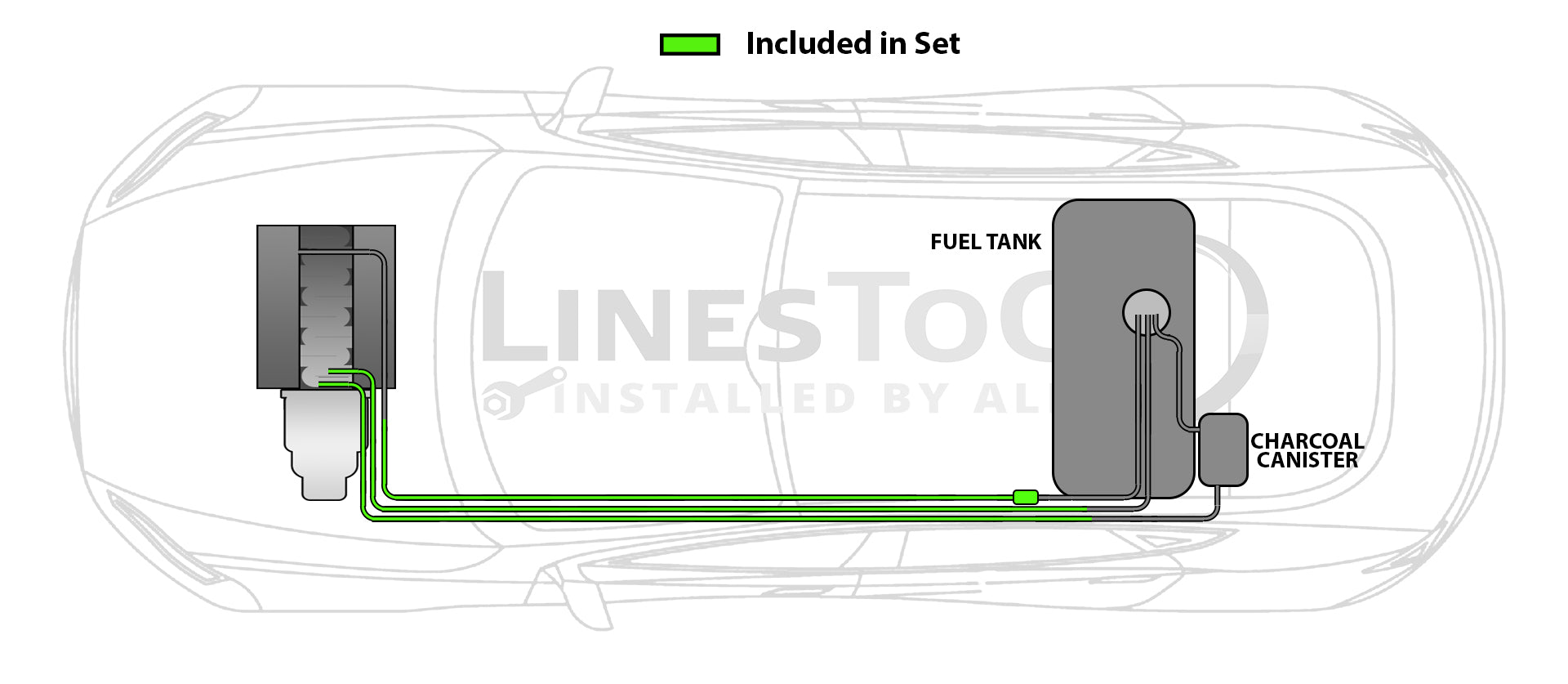

Location: Engine to Hose Connection off Fuel Tank

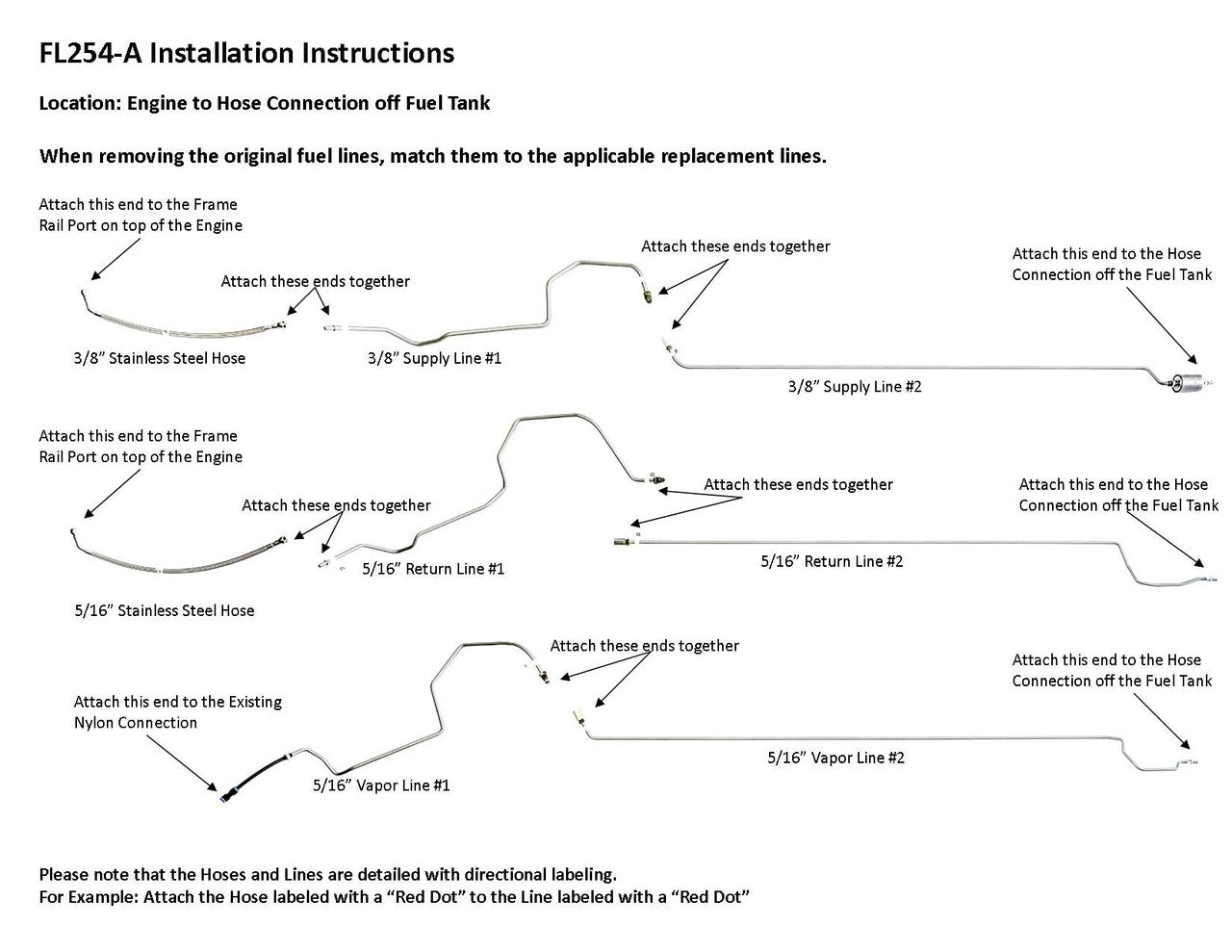

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SA254A375B, SA254A313BB, and SA254A313CB. See the video below on how to remove the shipping bend.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

Nylon Installation Instructions:

Step 1


Cut the new nylon hose in the same position as the original nylon hose.

Step 2


Cut the original nylon hose in the same position as the new nylon hose.

Step 3


Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

OEM Part Number10330348, 10330347, 10346522

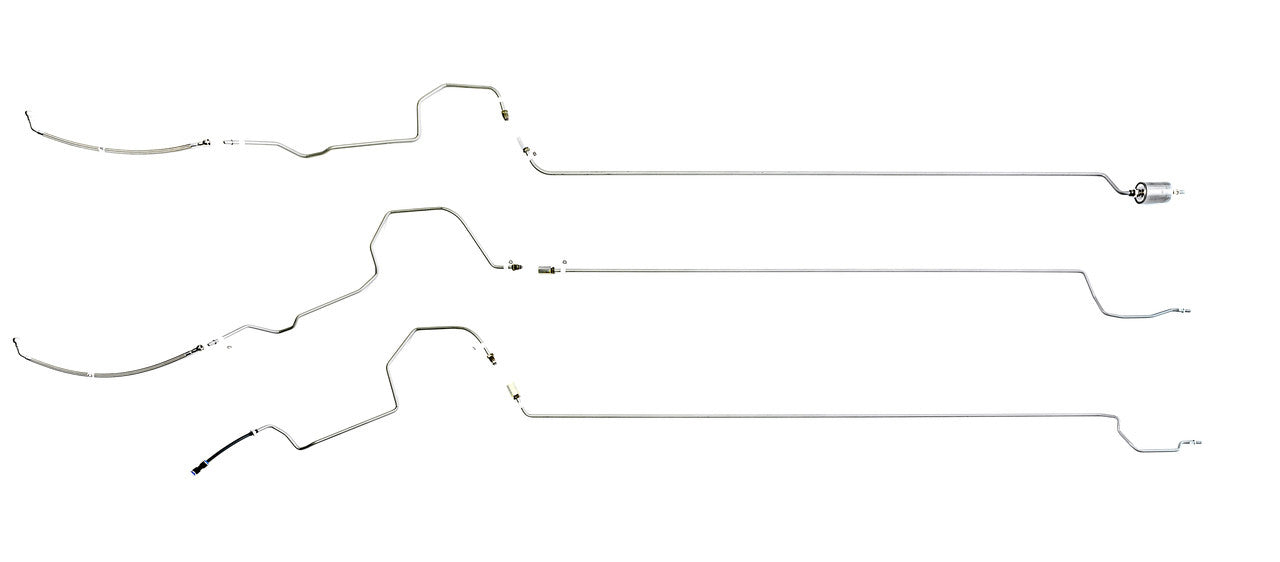

Included in Set: 1 supply line 3/8" (in 2 easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line 5/16" (in 2 easy to install sections), hoses to engine connection, nylon line with union, 3 unions, 1 fuel filter

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 39" x 11" x 7"
