Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B

Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B
Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B
Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B
Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B
Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B
Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B
Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B
Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B

Pontiac Grand Prix SE Fuel Line Set 1999 3.1L FL254-A9B

SALE: from
from
Save $48.24
from /

Delivery Time & Rates

This fuel line set if made for Pontiac Grand Prix SE four door models made between 1999. The FL254-A9B is made to work with models with 3.1L engine. They are made of high quality material for durability.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

SKU: FL254-A9B
Box Dimensions 39" x 11" x 7"
Product Warranty 1 Year

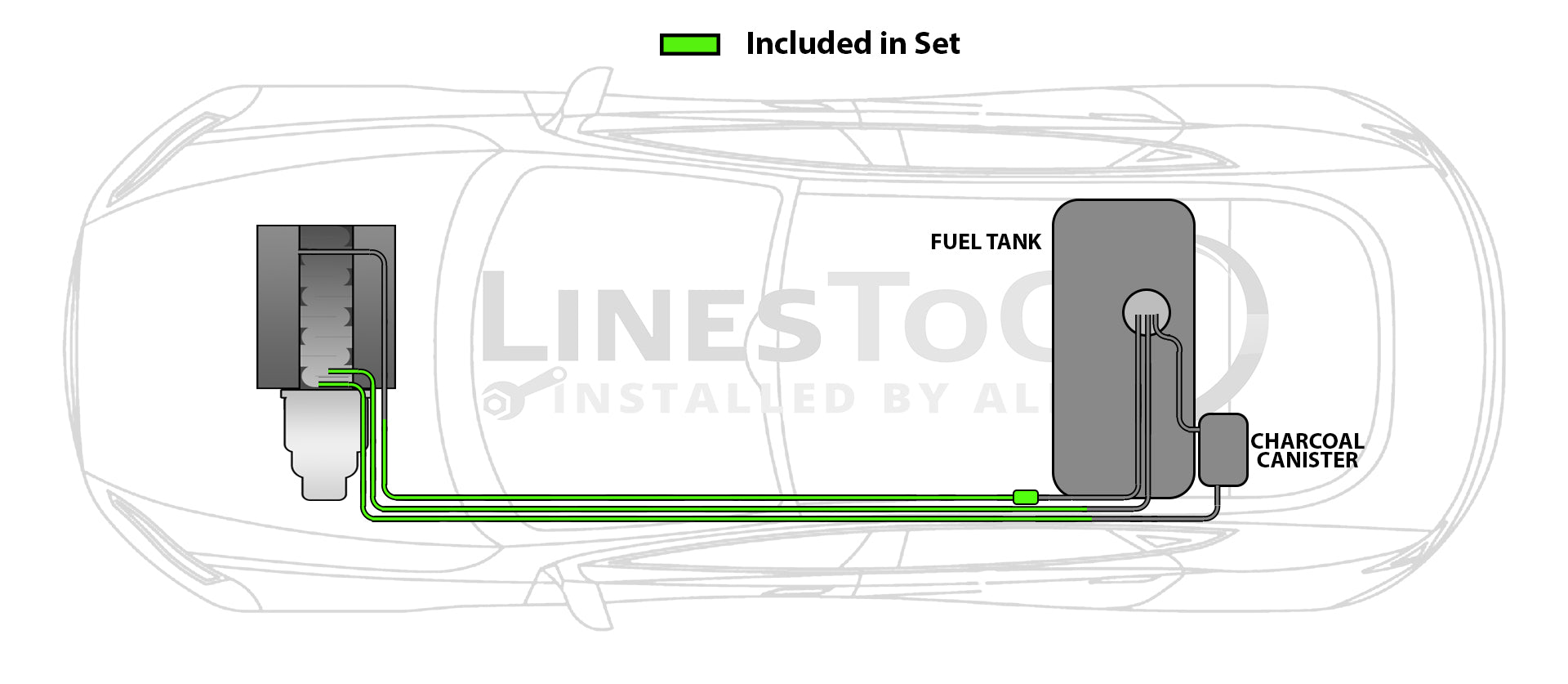

Engine to Hose Connection off Fuel Tank

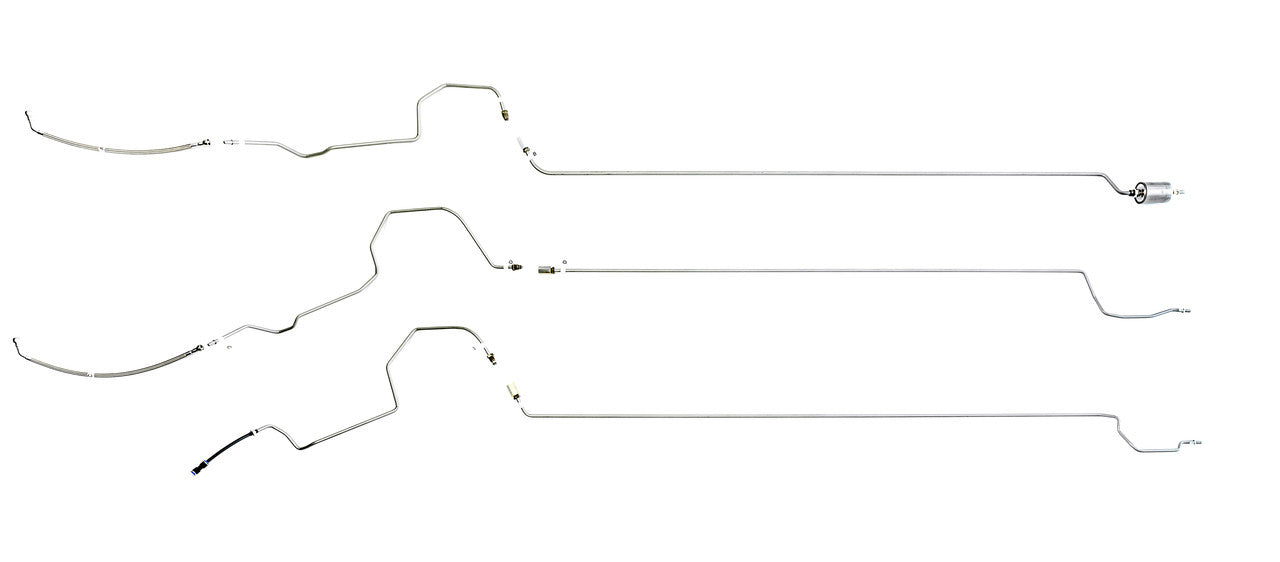

1 supply line 3/8" (in 2 easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line 5/16" (in 2 easy to install sections), hoses to engine connection, nylon line with union, 3 unions, 1 fuel filter

10330348, 10330347, 10346522

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
