Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A

4 Dr w/4 Wheel Disc Brakes RPO Code L26 w/o California Emissions System

Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A
Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A
Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A
Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A
Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A
Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A
Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A
Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A

Pontiac Grand Prix GXP Fuel Line Set 2007 3.8L FL252-B6A

4 Dr w/4 Wheel Disc Brakes RPO Code L26 w/o California Emissions System

MSRP: from
SALE: from
Save $48.24
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL252-B6A
  • Weight: 5

Install this pre bent 2007 Pontiac Grand Prix GXP fuel line without a problem!

Grand Prix GXP Fuel Line Set 07 4 Door Only w/4 Wheel Disc Brakes w/o California Emissions Systems for 3.8L engine RPO Code L26

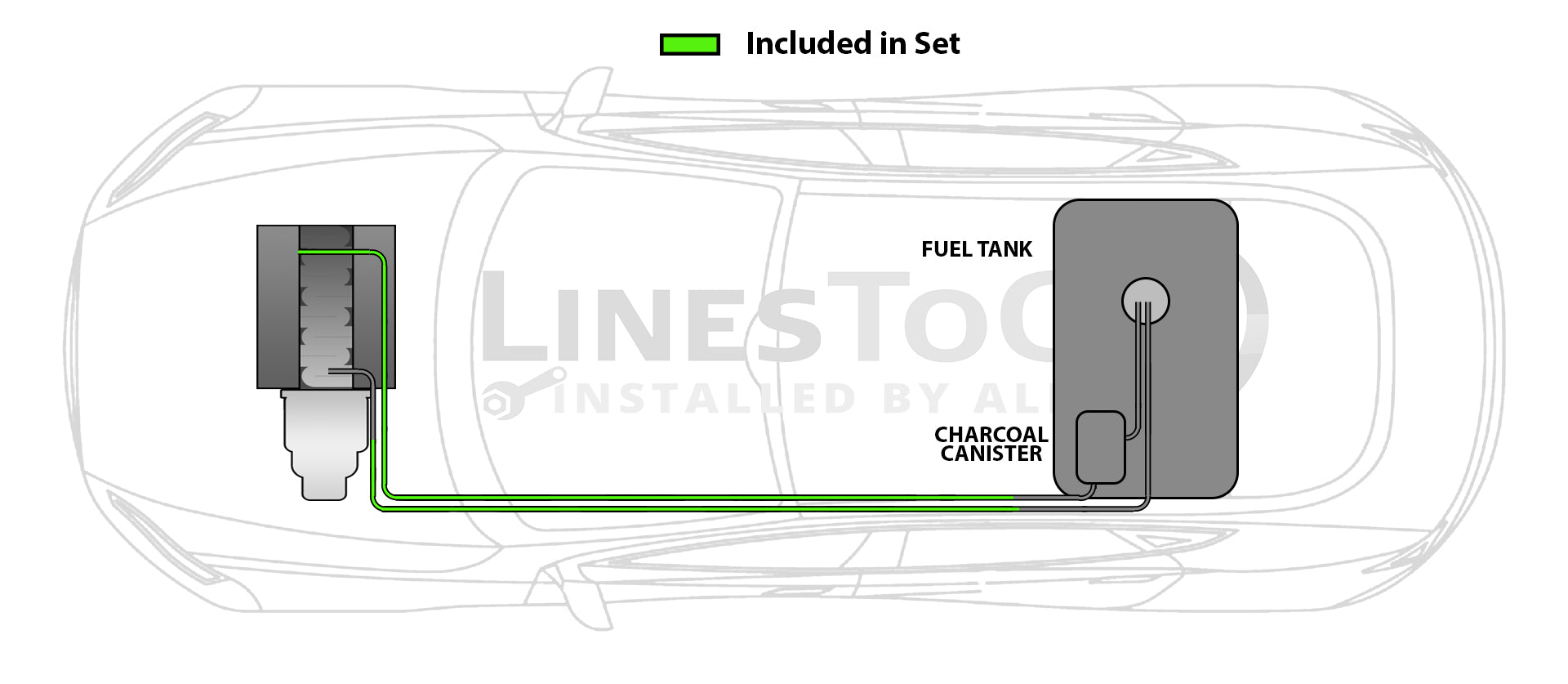

Location: Engine to Hose Connection off Fuel Tank

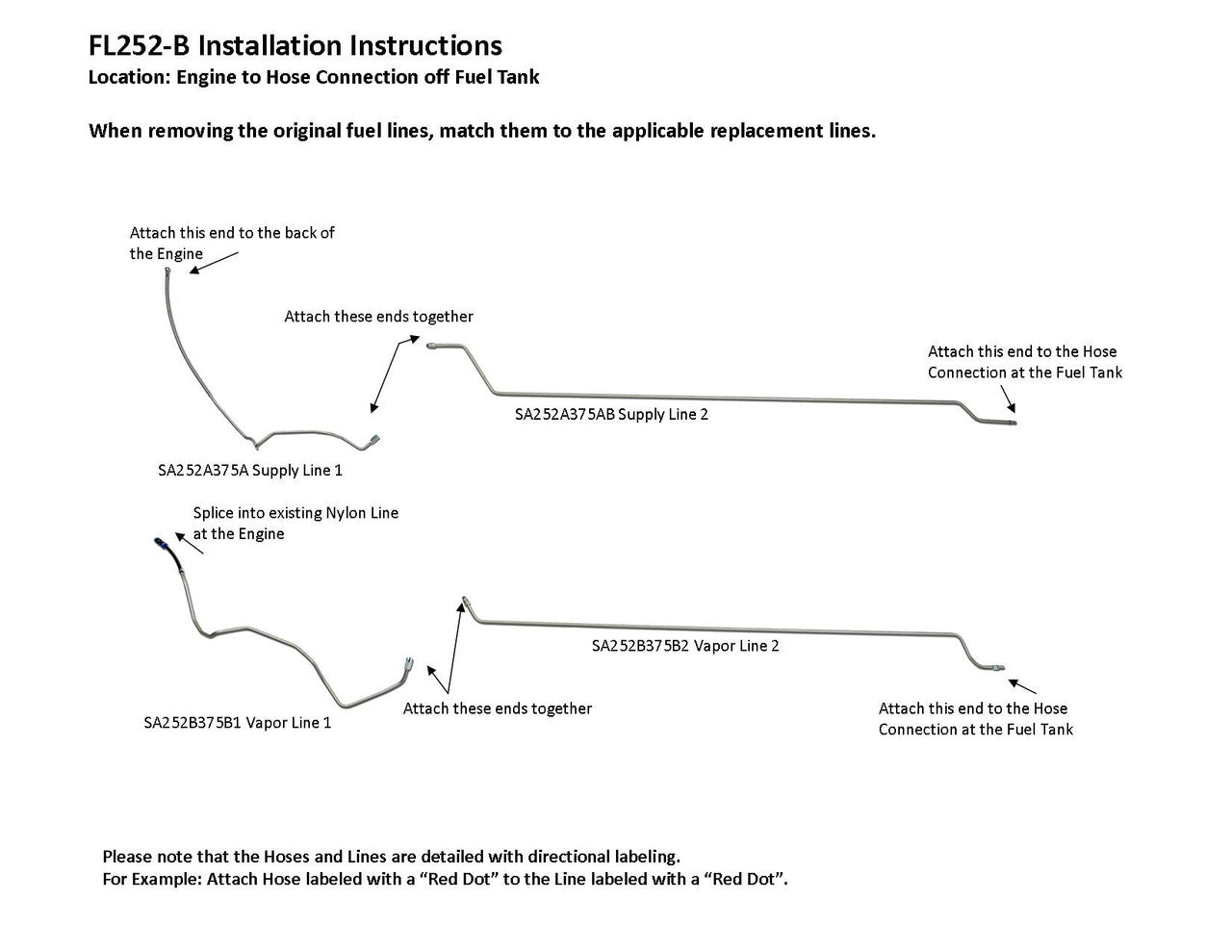

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SA252A375AB and SA252B375B2. See the video below on how to remove the shipping bend.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

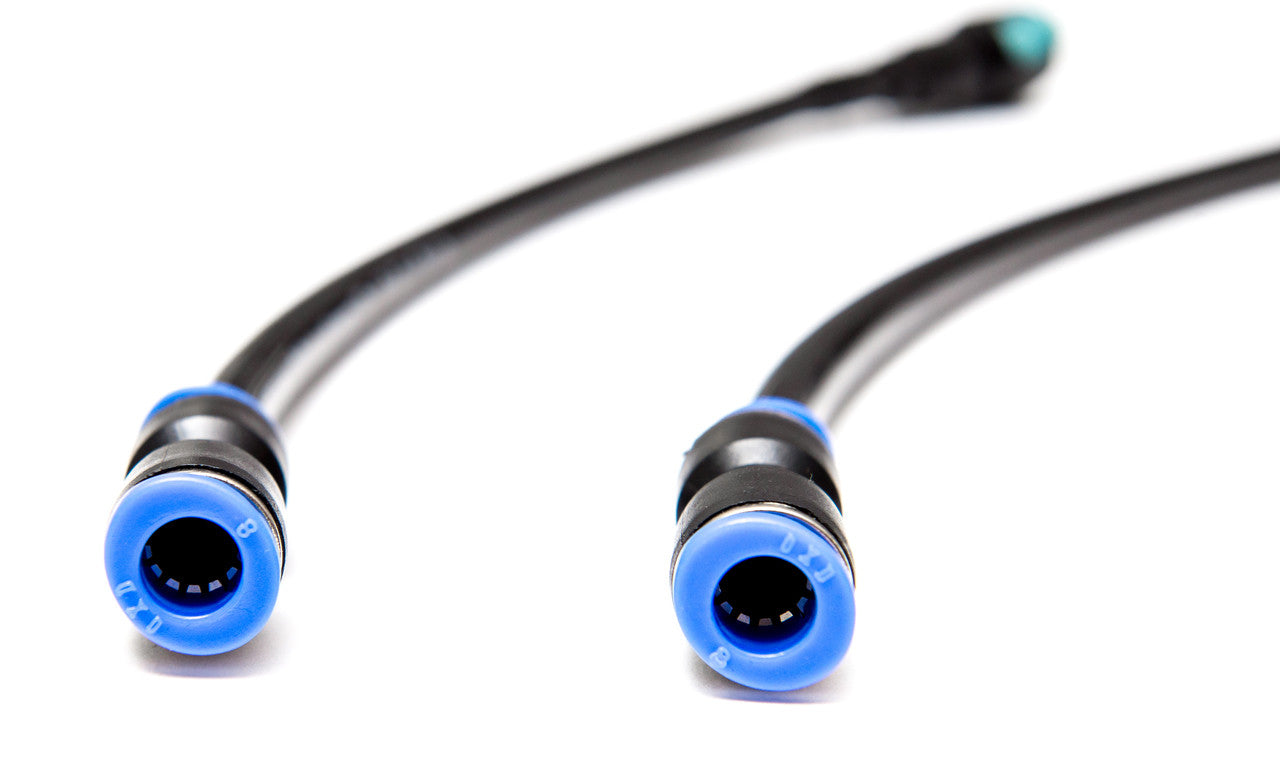

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

Nylon Installation Instructions:

Step 1


Cut the new nylon hose in the same position as the original nylon hose.

Step 2


Cut the original nylon hose in the same position as the new nylon hose.

Step 3


Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

OEM Part Number: 15943692, 15837248, 15929709

Included in Set: 1 supply line 3/8" (in 2 easy to install sections), 1 vapor line 3/8" (in 2 easy to install sections), 2 unions

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 39" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
