Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F

Supercharged w/Engine Code L67

Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F
Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F
Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F
Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F
Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F
Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F
Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F
Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F

Pontiac Grand Prix GTP Fuel Line Set 2002 3.8L FL254-D9F

Supercharged w/Engine Code L67

MSRP: from
SALE: from
Save $48.24
from /

Delivery Time & Rates

Zip/Postal Code:
SKU: FL254-D9F
  • Weight: 7

For 2002 models of the Pontiac Grand Prix GTP 4 Dr, this fuel line works with the 4 Dr models with 3.8L (1) Supercharged engines w/Engine Code L67 only. The FL254-D9F set comes with 6 pieces and is made for easy installation.

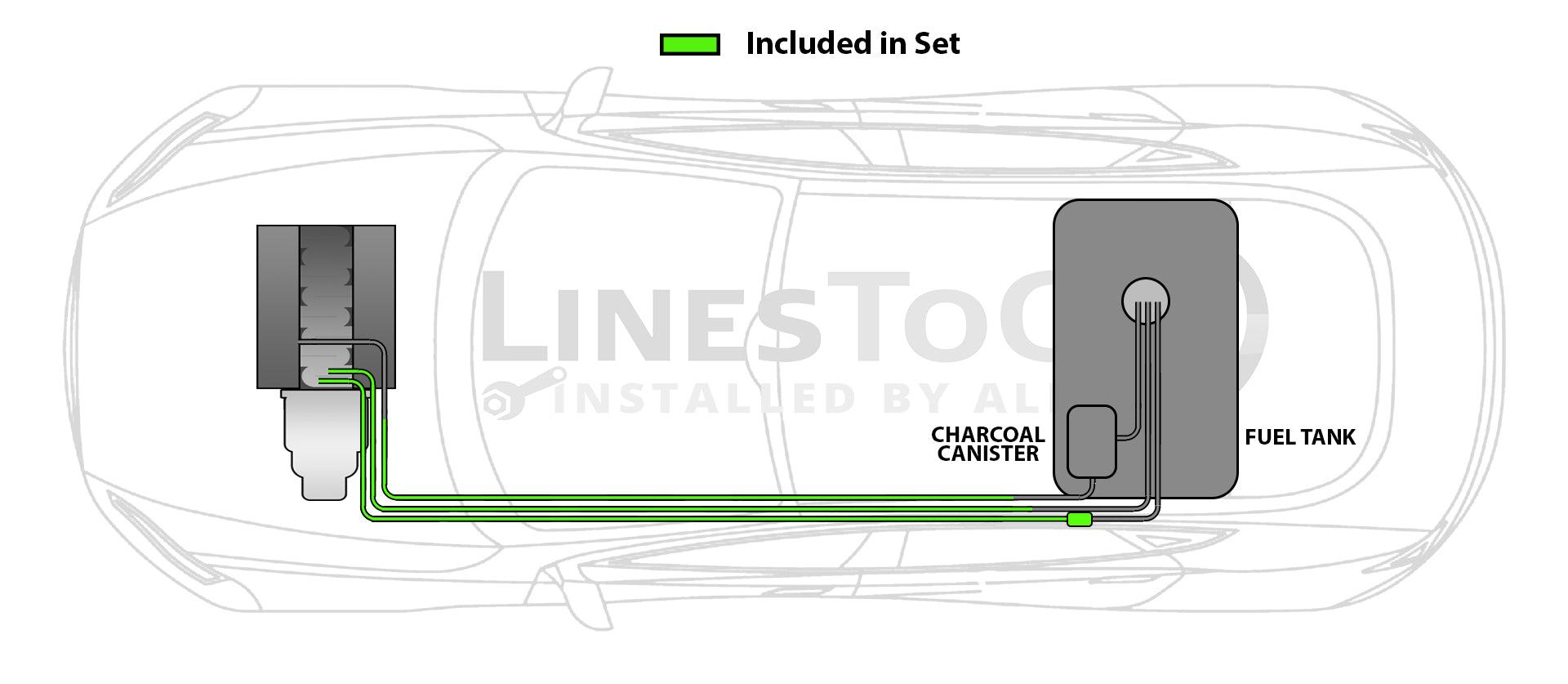

Location: Engine to Hose Connection off Fuel Tank

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SA254B375A2, SA254A313BB, and SA254A313CB. See the video below on how to remove the shipping bend.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

Nylon Installation Instructions:

Step 1


Cut the new nylon hose in the same position as the original nylon hose.

Step 2


Cut the original nylon hose in the same position as the new nylon hose.

Step 3


Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

OEM Part Number10330356, 10330355, 10346521

Included in Set: 1 supply line 3/8" (in 2 easy to install sections), 1 return line 5/16" (in two easy to install sections),1 vapor line 5/16" (in two easy to install sections), hoses to engine connection, 2 unions, 1 fuel filter

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 46" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
