SALE:
Save $49.24
/

Delivery Time & Rates

Shipping calculated at checkout.

Find fuel lines for 2005 models of Pontiac Grand Prix GT at LinesToGo. The FL252-A5A set comes with six pieces for easy installation and made from sturdy material for long lasting results.

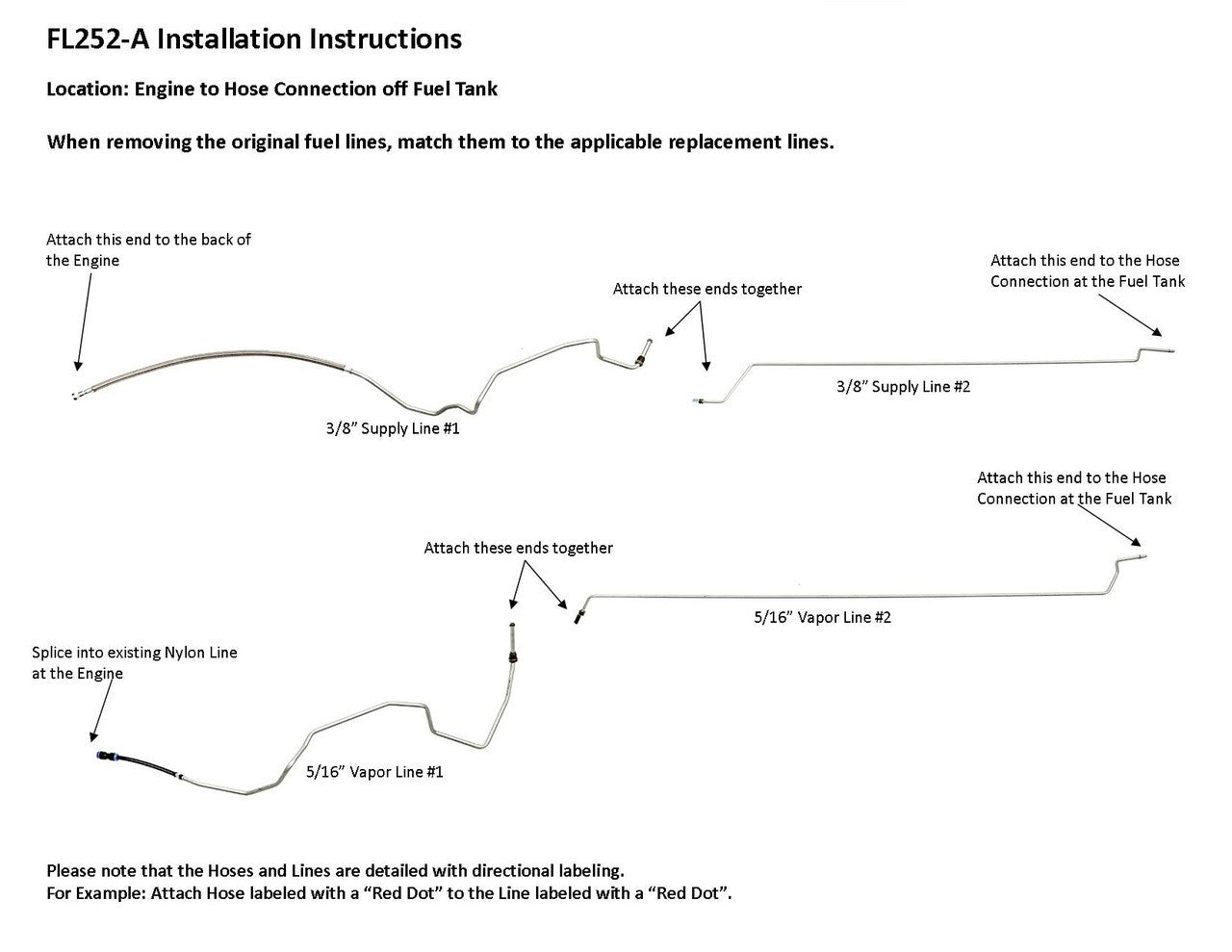

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SA252A313AB and SA252A375AB. See the video below on how to remove the shipping bend.

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

SKU: FL252-A5A
Box Dimensions 39" x 12" x 7"

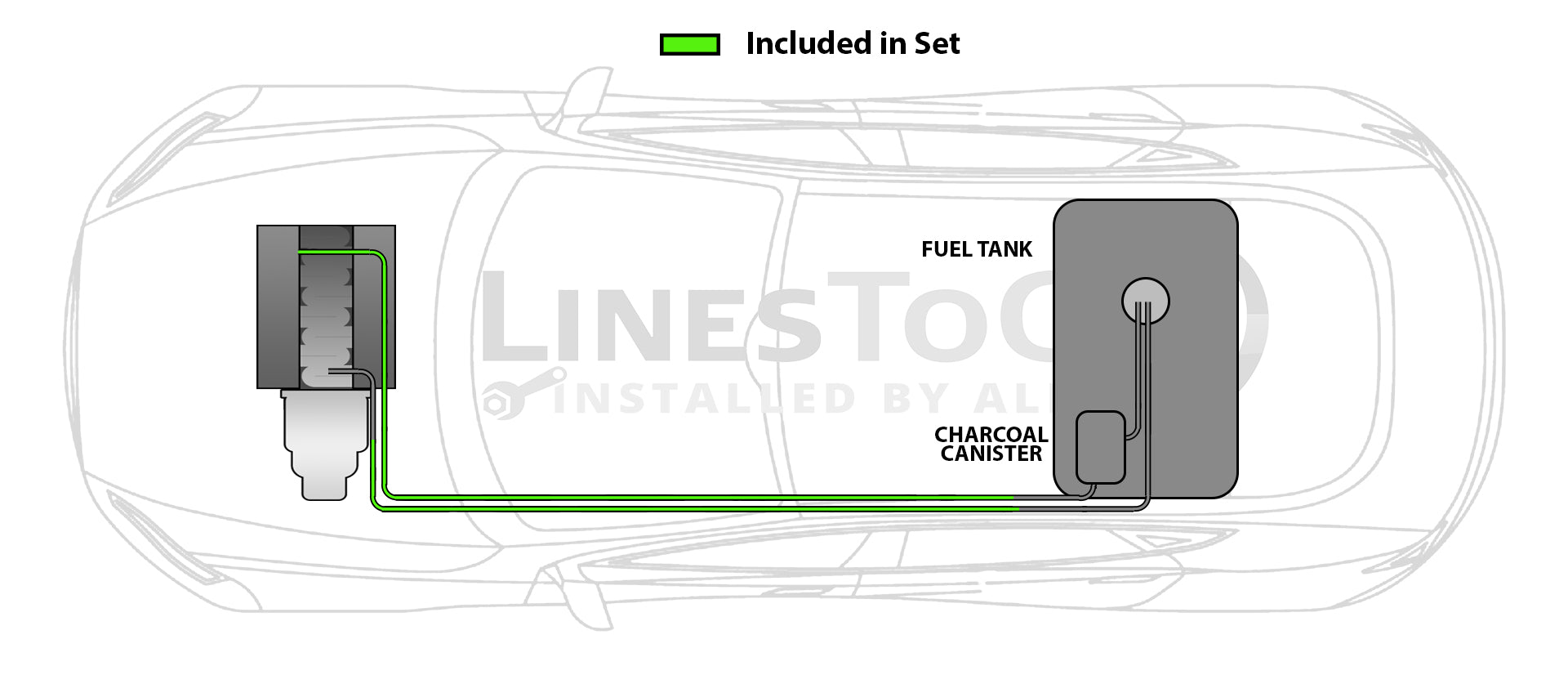

Engine to Hose Connection off Fuel Tank

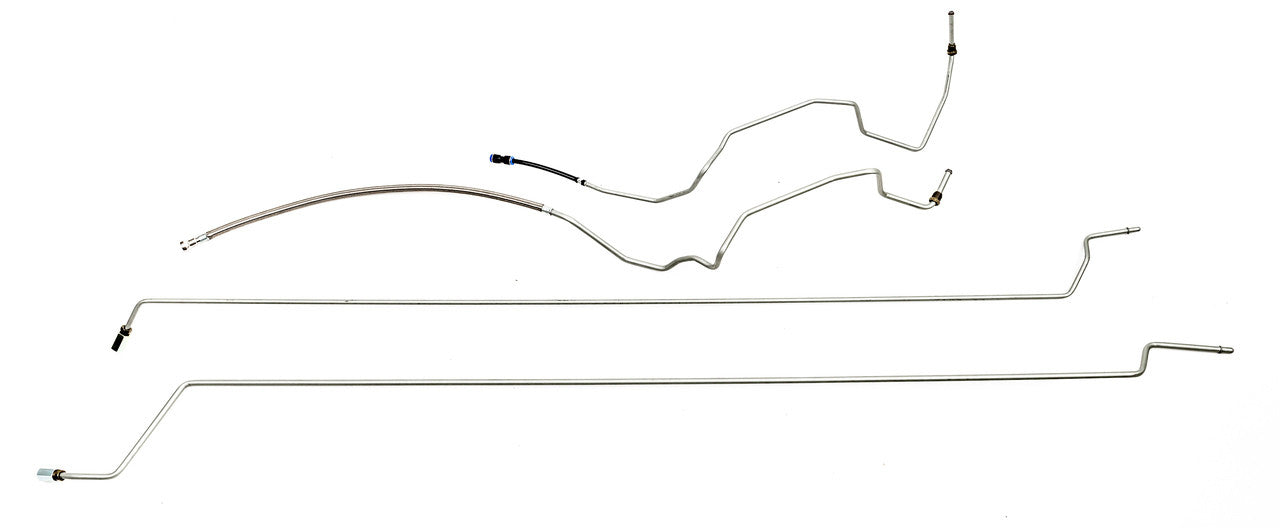

1 supply line 3/8" (in 2 easy to install sections), 1 vapor line 5/16" (in two easy to install sections), hose to engine connection, nylon line with union, 2 unions

15923819, 15834003

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
