Product Overview
Shop LinesToGo to find fuel lines for 2002 model of the Pontiac Grand Am. The FL256-A3D set is created for 2002 Pontiac Grand Am models with 2.2L engines.

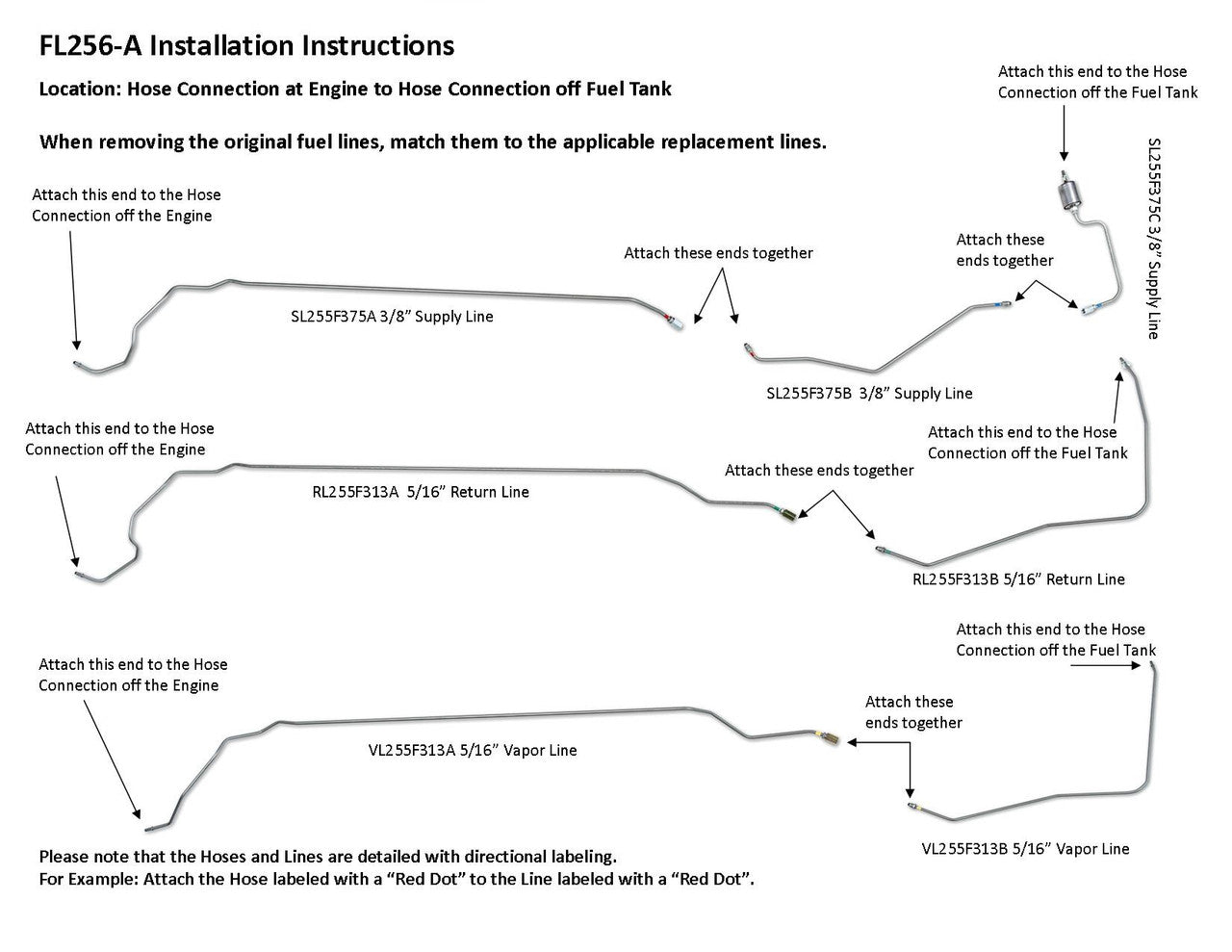

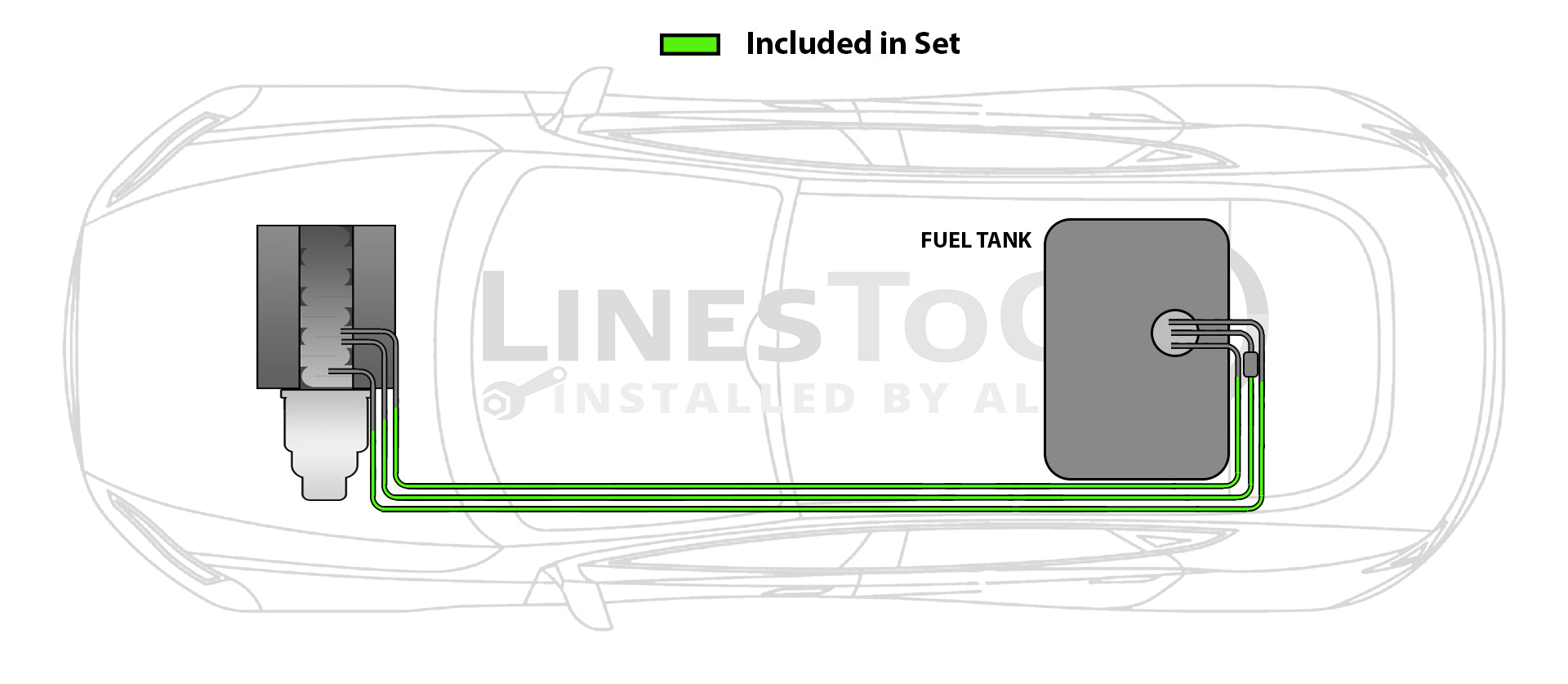

Location: Hose Connection at Engine to Hose Connection off Fuel Tank
Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SL255F375A, RL255F313A, and VL255F313A. See the video below on how to remove the shipping bend.
OEM Part Number: 22685044

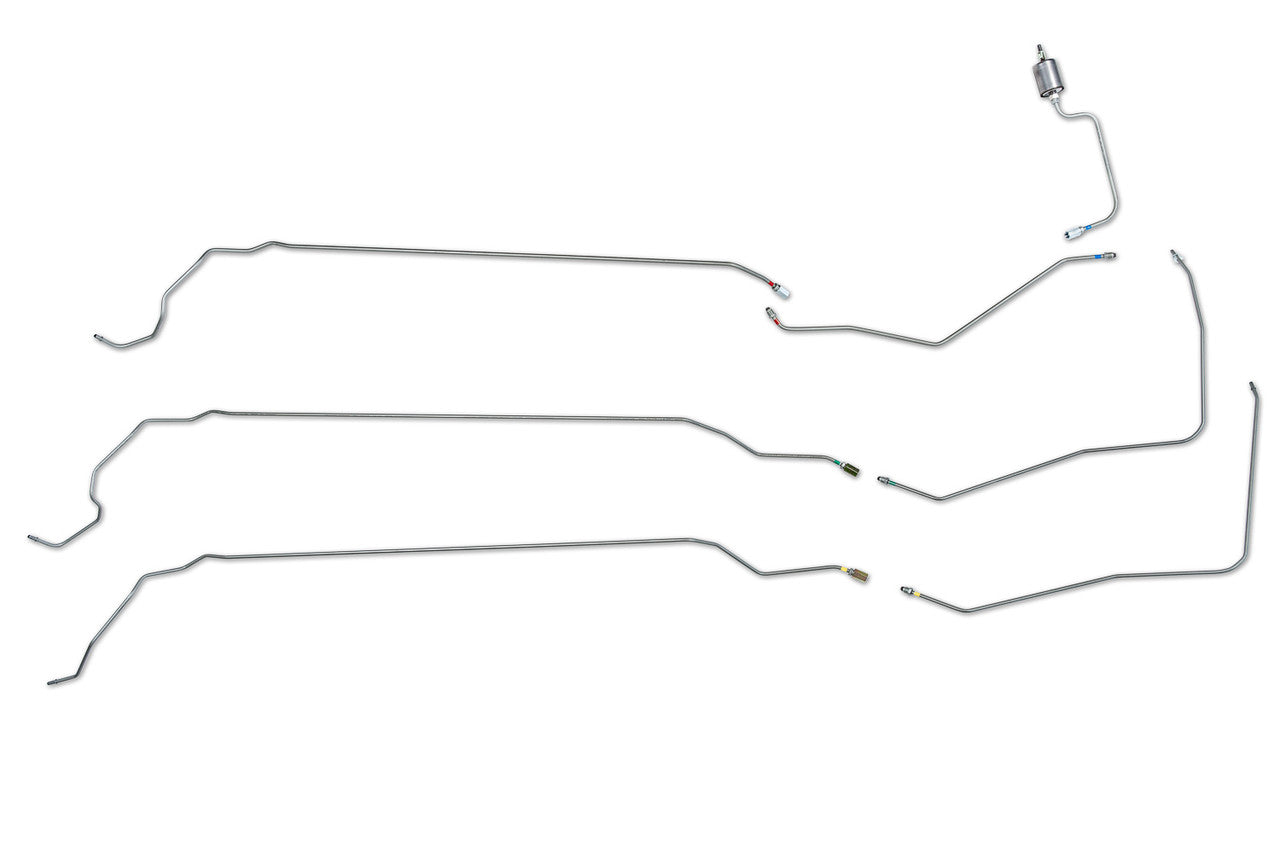

Included in Set: 1 supply line 3/8" (in 2 easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line 5/16" (in 2 easy to install sections), 4 unions, 1 fuel filter
Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings
Warranty: 1 Year
Box Dimensions: 38" x 12" x 7"
