Product Overview

1996 Pontiac Grand Am Fuel and Brake Line Set w/RPO Code JM4 (anti-lock brakes) and 2.3L engines.

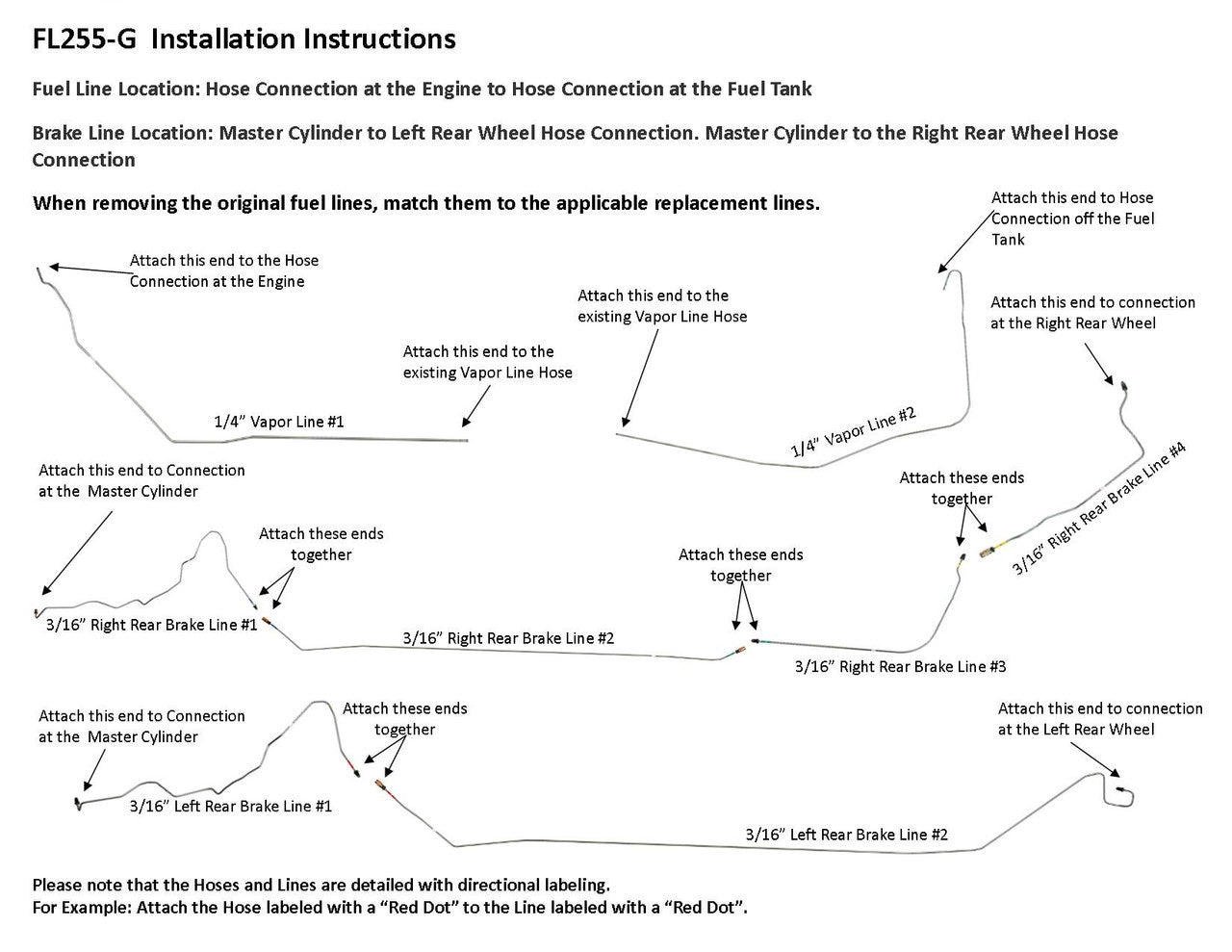

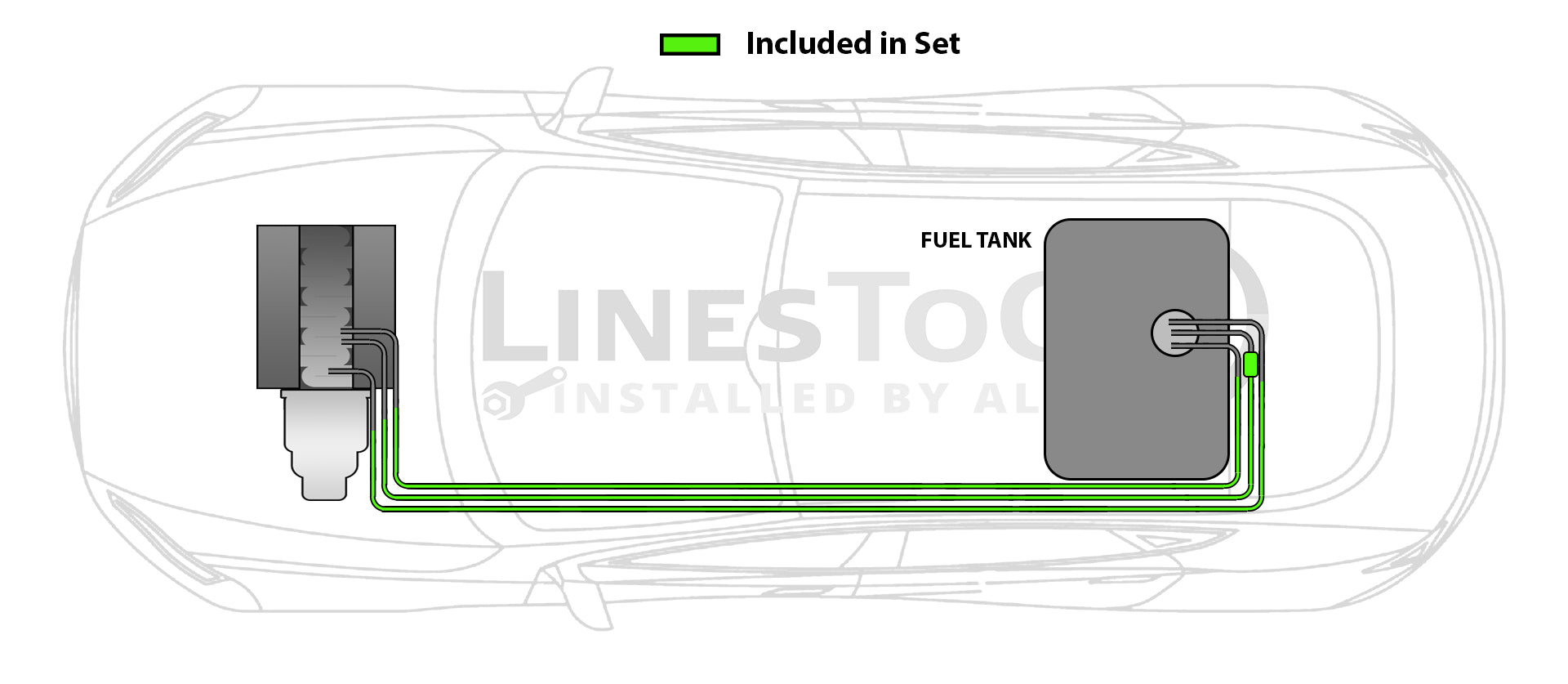

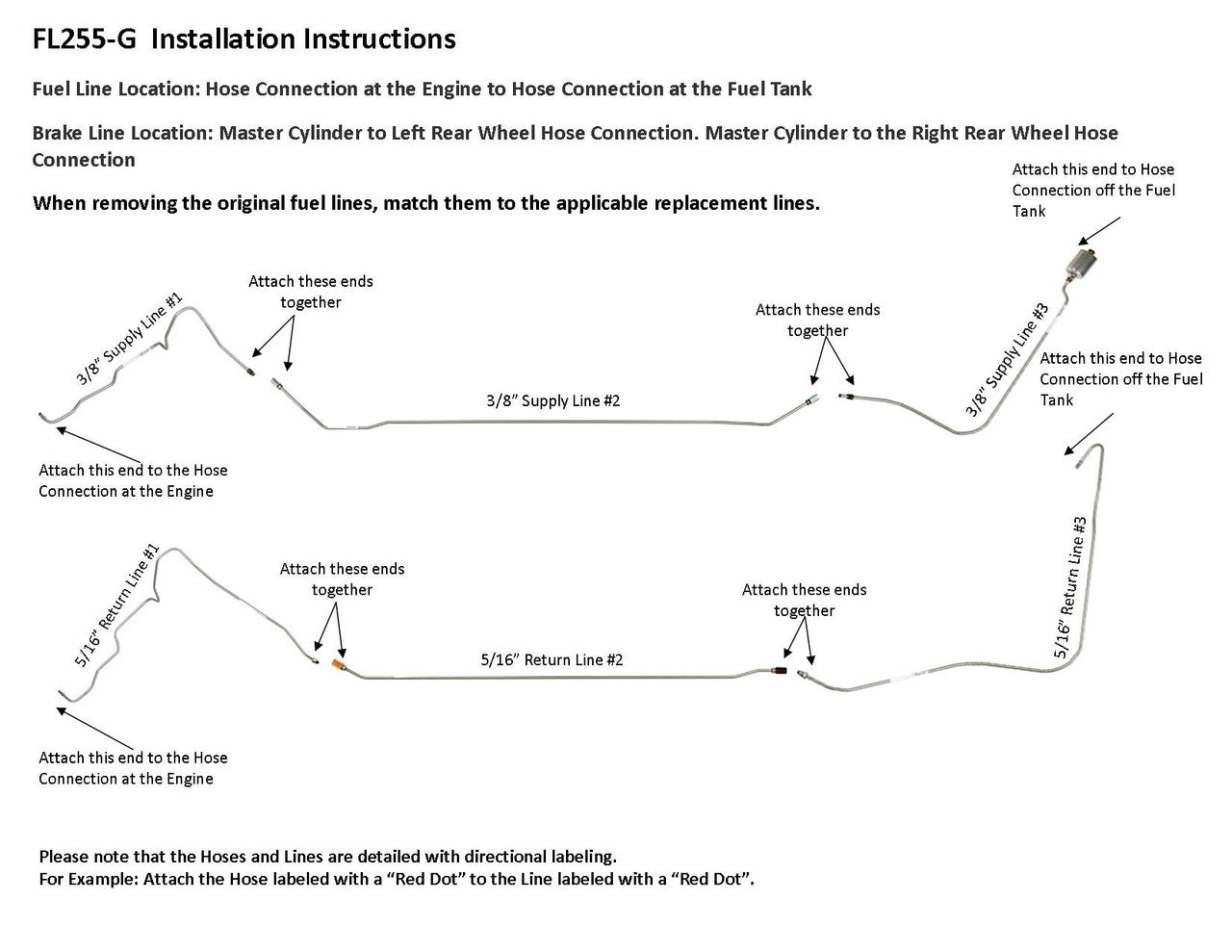

Fuel Line Location: Hose Connection at the Engine to Hose Connection at the Fuel Tank

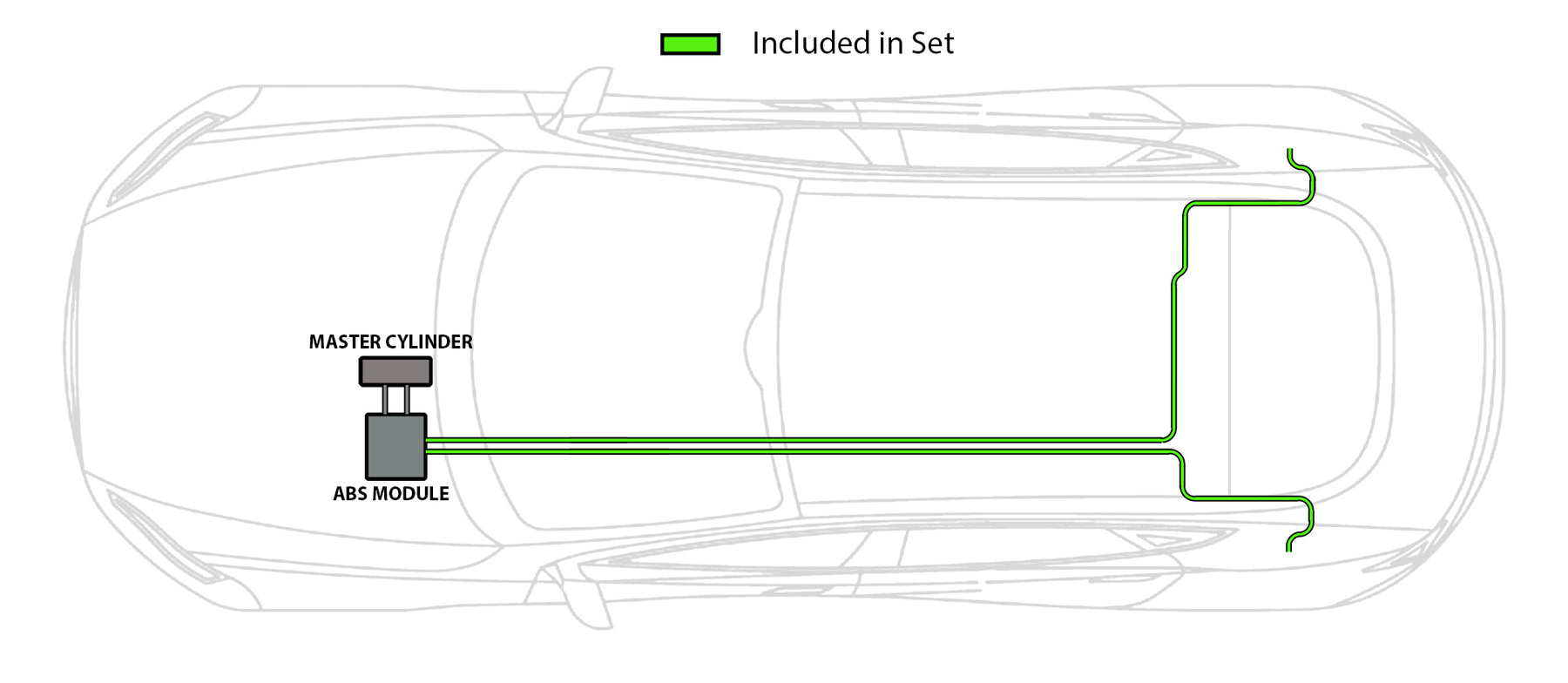

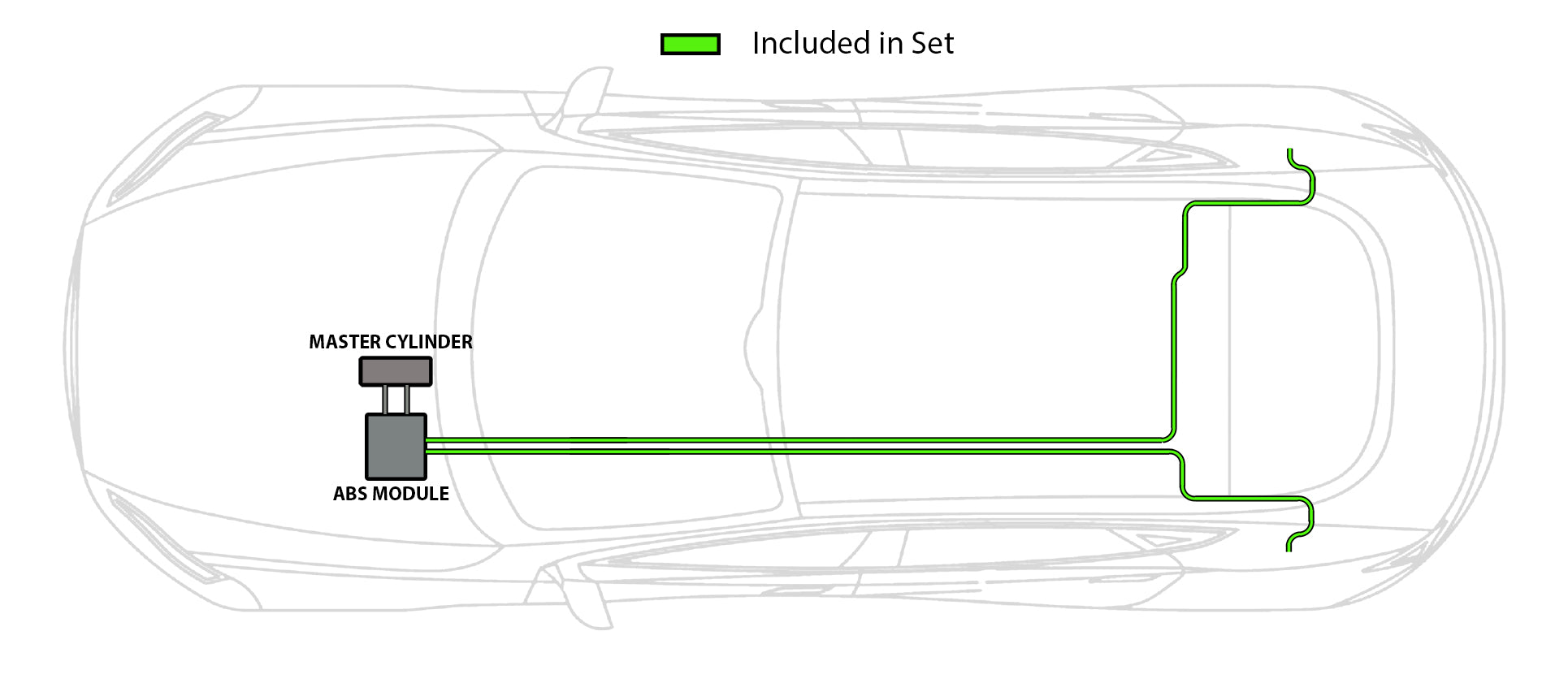

Brake Line Location: Master Cylinder to Left Rear Wheel Hose Connection. Master Cylinder to the Right Rear Wheel Hose Connection

OEM Part Number22594249

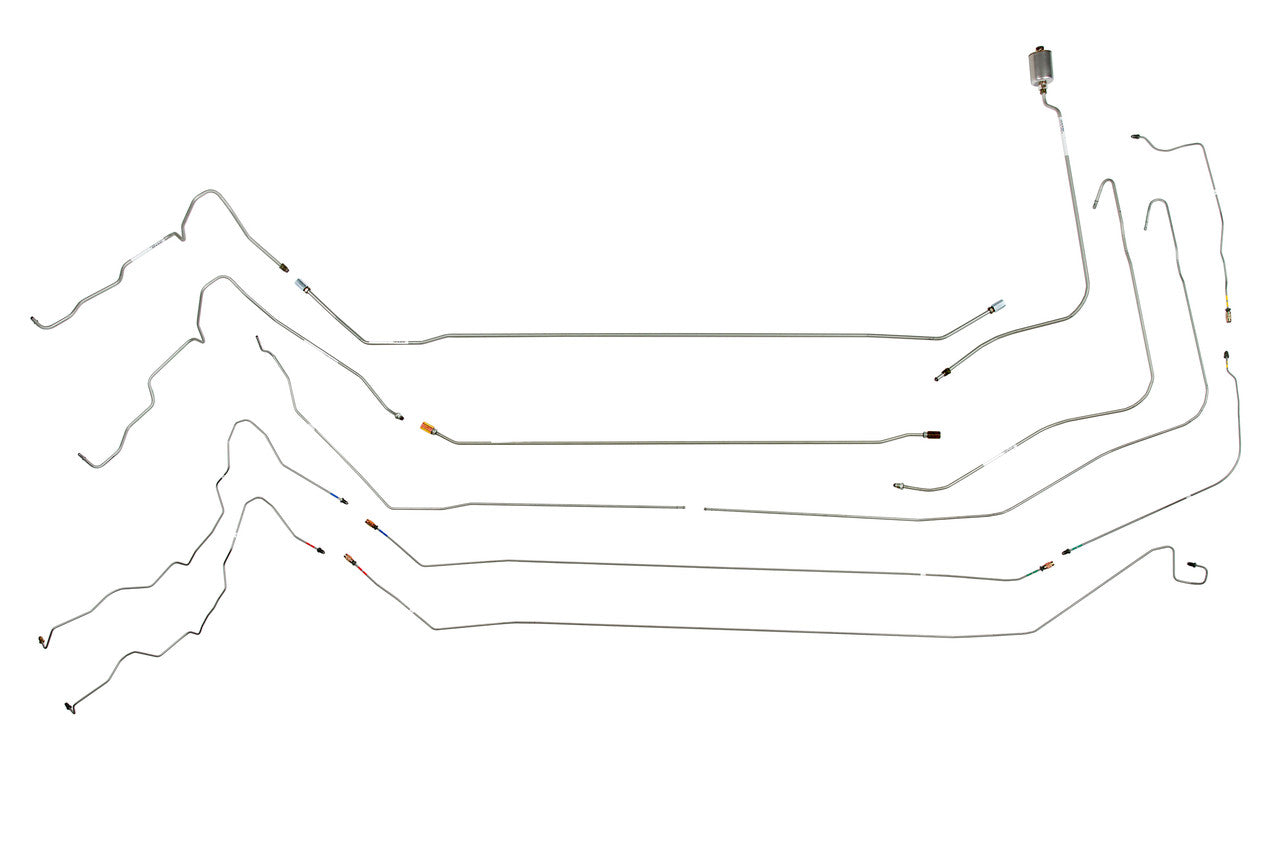

Included in Set: 1 supply line 3/8" (in 3 easy to install sections), 1 return line 5/16" (in 3 easy to install sections), 1 vapor line 1/4" (3 easy to install sections), 1 left rear brake line 3/16" (2 easy to install sections), 1 right rear brake line 3/16" (4 easy to install sections)

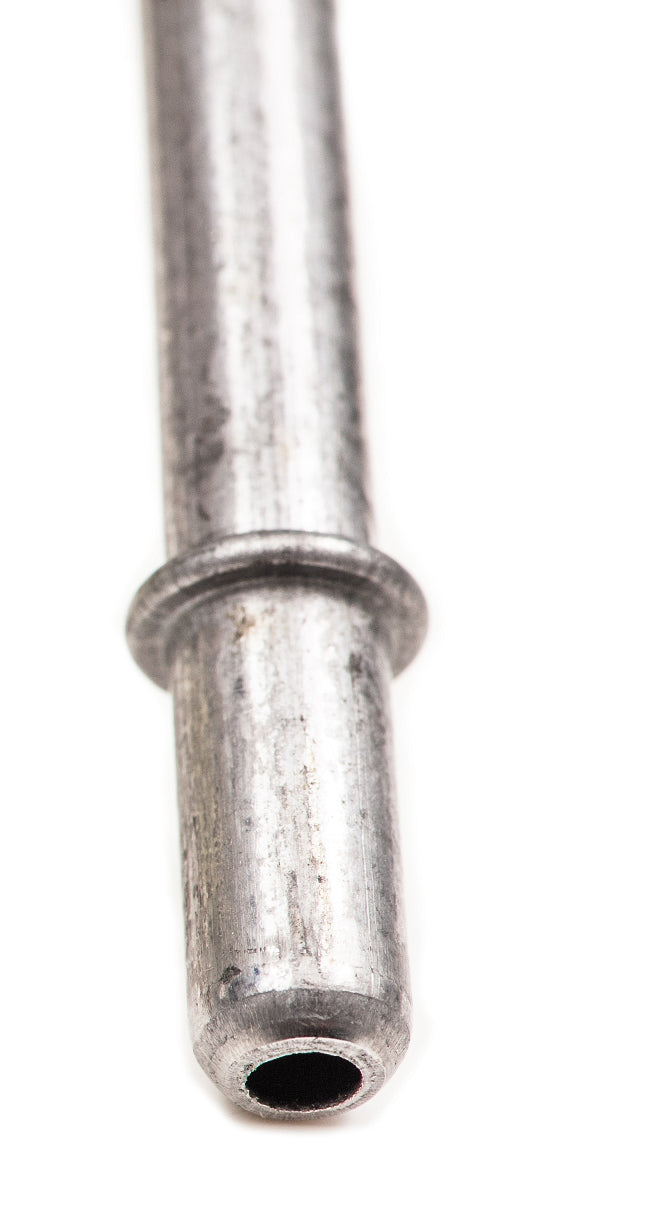

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 60" x 12" x 12"
