SALE: from
from
Save $53.24
from /

Delivery Time & Rates

SKU: FL255-A3B

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Pairs Well With

Product Overview

Shop LinesToGo for your 2008 Pontiac G5 fuel lines. The FL255-A3B set is crafted for Pontiac G5 models with 2.2L engines.

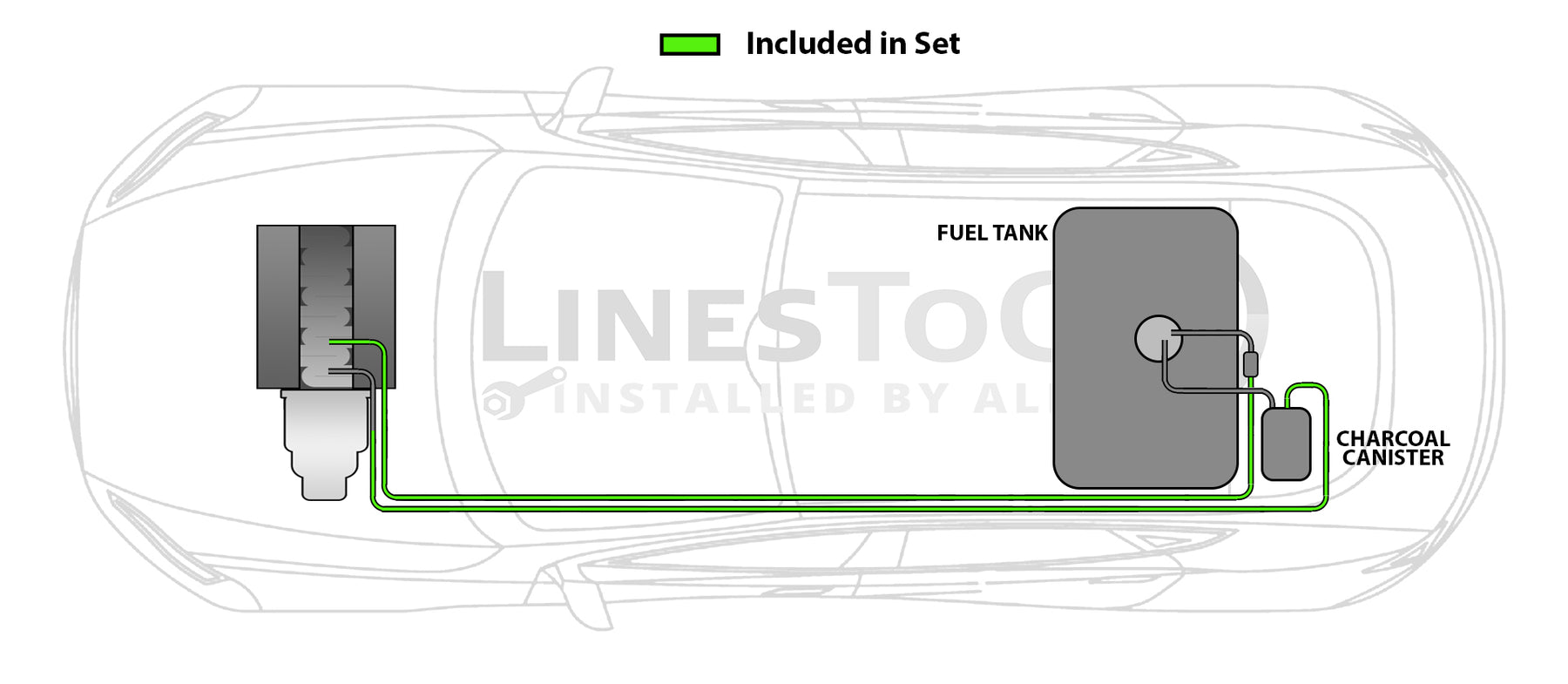

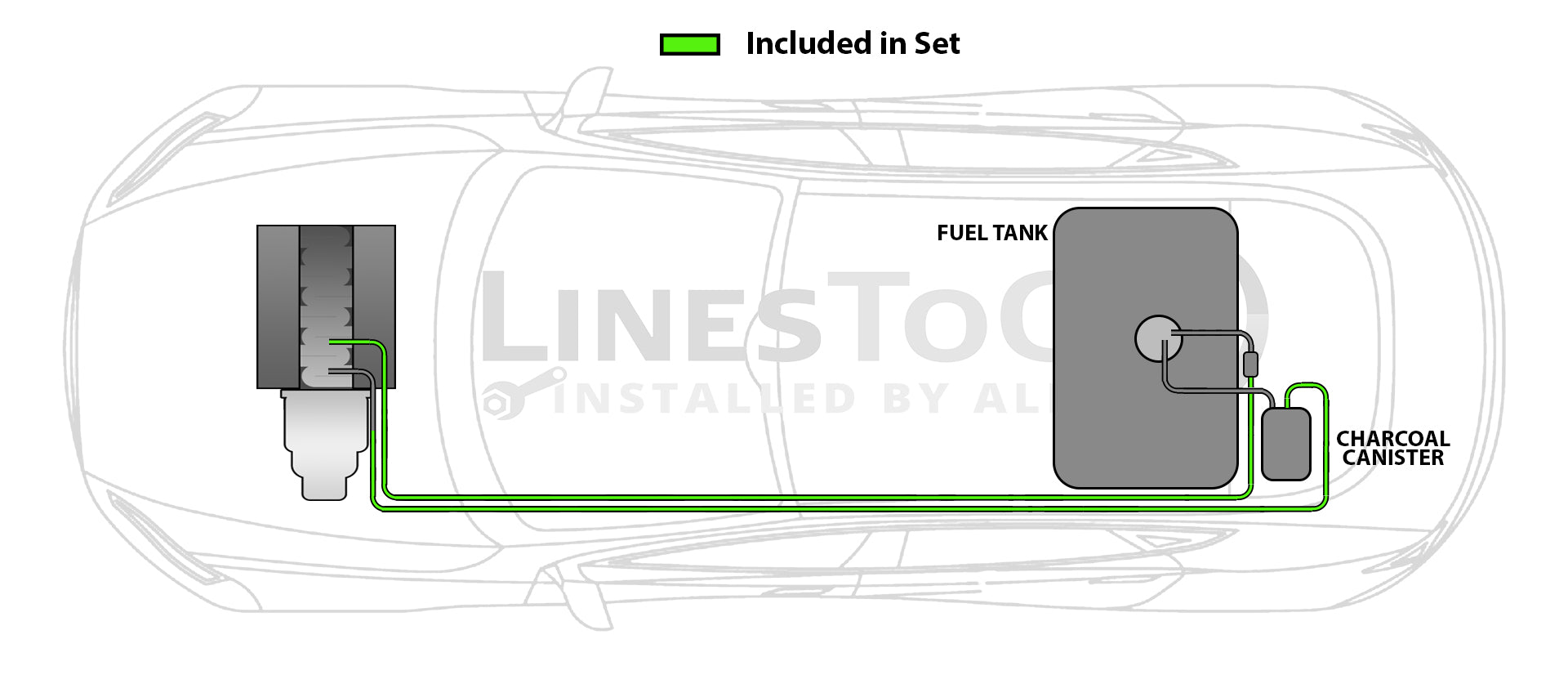

Location: Engine to Hose Connection off Fuel Tank

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will easily splice on to the original nylon vapor line on the vehicle. See below:

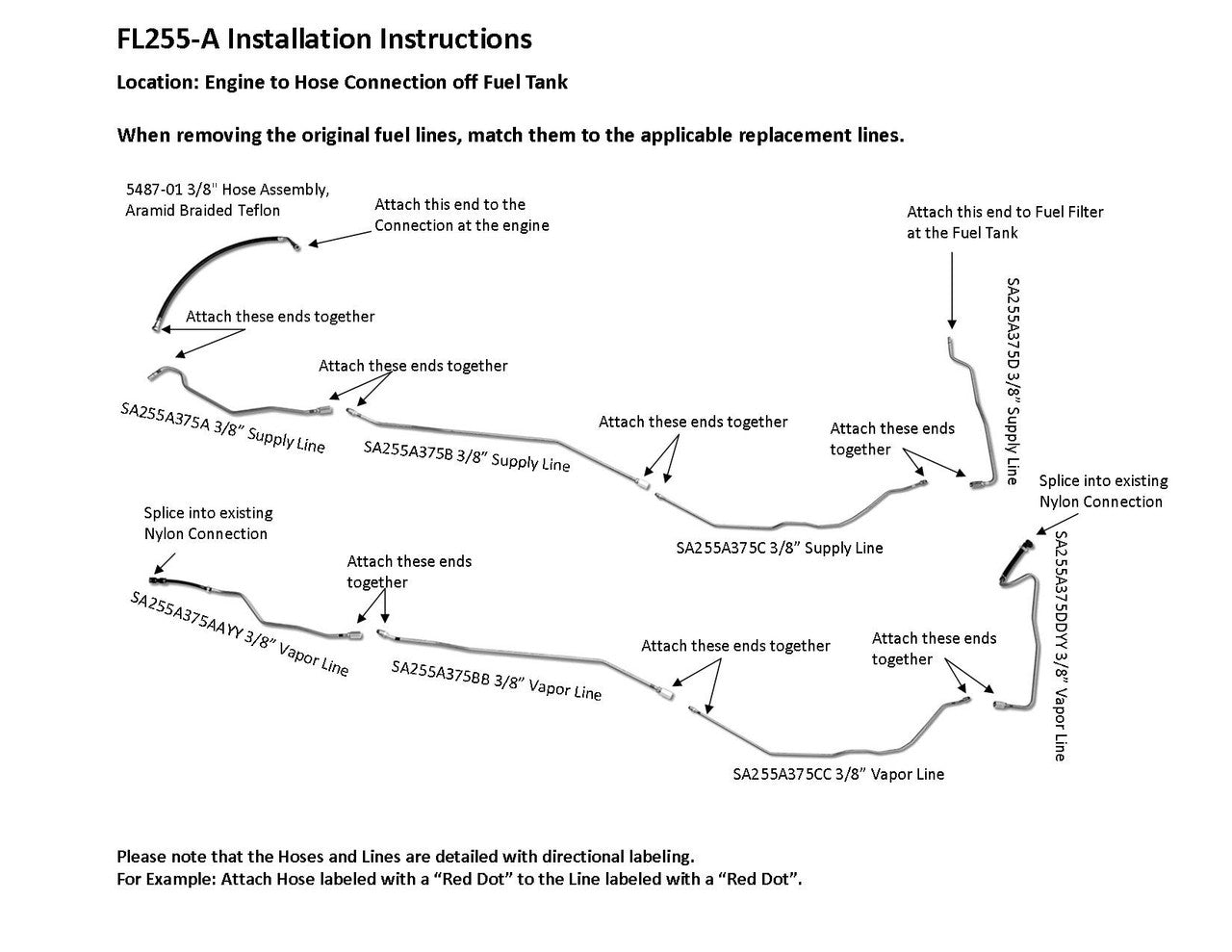

Nylon Splicing Installation Instructions:

Step 1


Cut the new nylon hose in the same position as the original nylon hose.

Step 2


Cut the original nylon hose in the same position as the new nylon hose.

Step 3


Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

OEM Part Number: 15283792, 15934416

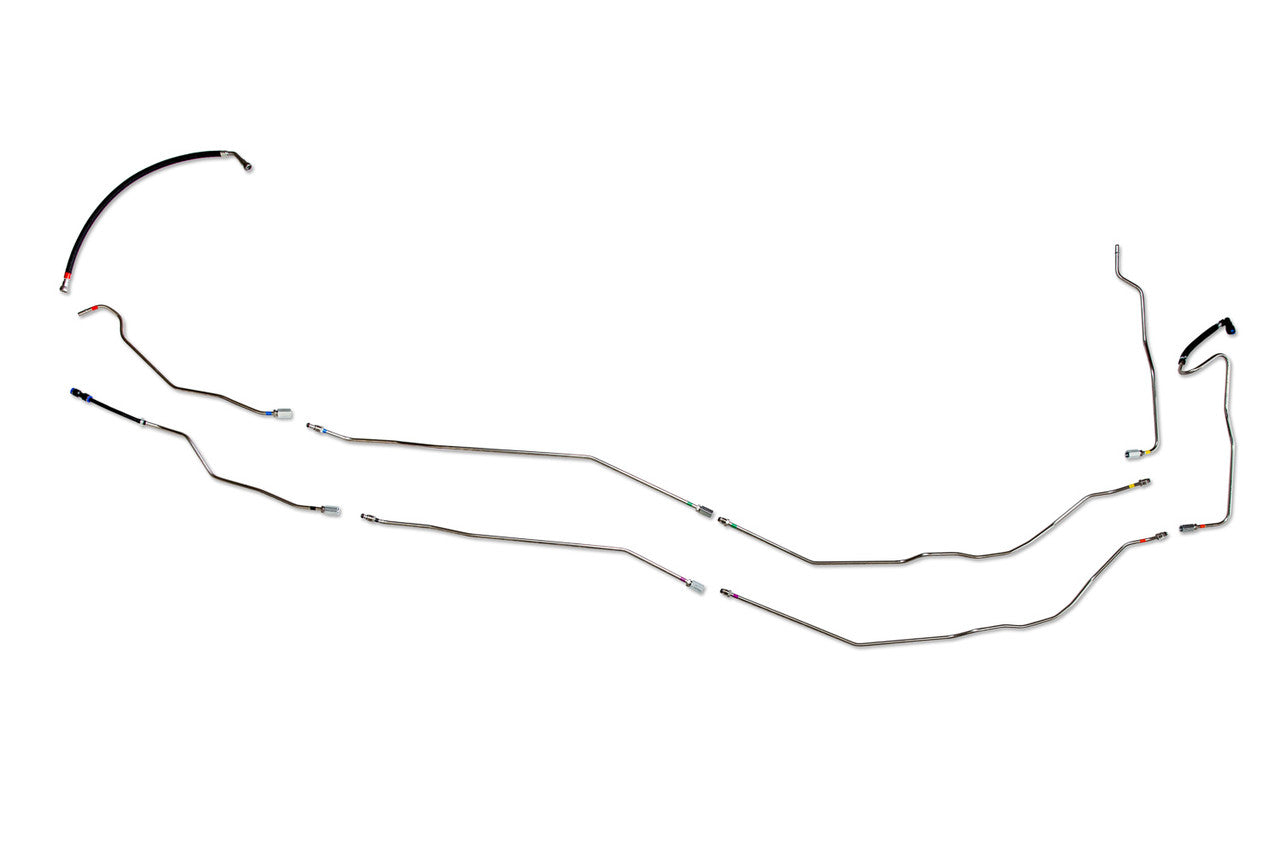

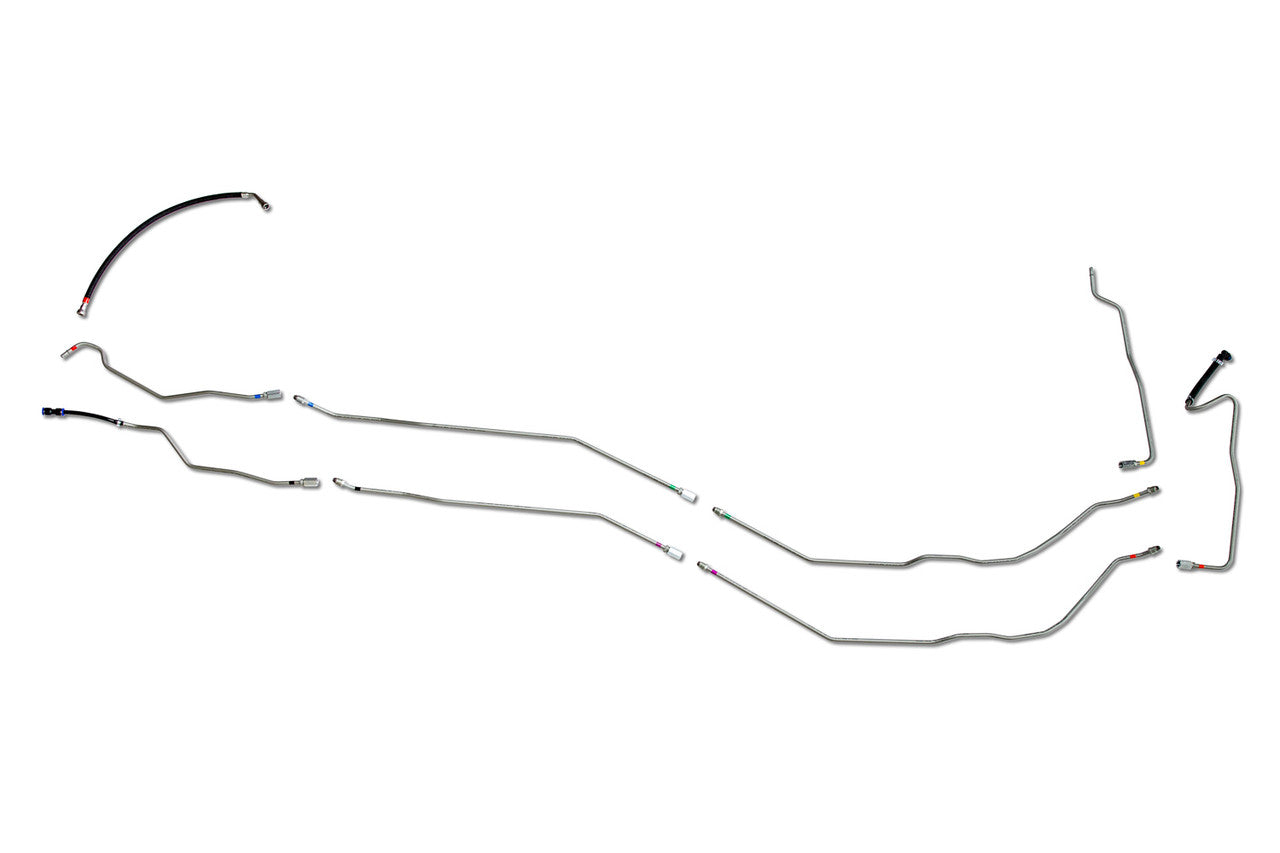

Included in Set: 1 supply line 3/8" ( in 4 easy to install sections), 1 vapor line 3/8" ( in 4 easy to install sections), hose to engine connection, nylon lines with unions, 6 unions

Tube Construction: Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from Stainless Steel Braided Teflon with OE style fittings

Warranty: 1 Year

Box Dimensions: 46" x 11" x 7"
