Pontiac Bonneville Brake Line Set 1997 3.8L BLP-101-SS1B Stainless Steel

w/Front Disc/Rear Drum w/ABS w/Electronic Traction Control

Pontiac Bonneville Brake Line Set 1997 3.8L BLP-101-SS1B Stainless Steel
Pontiac Bonneville Brake Line Set 1997 3.8L BLP-101-SS1B Stainless Steel

Pontiac Bonneville Brake Line Set 1997 3.8L BLP-101-SS1B Stainless Steel

w/Front Disc/Rear Drum w/ABS w/Electronic Traction Control

MSRP: from
SALE: from
Save $58.74
from /
Stainless steel

Delivery Time & Rates

Zip/Postal Code:
SKU: BLP-101-SS1B
  • Weight: 6

Install this pre bent 1997 Pontiac Bonneville brake line set without a problem!

Brake Line Set Stainless Steel 1997 Pontiac Bonneville w/Front Disc/Rear Drum, w/ABS, w/Electronic Traction Control for 3.8L engines.

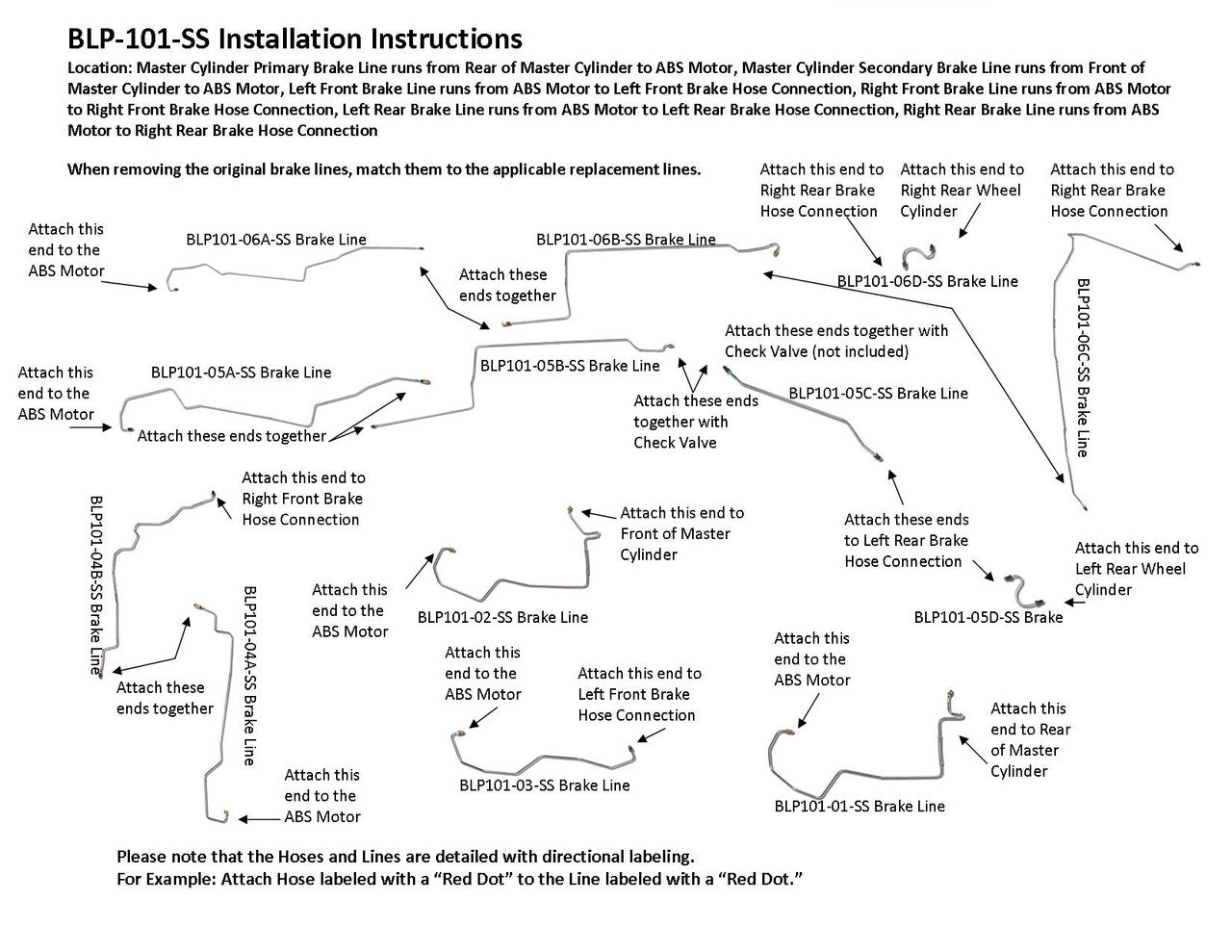

Location: Master Cylinder Primary Brake Line runs from Rear of Master Cylinder to ABS Motor, Master Cylinder Secondary Brake Line runs from Front of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from ABS Motor to Right Rear Brake Hose Connection

Please Note: Before installing your brake line, a shipping bend will need to be removed from the lines labeled BLP101-05A-SS, BLP101-06A-SS, BLP101-05B-SS and BLP101-06B-SS. See the video below on how to remove the shipping bend.

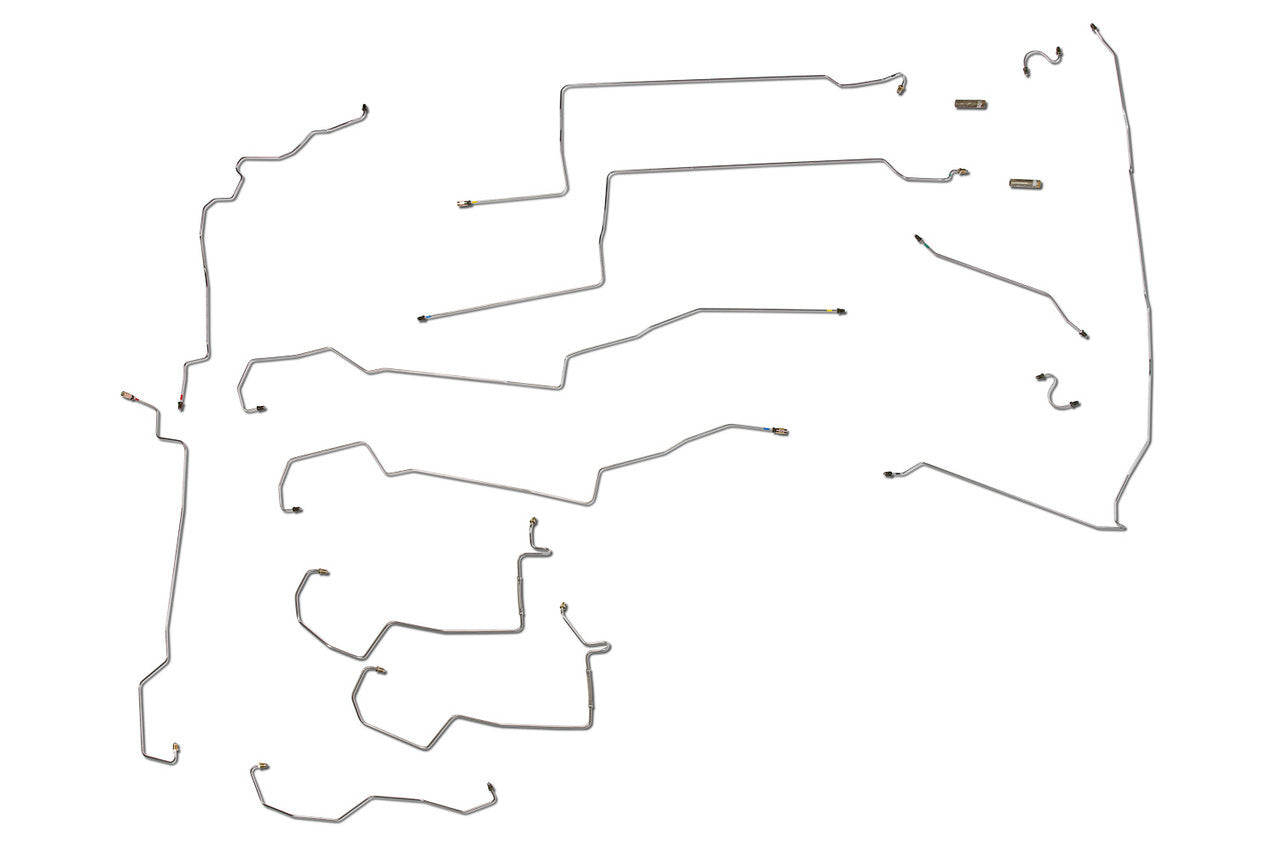

Included in Set: 1 Master Cylinder Primary Brake Line 1/4", 1 Master Cylinder Secondary Brake Line 1/4", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16" (in 4 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 46" x 11" x 7"
