Pontiac Bonneville Brake Line Set 1995 3.8L BL259-SS5B Stainless Steel

w/ABS, w/Electronic Traction Control

Pontiac Bonneville Brake Line Set 1995 3.8L BL259-SS5B Stainless Steel
Pontiac Bonneville Brake Line Set 1995 3.8L BL259-SS5B Stainless Steel
Pontiac Bonneville Brake Line Set 1995 3.8L BL259-SS5B Stainless Steel

Pontiac Bonneville Brake Line Set 1995 3.8L BL259-SS5B Stainless Steel

w/ABS, w/Electronic Traction Control

MSRP: from
SALE: from
Save $57.49
from /
Stainless steel

Delivery Time & Rates

Zip/Postal Code:
SKU: BL259-SS5B
  • Weight: 6

Install this pre bent 1995 Pontiac Bonneville brake line set without a problem!

Brake Line Set 1995 Pontiac Bonneville 3.8L (RPO Codes L27, L36, L67) w/ABS, w/Electronic Traction Control Stainless Steel

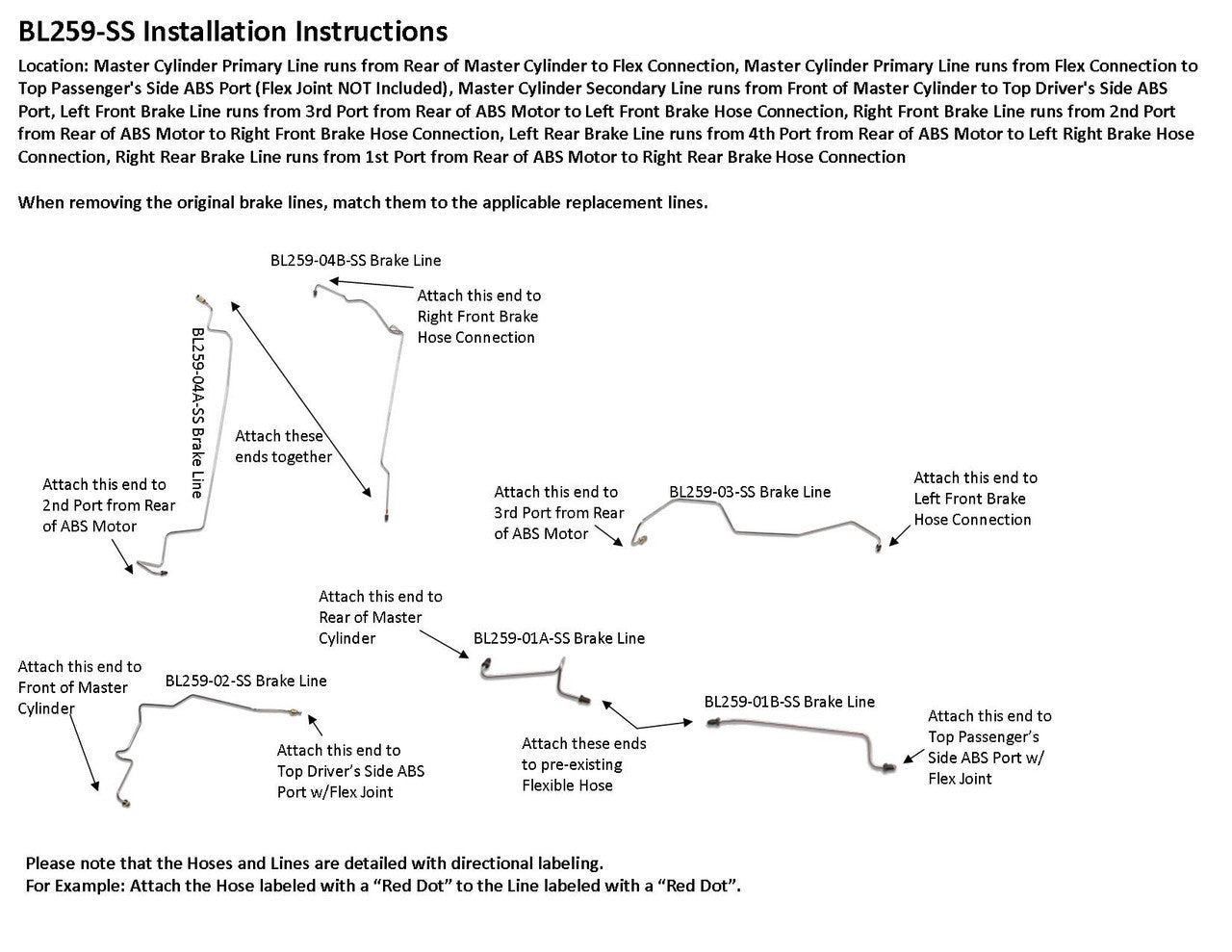

Location: Master Cylinder Primary Line runs from Rear of Master Cylinder to Flex Connection, Master Cylinder Primary Line runs from Flex Connection to Top Passenger's Side ABS Port (Flex Joint NOT Included), Master Cylinder Secondary Line runs from Front of Master Cylinder to Top Driver's Side ABS Port, Left Front Brake Line runs from 3rd Port from Rear of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from 2nd Port from Rear of ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from 4th Port from Rear of ABS Motor to Left Right Brake Hose Connection, Right Rear Brake Line runs from 1st Port from Rear of ABS Motor to Right Rear Brake Hose Connection

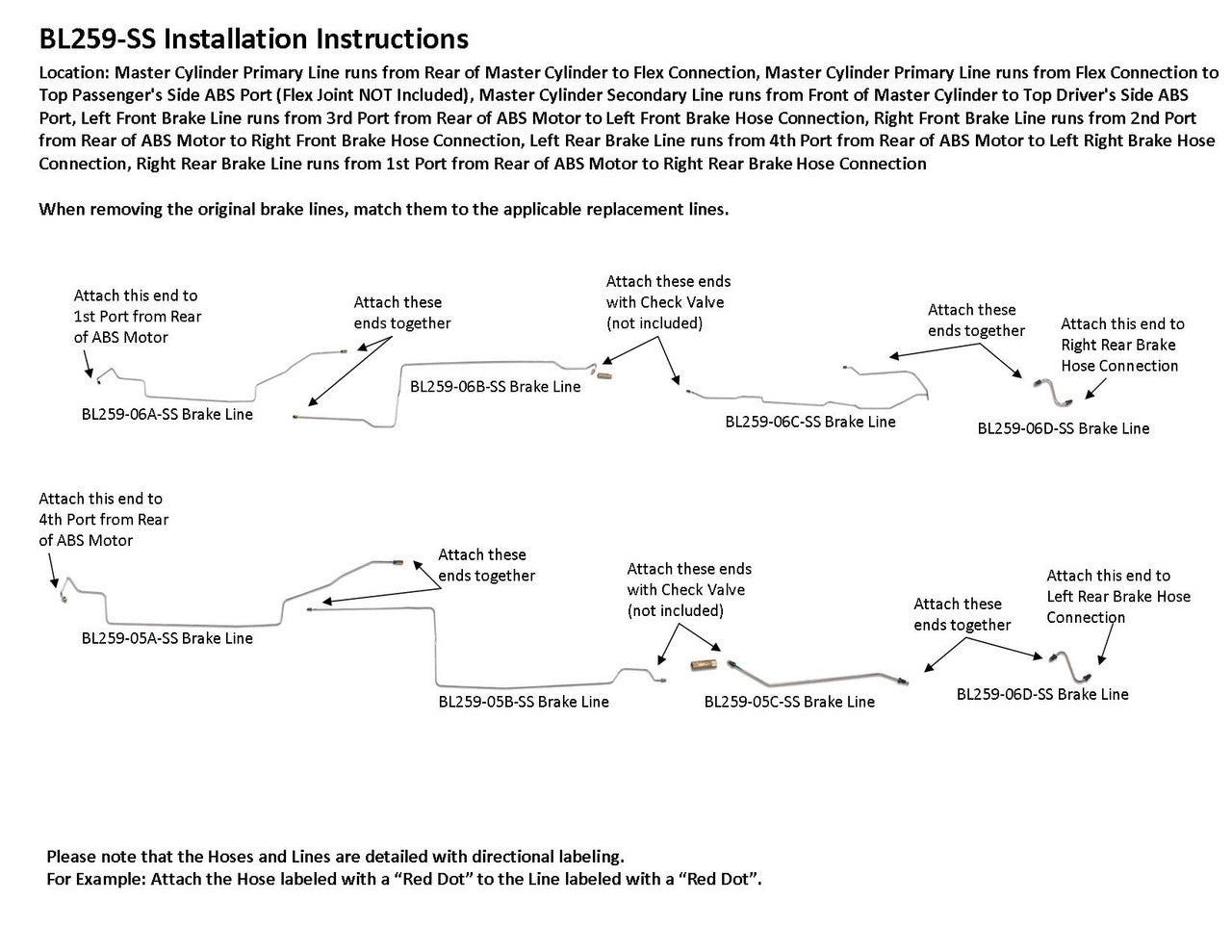

Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BL259-06C-SS. See the video below on how to remove the shipping bend.

Please Note: Lines Labeled BL259-06B-SS and BL259-06C-SS as well as BL259-05B-SS and BL259-05C-SS Do NOT include the two Check Valves shown on the installation instructions.

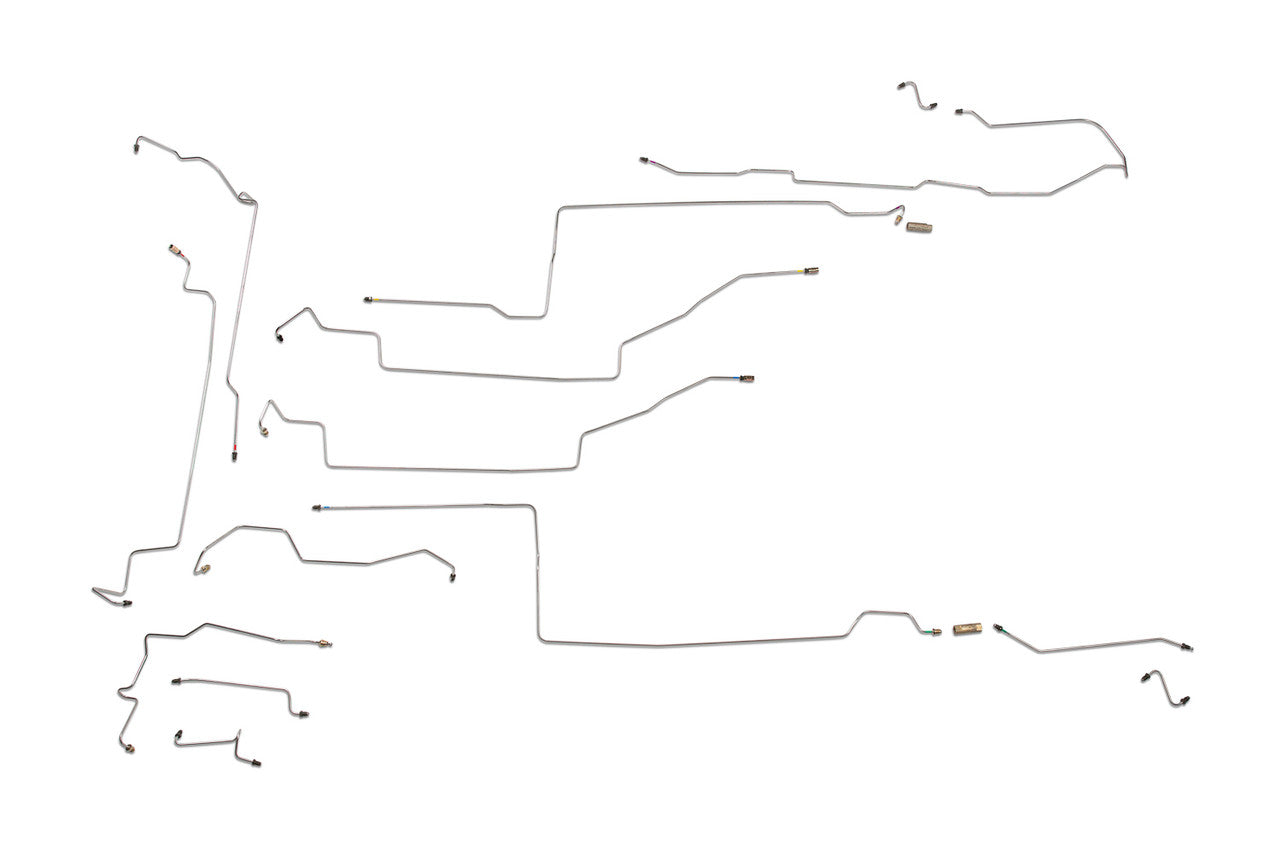

Included in Set: 1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16" (in 4 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 57" x 11" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
