Name: Oldsmobile Bravada Fuel Line Set 2004 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A4B
Brand: Lines - To - Go
SKU: FL446-A4B
Price: 236.28 USD
Availability: InStock

Year Make & Model

Oldsmobile Bravada Fuel Line Set 2004 4.2L w/Remote Fuel Filter w/25 Gal Fuel Tank FL446-A4B

Price

SALE:

Save $59.07

Delivery Time & Rates

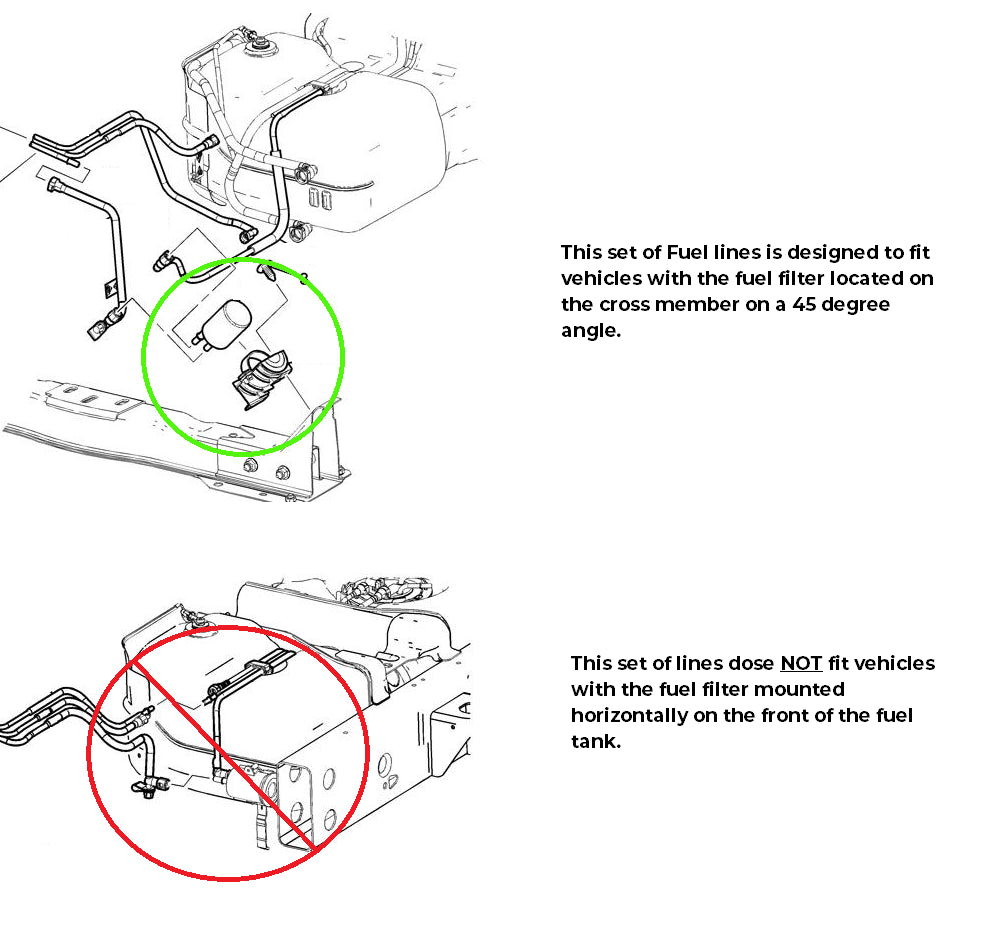

Shop LinesToGo for your 2003 and 2004 Bravada fuel lines. Our FL446-A4B set of fuel lines were designed for models with 4.2L with remote fuel filters and a 25 gallon fuel tank

SKU: FL446-A4B

Weight: 5

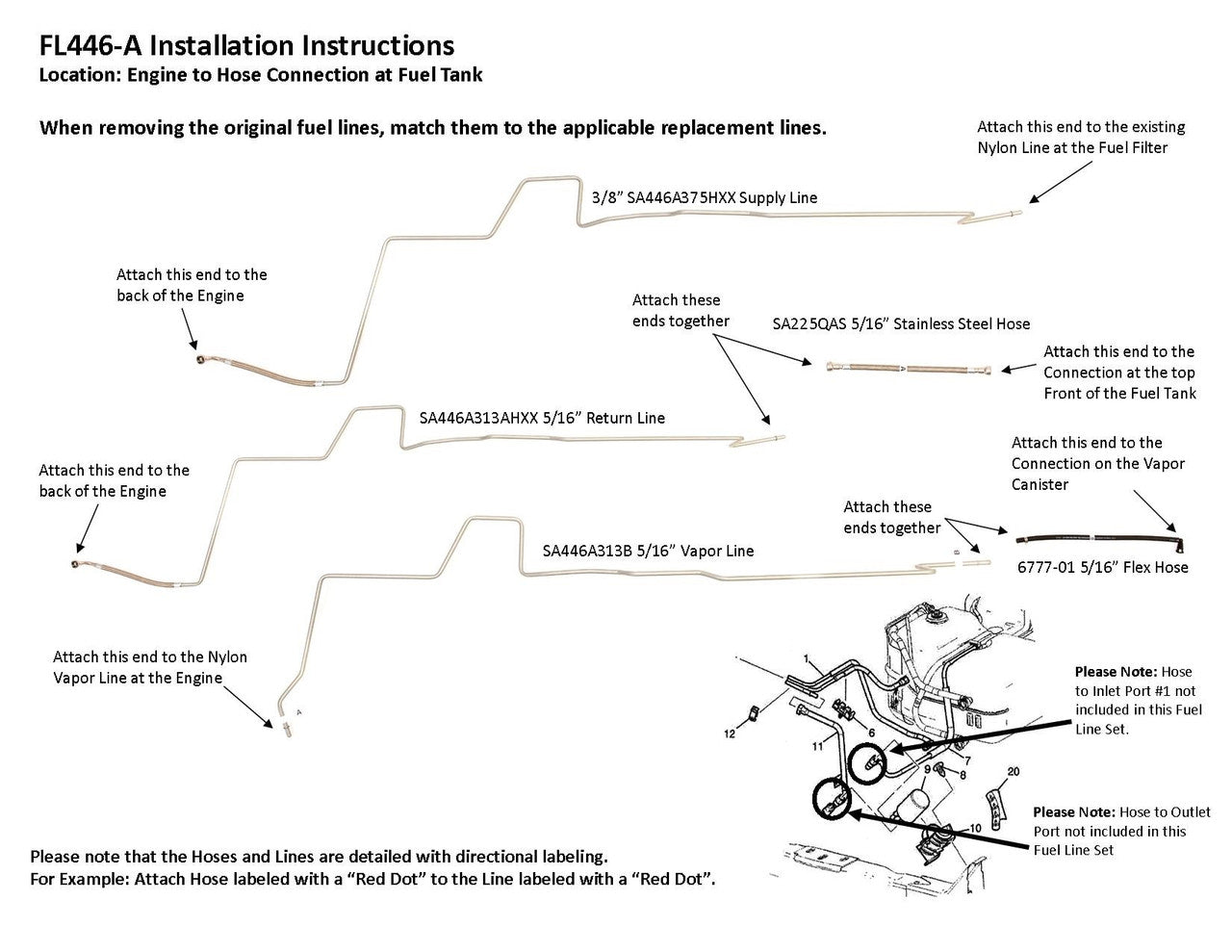

Installation Instructions

Box Dimensions 57" x 11" x 7"

Engine to Hose Connection at Fuel Tank

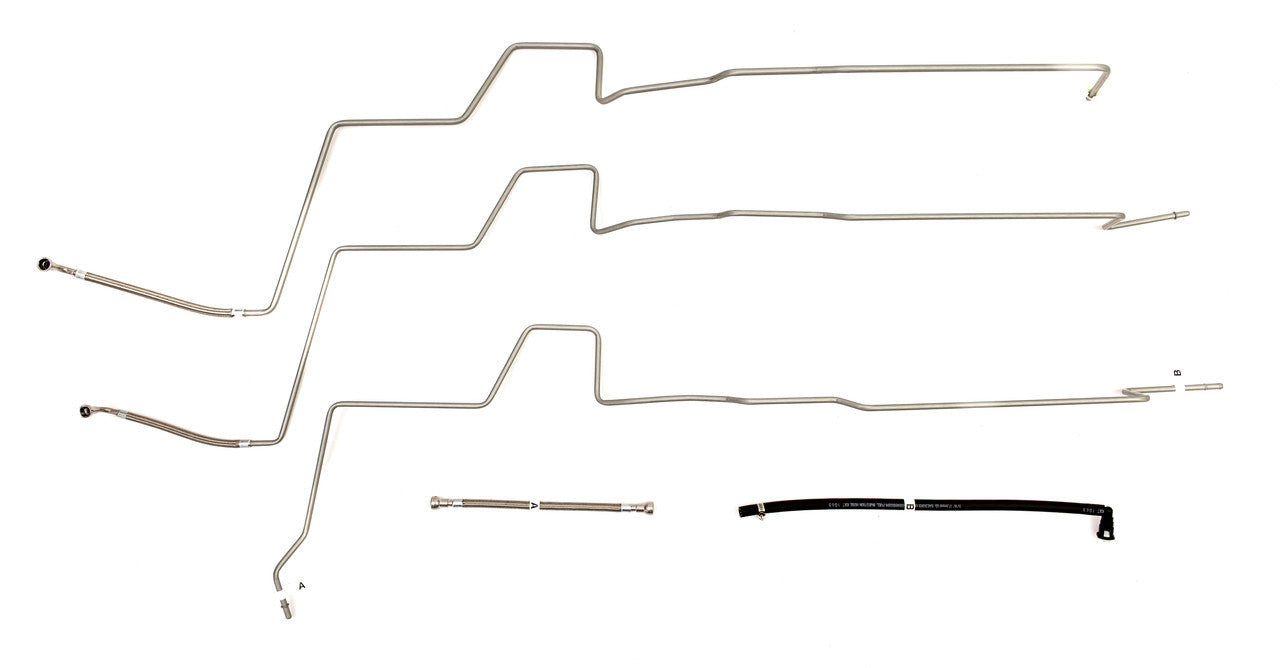

1 supply line 3/8" , 1 return line 5/16", 1 vapor line 5/16", hoses to engine connection, flex hose to front fuel tank

15203688

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: 3234-01, 3176-01, SA225QAS

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-503250
