Name: Oldsmobile Bravada Fuel Line Set 2002 4.2L w/o Remote Fuel Filter w/18 Gal Fuel Tank FL446-B1A
Brand: Lines - To - Go
SKU: FL446-B1A
Price: 236.28 USD
Availability: InStock

Year Make & Model

Oldsmobile Bravada Fuel Line Set 2002 4.2L w/o Remote Fuel Filter w/18 Gal Fuel Tank FL446-B1A

Price

SALE:

Save $59.07

Delivery Time & Rates

Shop LinesToGo for your 2003 Bravada fuel lines. Our FL446-B1A set of fuel lines are ideal for all models with a 4.2L engine, without a remote fuel filter and a 18 gallon fuel tank

Please Note: Before installing your fuel line, a shipping bend will need to be removed from the lines labeled SL446B375A, RL446B313A, and VL446B313BYY. See the video below on how to remove the shipping bend

SKU: FL446-B1A

Weight: 5

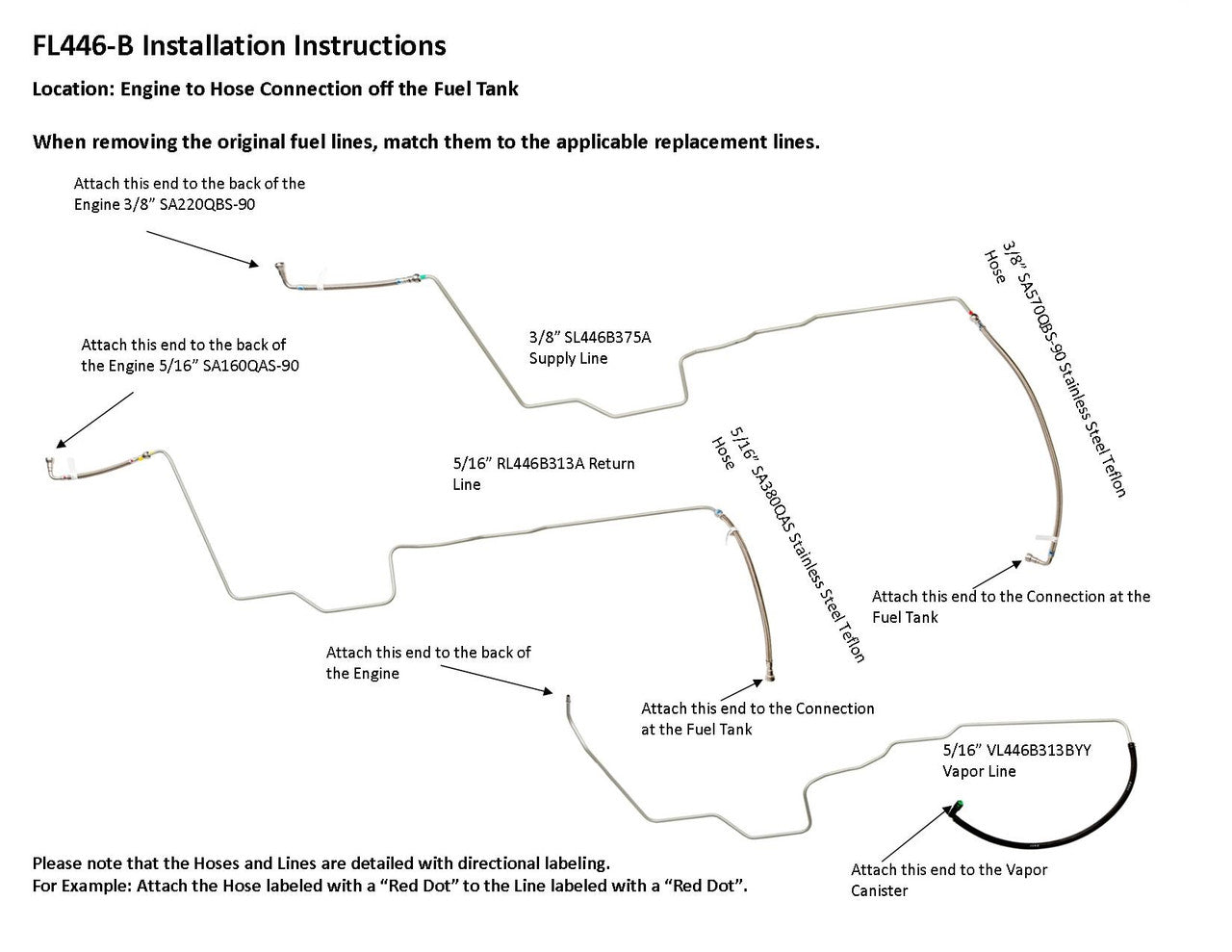

Installation Instructions

Box Dimensions 46" x 11" x 7"

Shipping Bend Removal

Engine to Hose Connection at Fuel Tank

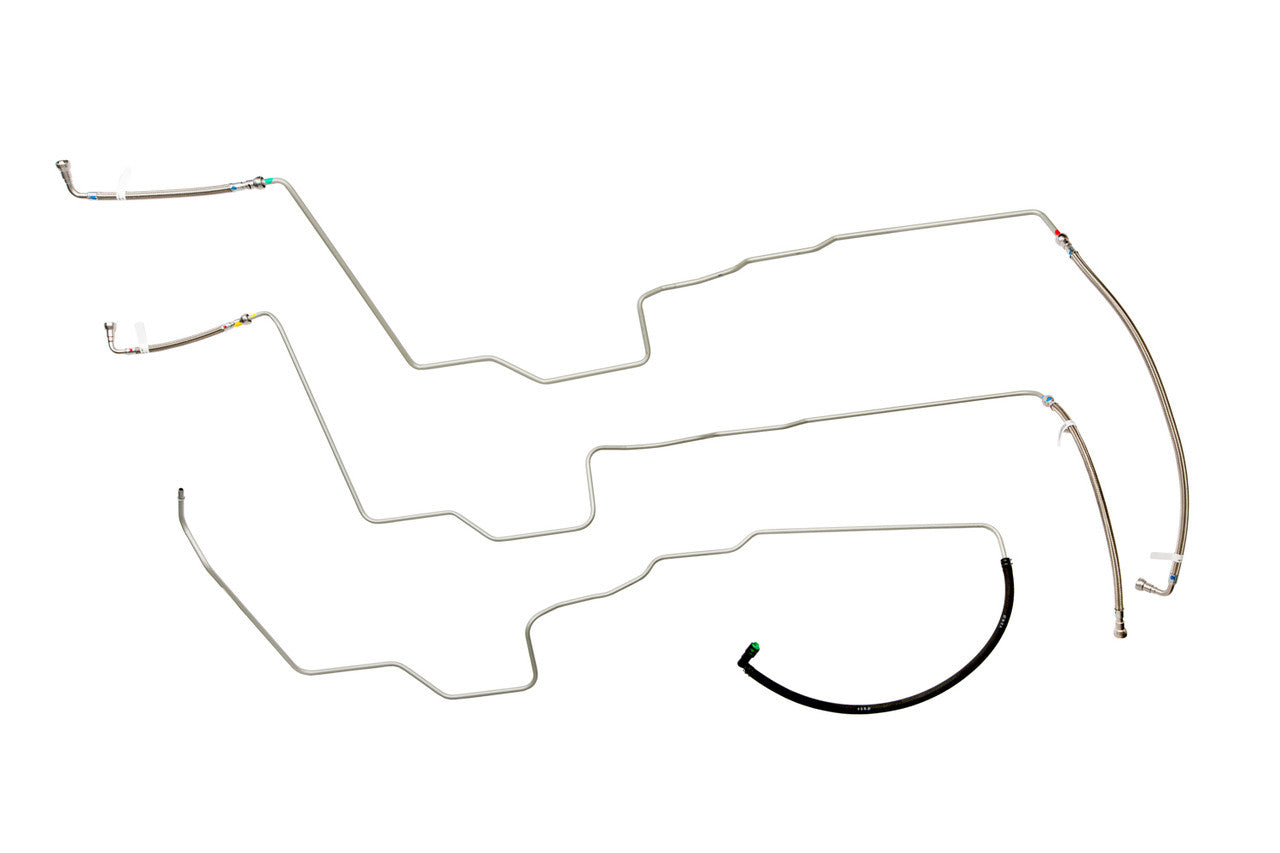

1 supply line 3/8" , 1 return line 5/16", 1 vapor line 5/16", hoses to engine connection, hoses to tank connection1 supply line 3/8" , 1 return line 5/16", 1 vapor line 5/16", hoses to engine connection, hoses to tank connection

88983139

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

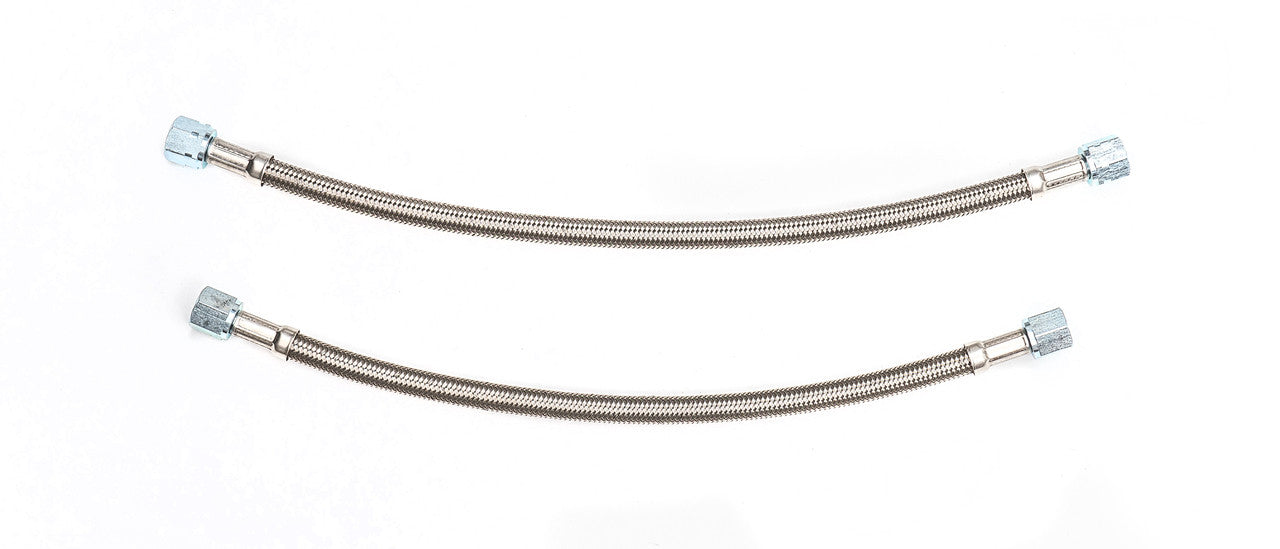

Hoses are made from Stainless Steel Braided Teflon with OE style fittings: SA380QAS, SA570QBS-90, SA160QAS-90, SA220QBS-90

Hose meets or exceeds applicable SAE Specifications – SAE J30R7: FI-503250
