Shop LinesToGo for your 2000 Bravada fuel lines. The FL441-D5D set of fuel lines are ideal for all models with 4WD Automatic 4.3L engines

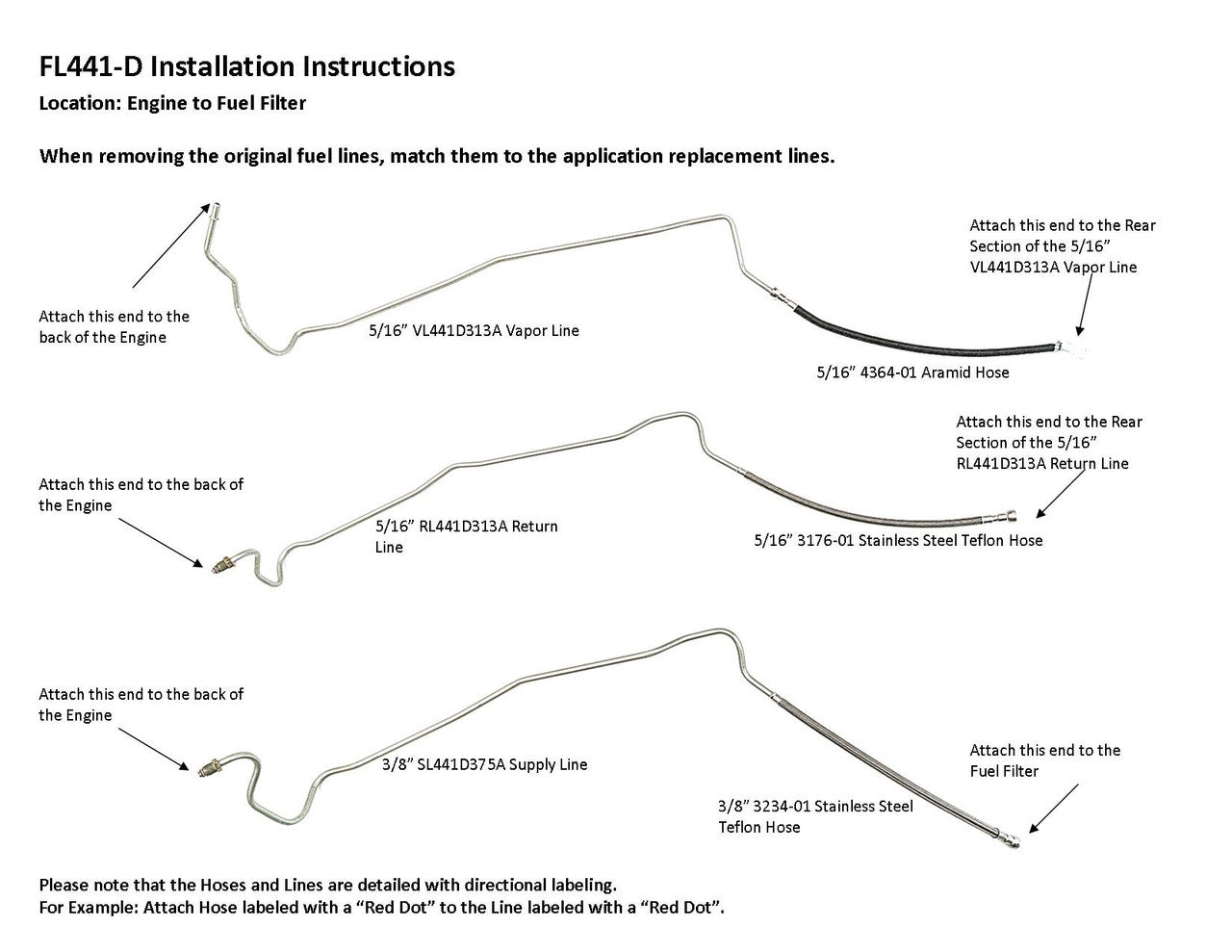

Please Note: This is more difficult to install than the average set of front fuel lines as the transmission cross member should be removed and the transmission/engine assembly needs to be angled down to make the installation

FL442-A is another replacement option. The lines are made from Stainless Steel Braided Teflon which is flexible and can be routed between the engine and the fire wall down over and along the transmission and transfer case

Retainer Clips Included On Lines: The retainer clips provided on the replacement lines may not be needed. The replacement lines will plug into connectors which have retainer clips inside them

Sometimes during removal of the OEM lines, the retainer clips inside the connectors may be damaged. If this is the case, you will need to leave the retainer clips on the replacement lines

If the retainer clips remain inside the connector undamaged during removal of the OEM lines, you will not require the retainer clips provided on the replacement lines. The retainer clips will need to be removed before plugging into the connector

SKU: FL441-D5D
Box Dimensions 39" x 11" x 7"
Product Warranty 1 Year

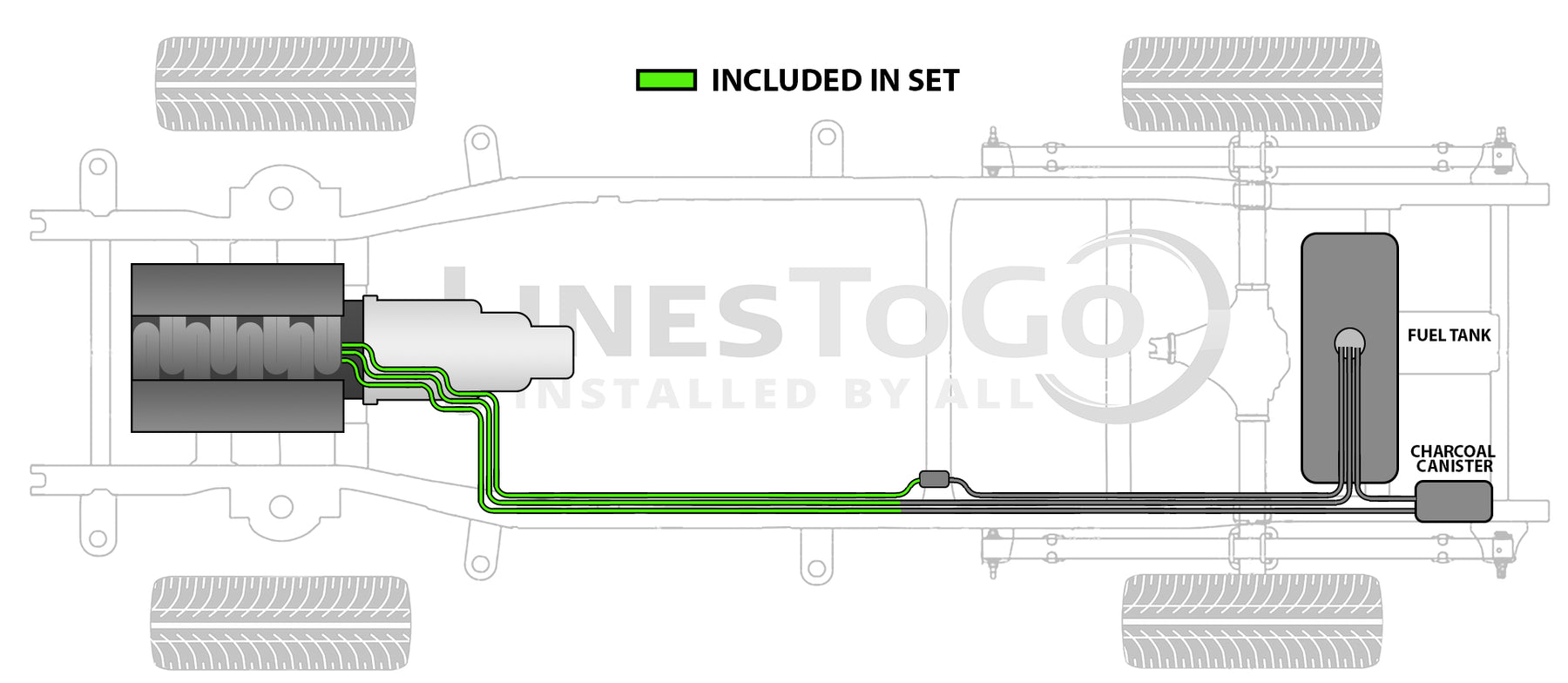

Engine to Fuel Filter

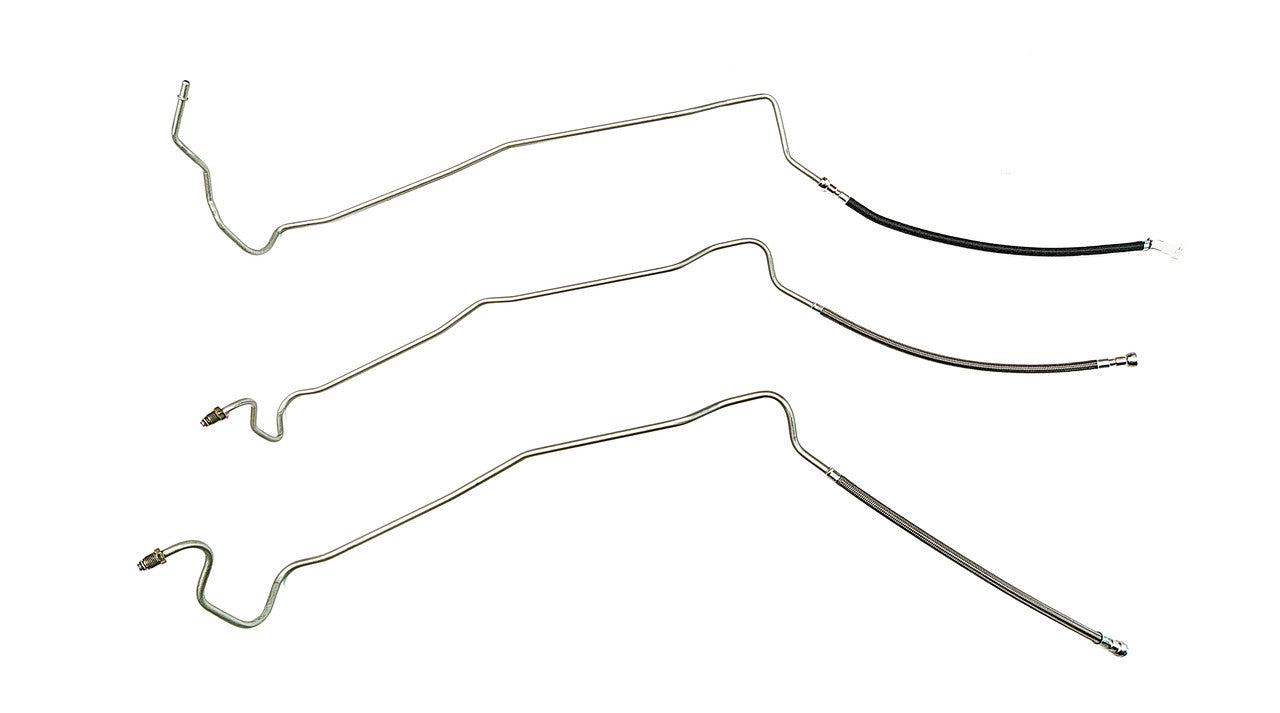

1 supply line 3/8", 1 return line 5/16", 1 vapor line 5/16" (Direct OEM Replacement)

15109105, 15109102, 15023819

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation

All hoses are made from Stainless Steel Braided Teflon with OE style fittings
