Oldsmobile 98 Brake Line Set 1994 3.8L BL259-SS4A Stainless Steel
w/ABS, w/Traction Control, w/RPO Codes L27, L36, L67
Oldsmobile 98 Brake Line Set 1994 3.8L BL259-SS4A Stainless Steel
w/ABS, w/Traction Control, w/RPO Codes L27, L36, L67
Delivery Time & Rates
Install this pre bent 1994 Oldsmobile 98 brake line set without a problem!

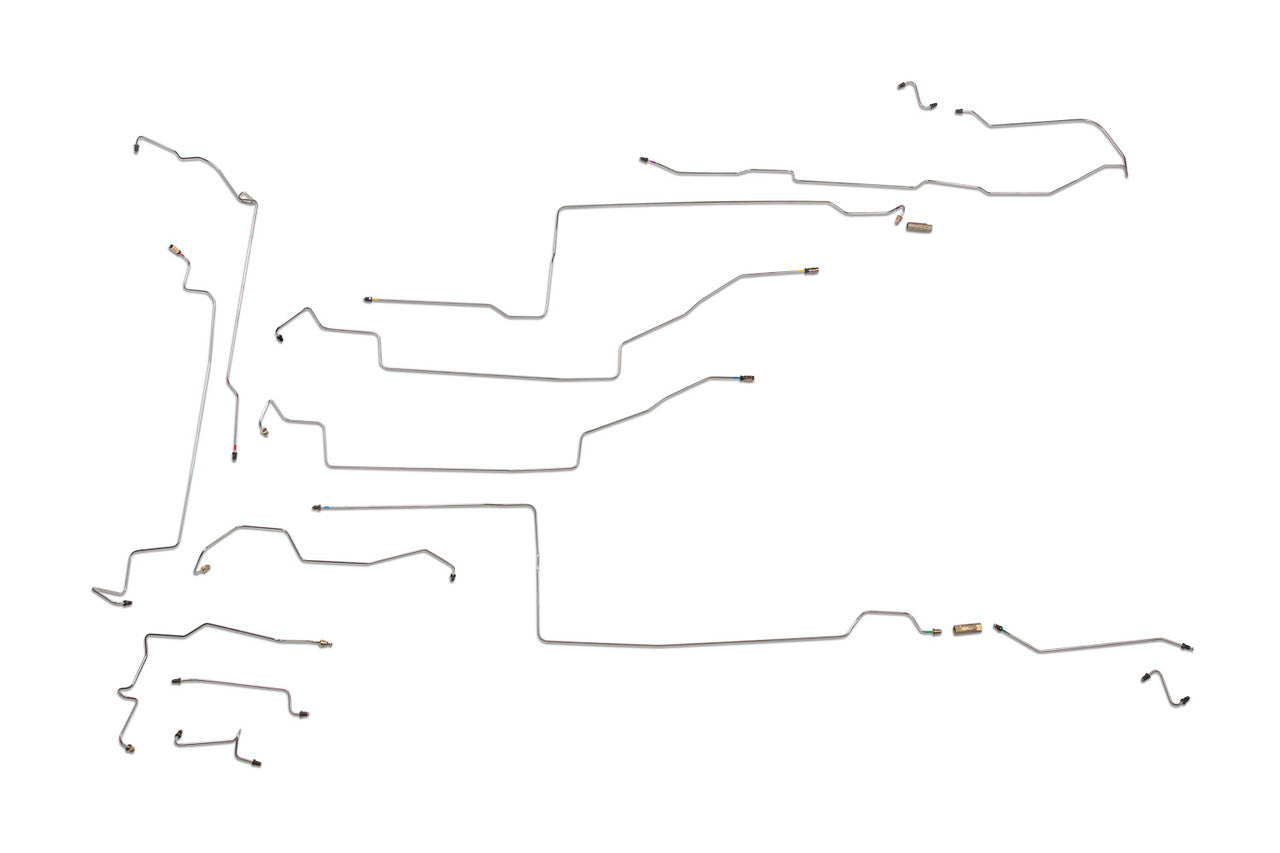

Stainless Steel Brake Line Set 1994 Oldsmobile 98 3.8L (RPO Codes L27, L36, L67) w/ABS, w/Traction Control
Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled BL259-06C-SS. See the video below on how to remove the shipping bend
Please Note: Lines Labeled BL259-06B-SS and BL259-06C-SS as well as BL259-05B-SS and BL259-05C-SS Do NOT include the two Check Valves shown on the installation instructions

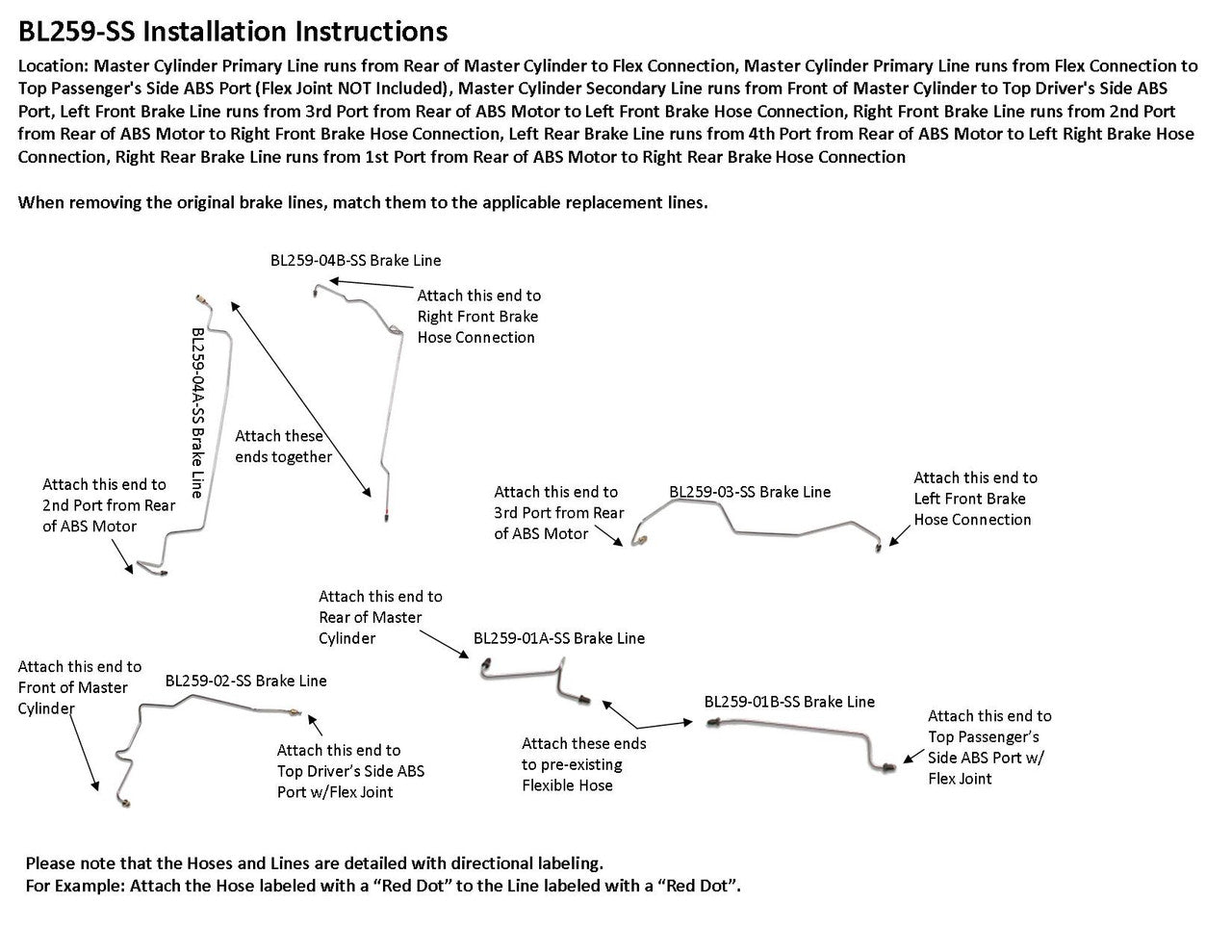

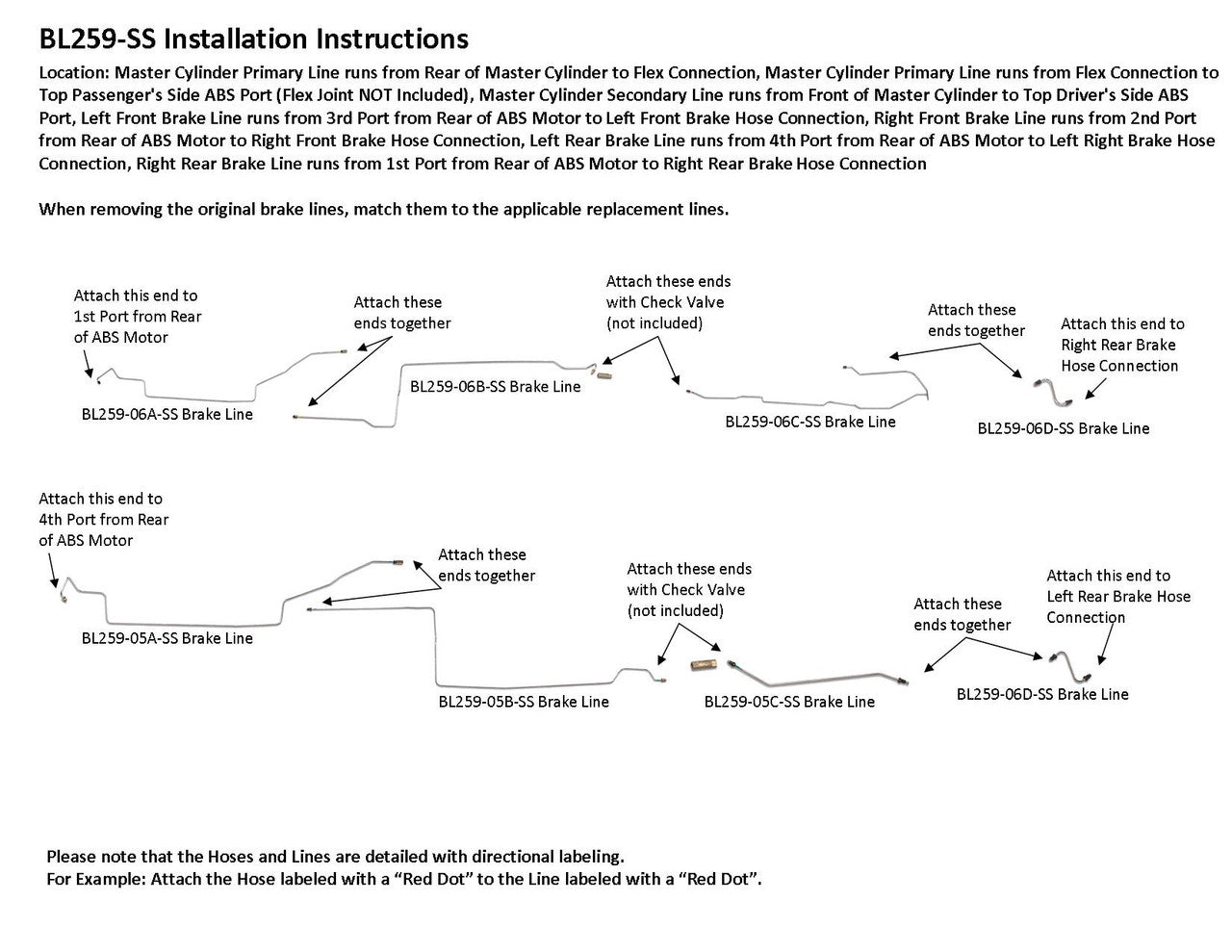

Master Cylinder Primary Line runs from Rear of Master Cylinder to Flex Connection, Master Cylinder Primary Line runs from Flex Connection to Top Passenger's Side ABS Port (Flex Joint NOT Included), Master Cylinder Secondary Line runs from Front of Master Cylinder to Top Driver's Side ABS Port, Left Front Brake Line runs from 3rd Port from Rear of ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from 2nd Port from Rear of ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from 4th Port from Rear of ABS Motor to Left Right Brake Hose Connection, Right Rear Brake Line runs from 1st Port from Rear of ABS Motor to Right Rear Brake Hose Connection
1 Master Cylinder Primary Line 3/16", 1 Master Cylinder Secondary Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16" (in 4 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
