Shop LinesToGo for 1996 240SX fuel lines for 2.4L

Nylon Line Attached to Vapor Line

The nylon line attached to the new vapor line is not a direct replacement. It is only a section of nylon line that will splice to the original nylon line on the vehicle.

On the opposite end of the original nylon line, there are connectors. These connectors may be damaged during removal. If so, we offer repair kits with new OEM connectors. These will, also, need to be spliced onto the original nylon line.

Nylon Repair Kits

3068-01 includes 2 – 5/16” Nylon Lines, 180° quick connectors

3069-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 180° quick connectors

3070-01 includes 2 - 3/8” Nylon Lines, 180° quick connectors

3071-01 includes 1 - 3/8” Nylon Line, 1 - 5/16” Nylon Line, 90° quick connectors

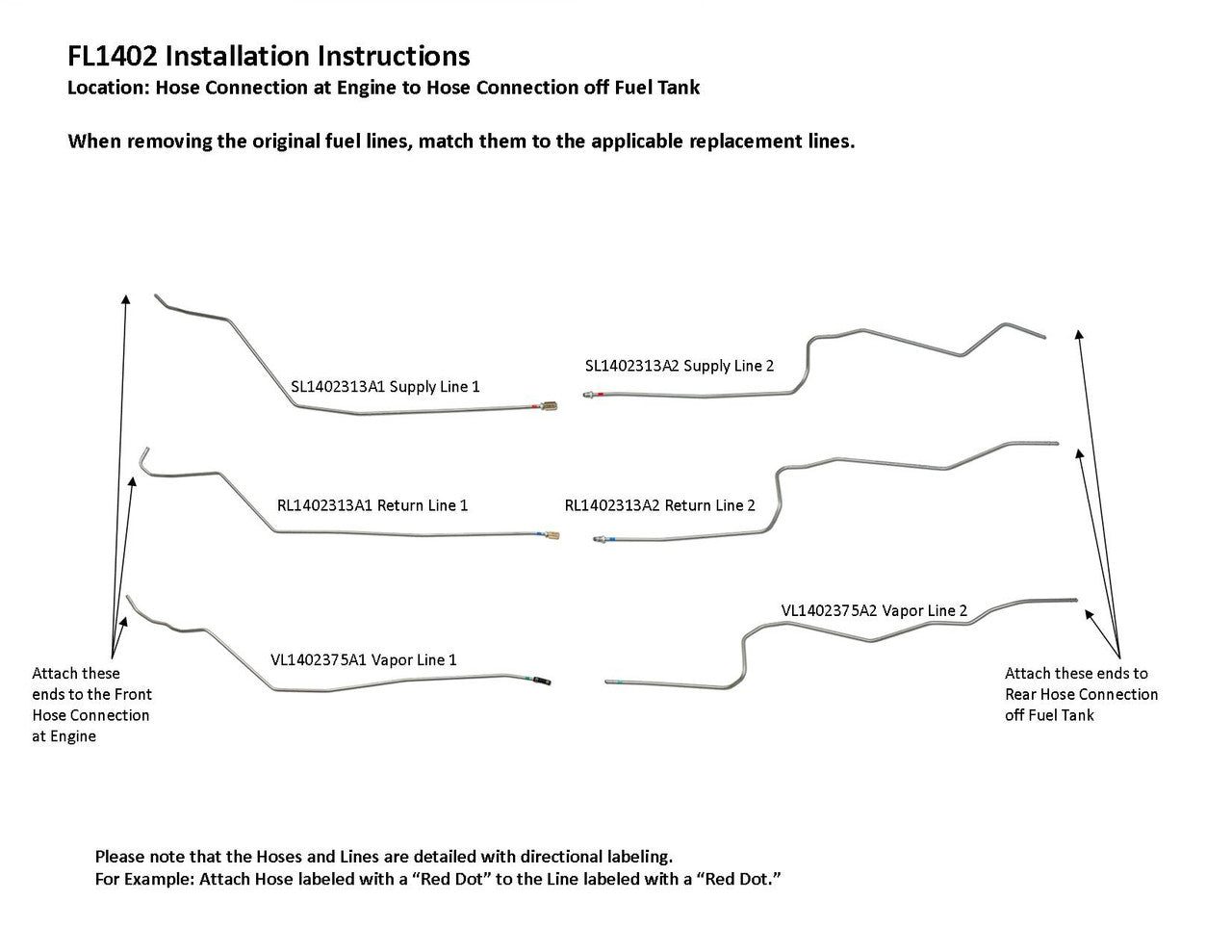

Nylon Installation Instructions:

Step 1

Cut the new nylon hose in the same position as the original nylon hose.

Step 2

Cut the original nylon hose in the same position as the new nylon hose.

Step 3

Use the original nylon hose with connector and attach it with supplied union to the new nylon hose.

SKU: FL1402-1B
  • Weight: 6
Box Dimensions 57" x 11" x 7"
Product Warranty 1 Year

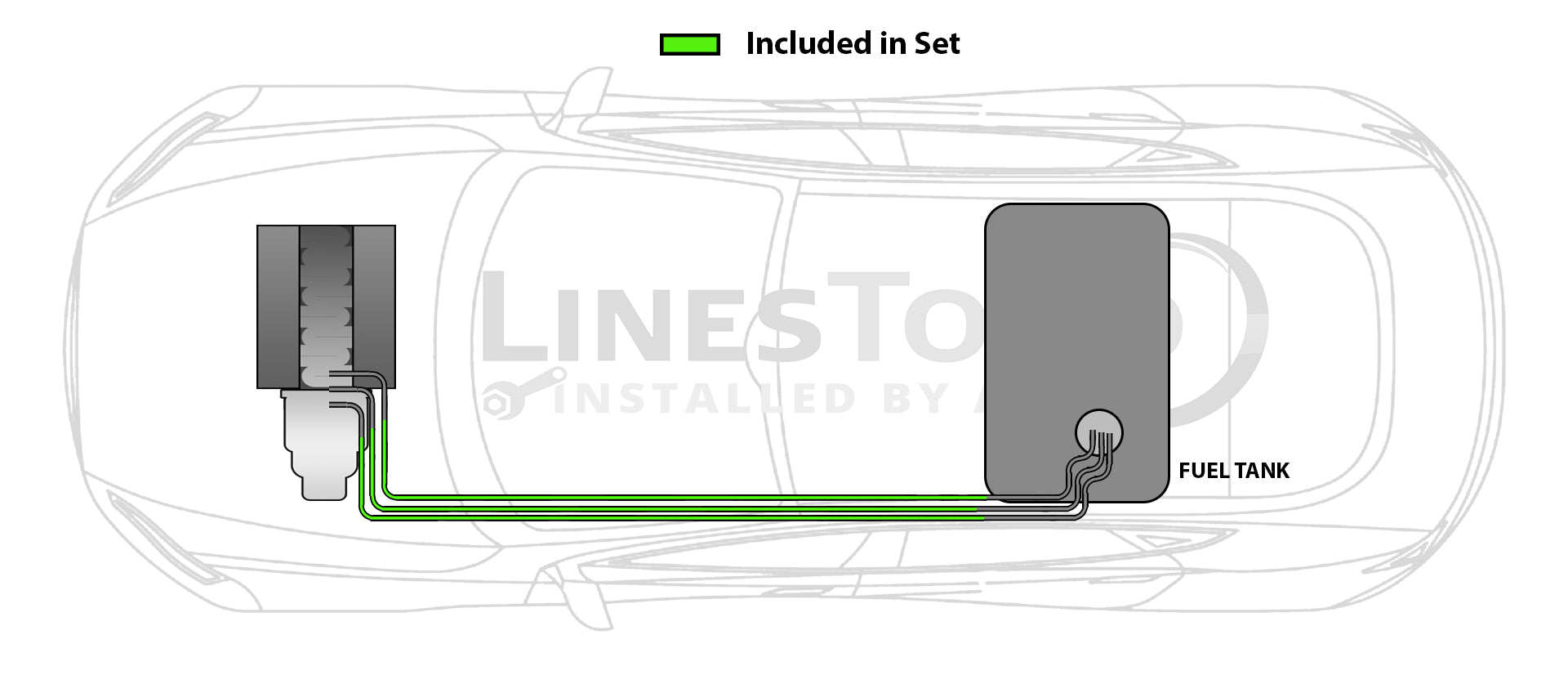

Hose Connection at Engine to Hose Connection off Fuel Tank

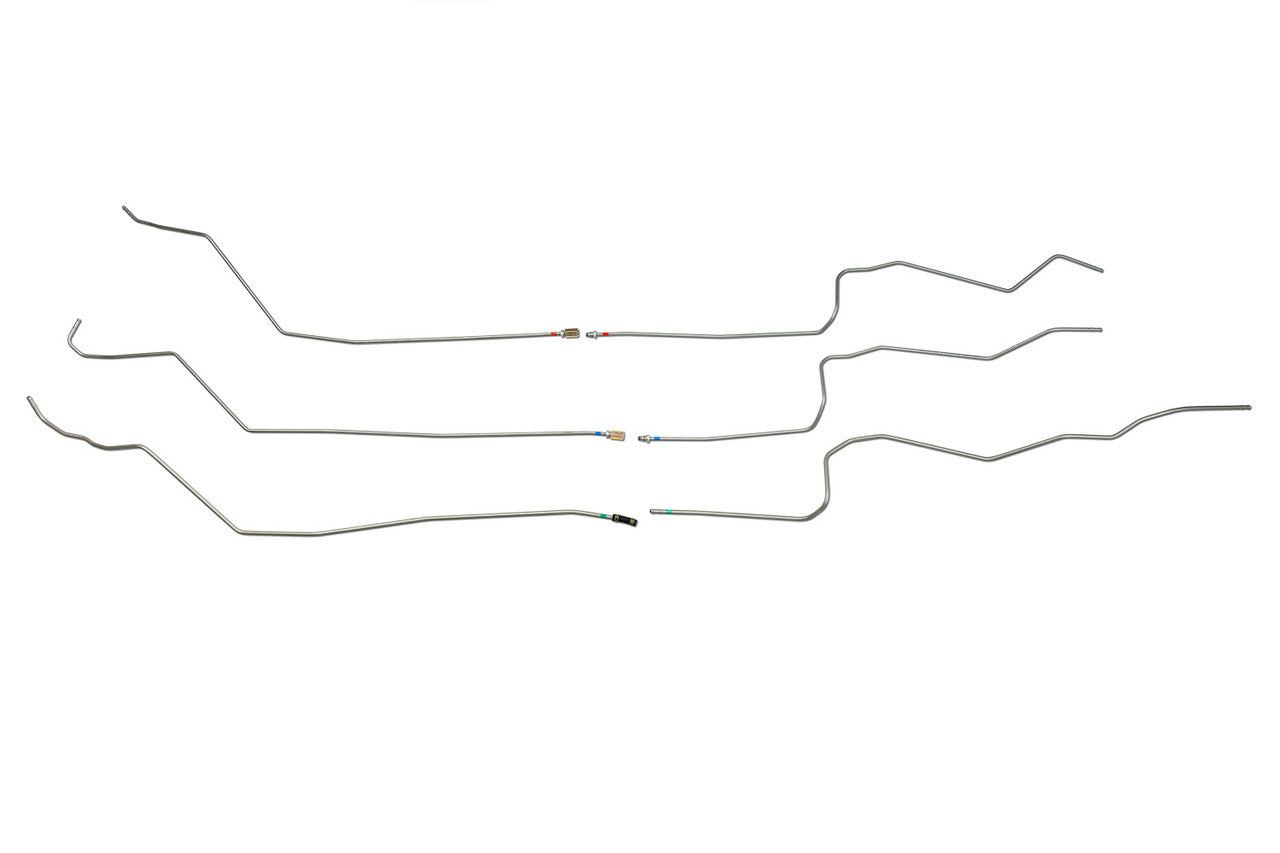

1 supply line 5/16" (in 2 easy to install sections), 1 return line 5/16" (in 2 easy to install sections), 1 vapor line 3/8" (in 2 easy to install sections), 2 unions

17506-70F00, 17510-70F00, 17338-72F00

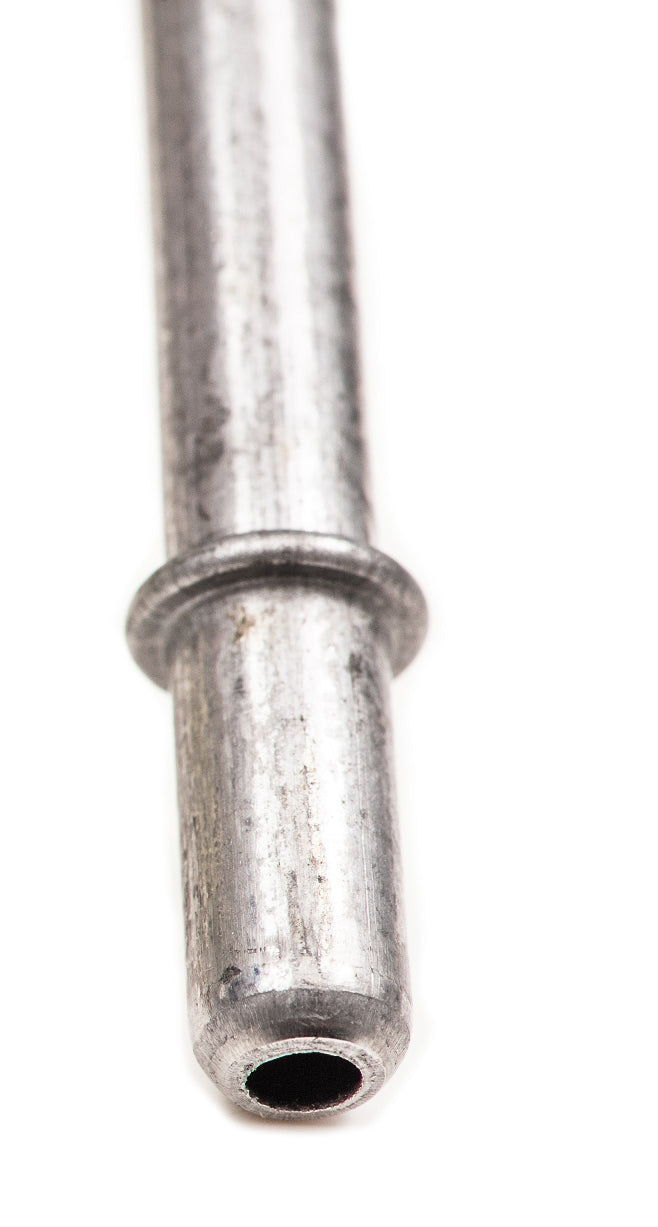

Lines are constructed from Galfan® coated steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
