Mercedes ML320 Brake Line Set 2001 3.2L BLMB-100-SS1B Stainless Steel

Model Code: W163

Mercedes ML320 Brake Line Set 2001 3.2L BLMB-100-SS1B Stainless Steel
Mercedes ML320 Brake Line Set 2001 3.2L BLMB-100-SS1B Stainless Steel

Mercedes ML320 Brake Line Set 2001 3.2L BLMB-100-SS1B Stainless Steel

Model Code: W163

SALE: from
from
Save $83.74
from /

Delivery Time & Rates

SKU: BLMB-100-SS1B

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Product Overview

Install this pre bent 2001 Mercedes ML320 brake line set in no time!

Brake Line Set Stainless Steel Mercedes ML320 (W163) for 3.2L engines.

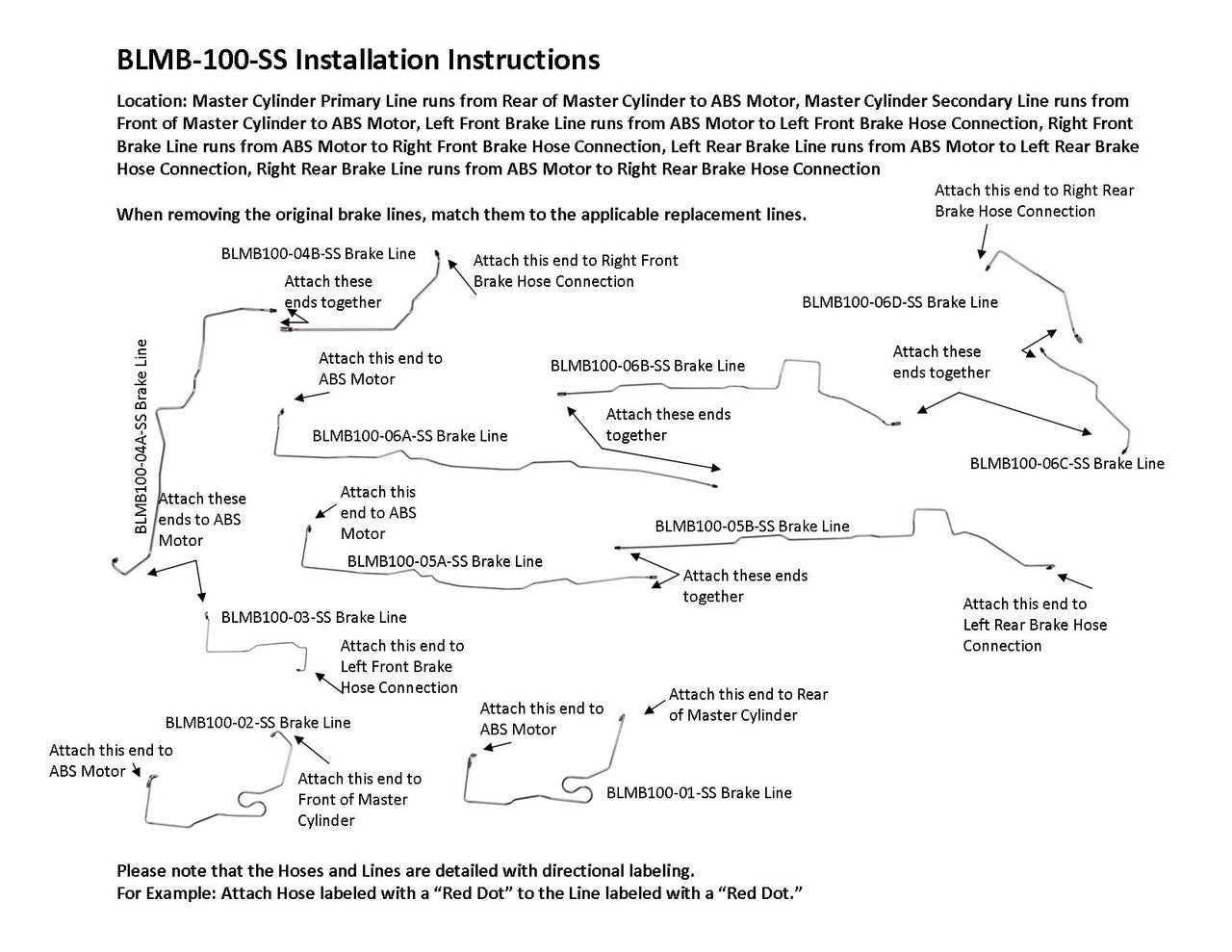

Location: Master Cylinder Primary Line runs from Rear of Master Cylinder to ABS Motor, Master Cylinder Secondary Line runs from Front of Master Cylinder to ABS Motor, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Left Rear Brake Line runs from ABS Motor to Left Rear Brake Hose Connection, Right Rear Brake Line runs from ABS Motor to Right Rear Brake Hose Connection

Please Note: Before installing your brake line, shipping bends will need to be removed from the lines labeled BLMB100-06A-SS and BLMB100-05B-SS. See the video below on how to remove the shipping bend.

OEM Numbers: A1634205926, A1634205826, A1634204726, A1634204626, A1634205026, A1634205126, A1634204526

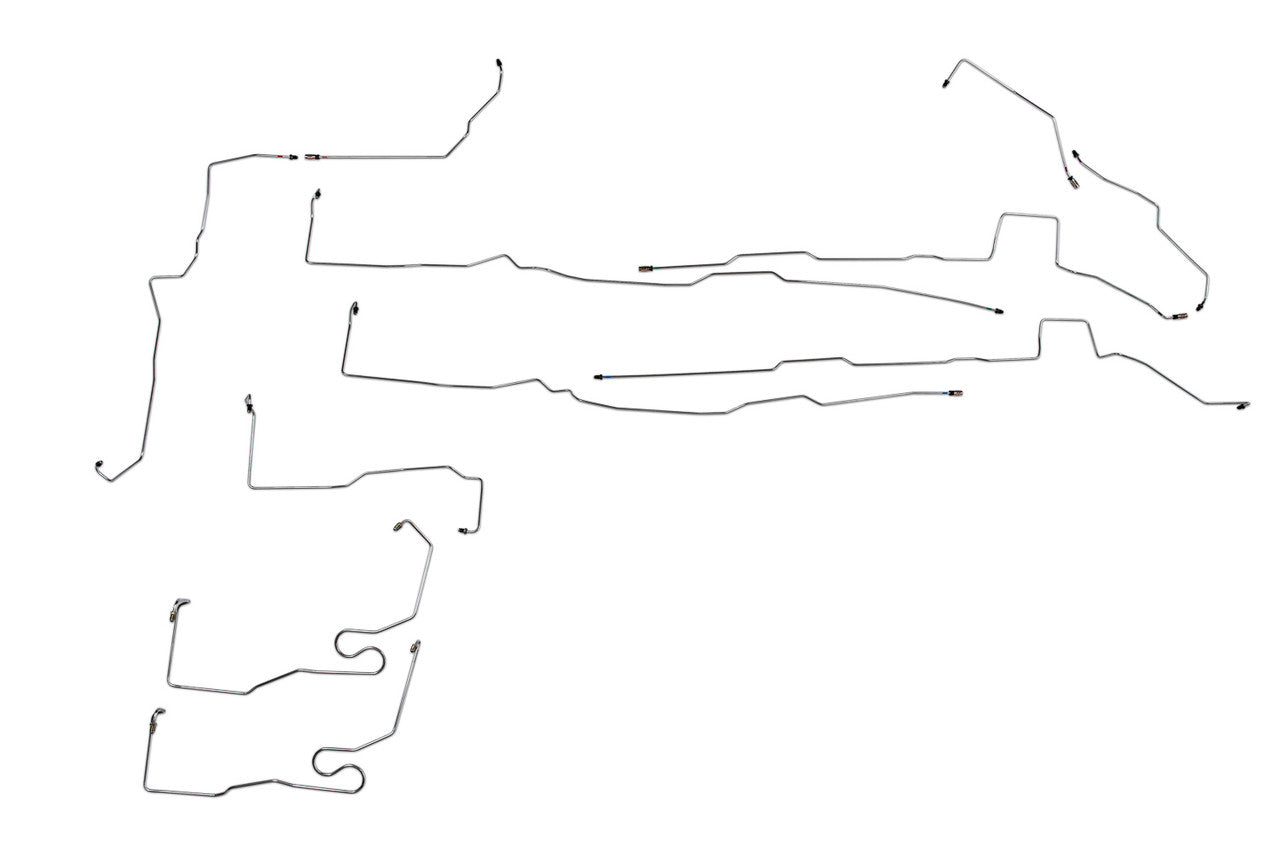

Included in Set: 1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Left Rear Brake Line 3/16" (in 2 easy to install sections), 1 Right Rear Brake Line 3/16" (in 4 easy to install sections), Does NOT include Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Warranty: 1 Year

Box Dimensions: 57" x 11" x 7"
