Jeep Wrangler Transmission Line Set 1993 2.5L TCL-183-SS1B Stainless Steel
w/3 SPD Transmission
Jeep Wrangler Transmission Line Set 1993 2.5L TCL-183-SS1B Stainless Steel
w/3 SPD Transmission
SALE:from $15895
from
from $19869
from
from
from
/
Delivery Time & Rates
Install this pre-bent 1993 transmission cooler line set in no time!
Transmission Cooler Line Jeep Wrangler 1993 w/3 SPD Transmission for 2.5L engines only!
SKU: TCL-183-SS1B
- Weight: 4

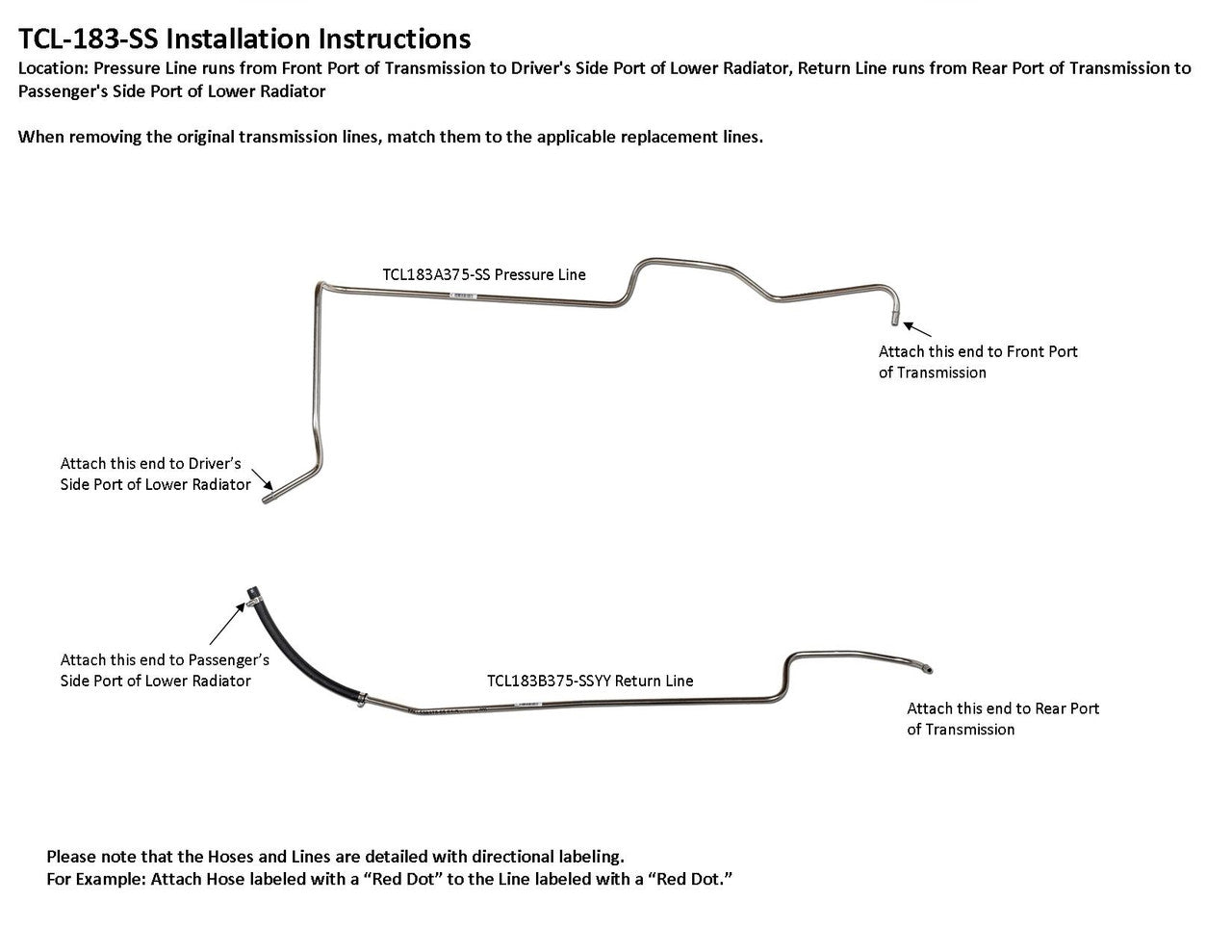

- Installation Instructions
Box Dimensions
46" x 11" x 7"

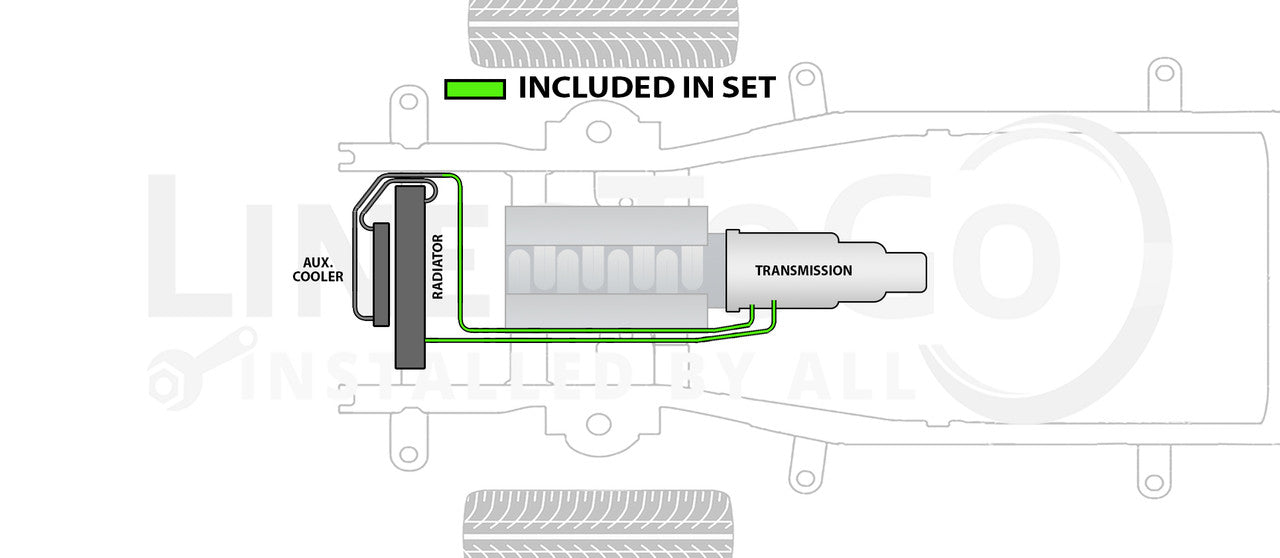

Pressure Line runs from Front Port of Transmission to Driver's Side Port of Lower Radiator, Return Line runs from Rear Port of Transmission to Passenger's Side Port of Lower Radiator

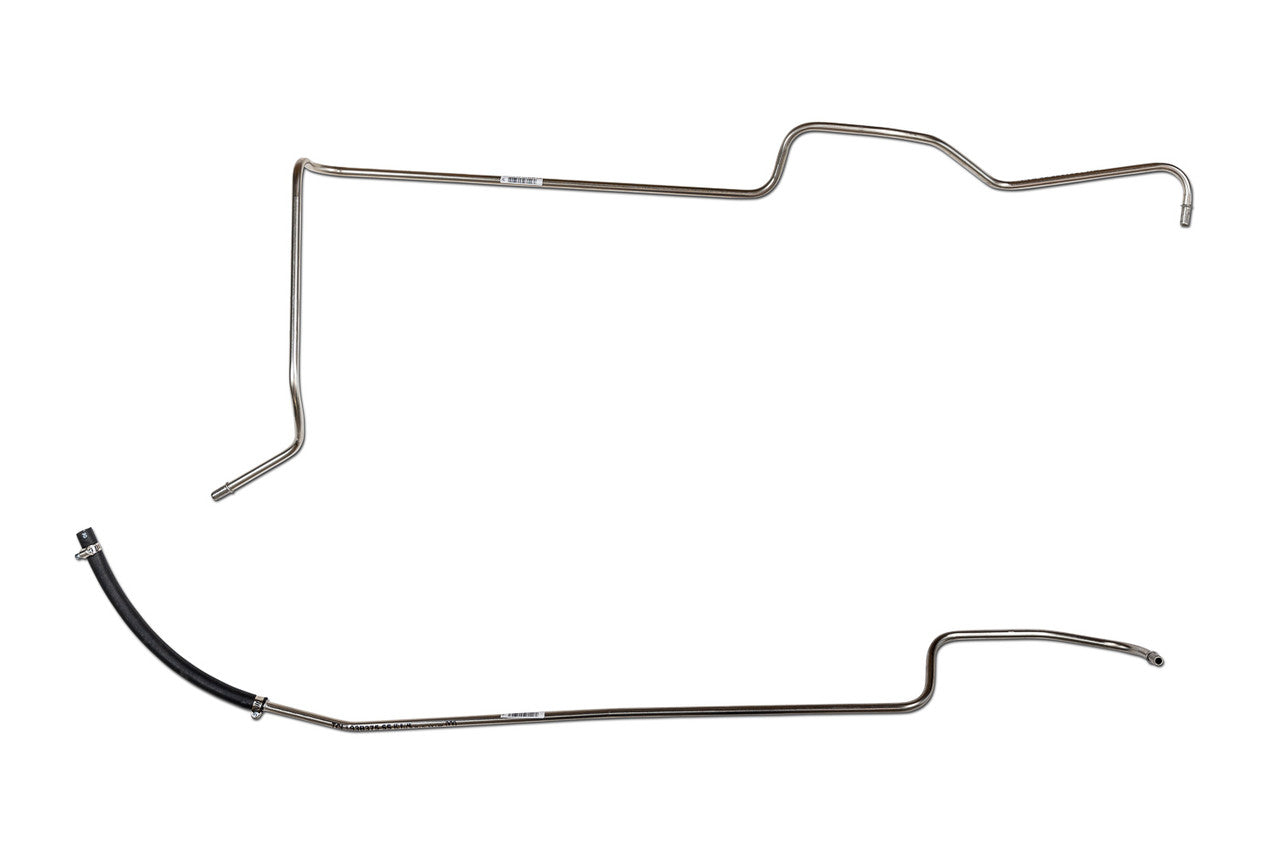

1 Pressure Line 3/8", 1 Return Line 3/8"
52117996, 52117895
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Hose meets or exceeds applicable SAE Specifications – SAE 100R6
