Jeep Wrangler EZ Install Transmission Line Set 2006 4.0L TCL-220-SS1B Stainless Steel

w/4 SPD Automatic (w/RPO Code DG6) w/Quick Connectors

Jeep Wrangler EZ Install Transmission Line Set 2006 4.0L TCL-220-SS1B Stainless Steel
Jeep Wrangler EZ Install Transmission Line Set 2006 4.0L TCL-220-SS1B Stainless Steel
Jeep Wrangler EZ Install Transmission Line Set 2006 4.0L TCL-220-SS1B Stainless Steel
Jeep Wrangler EZ Install Transmission Line Set 2006 4.0L TCL-220-SS1B Stainless Steel
Jeep Wrangler EZ Install Transmission Line Set 2006 4.0L TCL-220-SS1B Stainless Steel
Jeep Wrangler EZ Install Transmission Line Set 2006 4.0L TCL-220-SS1B Stainless Steel
Jeep Wrangler EZ Install Transmission Line Set 2006 4.0L TCL-220-SS1B Stainless Steel

Jeep Wrangler EZ Install Transmission Line Set 2006 4.0L TCL-220-SS1B Stainless Steel

w/4 SPD Automatic (w/RPO Code DG6) w/Quick Connectors

SALE: from
from
Save $52.24
from /
  • In stock, ready to ship
  • Inventory on the way

Delivery Time & Rates

Shipping calculated at checkout.

Install this pre-bent 2006 transmission cooler line set in no time!

Stainless Steel EZ Install Transmission Line Set 2006 Jeep Wrangler w/4 SPD Automatic (w/RPO Code DG6) w/Quick Connectors for 4.0L engines.

Please Note: Original equipment Jeep Wrangler Transmission Cooler Line Installation requires removal of the catalytic converters and exhaust. This LinesToGo Part has been redesigned to avoid this removal, making a difficult and time consuming job, a whole lot easier and faster. Labor savings is 1-2 hours.

Please Note: Vehicle Application determined to have two different types of Radiator Connections (Quick Connect or Barbed Style Fittings); both have been included in this set.

SKU: TCL-220-SS1B
Box Dimensions 46" x 12" x 7"

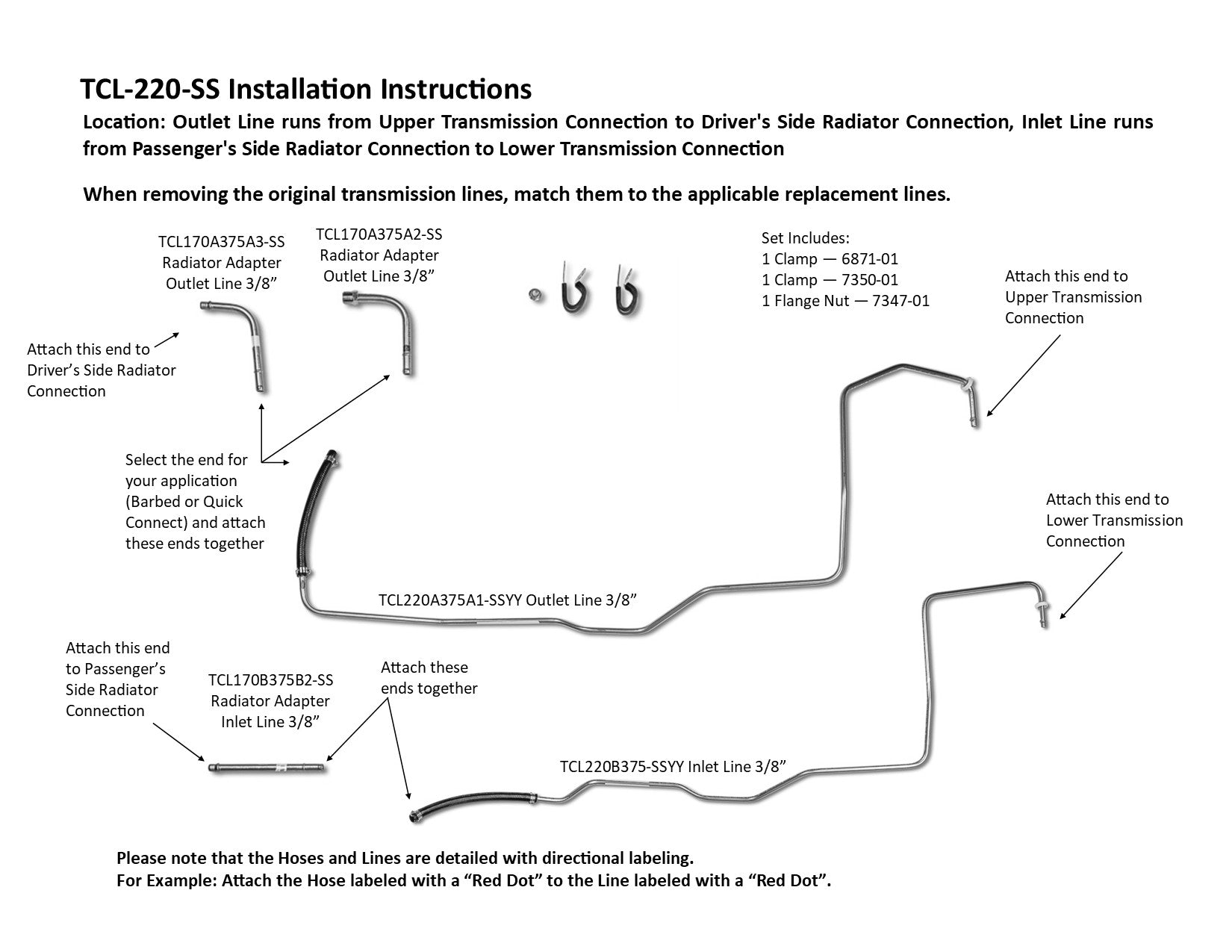

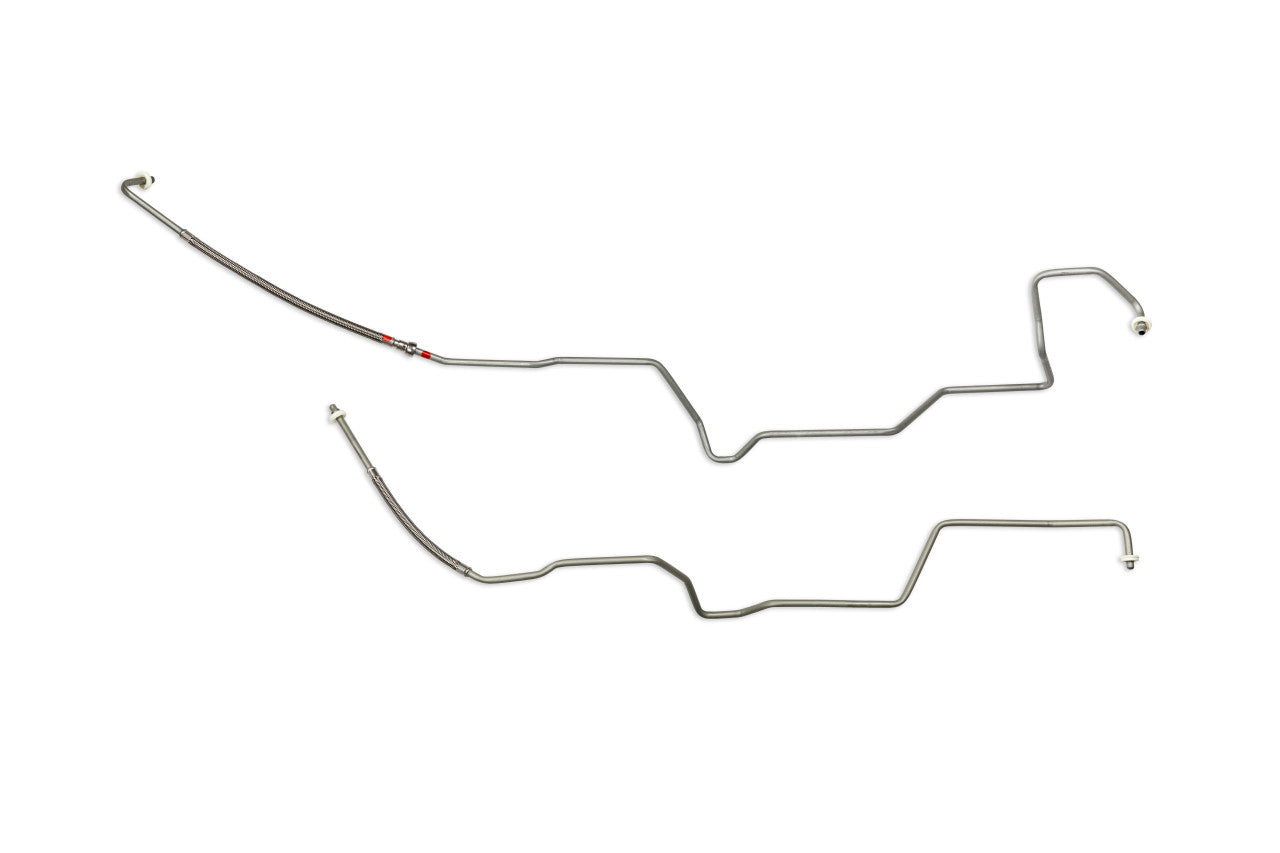

Outlet Line runs from Upper Transmission Connection to Driver's Side Radiator Connection, Inlet Line runs from Passenger's Side Radiator Connection to Lower Transmission Connection

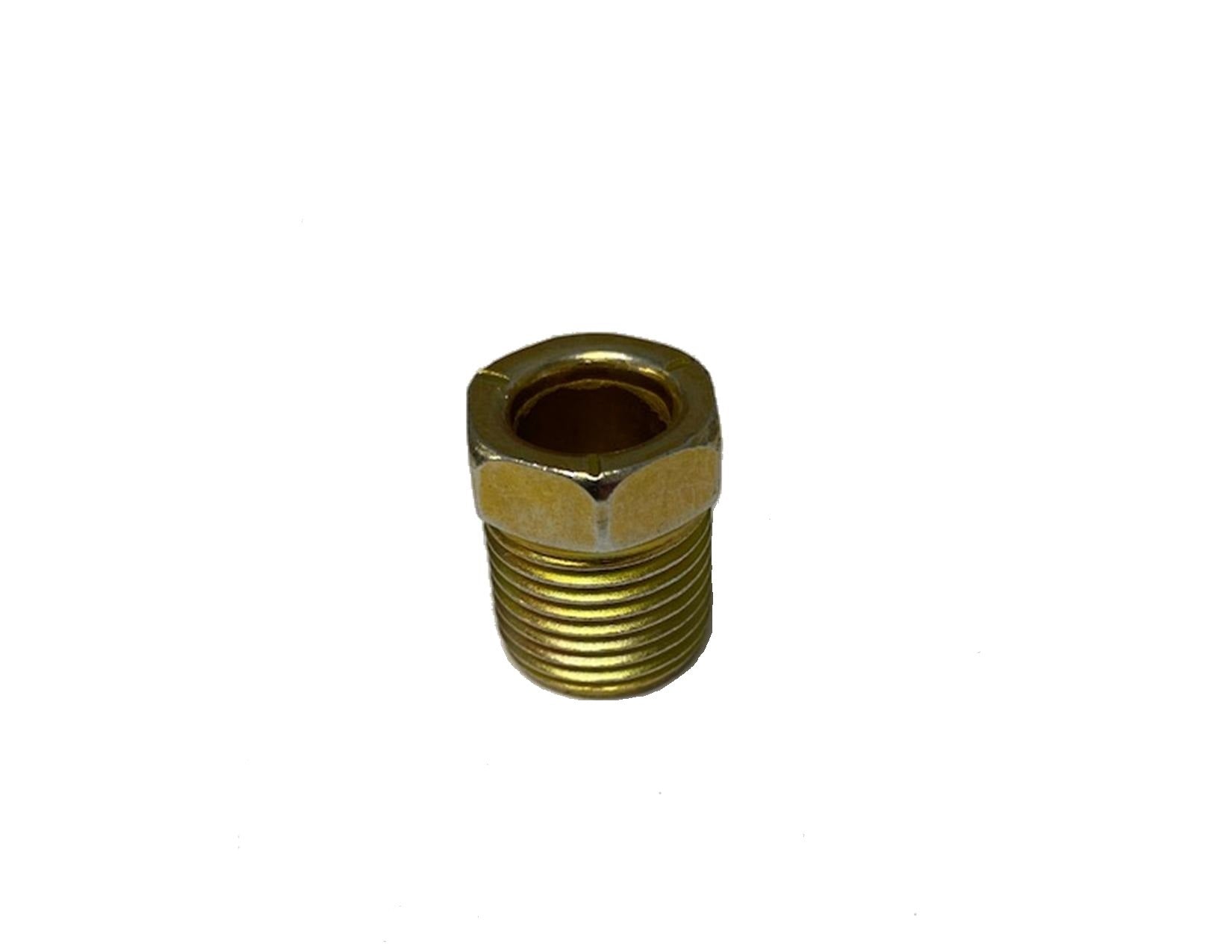

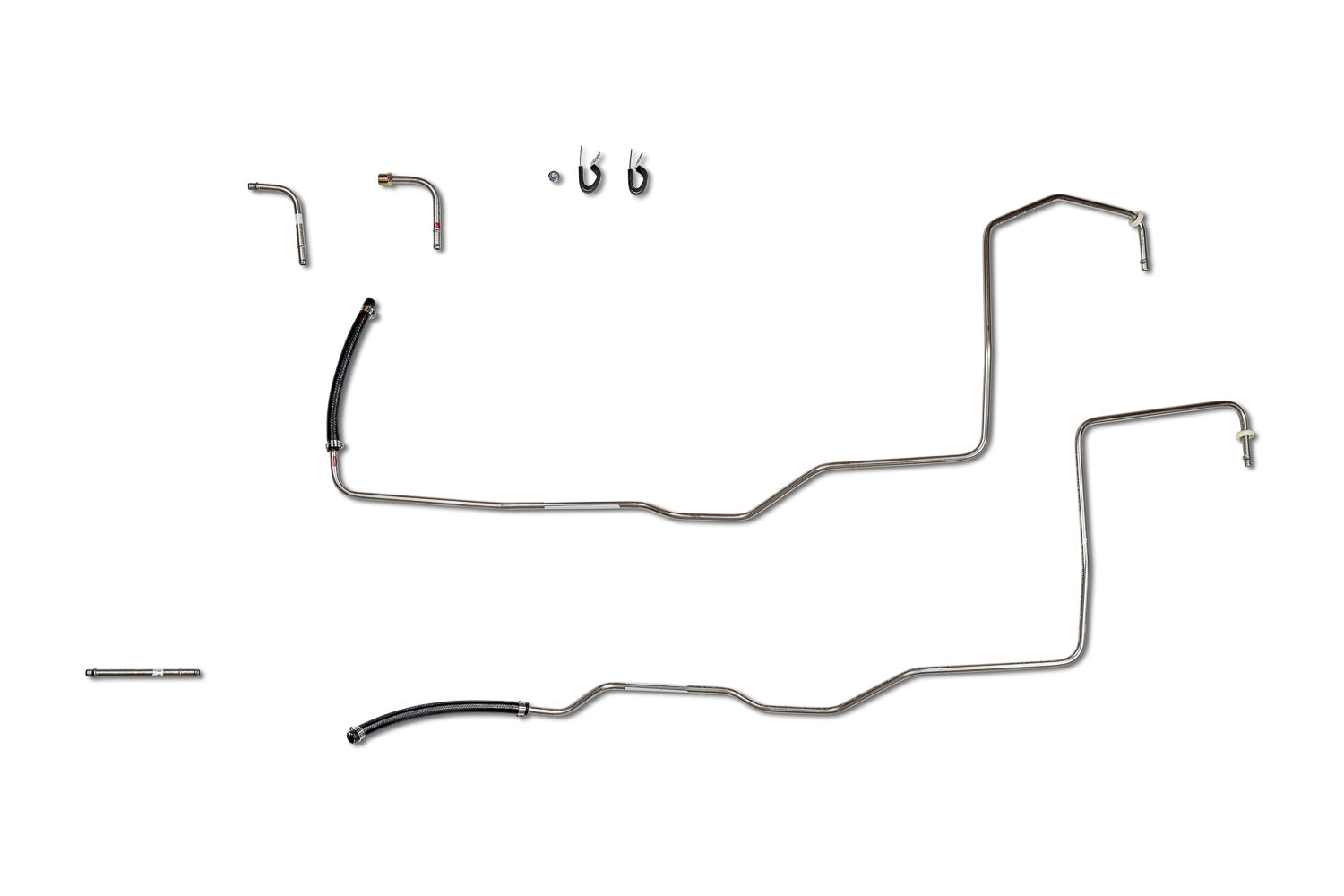

1 Inlet Line 3/8" (in 2 easy to install sections), 1 Outlet Line 3/8", 1 Radiator Adaptor Line 3/8" for Barbed Connection, 2 Radiator Adaptor Lines 3/8" for Quick Connections, 2 Rubber Insulated Clamps, 1 1/4" X20 Flange Nut, 4 Assurance Caps

55037624AI

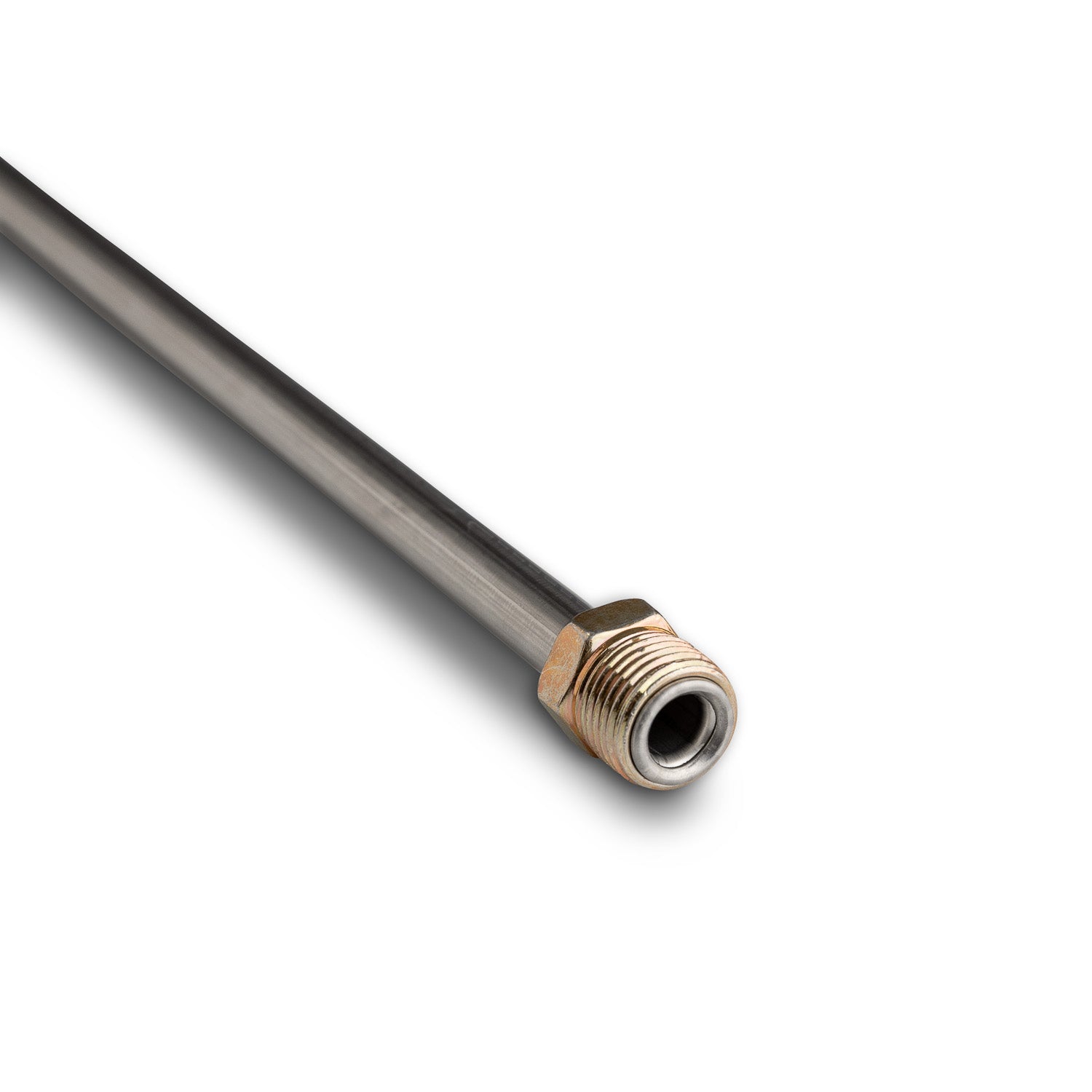

Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose meets or exceeds applicable SAE Specifications – SAE 100R6

Need Assistance? Call us toll free 1-855-781-5992

We'll make sure you're ordering the correct part and we can take your order for you too.

Overall rating: 4.0 / 5 from 3 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

"LTG stainless transmission cooler line set with two ptfe lined rubber hoses . The original lines run only down the Left side of the engine and require removing the catalytic converters to remove and install the original design cooler lines . These connect to transmission on the left side but route under the oil pan and then foward to the radiator on the wide open right side of the engine . No cat converter removal required . Just cut the leaking old lines in pieces and pull them out and install the new lines . Plus they cost less than the original lines do . These are the only ones I recommend to my customers."

Kerry (5/5)

Transmission cooler lines.

"Purchased these for 2006 wrangler 4. 0. Lines are of quality construction, however fit is not as advertised. My lower line had to ve bent because it would rub on front driveshaft ever time I hit a bump or brakes were applied. Instructions show supplied clamp that is suppose to secure lines on right side of oil pan stud. No such stud exists and even if it did lines fit so poorly along oil pan you could never attach supplied clamp"

Arthur C. (3/5)

Not really an “easy” install,

"Not really an “easy” install, if the vehicle is on jack stands. Having said that the tubing bends are accurate and the routing of lines is great, moved away from exhaust."

Raymond H. (4/5)
