Jeep Wrangler TJ Brake Line Set 2006 4.0L BLJ-105-SS3D Stainless Steel

w/o ABS w/4 Wheel Disc Brakes, NOT for Wrangler LJ w/103.4" WB

Jeep Wrangler TJ Brake Line Set 2006 4.0L BLJ-105-SS3D Stainless Steel
Jeep Wrangler TJ Brake Line Set 2006 4.0L BLJ-105-SS3D Stainless Steel

Jeep Wrangler TJ Brake Line Set 2006 4.0L BLJ-105-SS3D Stainless Steel

w/o ABS w/4 Wheel Disc Brakes, NOT for Wrangler LJ w/103.4" WB

MSRP: from
SALE: from
Save $56.24
from /
Stainless steel

Delivery Time & Rates

Zip/Postal Code:
SKU: BLJ-105-SS3D
  • Weight: 6

Install this pre bent 2006 Wrangler brake line set in no time!

Brake Line Set Stainless Steel Jeep Wrangler TJ w/o ABS w/4 Wheel Disc Brakes for 4.0L engines. This application is NOT for Jeep Wrangler LJ w/103.4" WB.

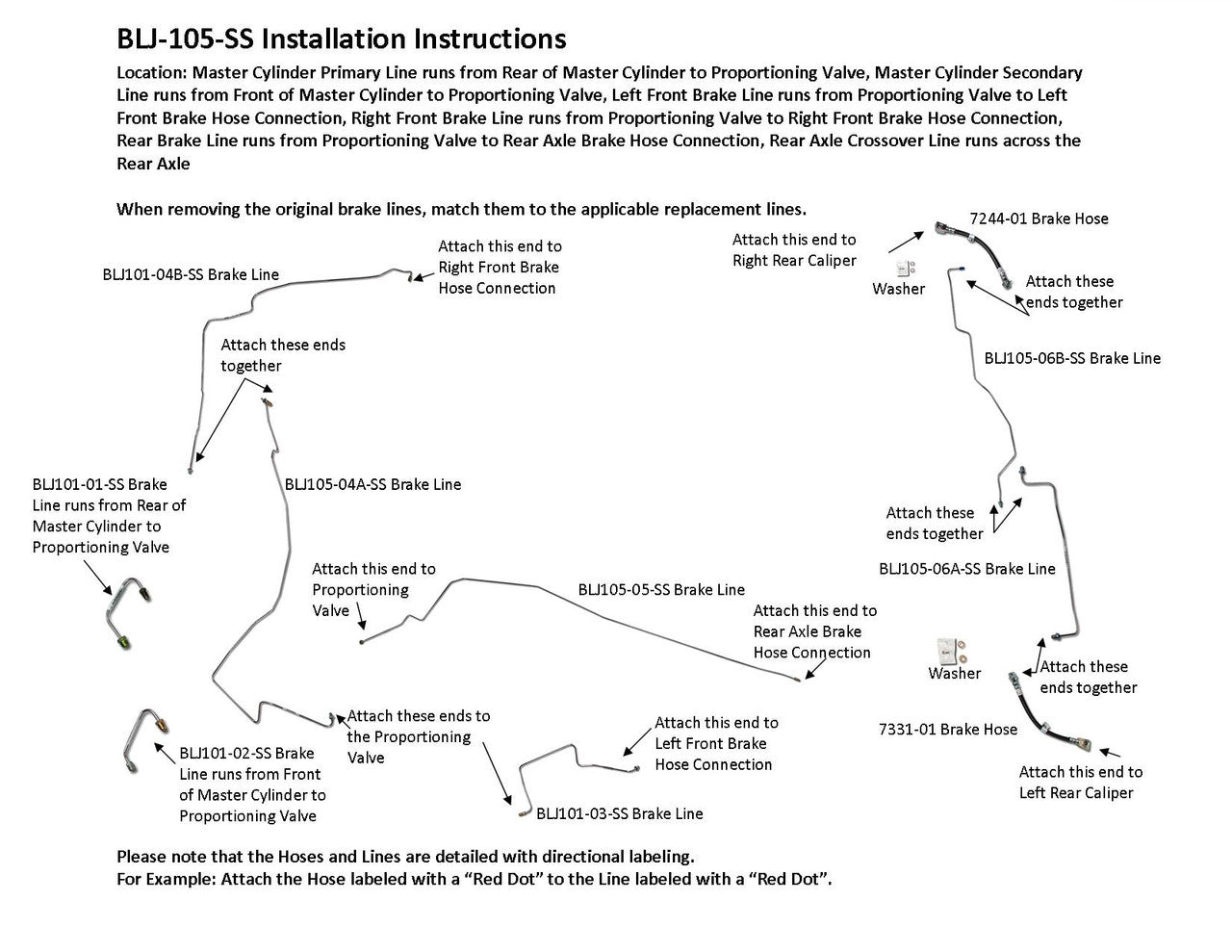

Location: Master Cylinder Primary Line runs from Rear of Master Cylinder to Proportioning Valve, Master Cylinder Secondary Line runs from Front of Master Cylinder to Proportioning Valve, Left Front Brake Line runs from Proportioning Valve to Left Front Brake Hose Connection, Right Front Brake Line runs from Proportioning Valve to Right Front Brake Hose Connection, Rear Brake Line runs from Proportioning Valve to Rear Axle Brake Hose Connection, Rear Axle Crossover Line runs across the Rear Axle

Please Note: Before installing your brake lines, a shipping bend will need to be removed from the lines labeled BLJ101-04B-SS and BLJ101-05-SS. See the video below on how to remove the shipping bend.

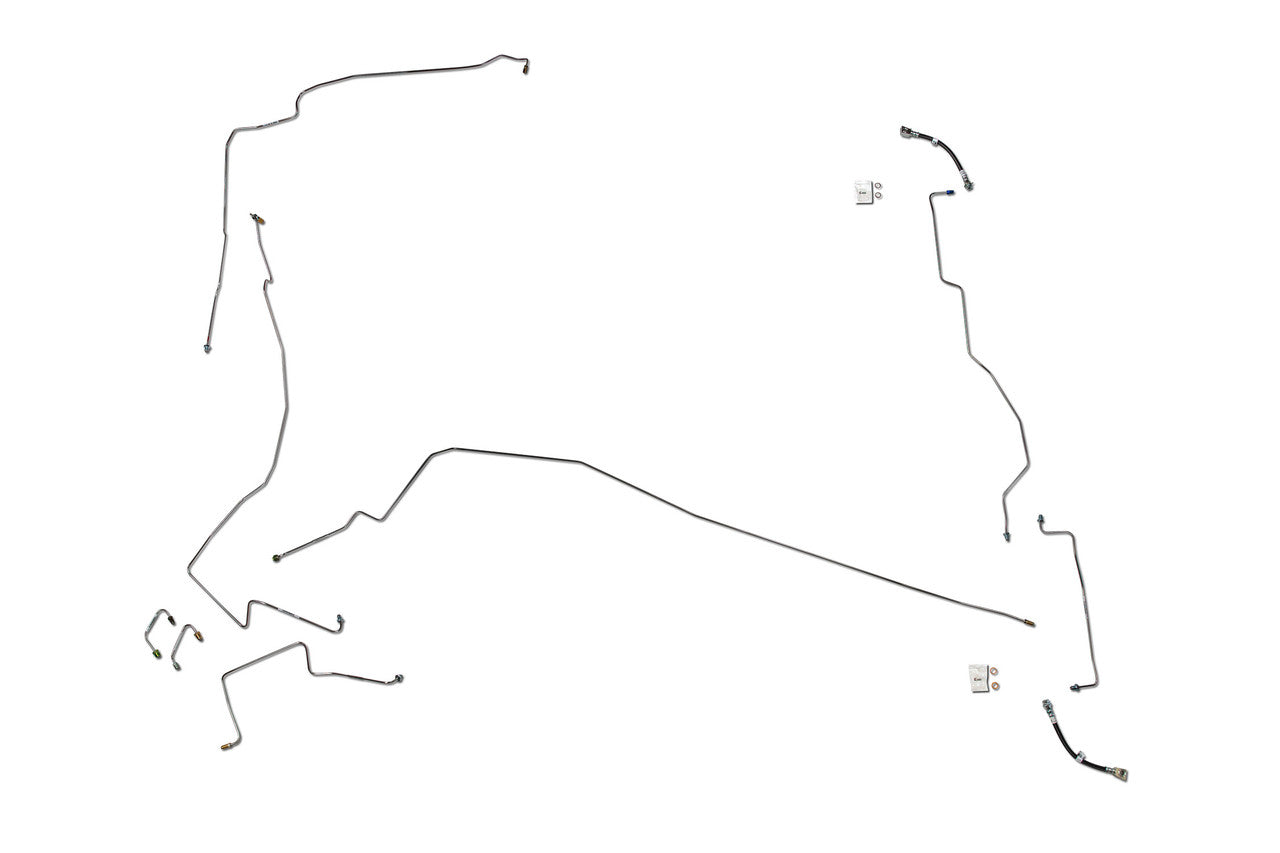

Included in Set: 1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Rear Brake Line 3/16" (in 2 easy to install sections), 1 Rear Axle Crossover Line (2 sections), 2 Brake Hoses for Rear Wheels Does NOT include Front Brake Hoses

Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.

Hose Construction: All hoses are made from EPDM Rubber with OE style fittings

Warranty: 1 Year

Box Dimensions: 47" x 12" x 7"

We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
