Install this pre bent 1999 Wrangler brake line set in no time!
Brake Line Set Stainless Steel Jeep Wrangler w/o ABS w/Rear Drum Brakes for 2.4L, 2.5L, and 4.0L engines.

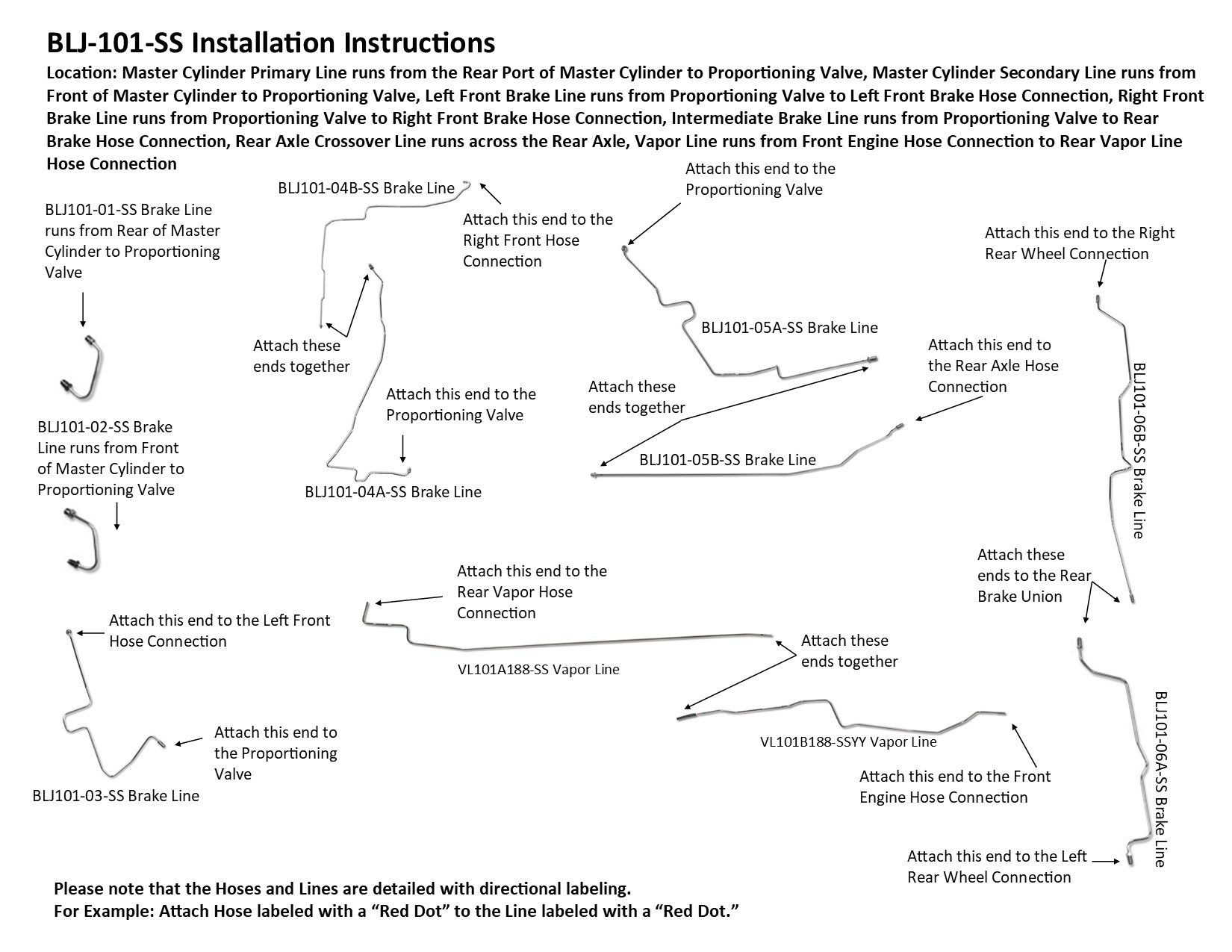

Location: Brake Lines: Master Cylinder Primary Line runs from the Rear Port of Master Cylinder to Proportioning Valve, Master Cylinder Secondary Line runs from Front of Master Cylinder to Proportioning Valve, Left Front Brake Line runs from Proportioning Valve to Left Front Brake Hose Connection, Right Front Brake Line runs from Proportioning Valve to Right Front Brake Hose Connection, Intermediate Brake Line runs from Proportioning Valve to Rear Brake Hose Connection, Rear Axle Crossover Line runs across the Rear Axle, Fuel Line: Vapor Line runs from Front Engine Hose Connection to Rear Vapor Line Hose Connection
Please Note: Before installing your brake lines, a shipping bend will need to be removed from the line labeled BLJ101-04B-SS. See the video below on how to remove the shipping bend.
OEM Part Numbers: 52008398, 52008399, 52008443, 52008442AC, 52008385, 52008403, 52008402, 52127601
Included in Set: 1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 3/16" (in 2 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), 1 Vapor Line 3/16" (in 2 easy to install sections), Does NOT include Brake Hoses.
Tube Construction: Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation.
Warranty: 1 Year
Box Dimensions: 46" x 11" x 7"
We want to hear from you! Call us toll free 1-855-781-5992. We'll make sure you're ordering the correct part and we can take your order for you too. Go on give us a call.
