Jeep Cherokee XJ Classic Brake Line Set 1994 2.5L, 4.0L BLJ-103-SS1B Stainless Steel
w/ABS Front Disc/Rear Drum
Jeep Cherokee XJ Classic Brake Line Set 1994 2.5L, 4.0L BLJ-103-SS1B Stainless Steel
w/ABS Front Disc/Rear Drum
Delivery Time & Rates
Install this pre bent 1994 Cherokee XJ Classic brake line set in no time!
Brake Line Set Stainless Steel Jeep Cherokee XJ Classic w/ABS Front Disc/Rear Drum for 2.5L and 4.0L engines
Please Note: Before installing your brake line, a shipping bend will need to be removed from the line labeled VL103188A2-SS. See the video below on how to remove the shipping bend
Please Note: Before installing your brake line, a shipping twist will need to be removed from the line labeled BLJ103-04A-SS. See the video below on how to remove the shipping twist

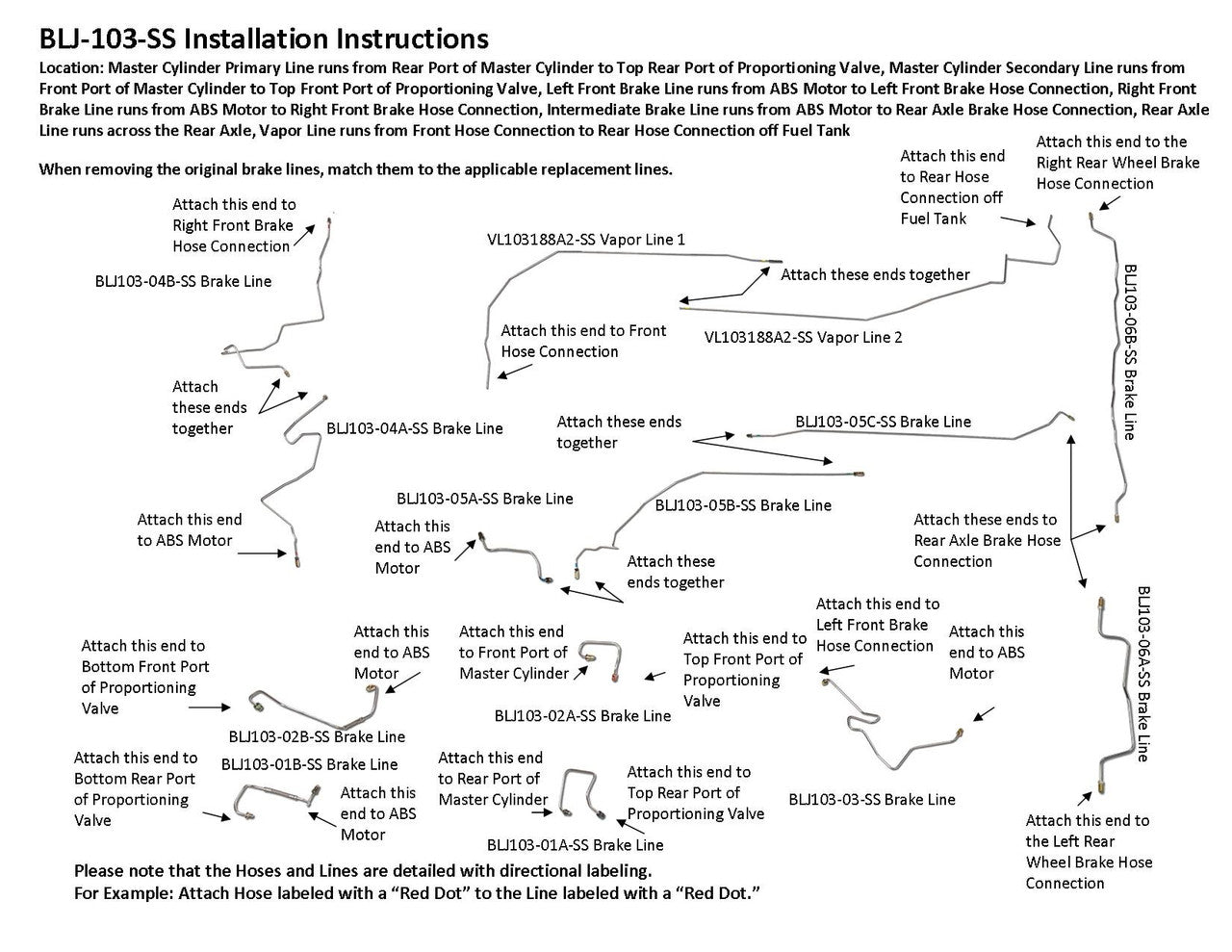

Master Cylinder Primary Line runs from Rear Port of Master Cylinder to Top Rear Port of Proportioning Valve, Master Cylinder Secondary Line runs from Front Port of Master Cylinder to Top Front Port of Proportioning Valve, Left Front Brake Line runs from ABS Motor to Left Front Brake Hose Connection, Right Front Brake Line runs from ABS Motor to Right Front Brake Hose Connection, Intermediate Brake Line runs from ABS Motor to Rear Axle Brake Hose Connection, Rear Axle Line runs across the Rear Axle, Vapor Line runs from Front Hose Connection to Rear Hose Connection off Fuel Tank

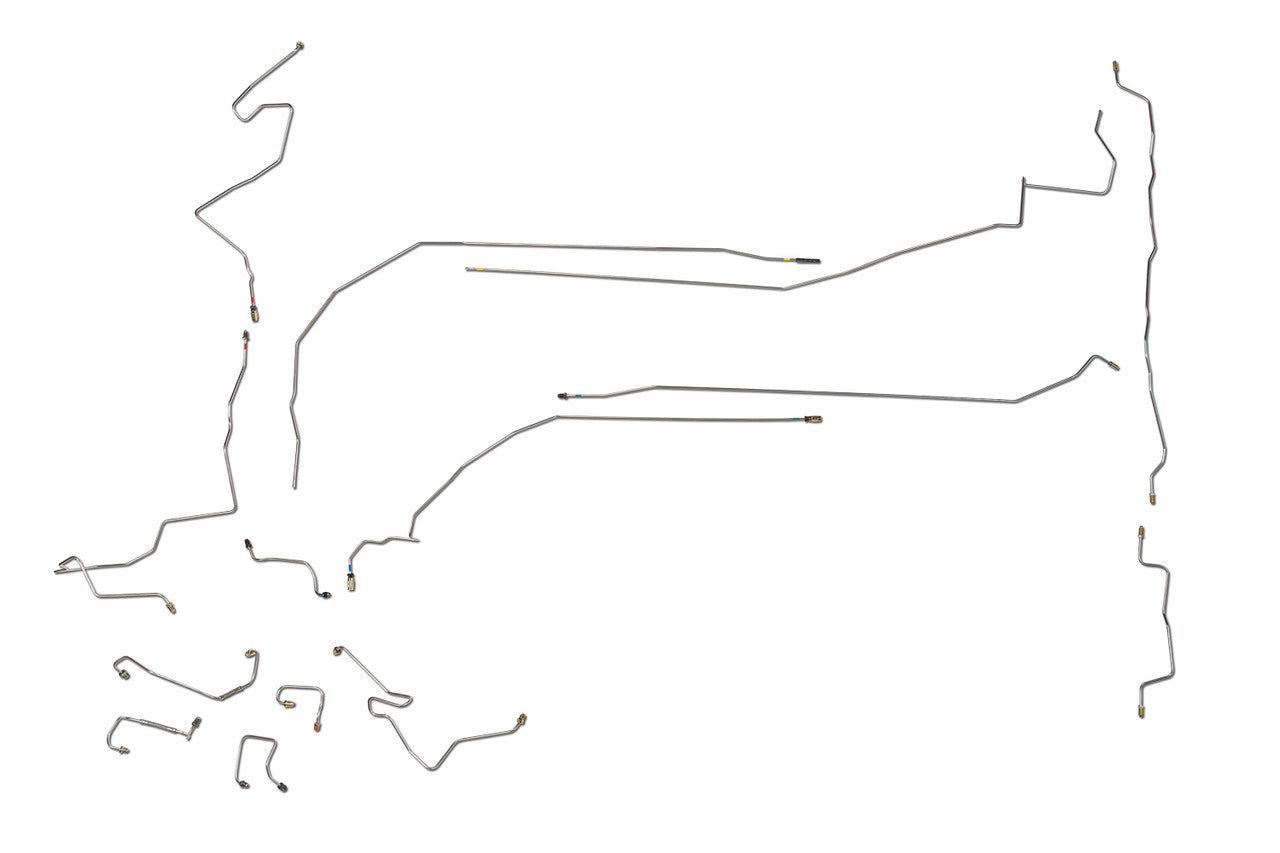

1 Master Cylinder Primary Brake Line 3/16", 1 Master Cylinder Secondary Brake Line 3/16", 1 Left Front Brake Line 3/16", 1 Right Front Brake Line 3/16" (in 2 easy to install sections), 1 Intermediate Brake Line 3/16" (in 3 easy to install sections), 1 Rear Axle Crossover Line 3/16" (2 sections), 1 Vapor Line 3/16" (in 2 easy to install sections), Does NOT include Brake Hoses
Lines are constructed from Stainless Steel tubing for rust protection with original equipment end forms and fittings and are CNC (Computer Numerically Controlled) bent for an easy precise installation
